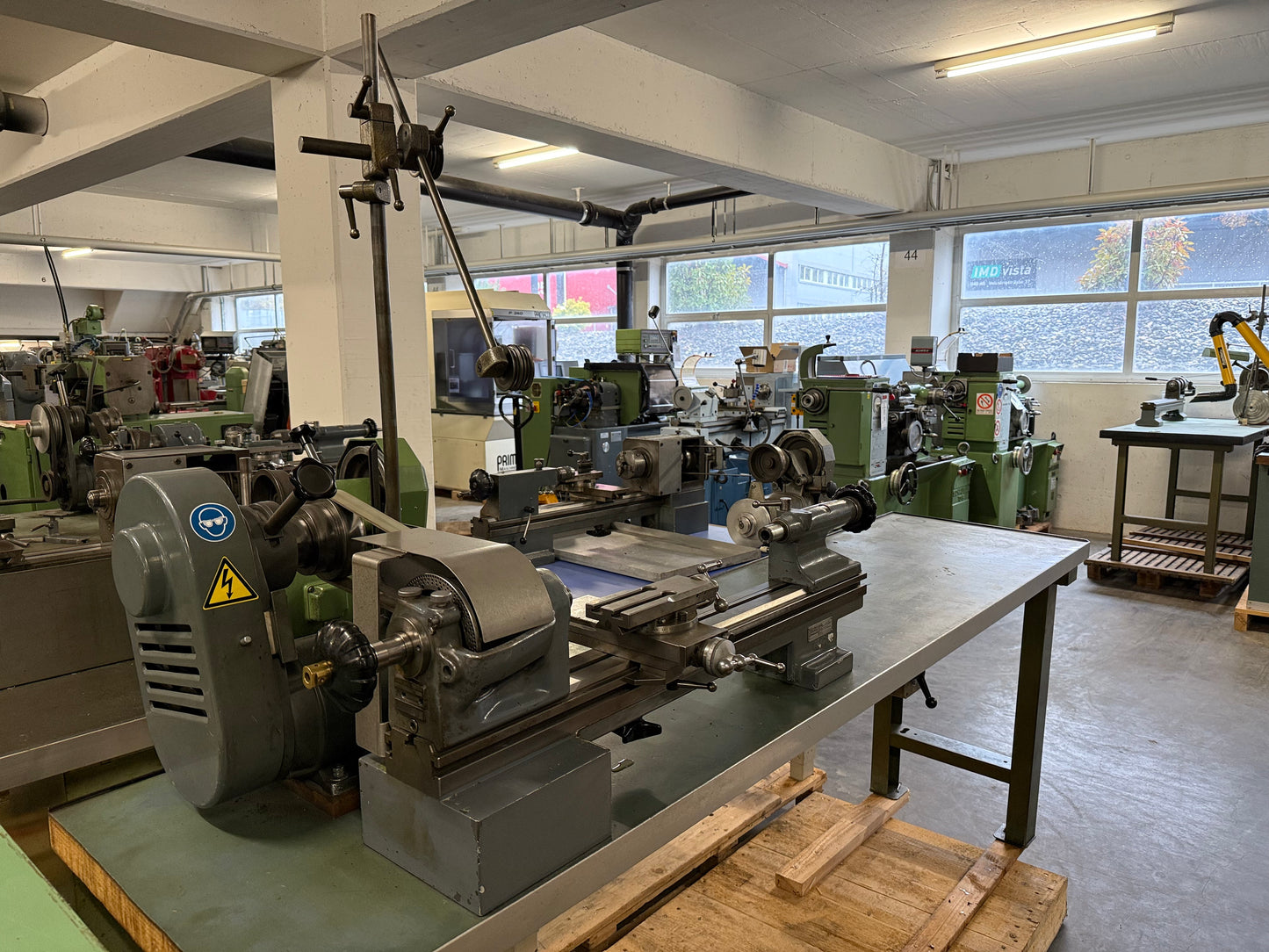

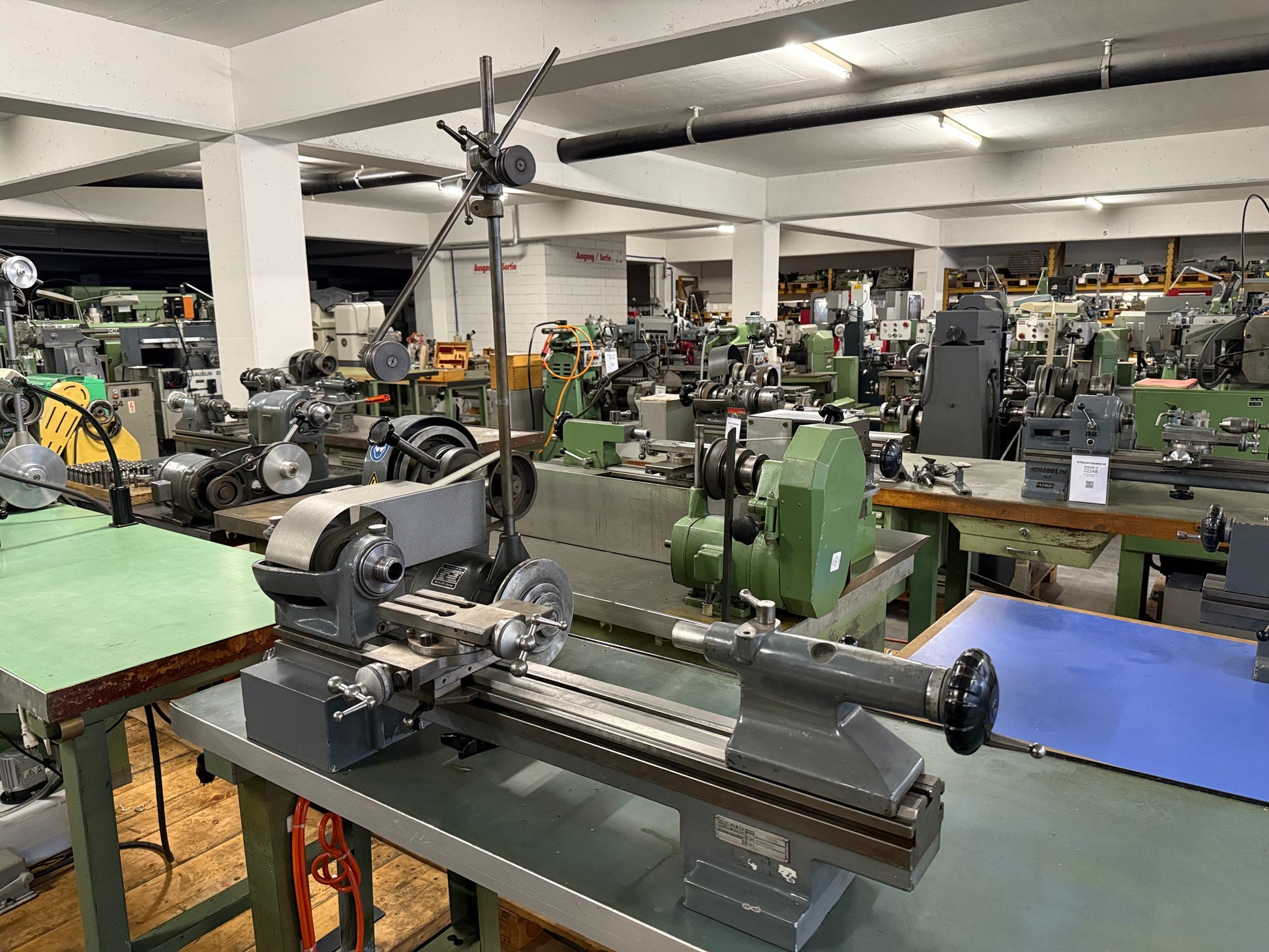

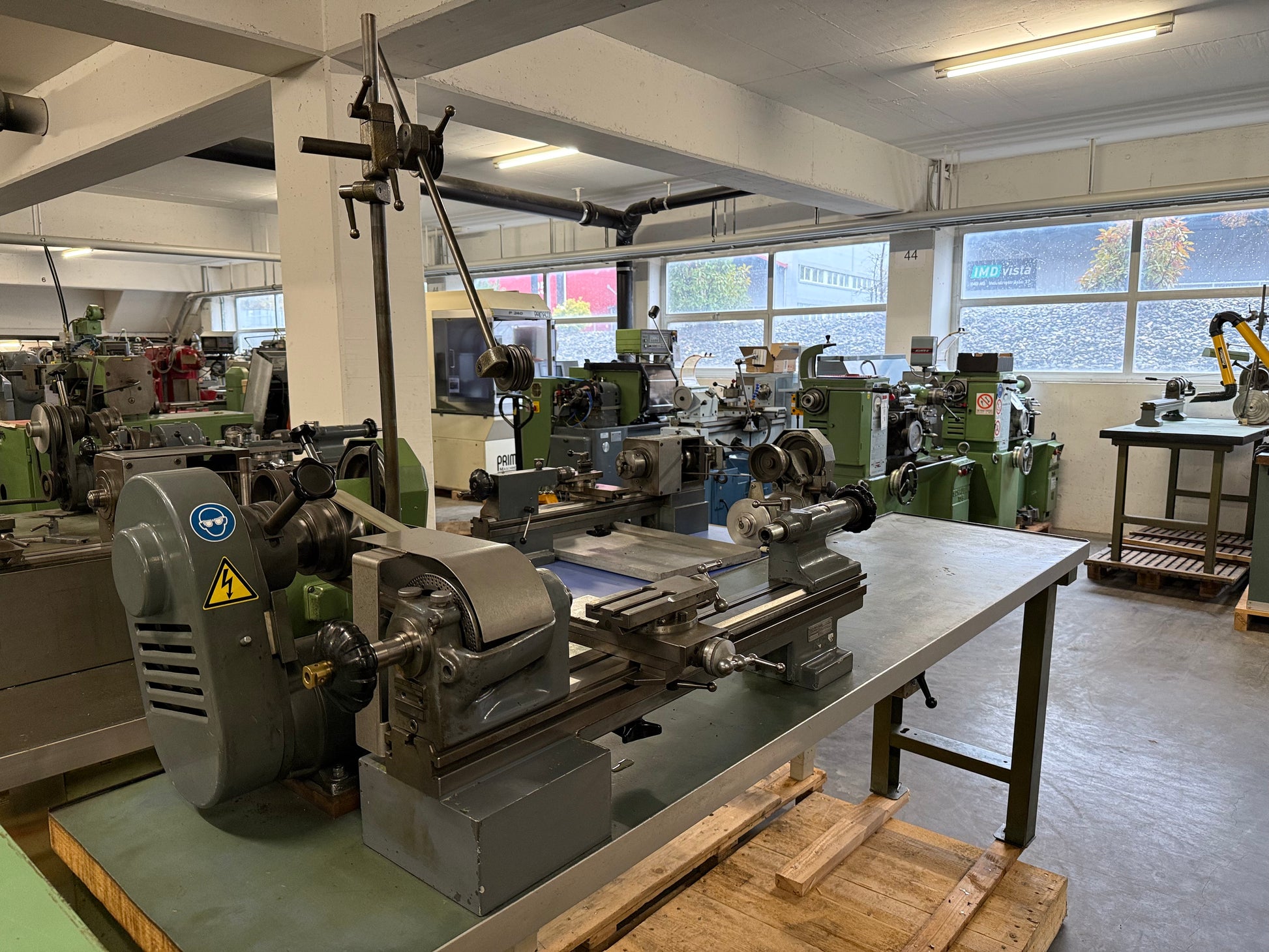

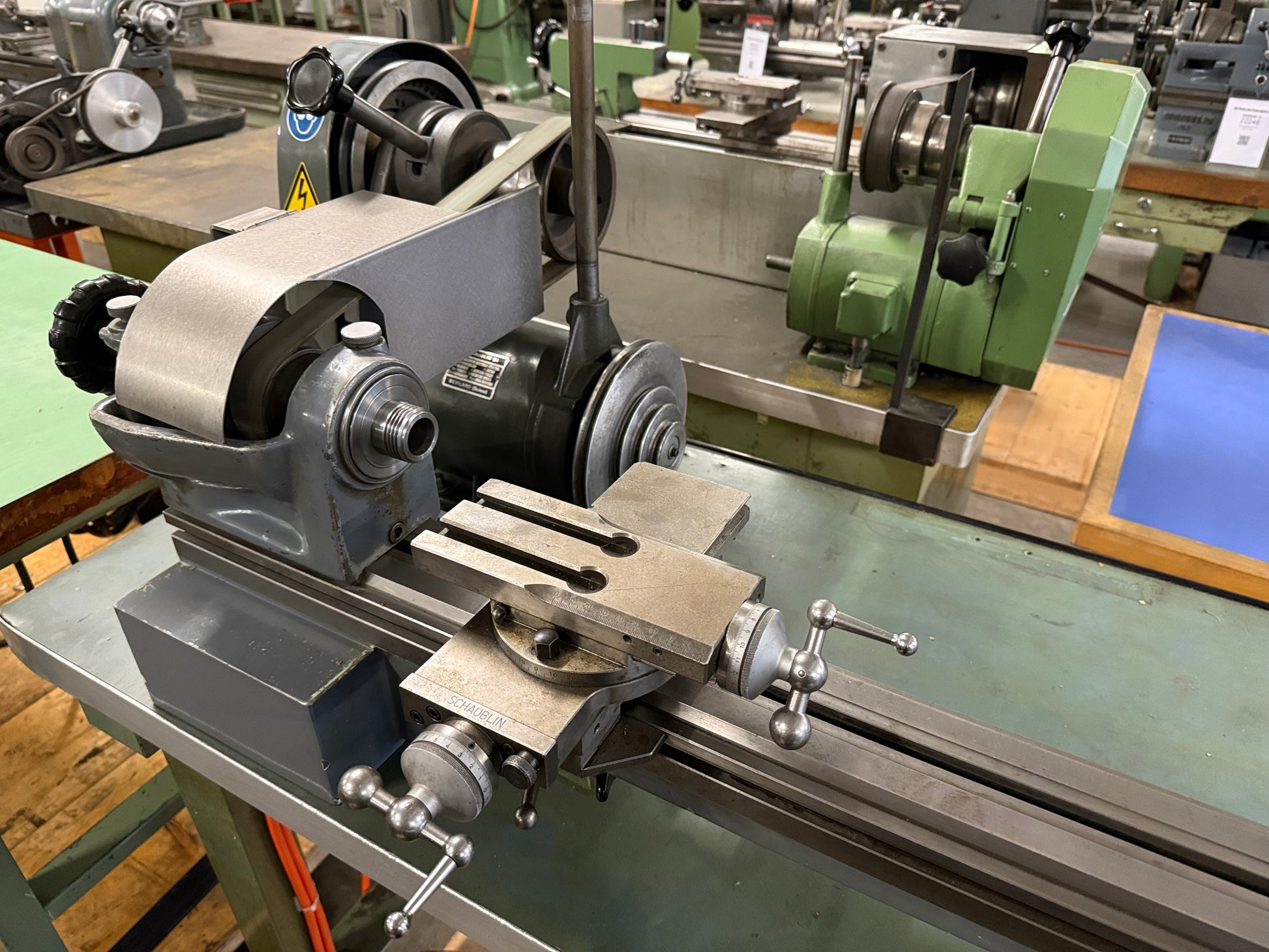

SCHAUBLIN 102 N is a Toolmakers lathe designed for precision work, delivering high accuracy and reliability. Working capacities: centre height 102 mm, distance between centres 375 mm, swing over cross‑slide 120 mm, swing over bed 200 mm. Main technical specifications: spindle speeds from 45 to 3100 t/min, spindle motor 0.5 / 0.9 kW, voltage 3x380 V 50 Hz, machine weight approx. 300 kg, overall dimensions L1000 x W800 x H1400 mm. Equipment: inner taper / collet type 20 W; working bench L2000 x W800 x H900 mm with 6 drawers. Enables tight tolerances; suitable for watchmaking, tooling and die work, machine tool production, aerospace, medical and automotive.
| Centre height | 102 mm |
| Distance between centres | 375 mm |
| Swing over cross-slide | 120 mm |
| Swing over bed | 200 mm |
| Inner taper type | 20 W |
| Spindle speeds: | |
| from | 45 t/min |
| up to | 3100 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 0.5 / 0.9 kW |
| Machine's weight about | 300 kg |
| Overall dimensions machine: | |
| Length | 1000 mm |
| Width | 800 mm |
| Height | 1400 mm |
| Various accessories: | |
| Execution: | |
| Working bench: | |
| Length | 2000 mm |
| Width | 800 mm |
| Height | 900 mm |
| Drawer(s) | 6 |

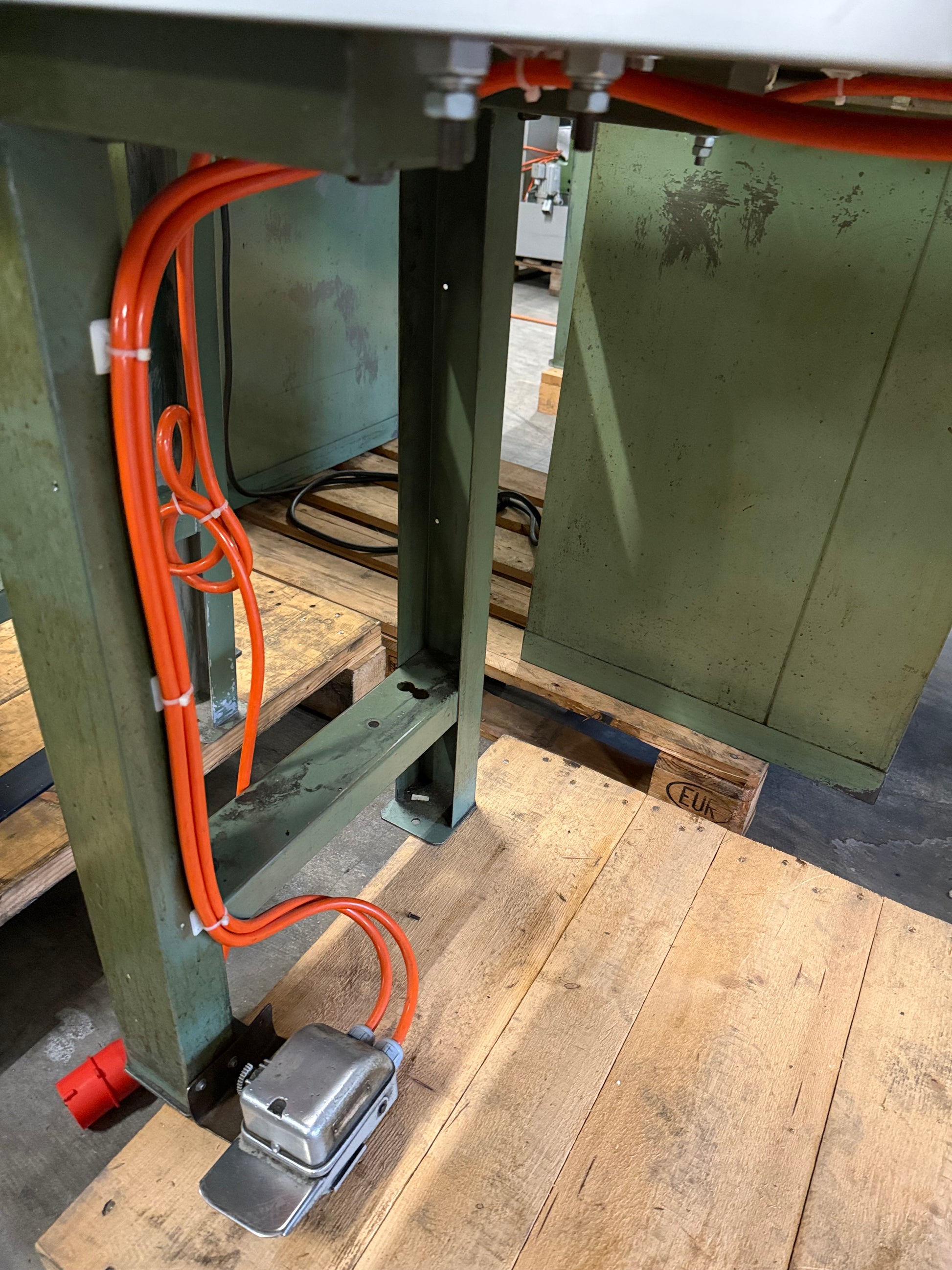

| Pneum. quick closing attach. | |
| Drilling tailstock | |
| Tailstock with hand lever |
