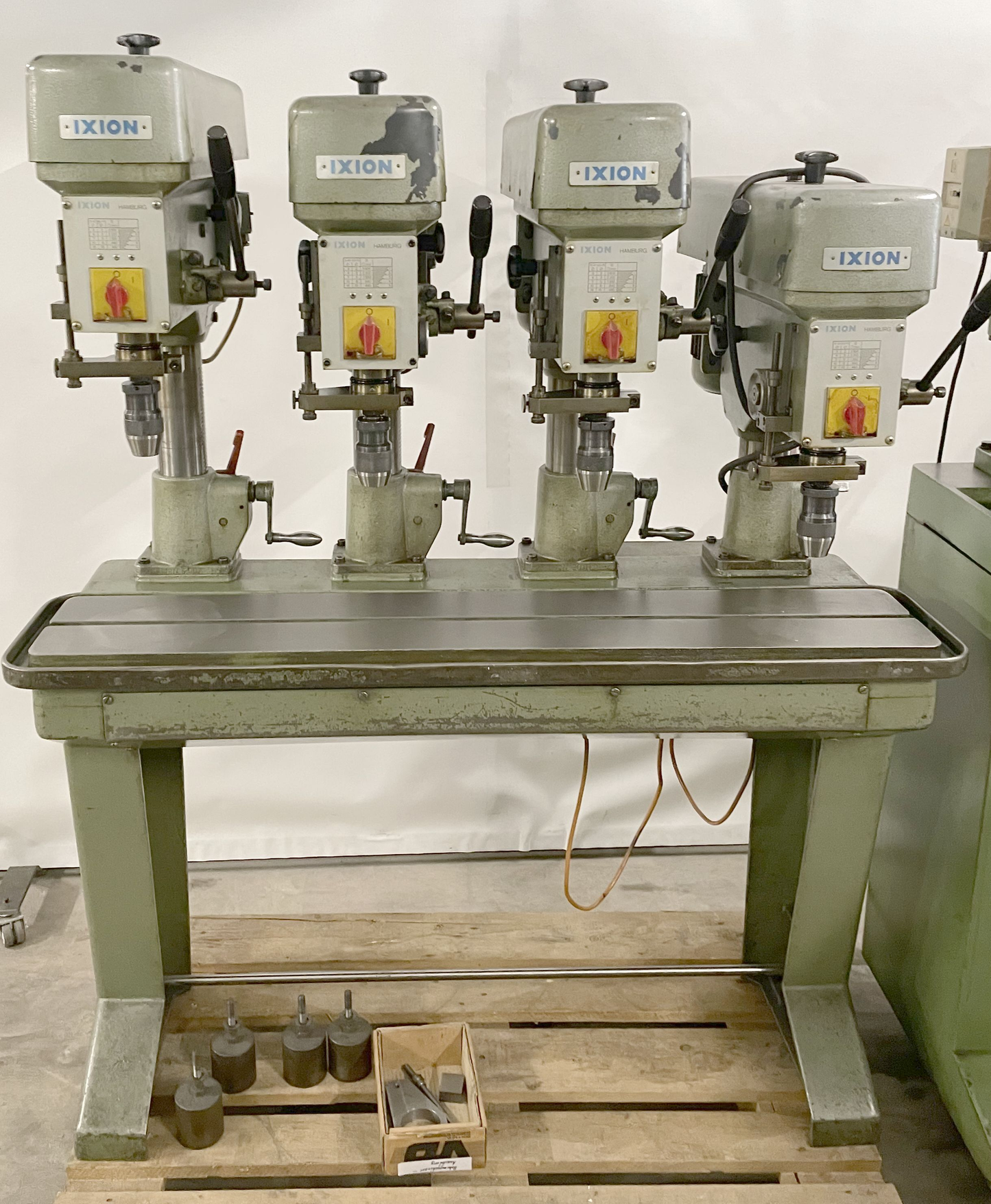

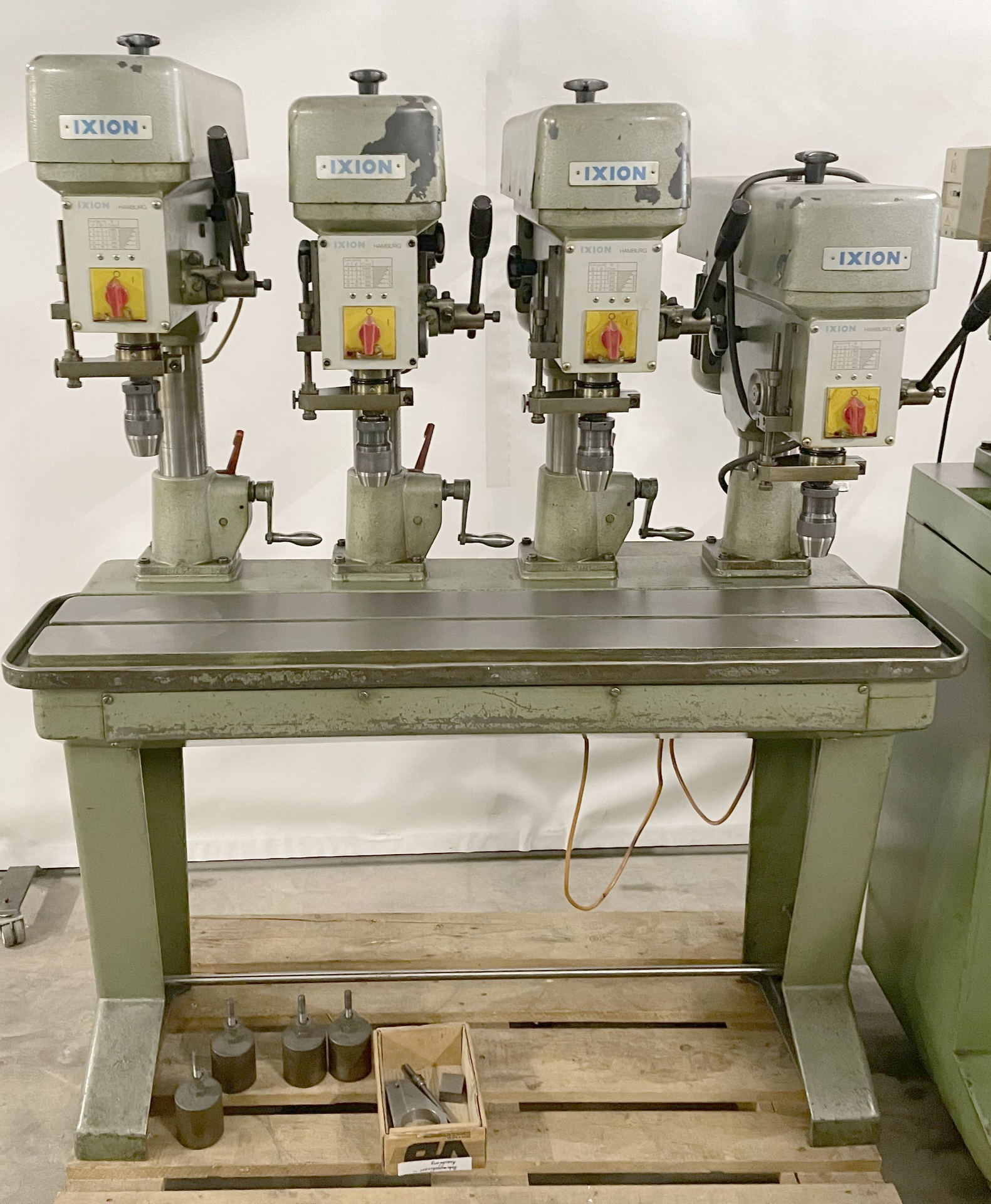

IXION BT 15 is a Multi-head drill designed for precision, high accuracy and long-term reliability. Working capacities: 4 drill heads; table 1200 mm × 320 mm; 1 T-slot 14 mm wide. Main technical specifications: 5-step spindle settings plus stepless drive 480–3800 t/min; power supply 3x 380 V 50 Hz; machine weight approx. 1000 kg; overall dimensions L1300 × W700 × H1700 mm. Key equipment: 4 drill chucks and an adjustable depth stop. Enables tight tolerances; suited for automotive, machine building, aerospace, medical and watchmaking applications.
| Number of drill-heads | 4 |
| Table length | 1200 mm |
| Table width | 320 mm |
| Number of T-channels | 1 |
| T-channel width | 14 mm |

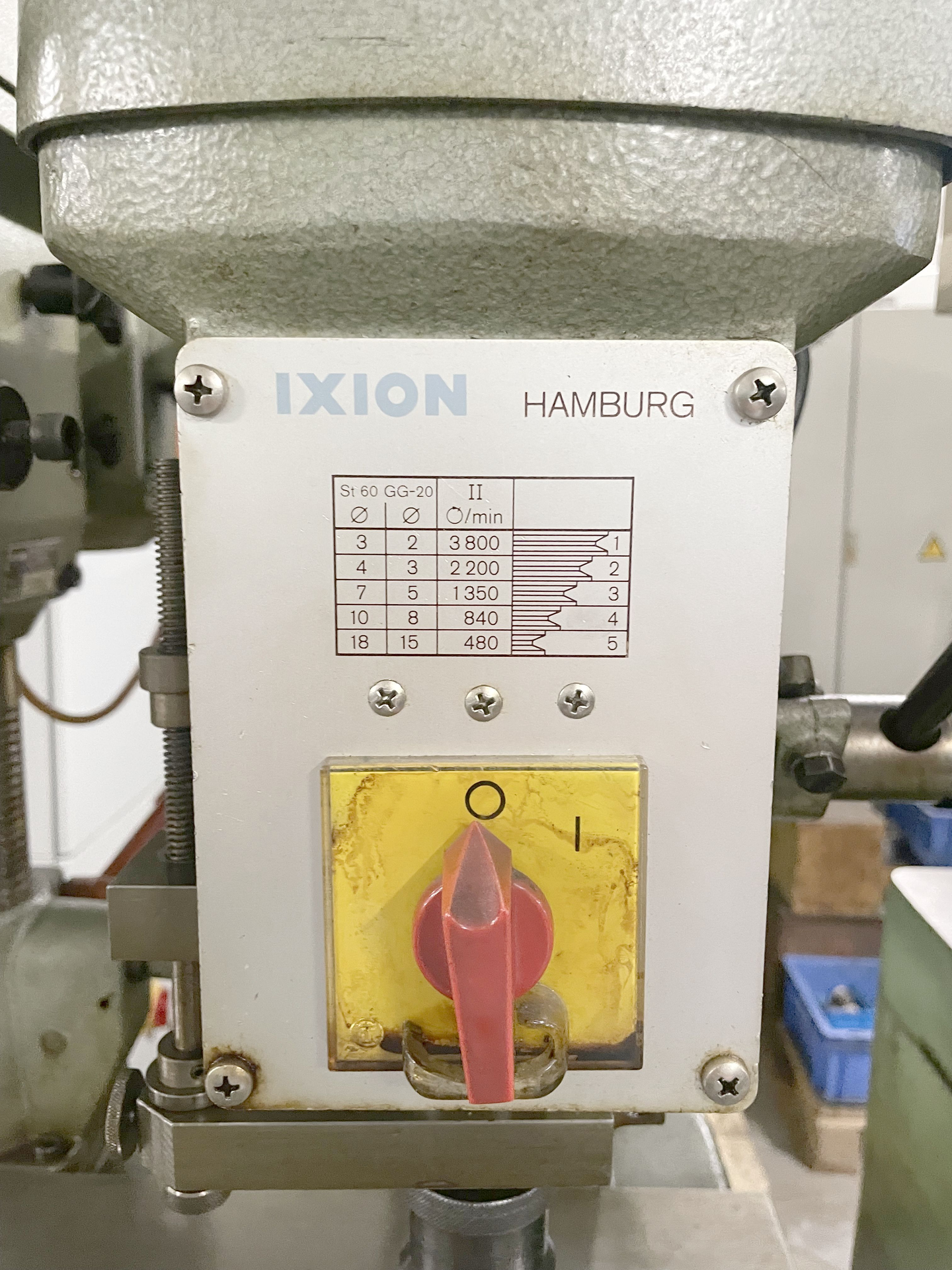

| Spindle speeds: | |
| number (steps) | 5 |
| stepless | 480 |
| from | 3800 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Machine's weight about | 1000 kg |
| Overall dimensions machine: | |
| Length | 1300 mm |
| Width | 700 mm |
| Height | 1700 mm |
| Various accessories: | |
| Drill chuck | 4x |
| Adjustable depth stop |
