SOLID RBS4 / 13
Type: RBS4 / 13
Manufacturer: SOLID
Group: Multi-head drill
Subgroup: Multi-head drill
Stock: 022960

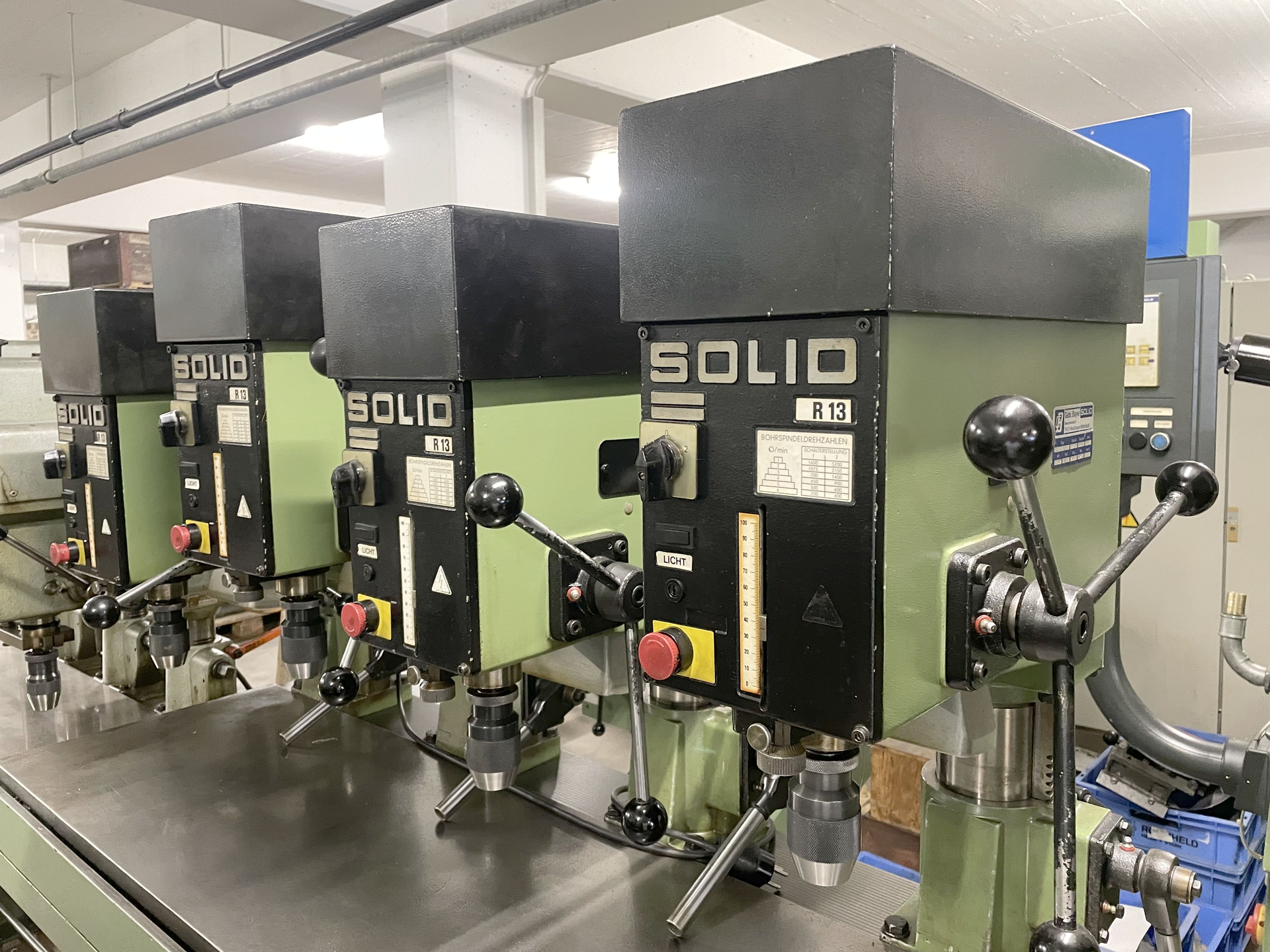

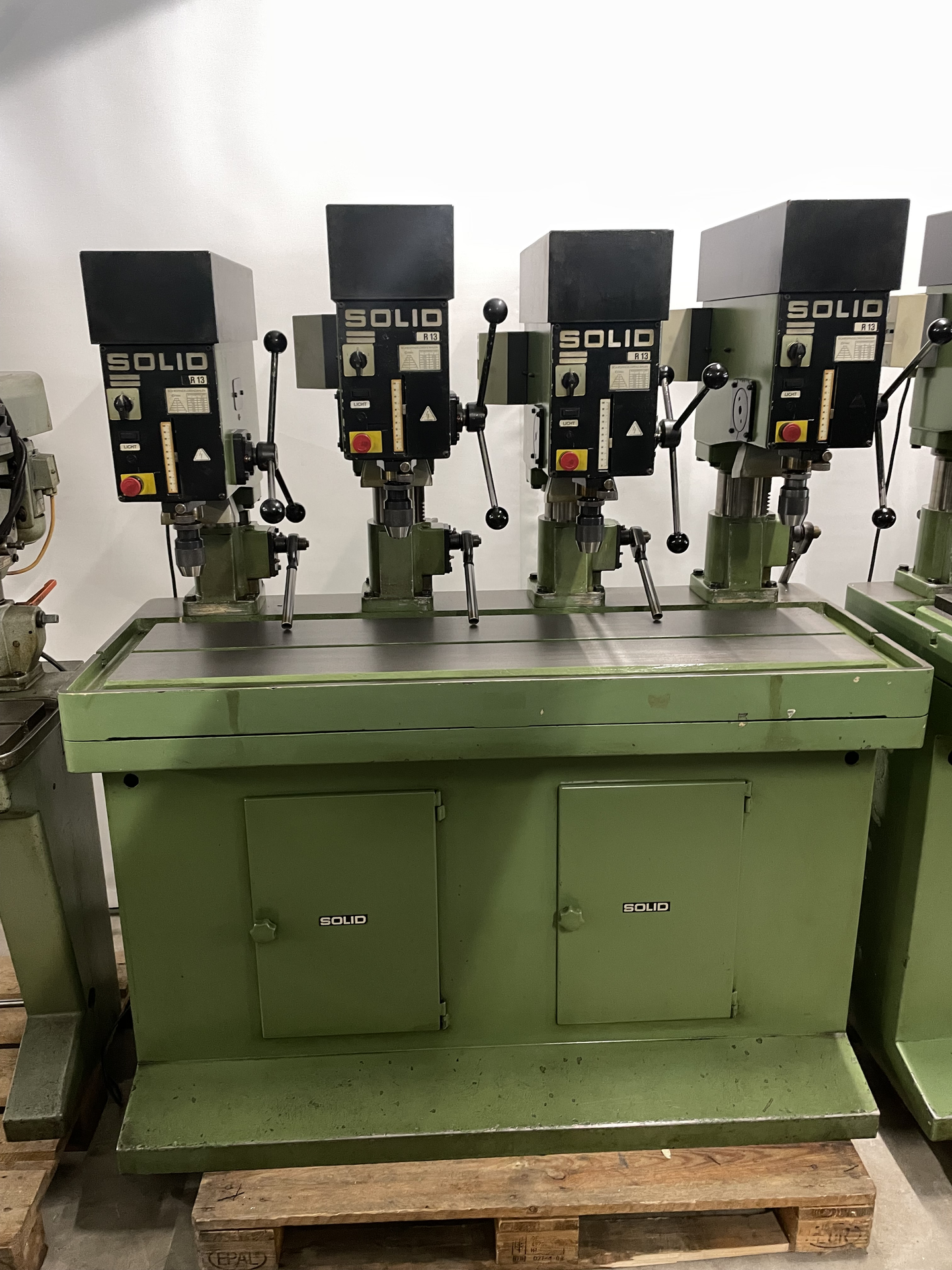

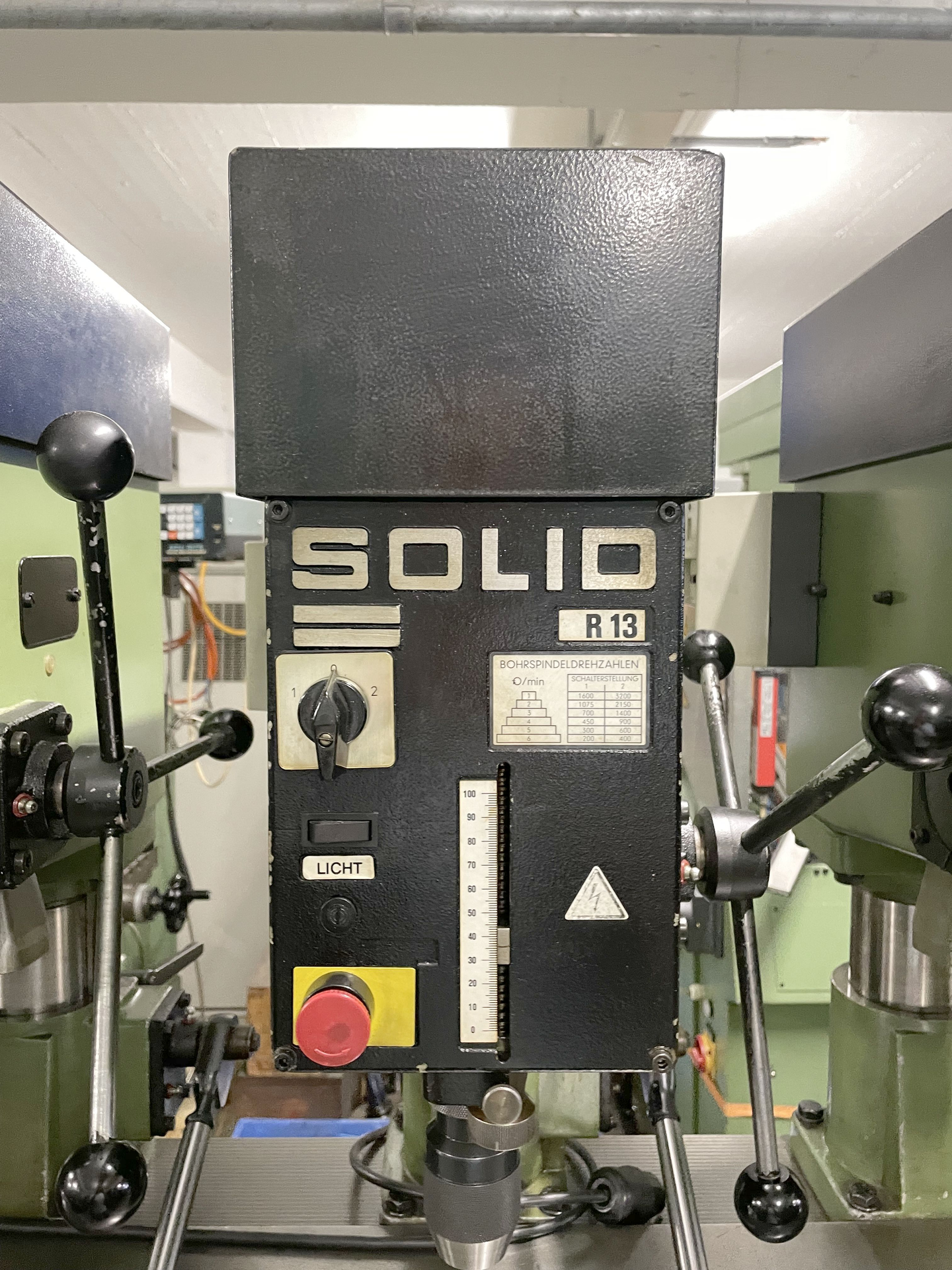

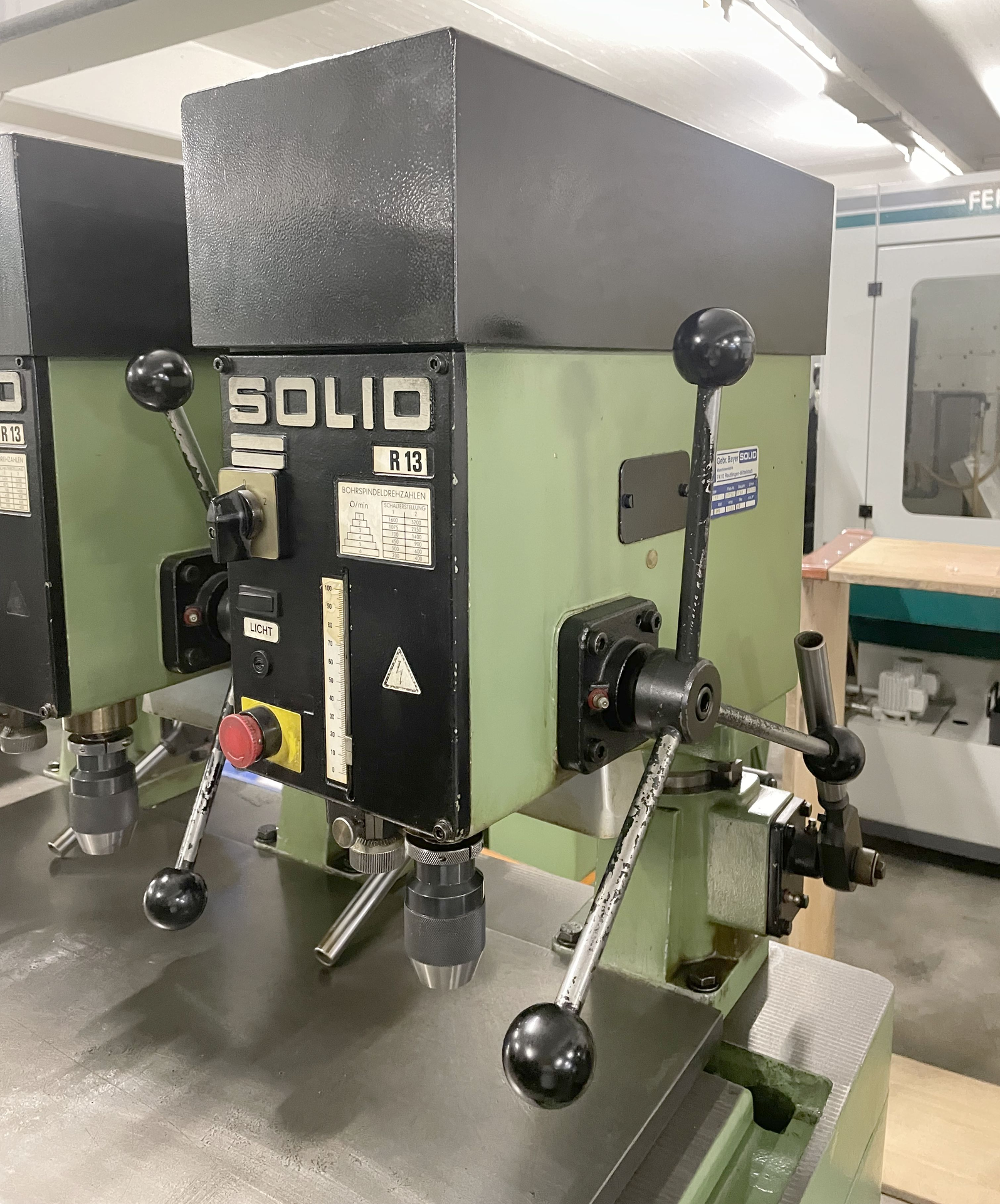

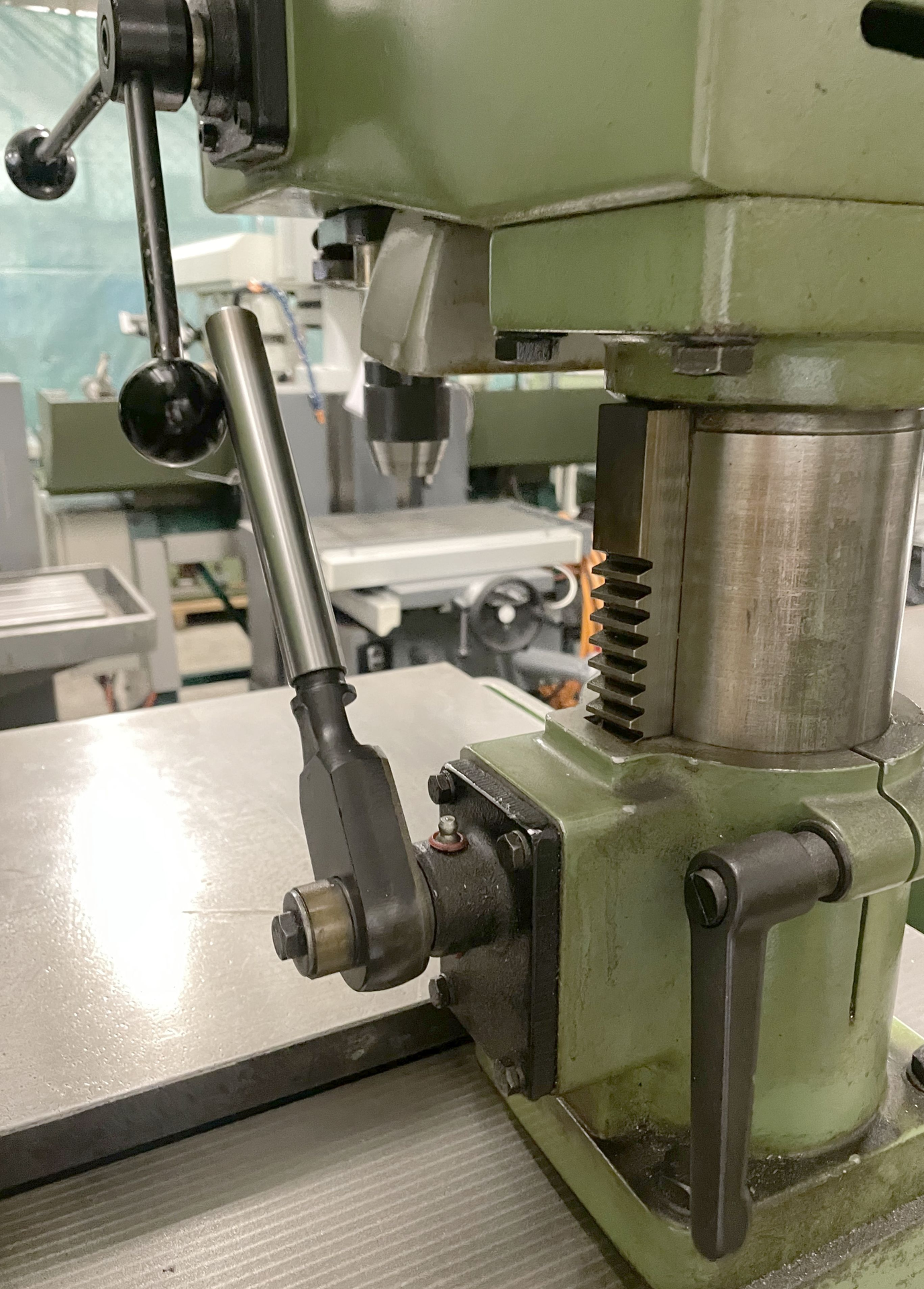

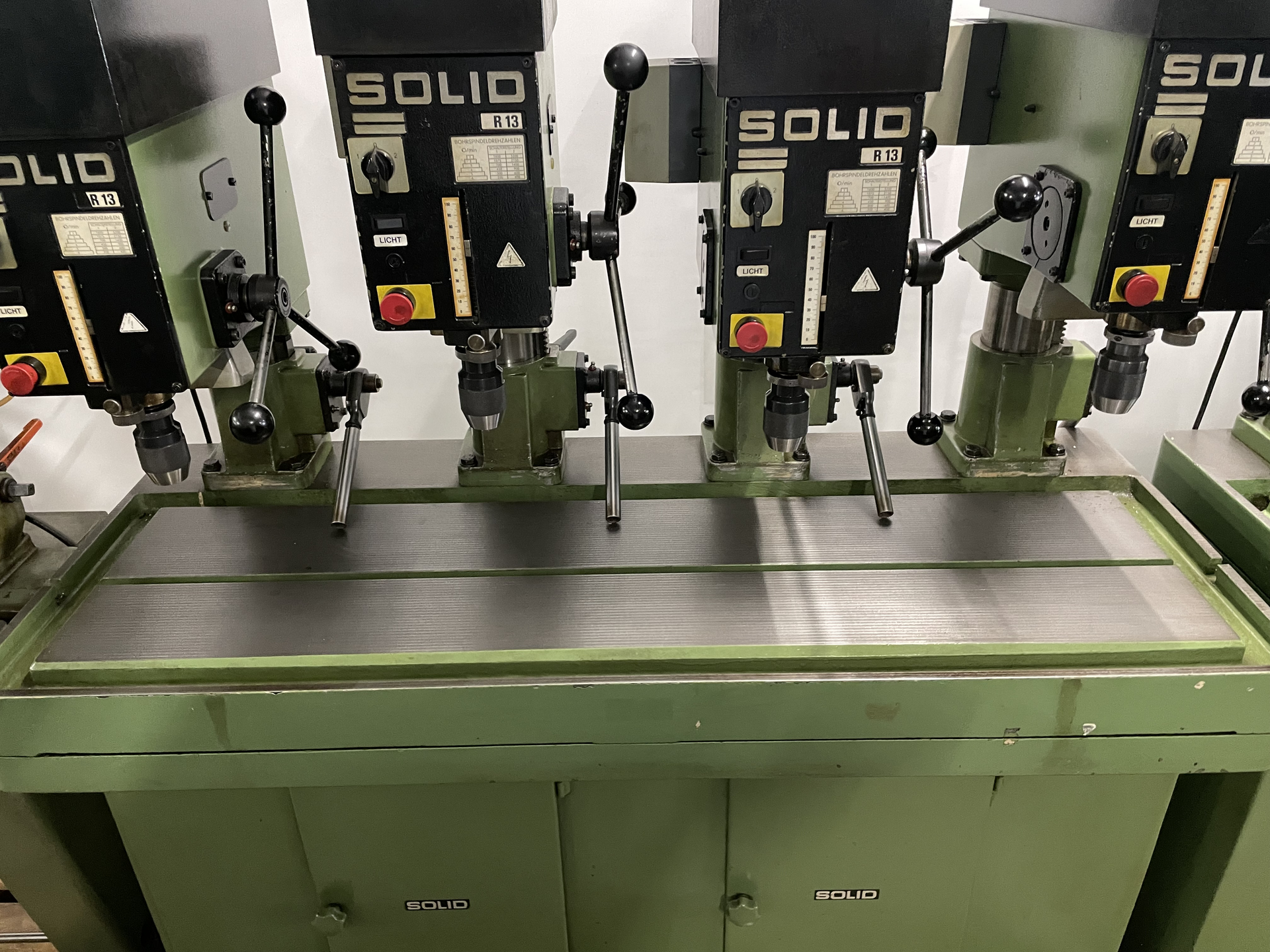

SOLID RBS4 / 13 is a Multi-head drill designed for precision, high accuracy and reliability. Working capacities: 4 drill-heads; table 1250×400 mm; 1 T-channel 14 mm. Main specs: spindle speeds — 12 steps; stepless: 200; from: 3200 t/min; voltage 50 Hz 3x 380 V; machine weight ≈1250 kg; dimensions L1400×W600×H1800 mm. Accessories: 4× drill chuck, adjustable depth stop, lamp. Enables achievement of tight tolerances; suitable for automotive, machine tools, aerospace, medical and watchmaking sectors.
| Number of drill-heads | 4 |
| Table length | 1250 mm |
| Table width | 400 mm |
| Number of T-channels | 1 |
| T-channel width | 14 mm |

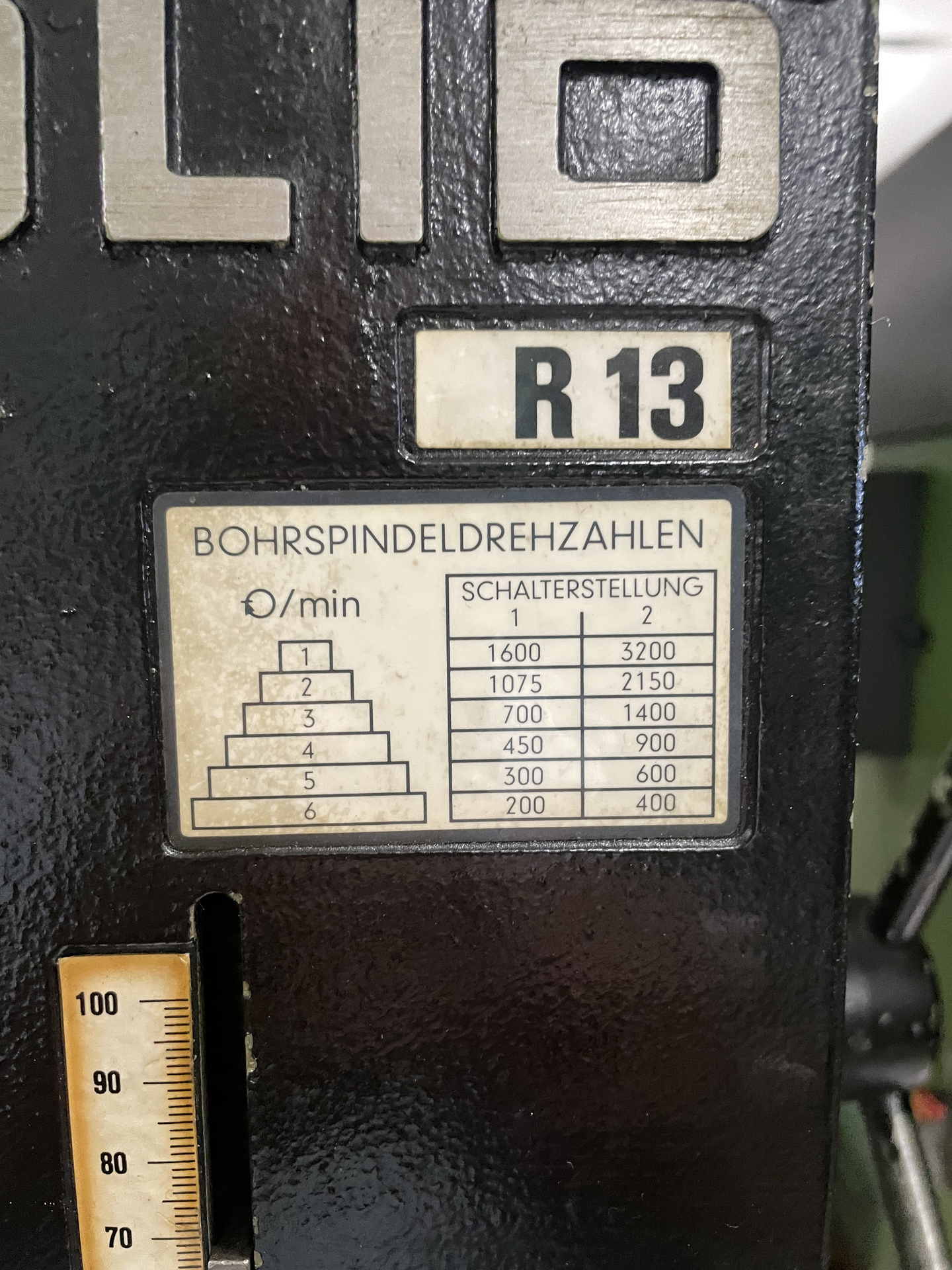

| Spindle speeds: | |
| number (steps) | 12 |
| stepless | 200 |
| from | 3200 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Machine's weight about | 1250 kg |
| Overall dimensions machine: | |
| Length | 1400 mm |
| Width | 600 mm |
| Height | 1800 mm |
| Various accessories: | |
| Drill chuck | 4x |
| Adjustable depth stop | |
| Lamp |
