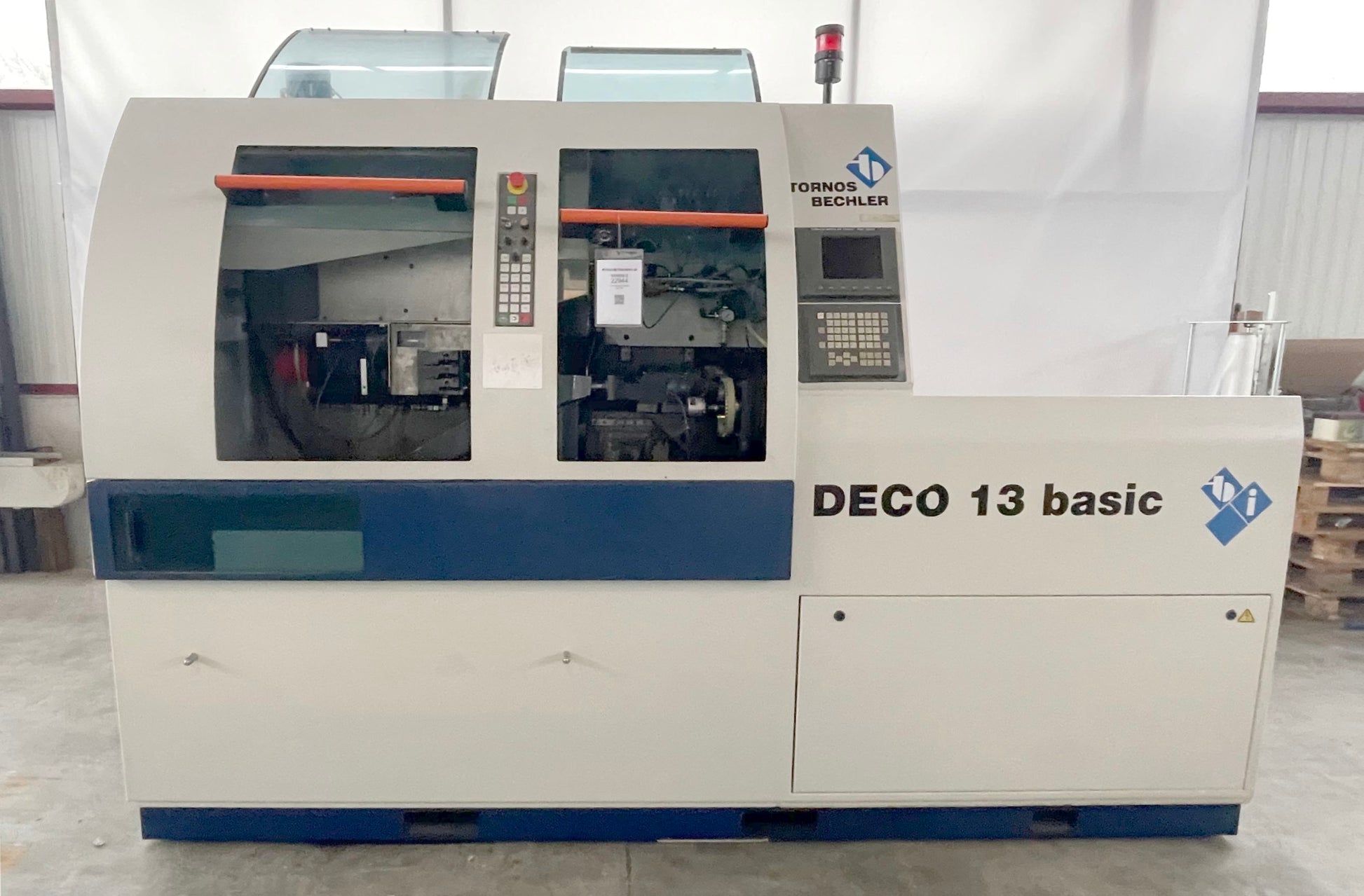

TORNOS DECO 2000/13 basic
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
TORNOS DECO 2000/13 basic is a CNC automatic lathe delivering high precision, excellent accuracy and reliable operation. Capacities: 10 total axes, max workpiece length 180 mm, spindle bore 13 mm. Specs: spindle speeds stepless 100-12000 rpm; back spindle 100-8000 rpm; spindle motor 2.2 kW; voltage 3x400 V 50 Hz; total power 11 kVA; weight approx. 2550 kg; dimensions L2000×W1260×H1950 mm. Enables tight tolerances; suited to automotive, watchmaking, machine tools, aerospace and medical sectors.

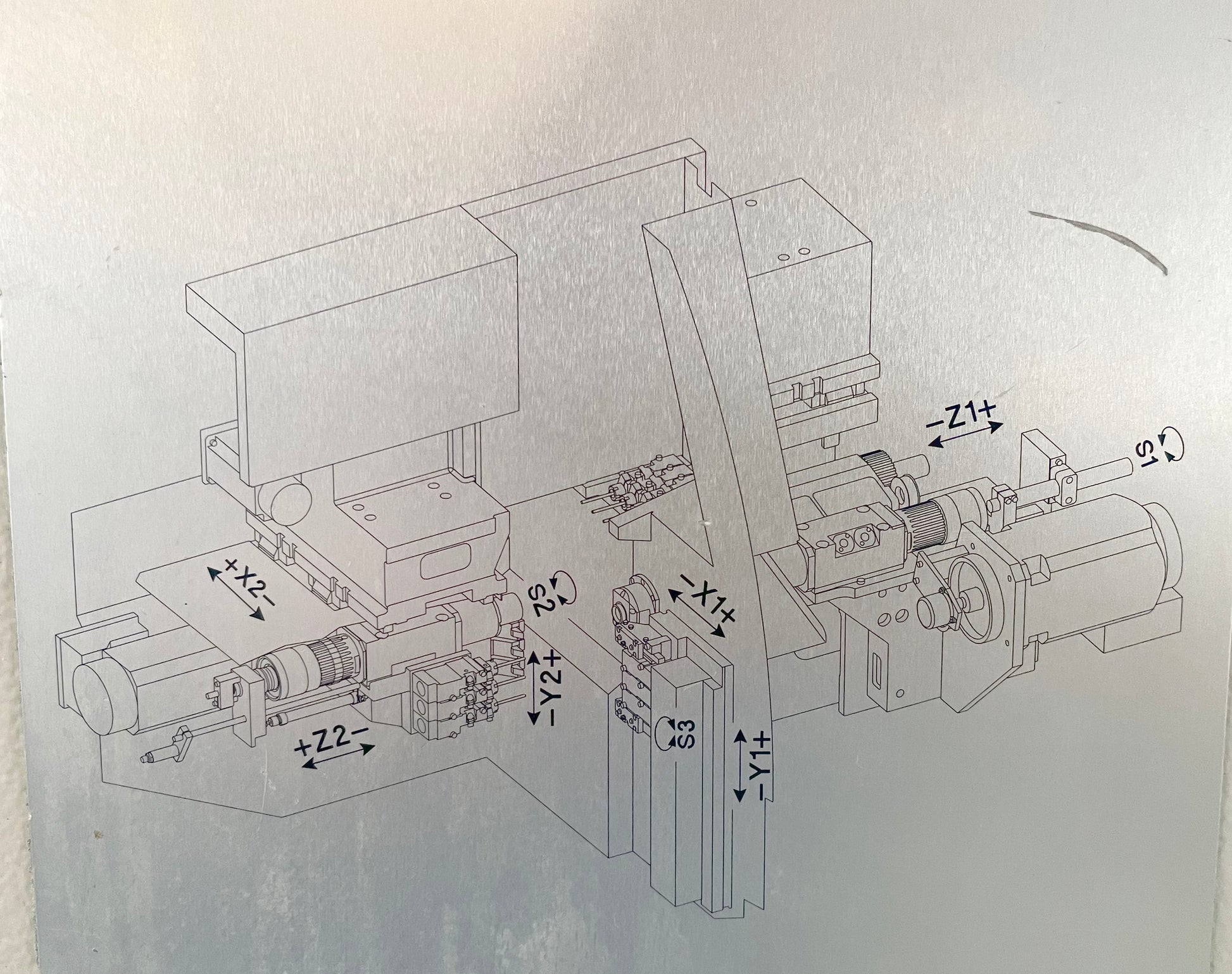

| Number of axis total | 10 |
| Workpiece length max. | 180 mm |
| Internal spindle diameter | 13 mm |
| Spindle speeds: | |
| stepless | |
| from | 100 t/min |
| up to | 12000 t/min |

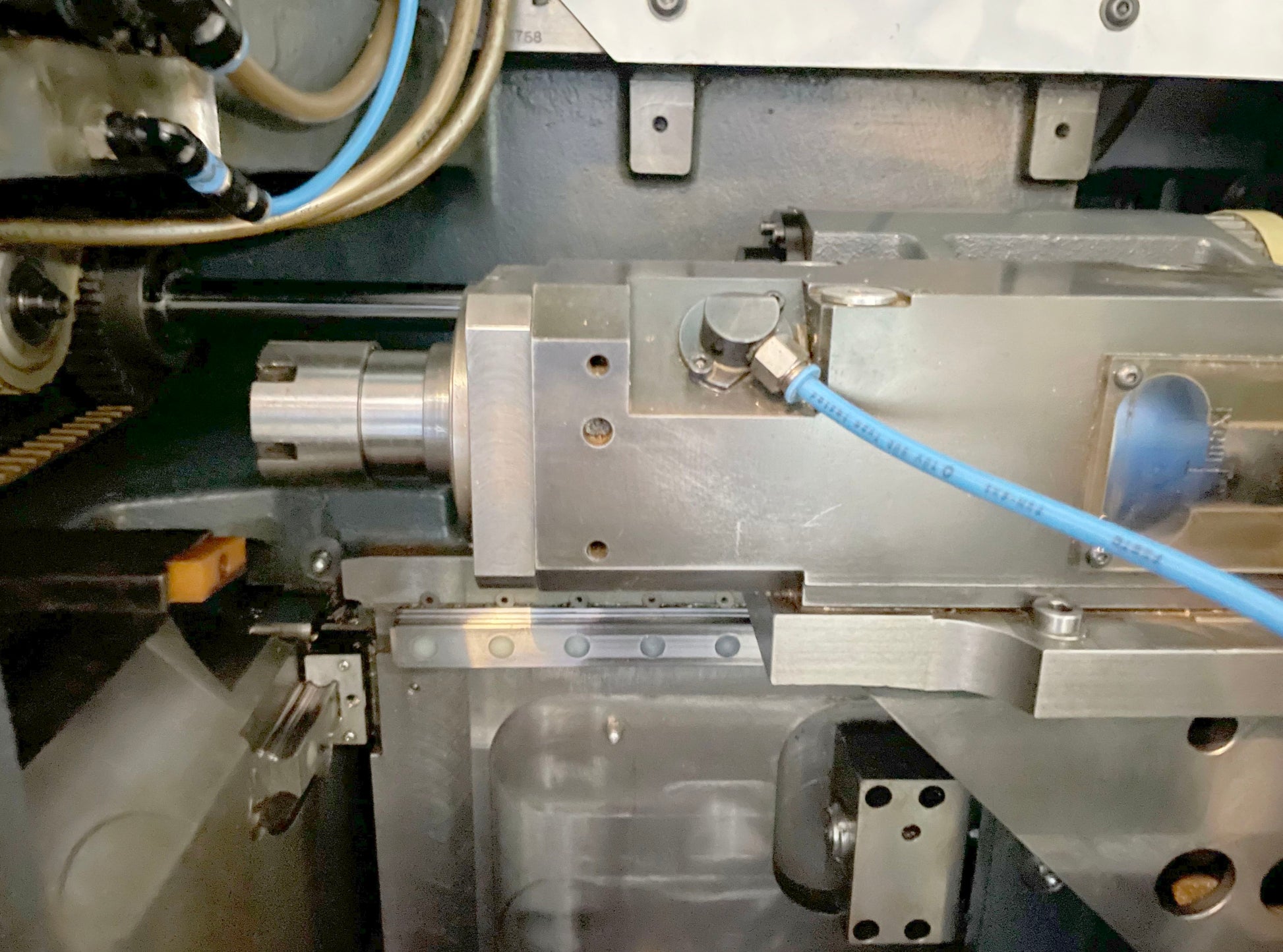

| Back spindle: | |
| speeds: | |
| from | 100 t/min |
| up to | 8000 t/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 2.2 kW |
| Total power required | 11 kVA |
| Machine's weight about | 2550 kg |
| Overall dimensions machine: | |
| Length | 2000 mm |
| Width | 1260 mm |
| Height | 1950 mm |
