CITIZEN CINCOM K 12 VIIP
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

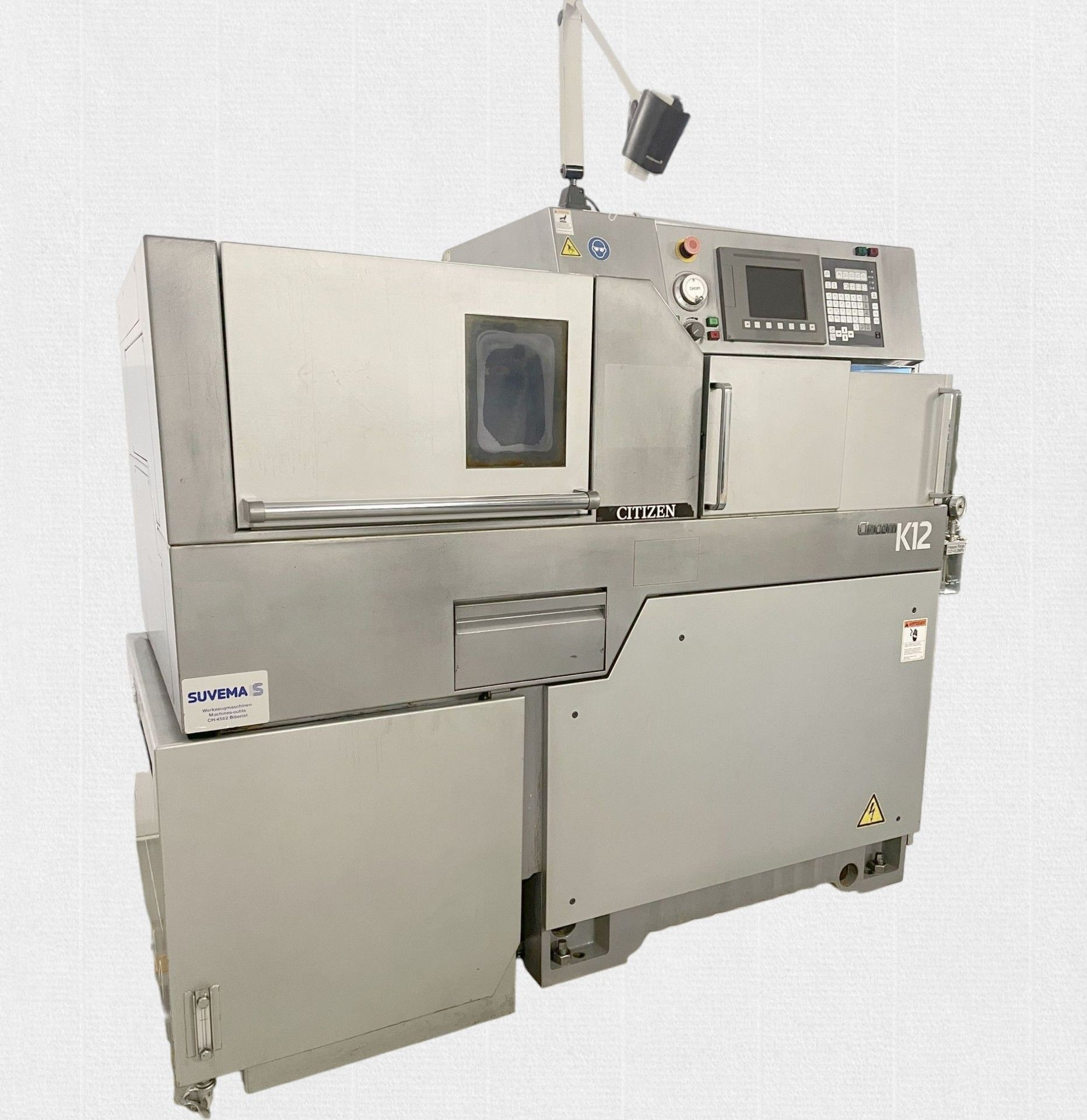

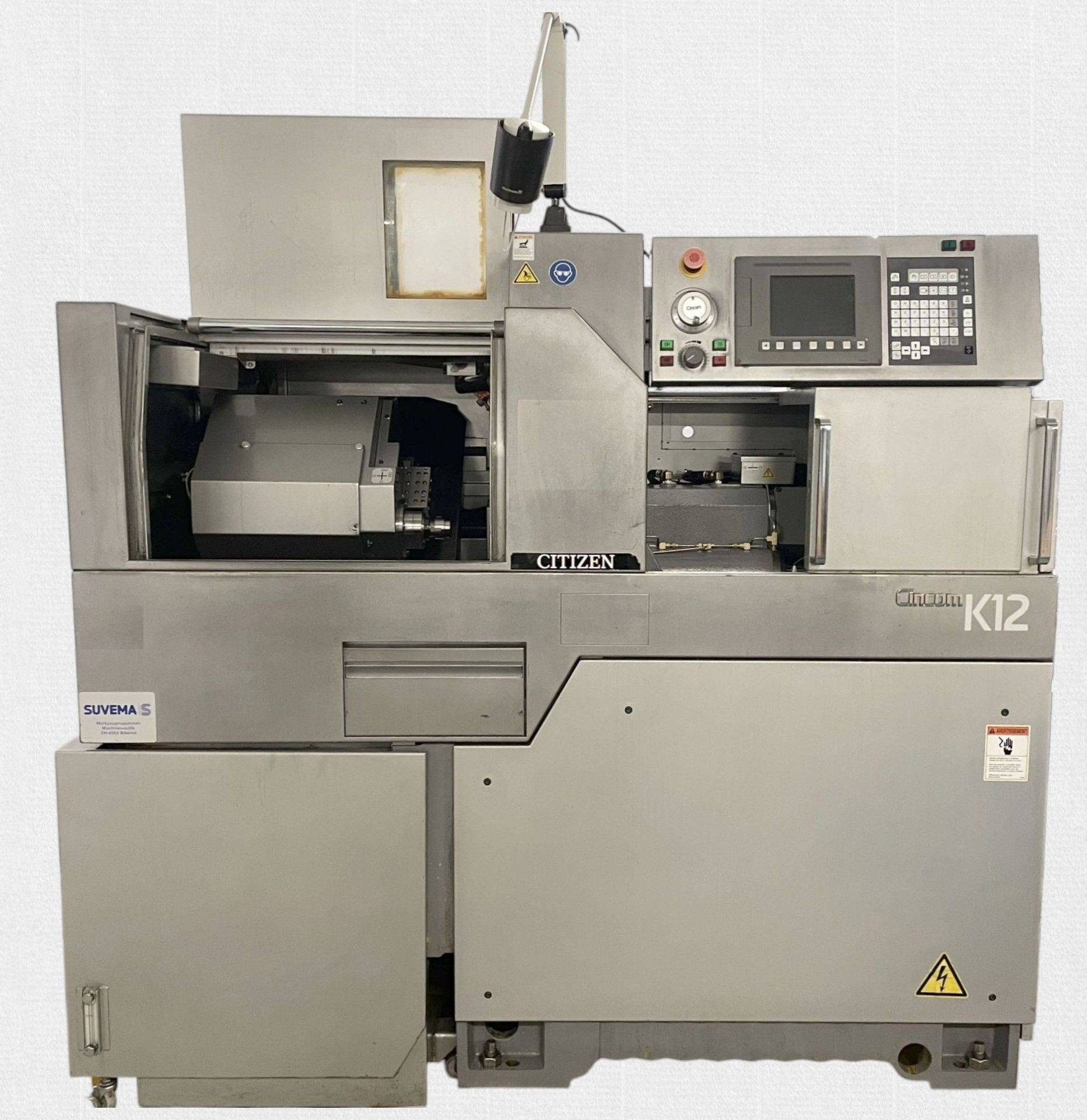

CITIZEN CINCOM K 12 VIIP is a CNC automatic lathe of high precision, excellent accuracy and proven reliability. Working capacities: 7 axes, 2 spindles, max turning diameter 12 mm, max turning length 200 mm, max drilling Ø 10 mm, max threading Ø 8 M, spindle bore 20 mm, max tapping length 80 mm, spindle indexing increment 15°. Technical specs: main spindle 200–15,000 rpm, back spindle 200–10,000 rpm; turning tools 6, drilling tools 4, transverse tools 4; driven tool speeds 6000 rpm, 0.4 kW. Power 50 Hz 3x400 V; total installed 8 kVA; weight ~2050 kg; footprint 1875×1125×1610 mm. Accessories: LNS TRYTON 107 bar feeder, parts catcher, lamp, coolant system, collet chuck and set of collets, RS‑232 interface, status light. Delivers tight tolerances; suitable for automotive, watchmaking, toolmaking, aerospace and medical sectors.
| Number of axis total | 7 |
| Number of spindles | 2 |
| Max. turning diameter | 12 mm |
| Maximum turning length | 200 mm |
| Max. drilling diameter | 10 mm |
| Max. threading diameter | 8 M |
| Internal spindle diameter | 20 mm |
| Spindle speeds: | |
| stepless | |
| from | 200 t/min |
| up to | 15000 t/min |
| Spindle positioning increment | 15 ° |
| Back spindle: | |
| speeds: | |
| from | 200 t/min |
| up to | 10000 t/min |
| Max. tapping length | 80 mm |
| Spindle positioning increment | 15 ° |
| Thread drill diameter | 5 M |
| Tool-holder: | |
| Turning tools | 6 pce |
| Drilling tools | 4 pce |
| Transverse processing tools | 4 pce |
| Spindle speeds (turning tools) | 6000 t/min |
| Power of driven tools | 0.4 kW |
| Counter-operation: | |
| Drilling tools | 4 pce |
| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 8 kVA |
| Machine's weight about | 2050 kg |
| Overall dimensions machine: | |
| Length | 1875 mm |
| Width | 1125 mm |
| Height | 1610 mm |
| Various accessories: | |
| Driven tools (number) | |

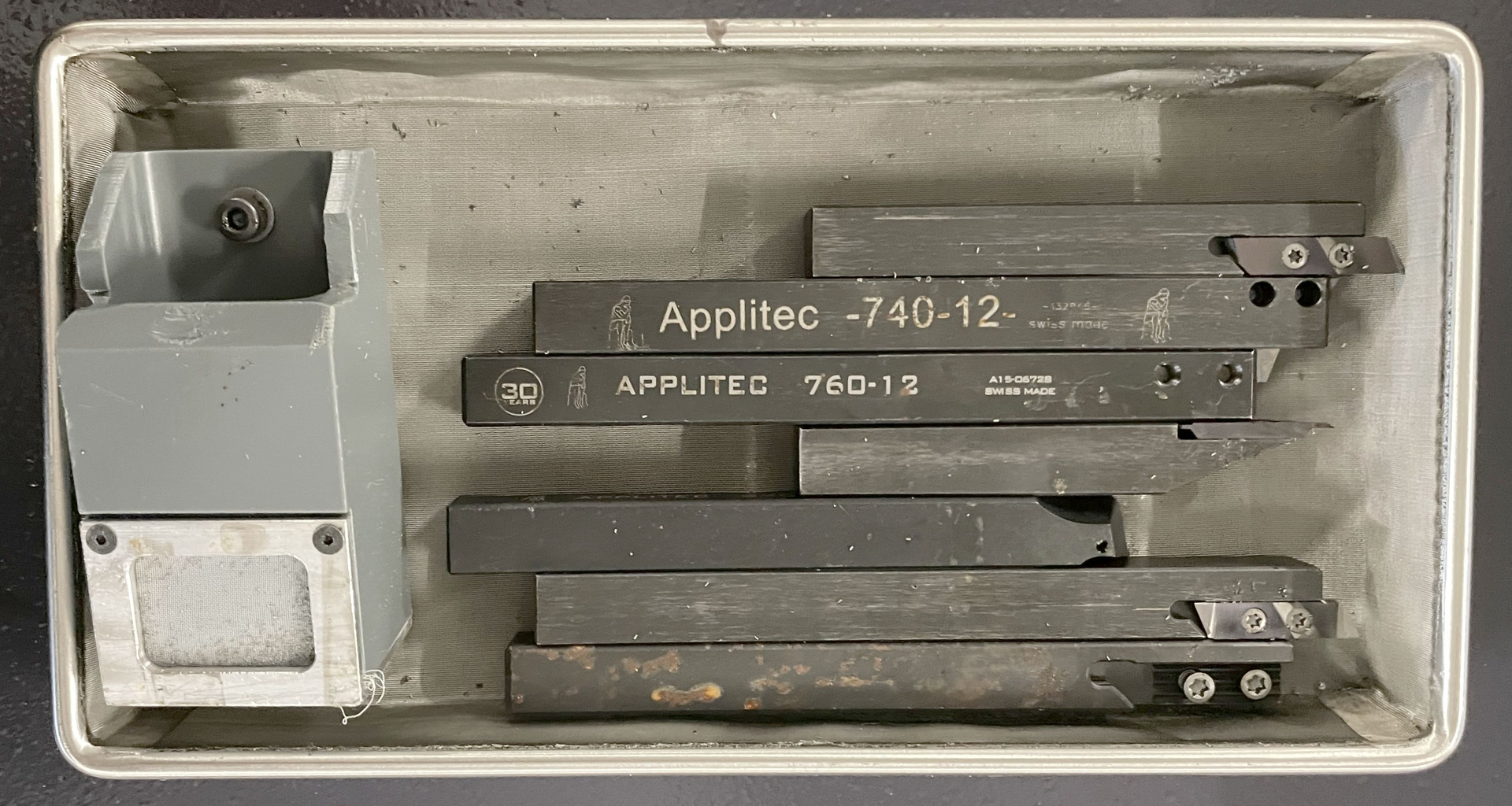

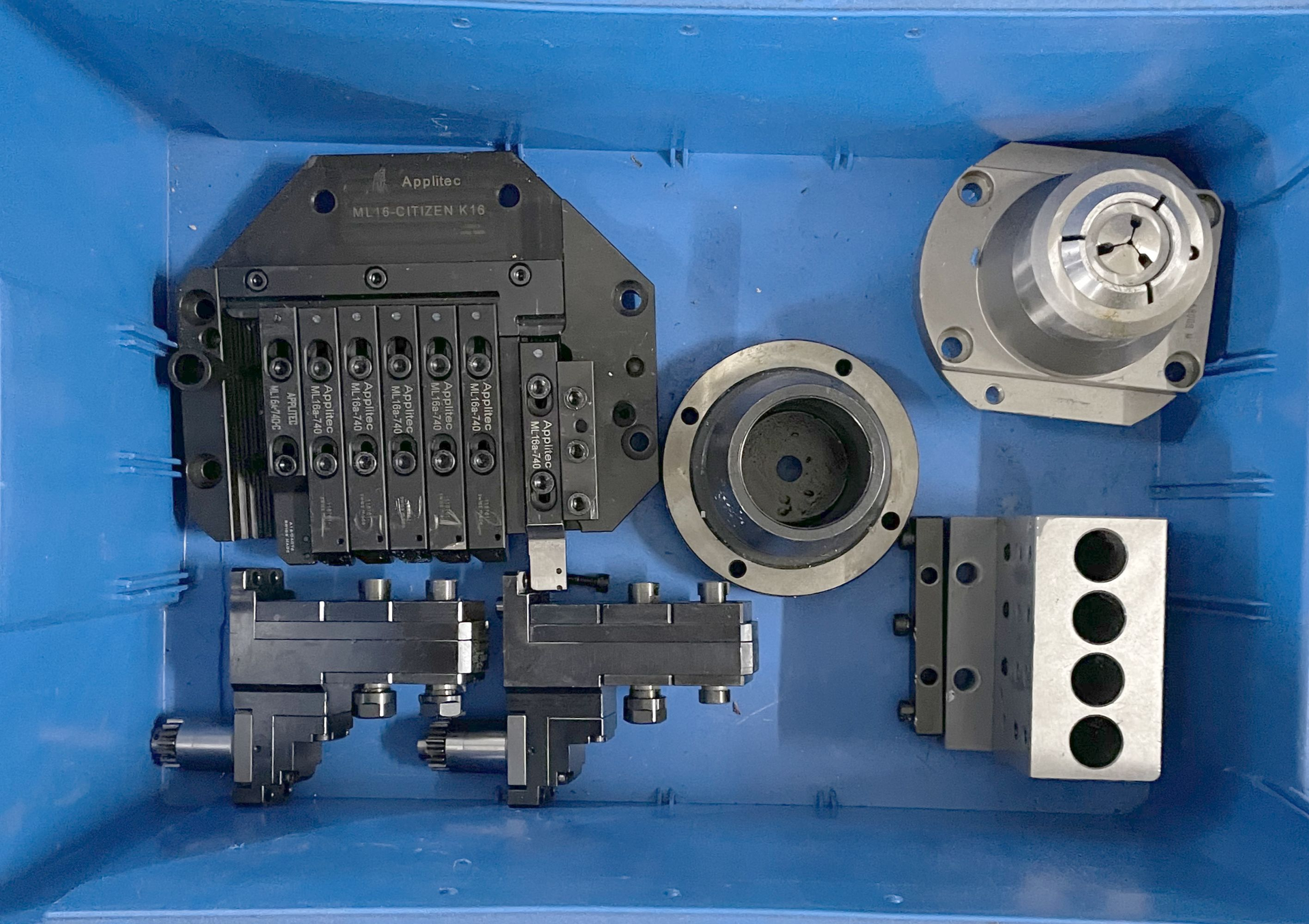

| Toolholders | |
| Bar feeder | |
| Manufacturer | LNS |
| Type | TRYTON 107 |

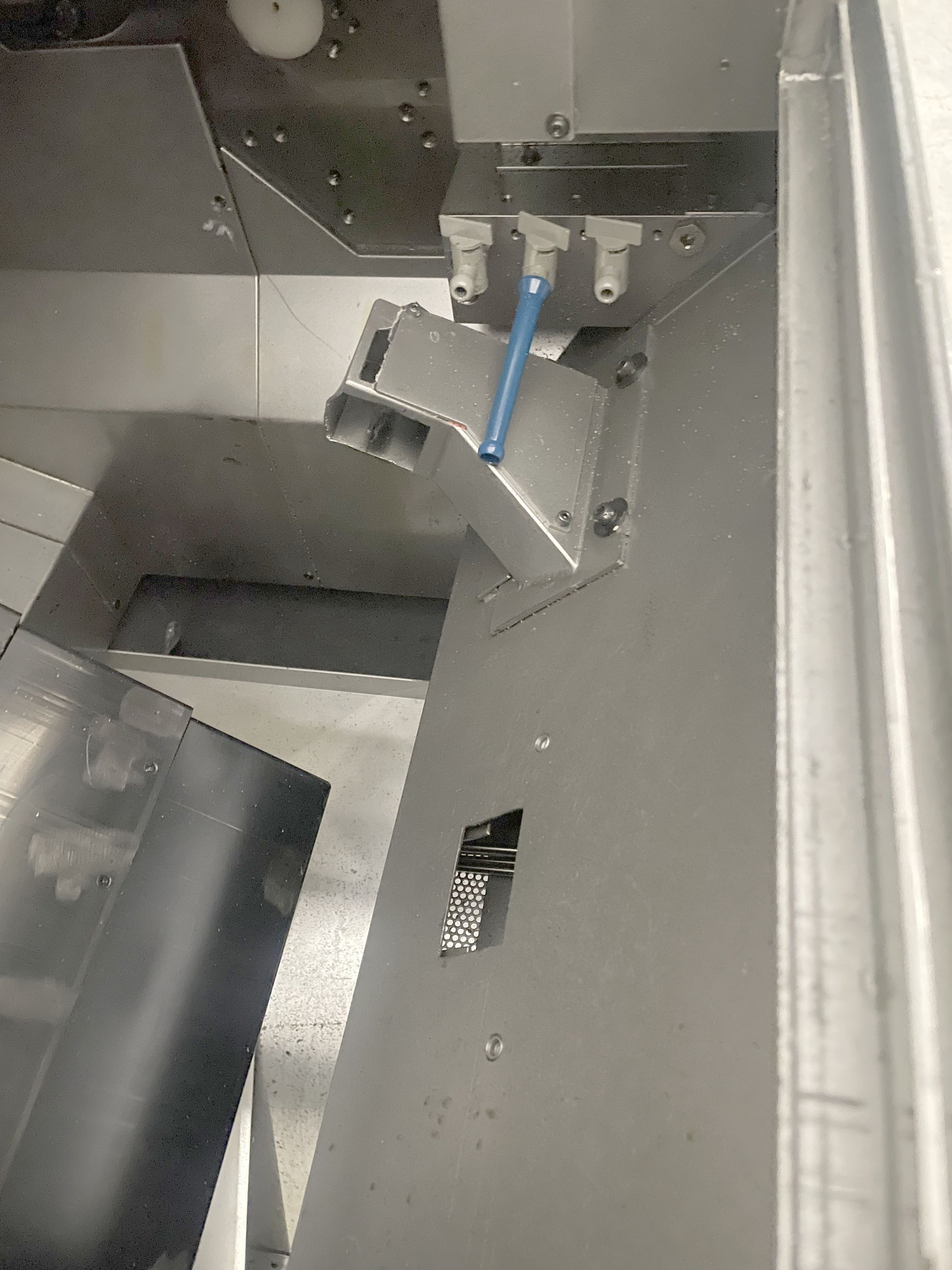

| Parts catcher | |
| Lamp | |
| Coolant system | |
| Collet chuck | |

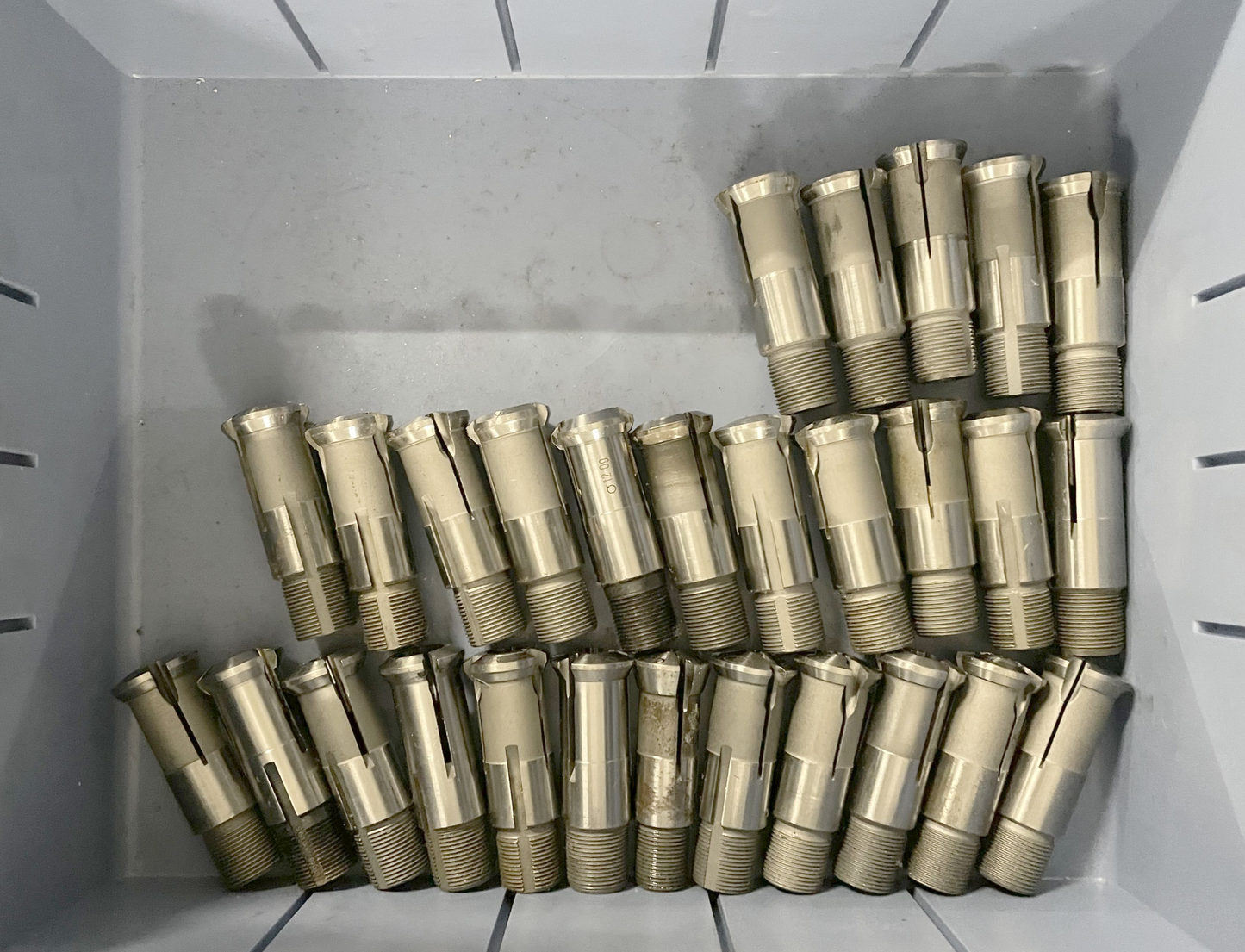

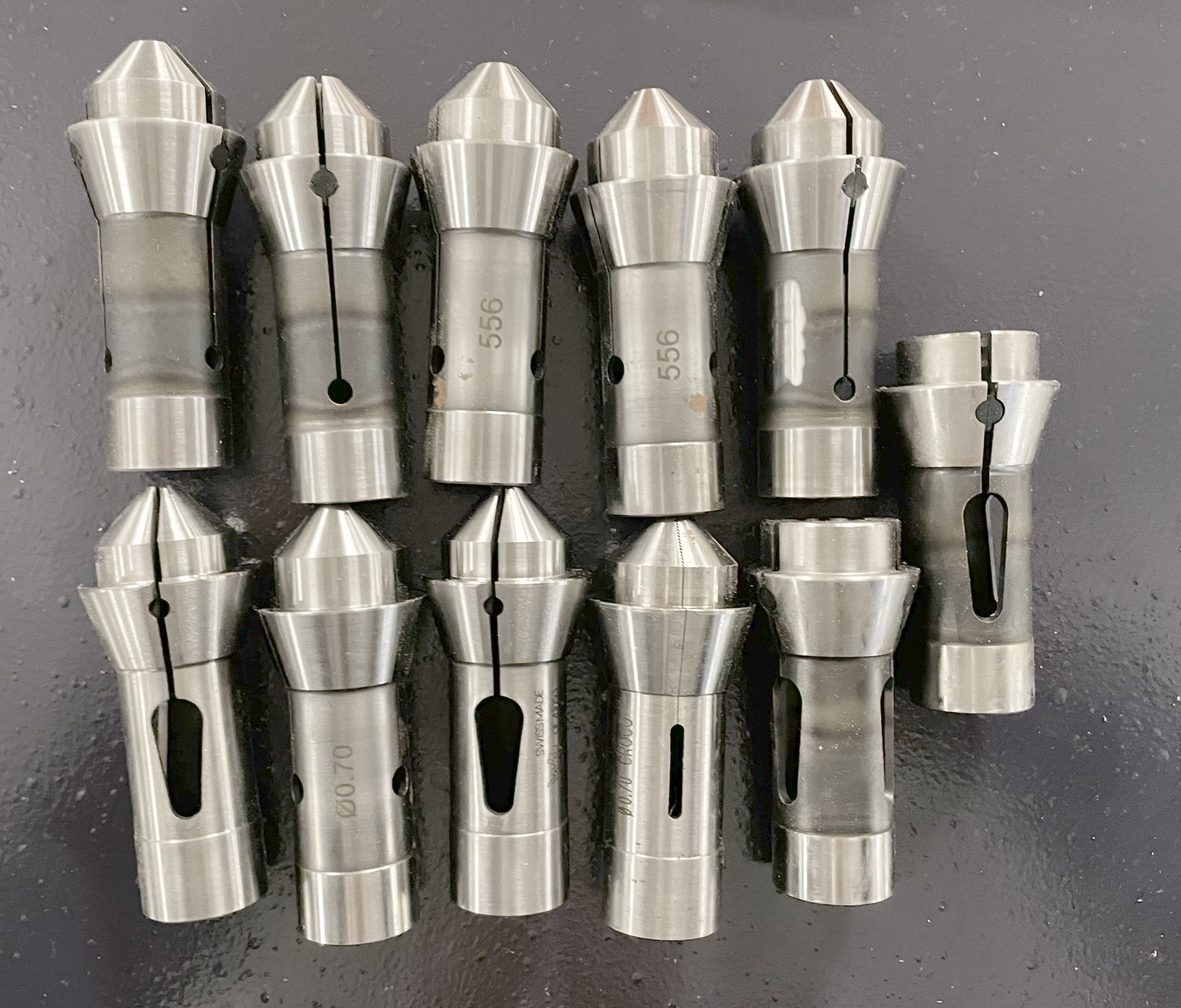

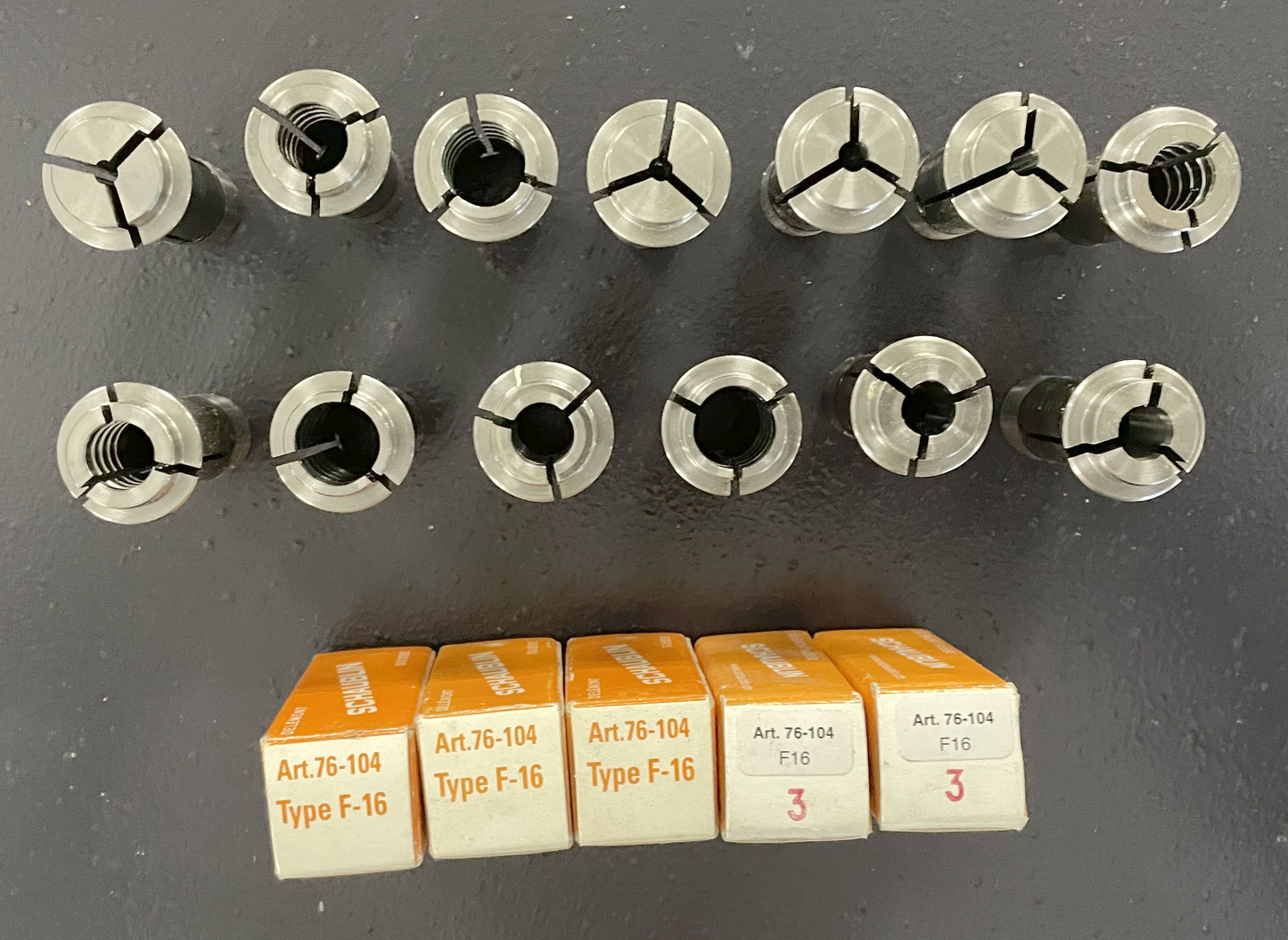

| Set of collets | |
| Interface serial port RS 232 | |
| Status light |
