MORI SEIKI SV-503B/40
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

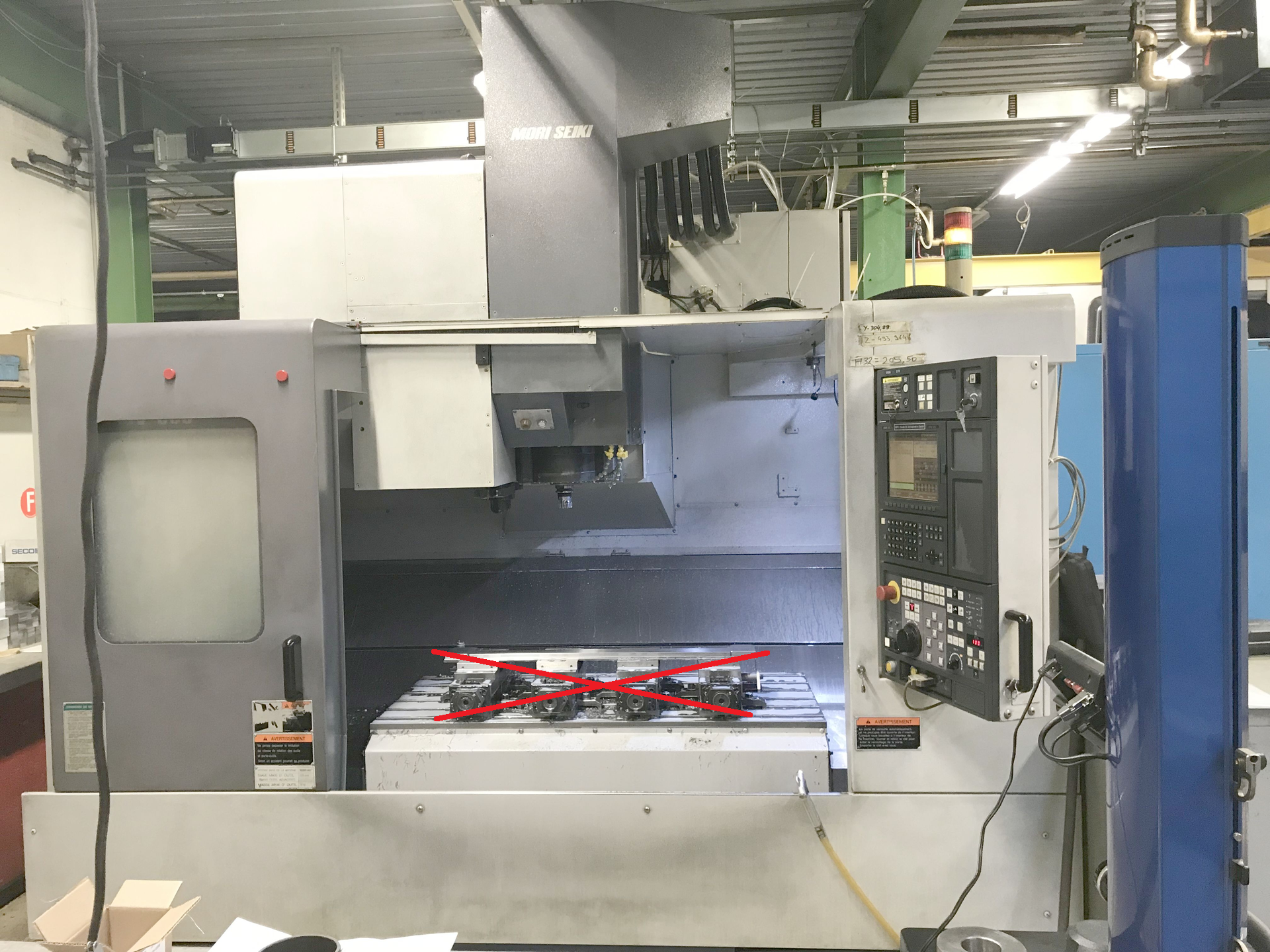

MORI SEIKI SV-503B/40 is a 4-axis machining center designed for precision, high accuracy and reliability. Table 1320×600 mm, table load 1200 kg; travels X1050, Y510, Z510 mm; tool magazine 30 places, BT40. Spindle 0–10,000 rpm, 22 kW; voltage 3x200V 50Hz; total power 58 kVA; weight ~8030 kg; dimensions 2500×2350×2700 mm. Equipment: toolholder set, coolant with 30 bar through‑spindle, chip conveyor, NIKKEN dividing attachment, lamp and status light. Suitable for tight‑tolerance work in automotive, aerospace, medical and machine‑tool sectors.
| Number of axis total | 4 |

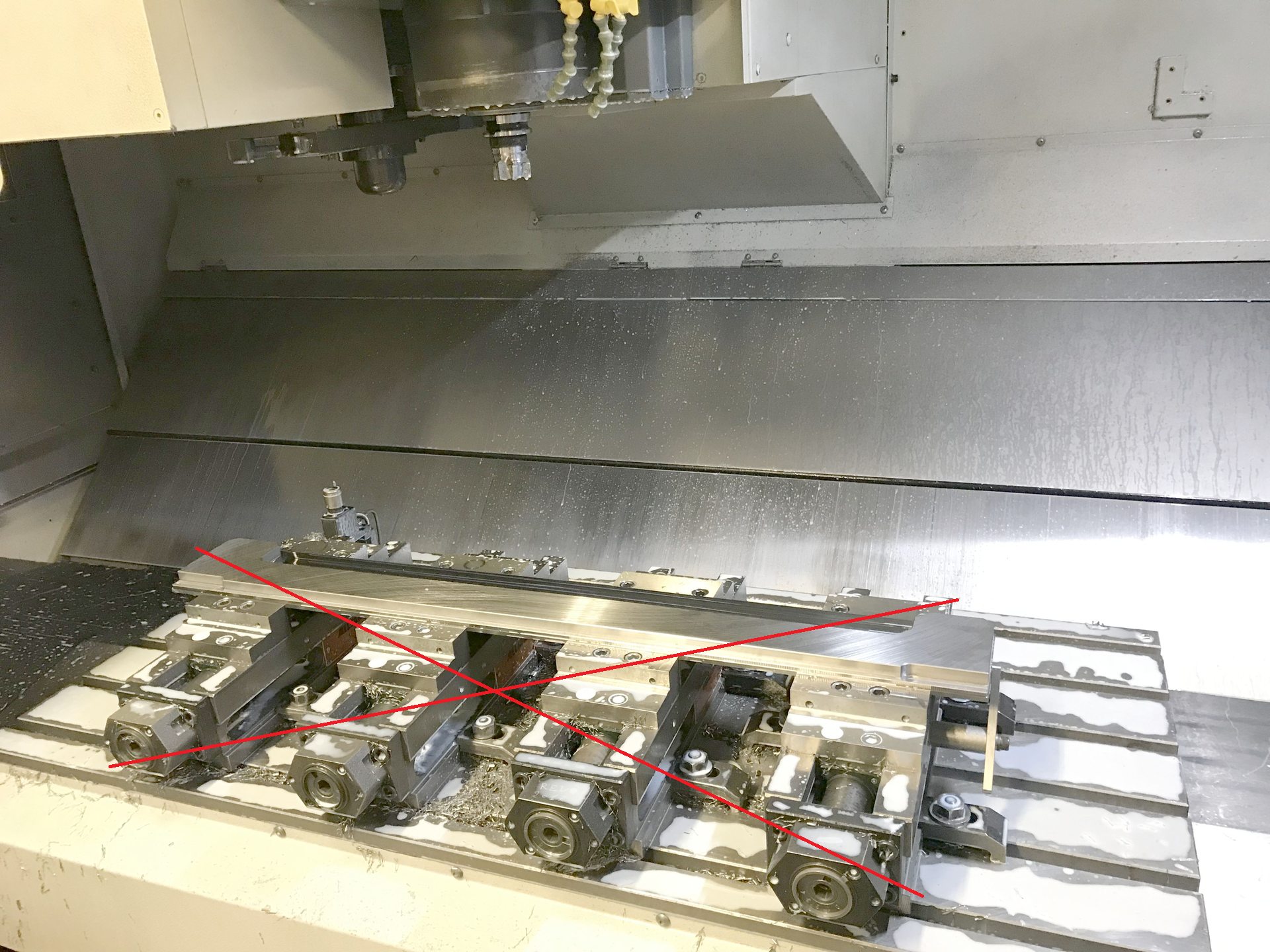

| Table length | 1320 mm |
| Table width | 600 mm |
| Table load max. | 1200 kg |
| Longitudinal travel (X-axis) | 1050 mm |
| Transversal travel (y-axis) | 510 mm |
| Vertical travel (z axis) | 510 mm |

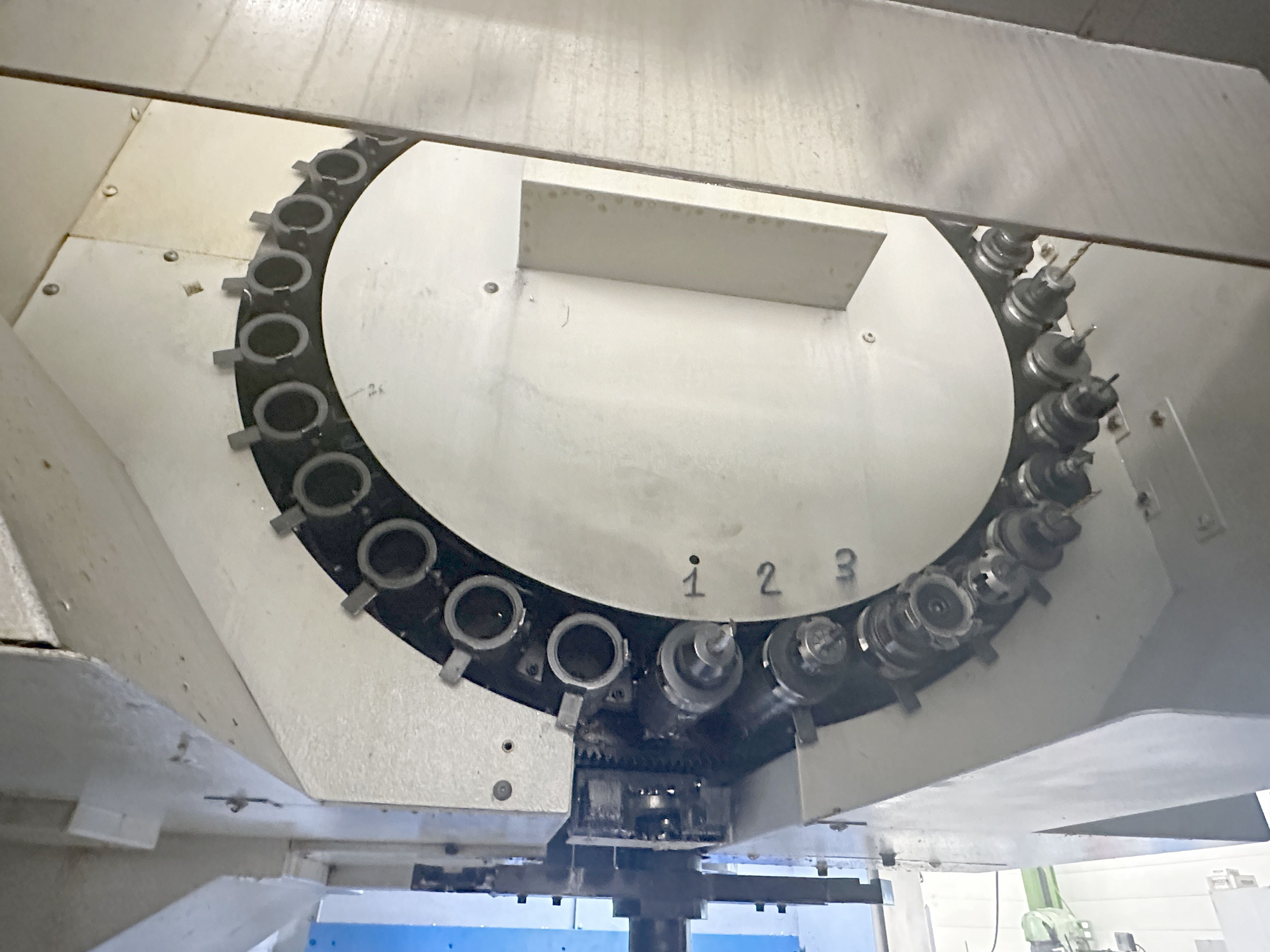

| Tool magazine number of tool places | 30 |
| Spindle nose: BT | 40 |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 10000 t/min |
| Measurement system: | |
| Voltage 50 Hz 3x | 200 Volt |
| Spindle power | 22 kW |
| Total power required | 58 kVA |
| Machine's weight about | 8030 kg |
| Overall dimensions machine: | |
| Length | 2500 mm |
| Width | 2350 mm |
| Height | 2700 mm |
| Various accessories: | |

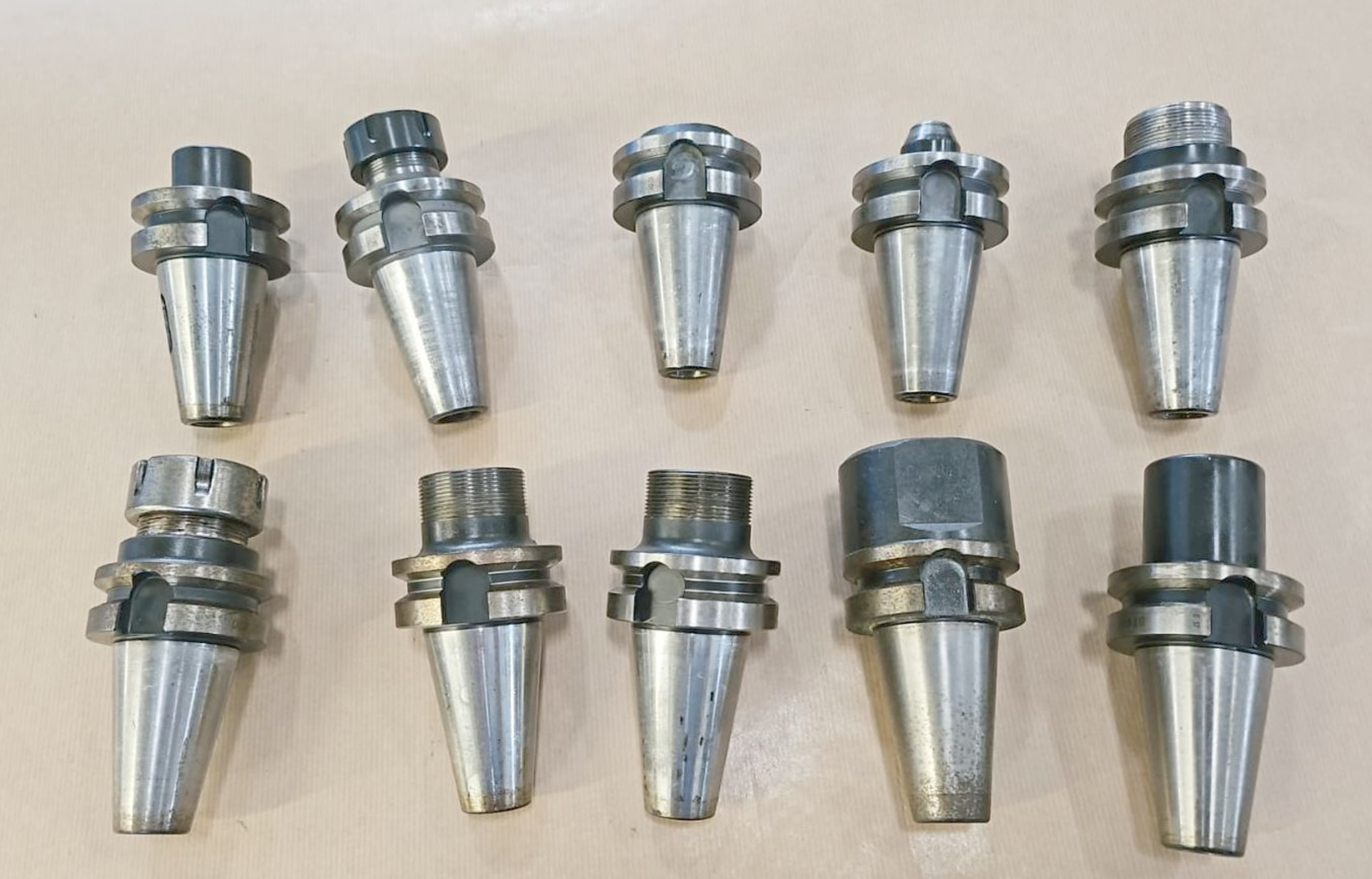

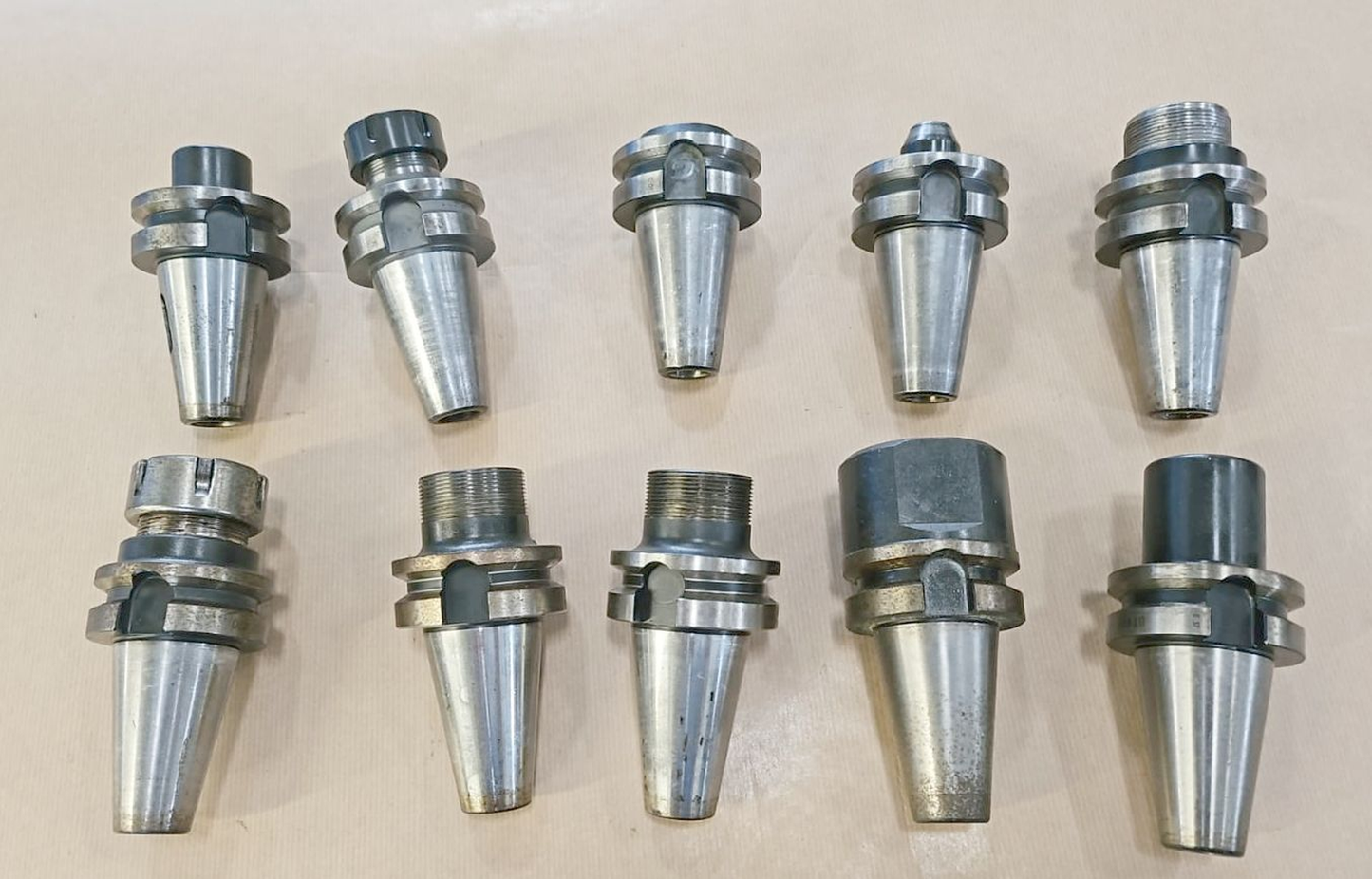

| Set of toolholders | |

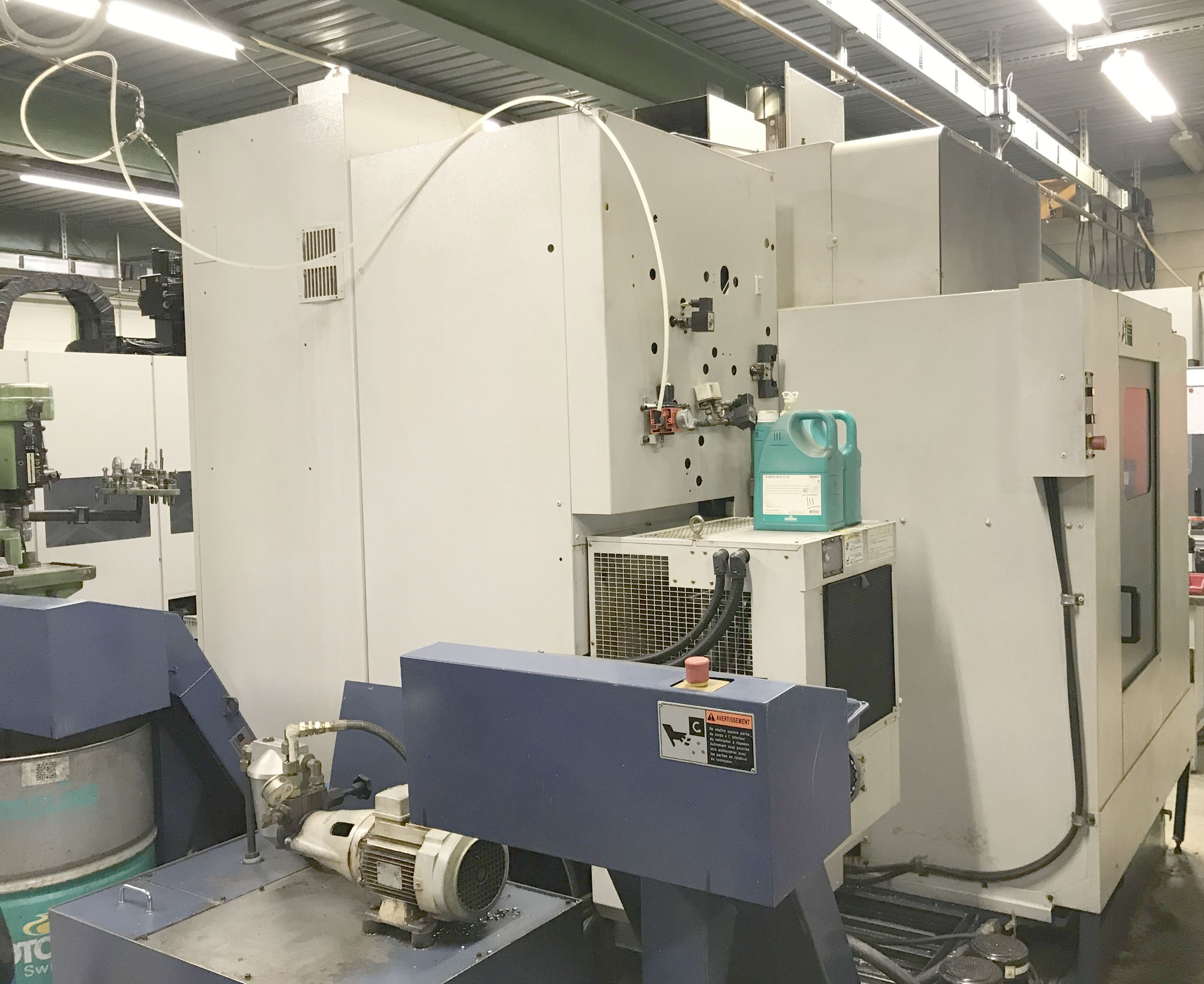

| Coolant system | |
| Coolant through spindle (cts) | 30 bar |
| Chip conveyor | |

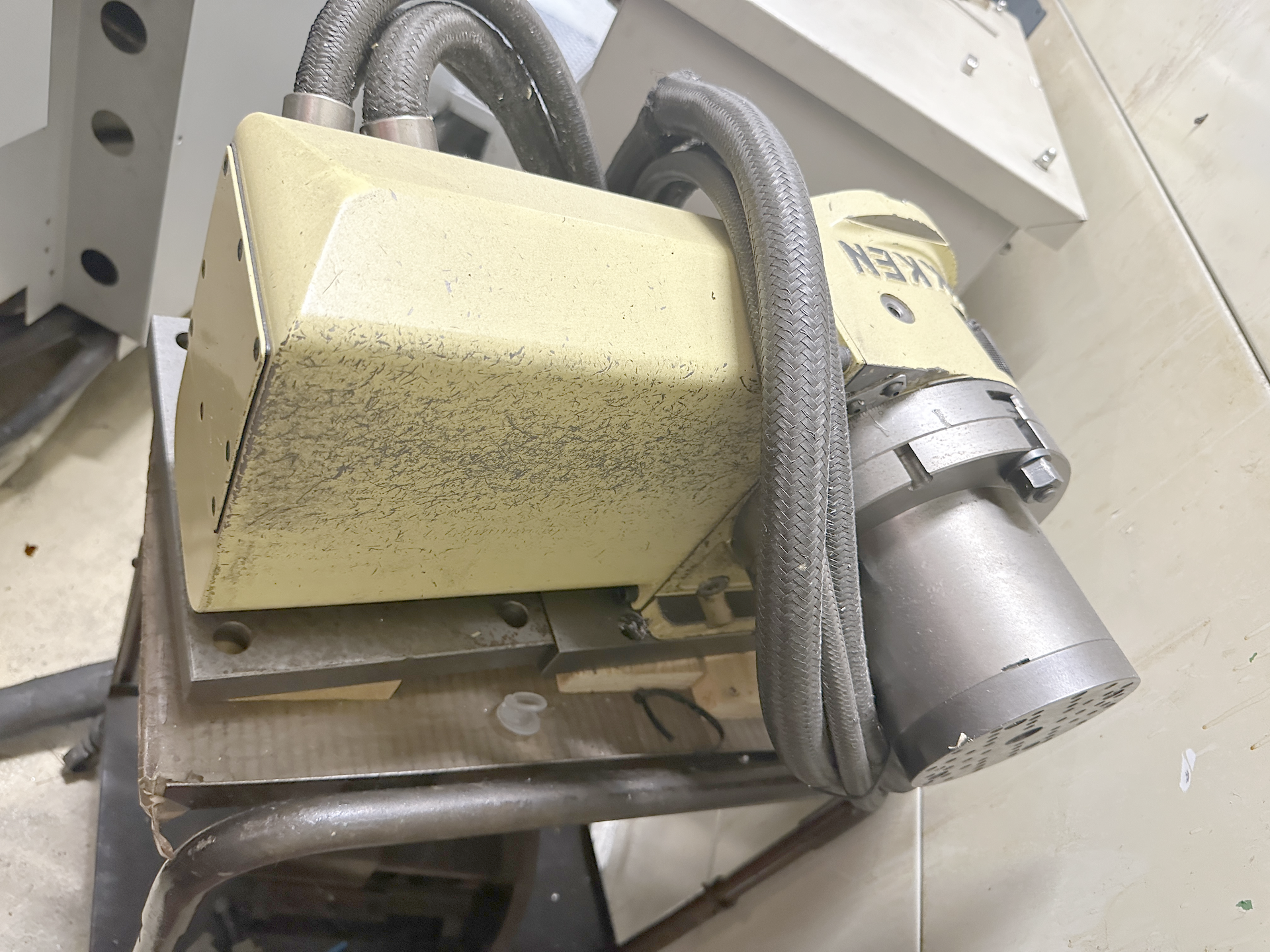

| Dividing attachment | NIKKEN |
| Lamp | |
| Status light |
