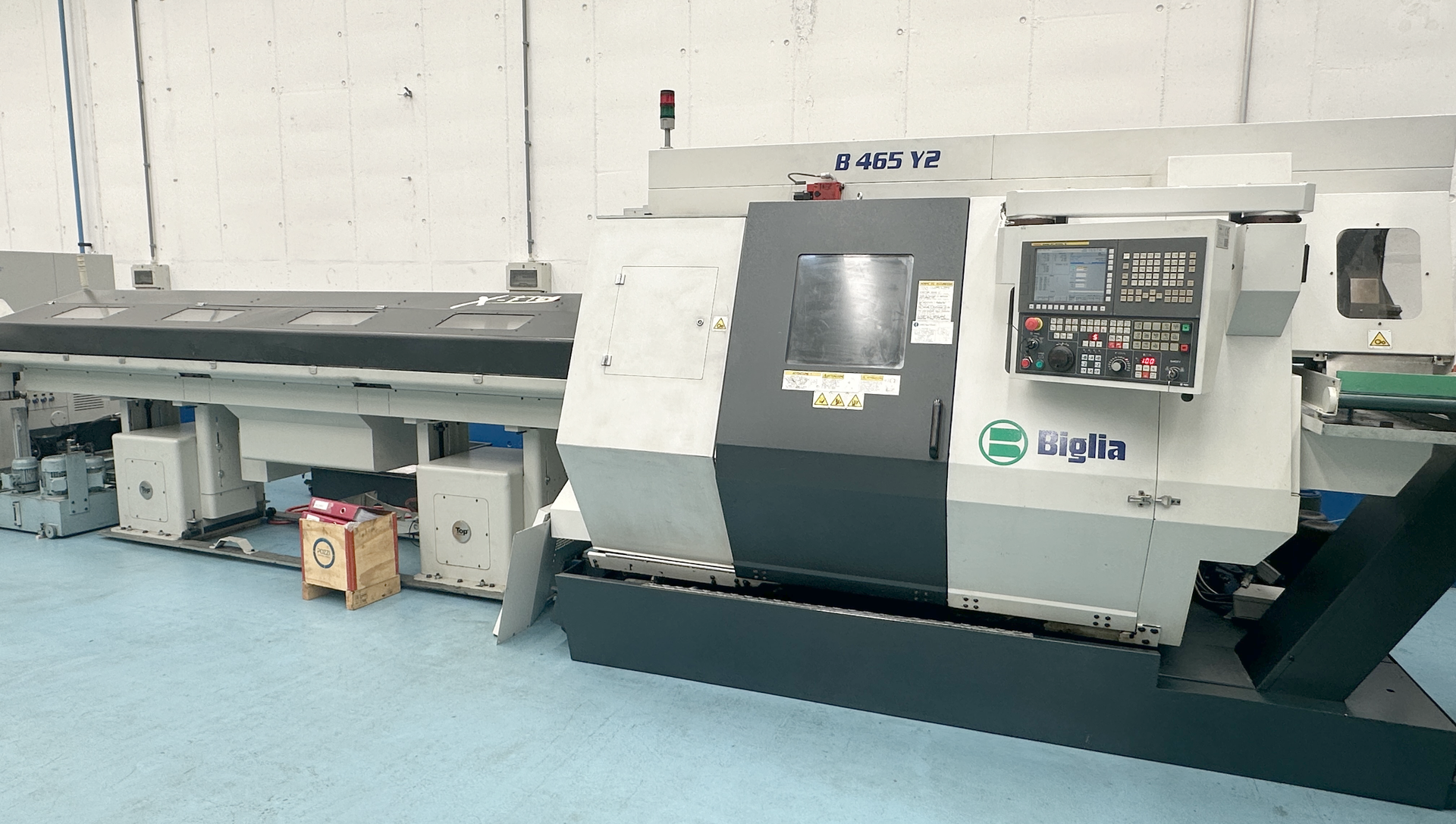

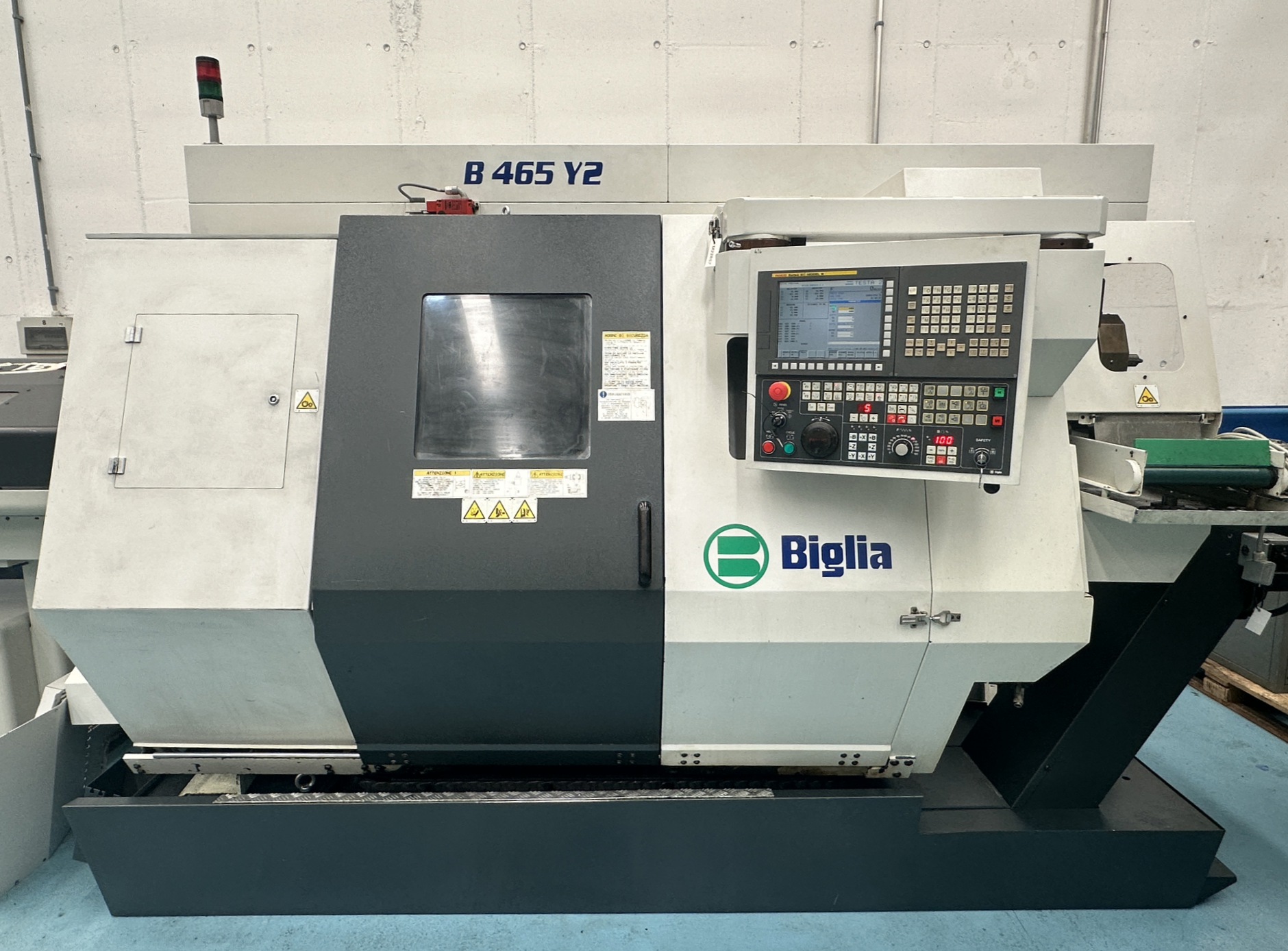

022857 - BIGLIA B 465 T2Y2
Manufacturer: BIGLIA
Group: CNC turning lathe
Subgroup: CNC turning lathe
Type: B 465 T2Y2

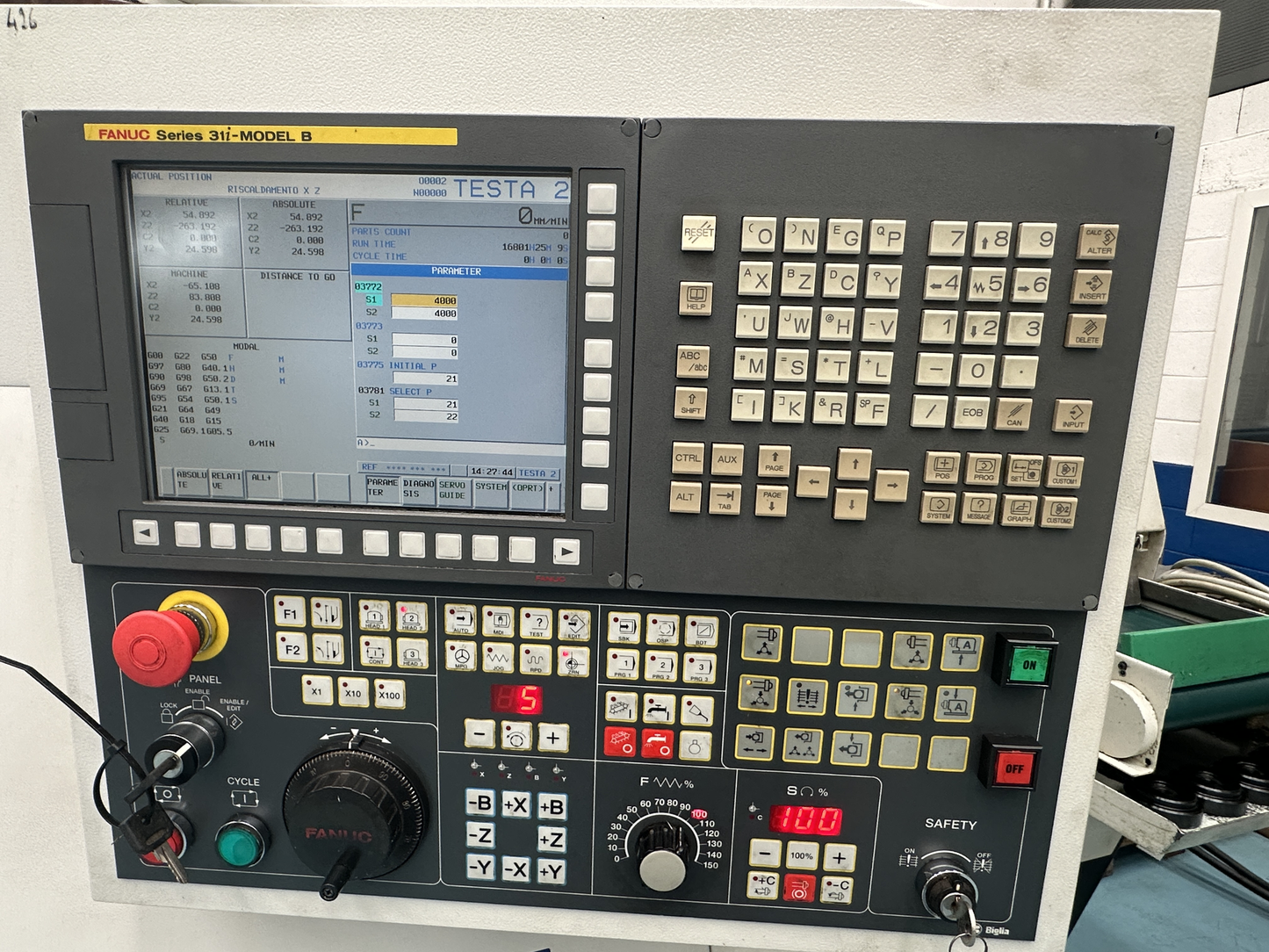

Control: FANUC Series 31i-Model B
Stock: 022857
Year: 2012
Number of spindles | 2 |
Number of revolvers | 2 |
Maximum turning length | 350 mm |
Max. turning diameter | 200 mm |
Bar diameter | 71 mm |
Travels: | |
X1 | 170 mm |
X2 | 170 mm |
Z1 | 390 mm |
Z2 | 390 mm |
Y1 | 90 mm |
Y2 | 90 mm |

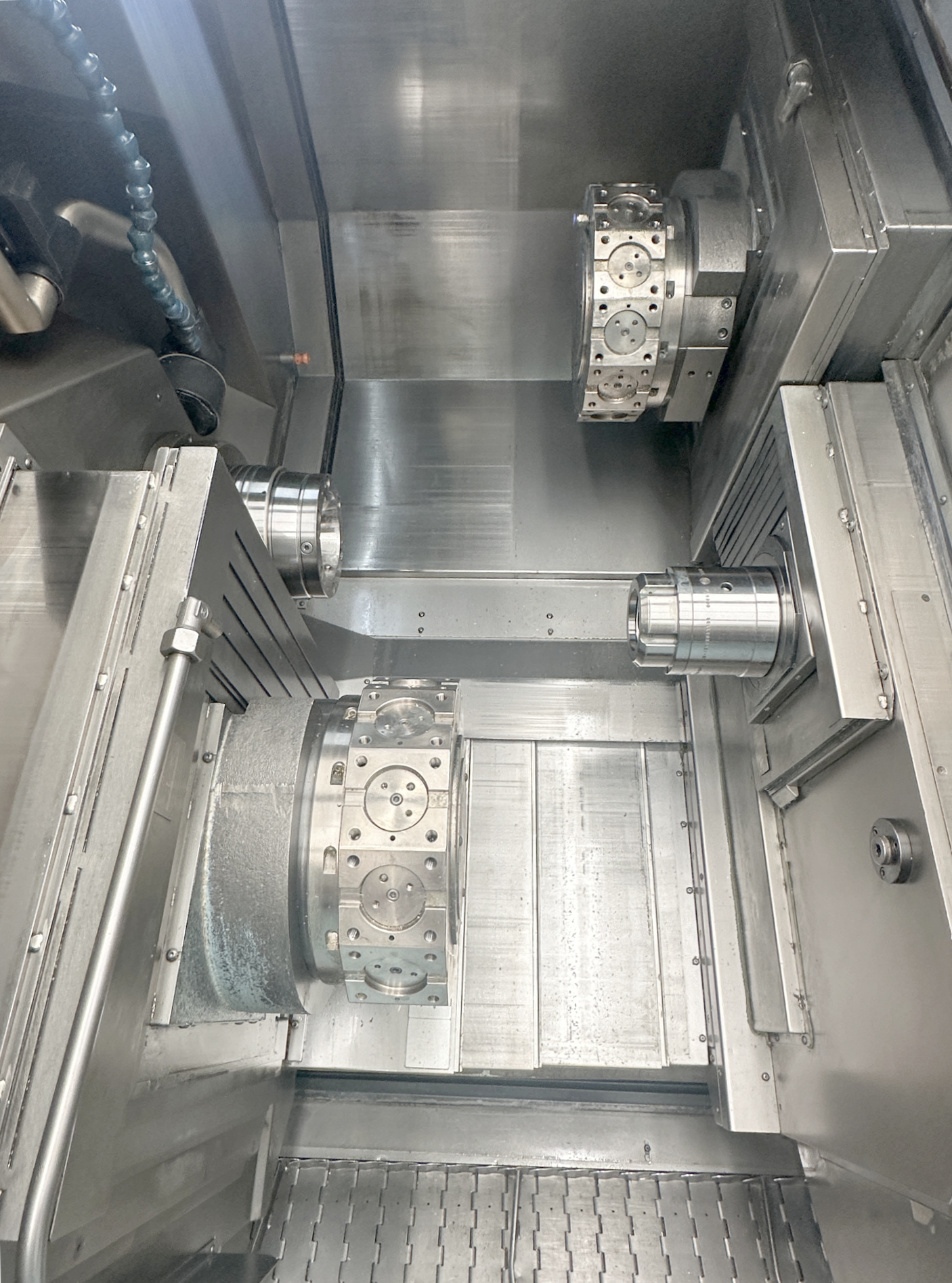

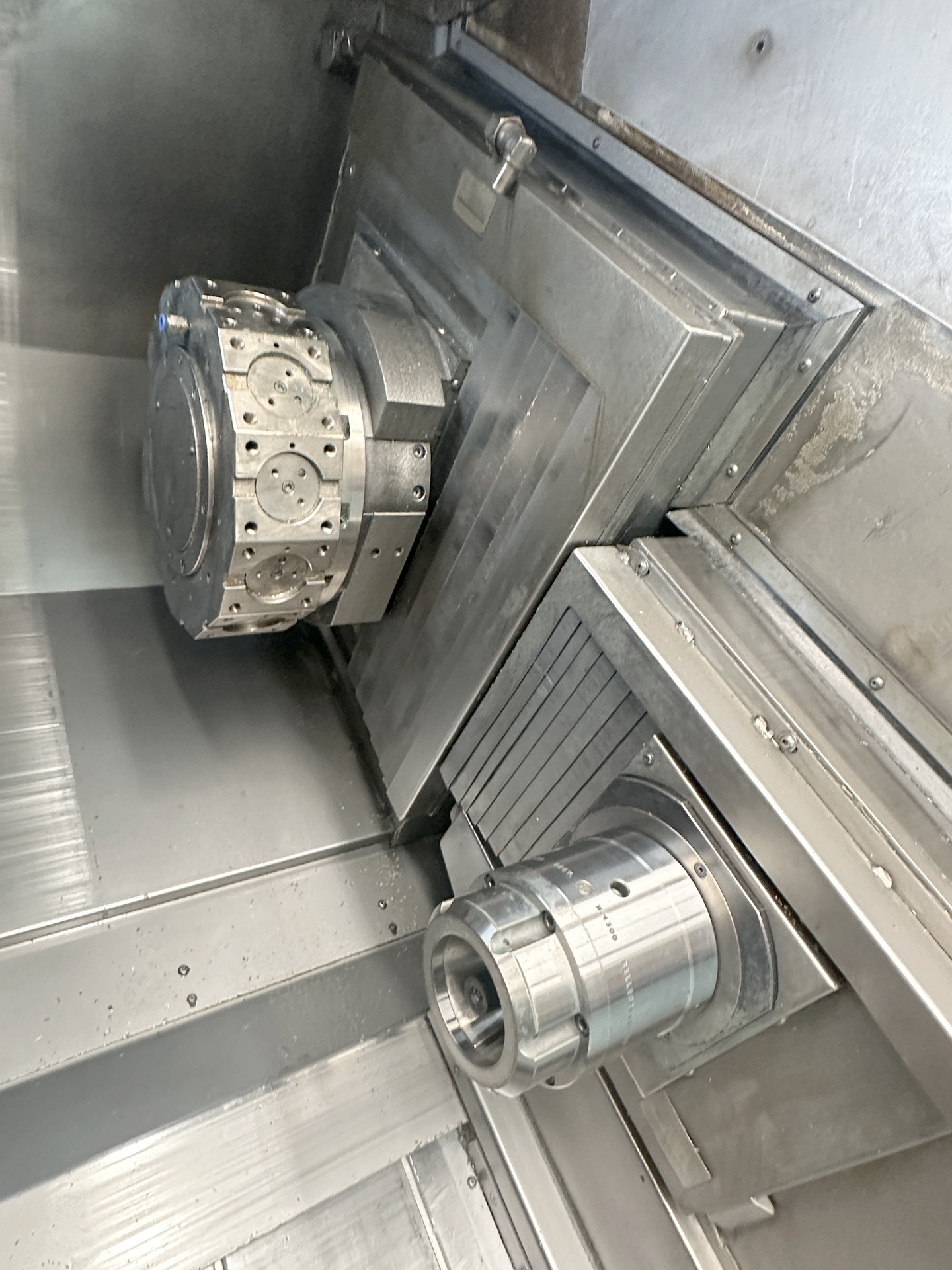

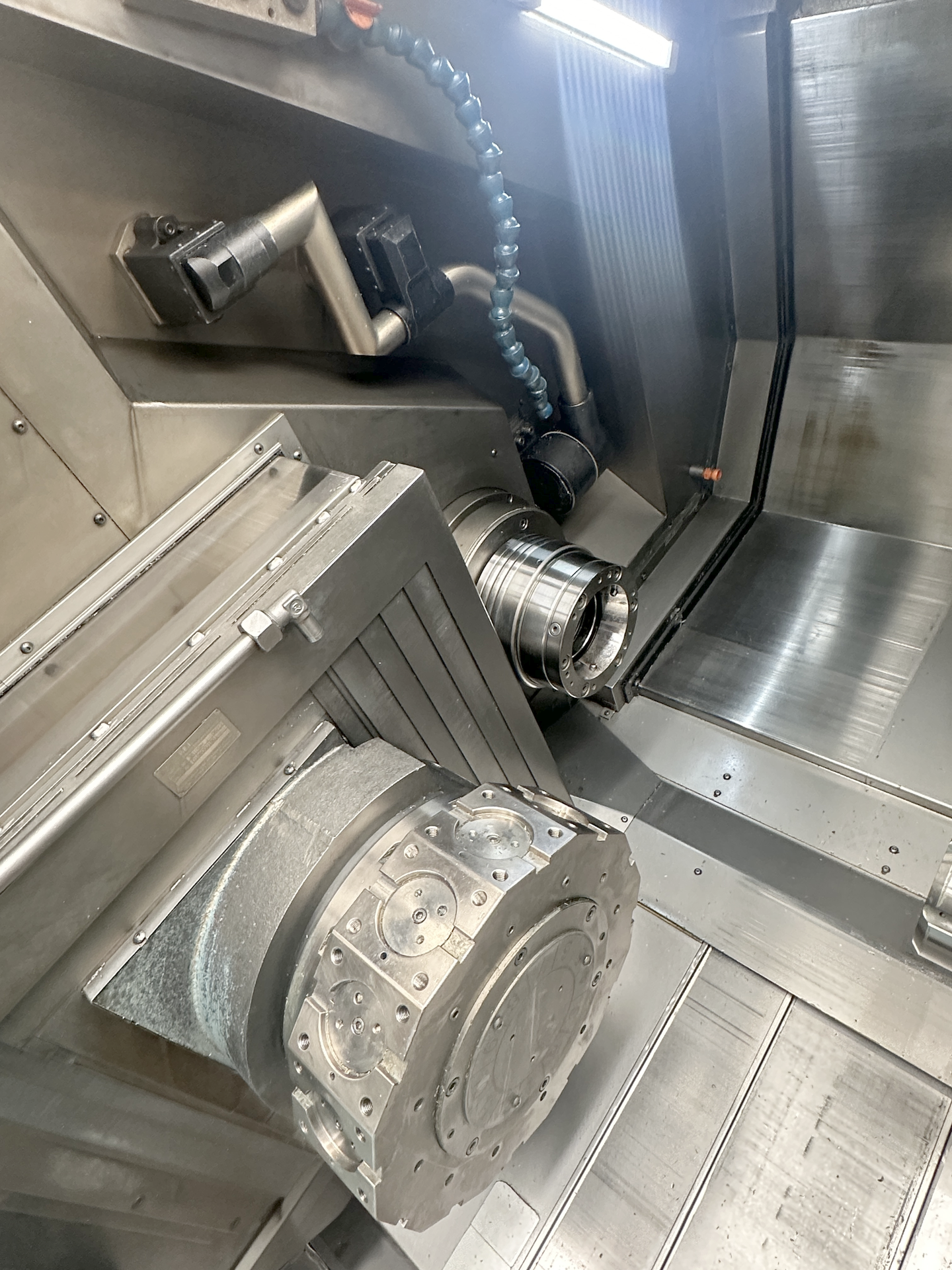

Turret slide: | |
Number of positions turret 1 | 12 |
Number of positions turret 2 | 12 |
Driven tools turret | |
Spindle speeds | 4000 t/min |
Power of driven tools | 3.7 kW |

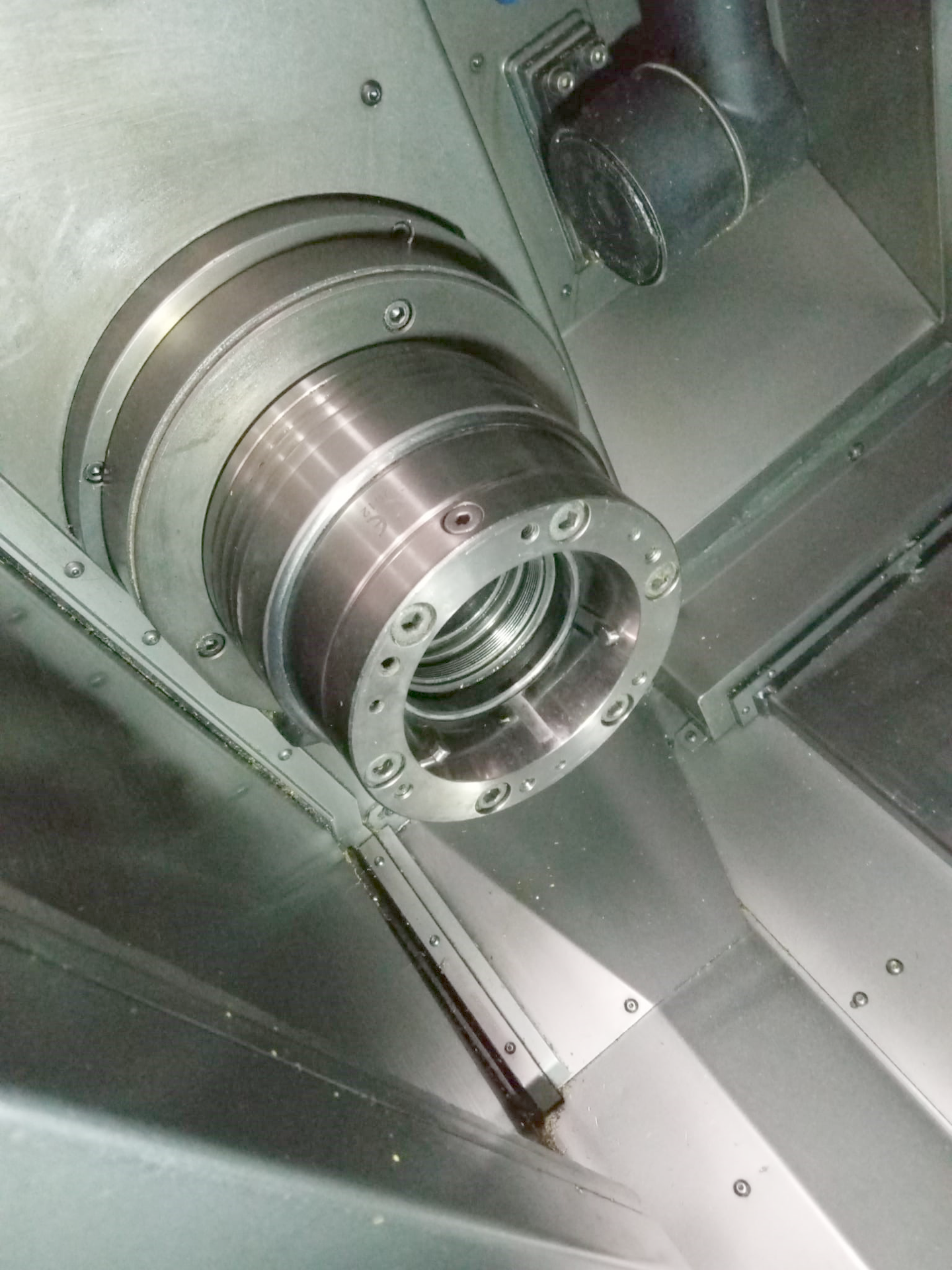

Main spindle: | |
Spindle nose | ASA 6" |
Spindle speeds: | |
stepless | |
from | 0 t/min |
up to | 4000 t/min |
Spindle power | 22 / 26 kW |

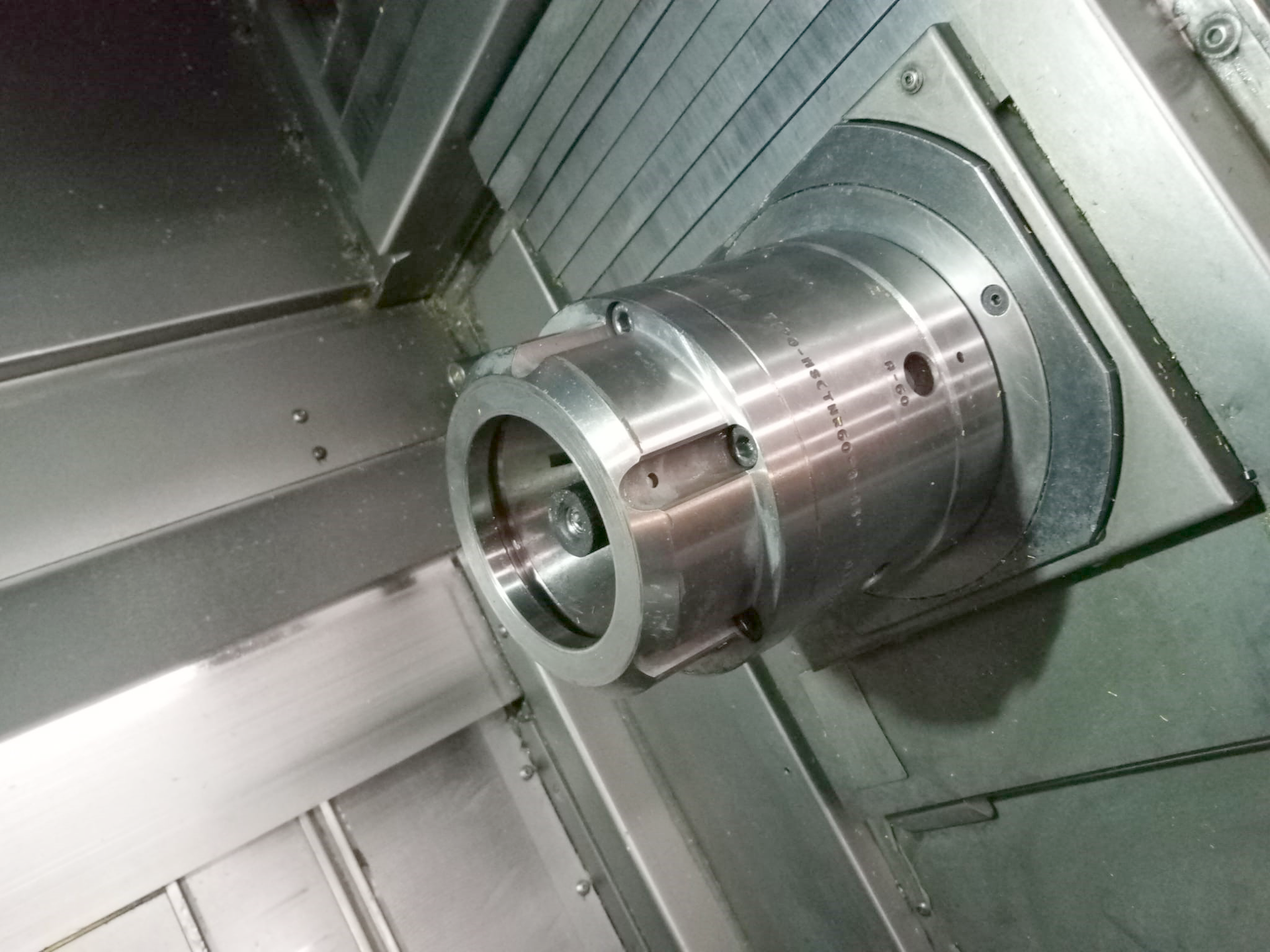

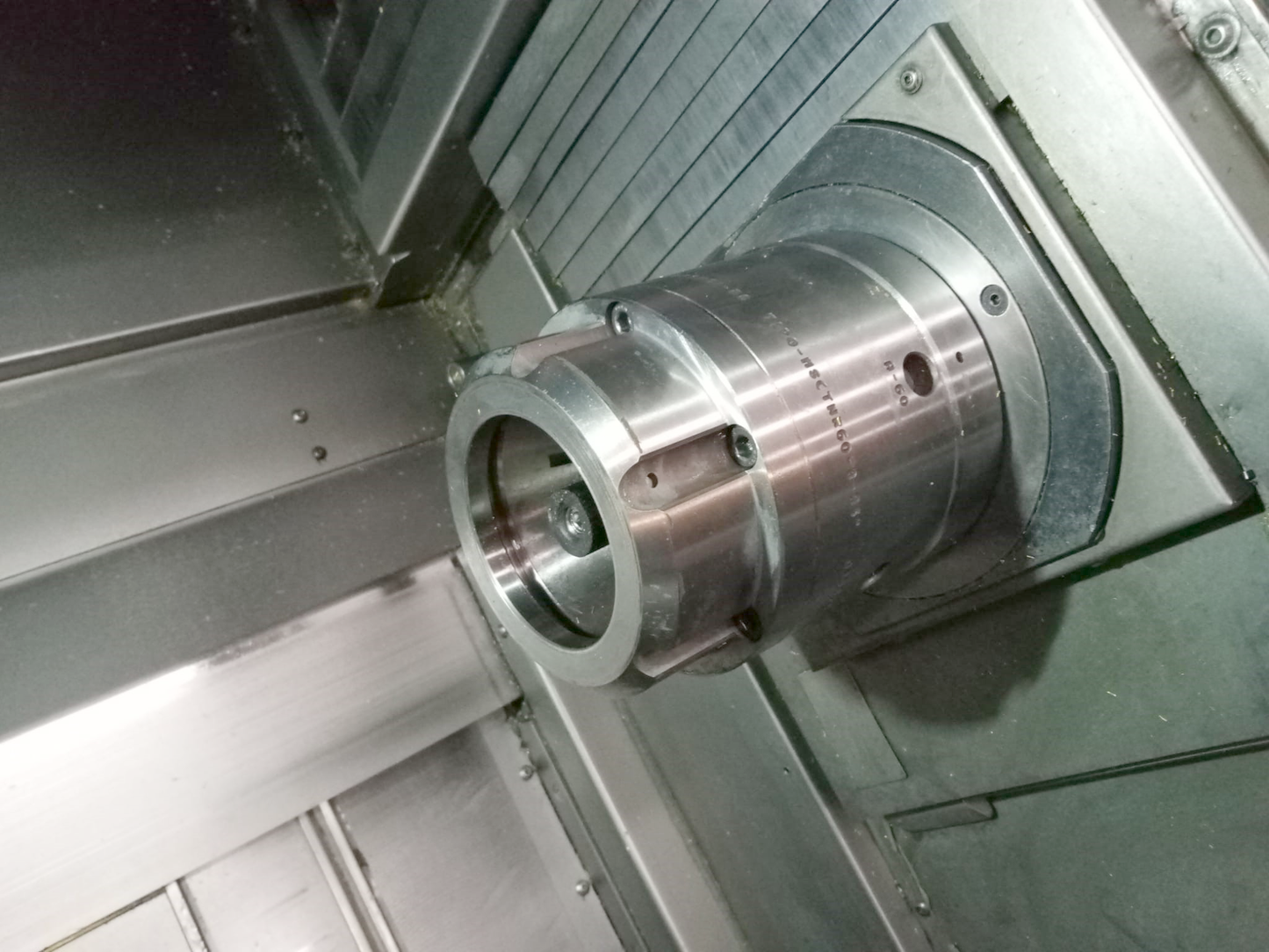

Back spindle mobile: | |
Spindle nose | ASA 5" |
Back spindle stroke | 420 mm |
Power of back spindle | 7.5 / 11 kW |
Rapid traverse X | 18 m/min |
Rapid traverse Z | 30 m/min |
Rapid traverse Y | 9 m/min |
Voltage 50 Hz 3x | 400 Volt |
Machine's weight about | 7400 kg |
Overall dimensions machine: | |
Length | 4400 mm |
Width | 2150 mm |
Height | 2200 mm |
Various accessories: | |
High pression colant device | 25 bar |

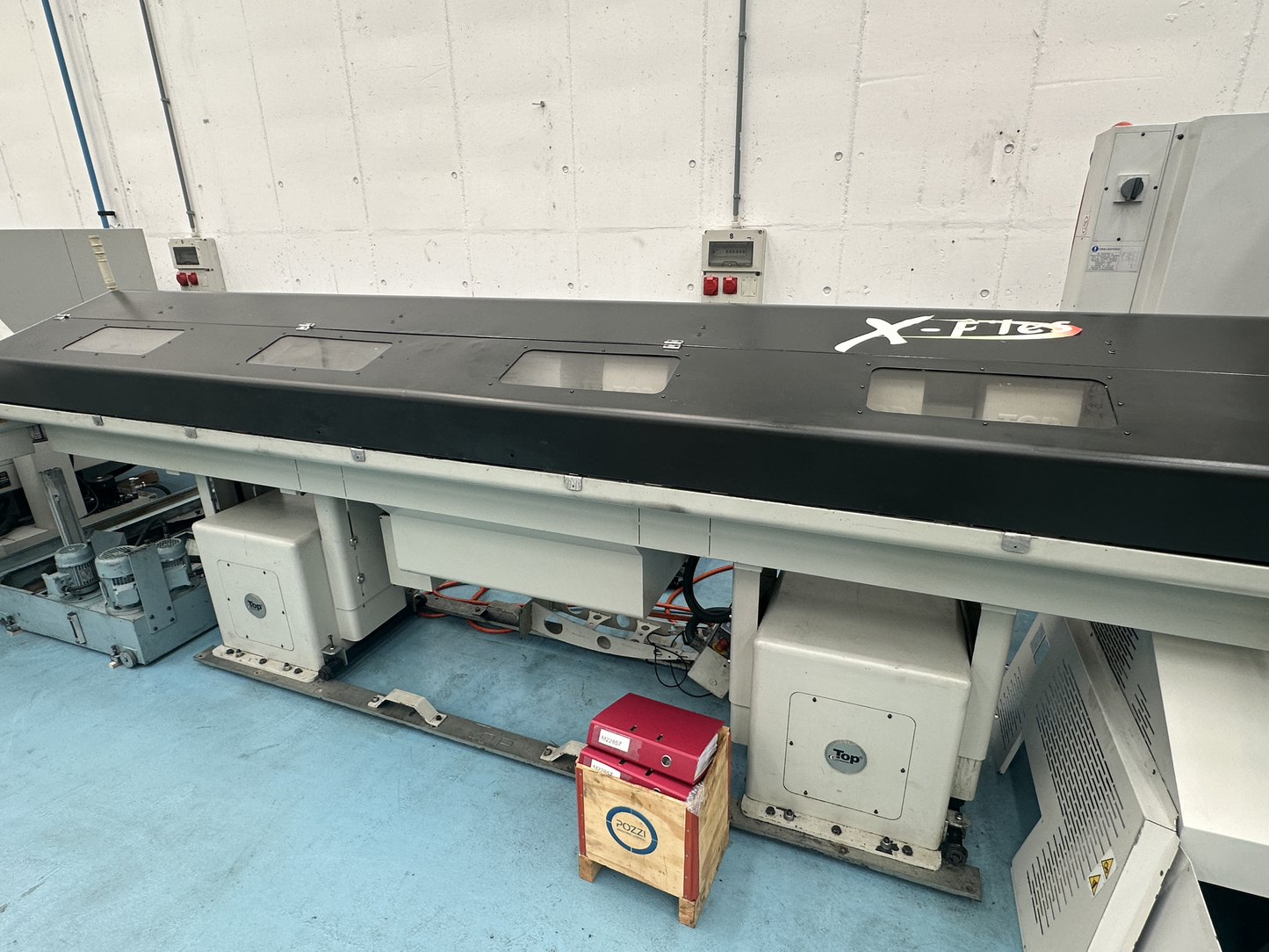

Bar feeder | TOP |
Type | XFILE 370 |
Interface serial port RS 232 | |
Interface Ethernet | |
Interface USB | |
Interface PCMCIA card | |

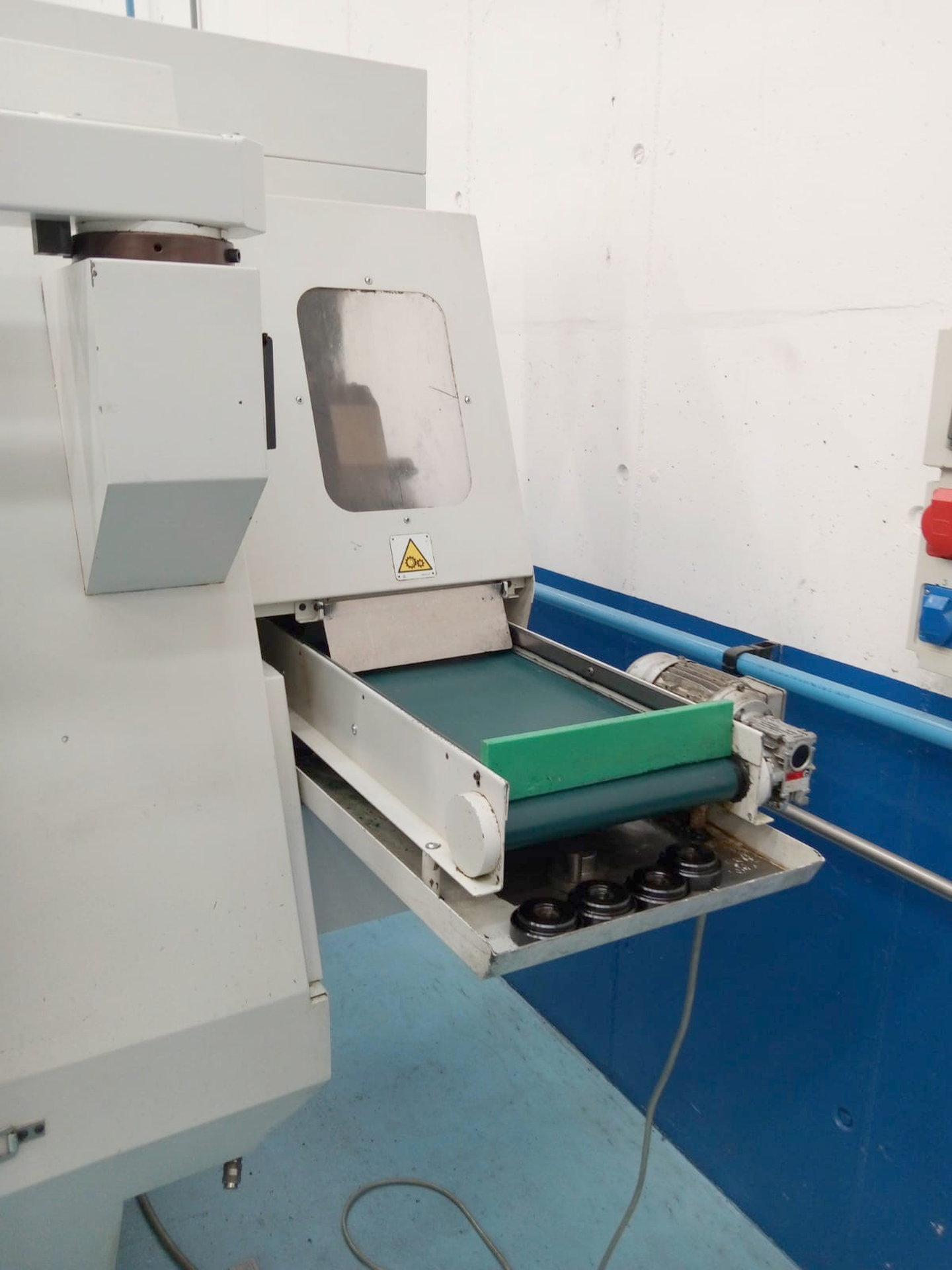

Parts catcher | |
Workpiece conveyor | |

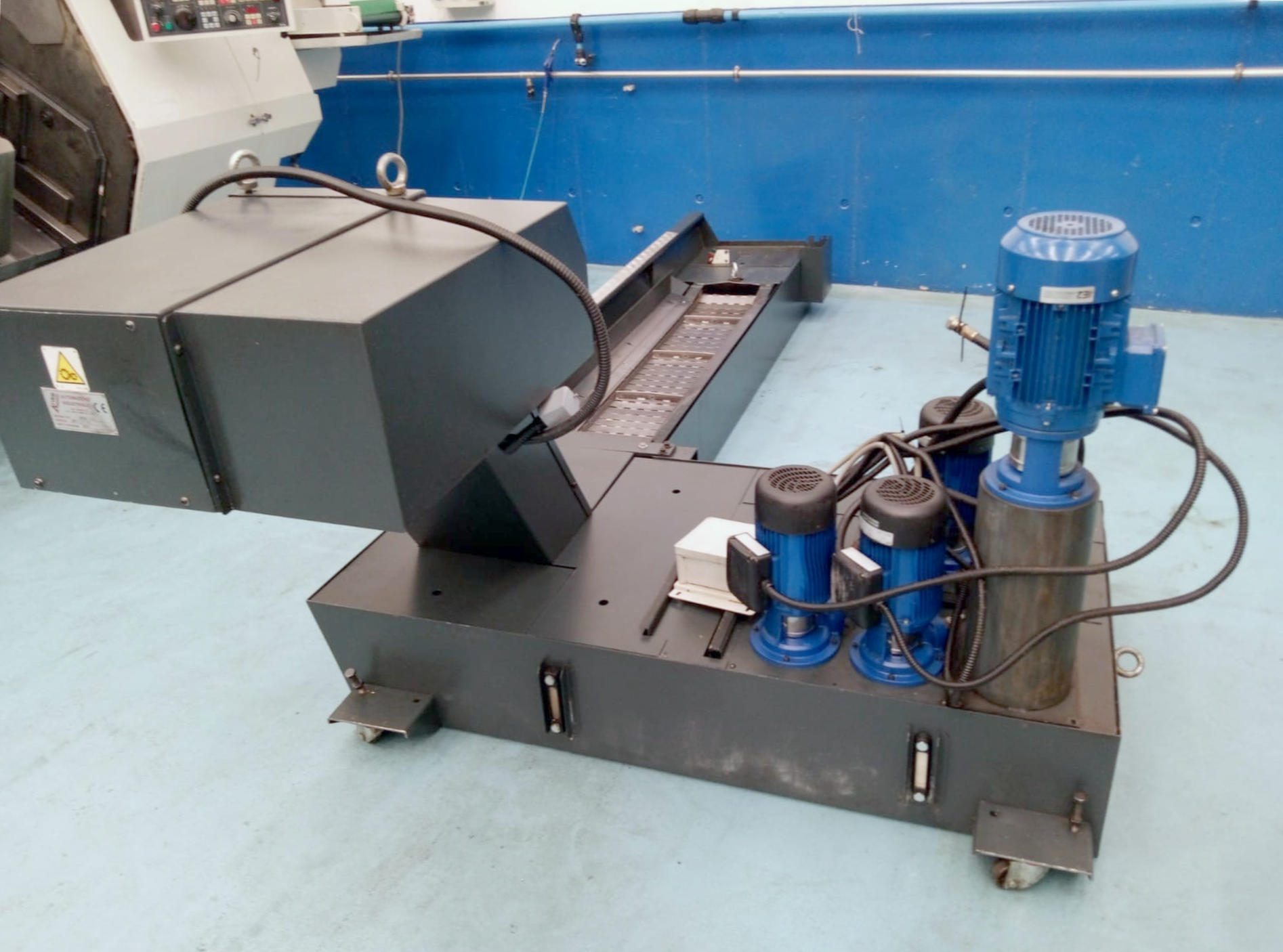

Chip conveyor | |

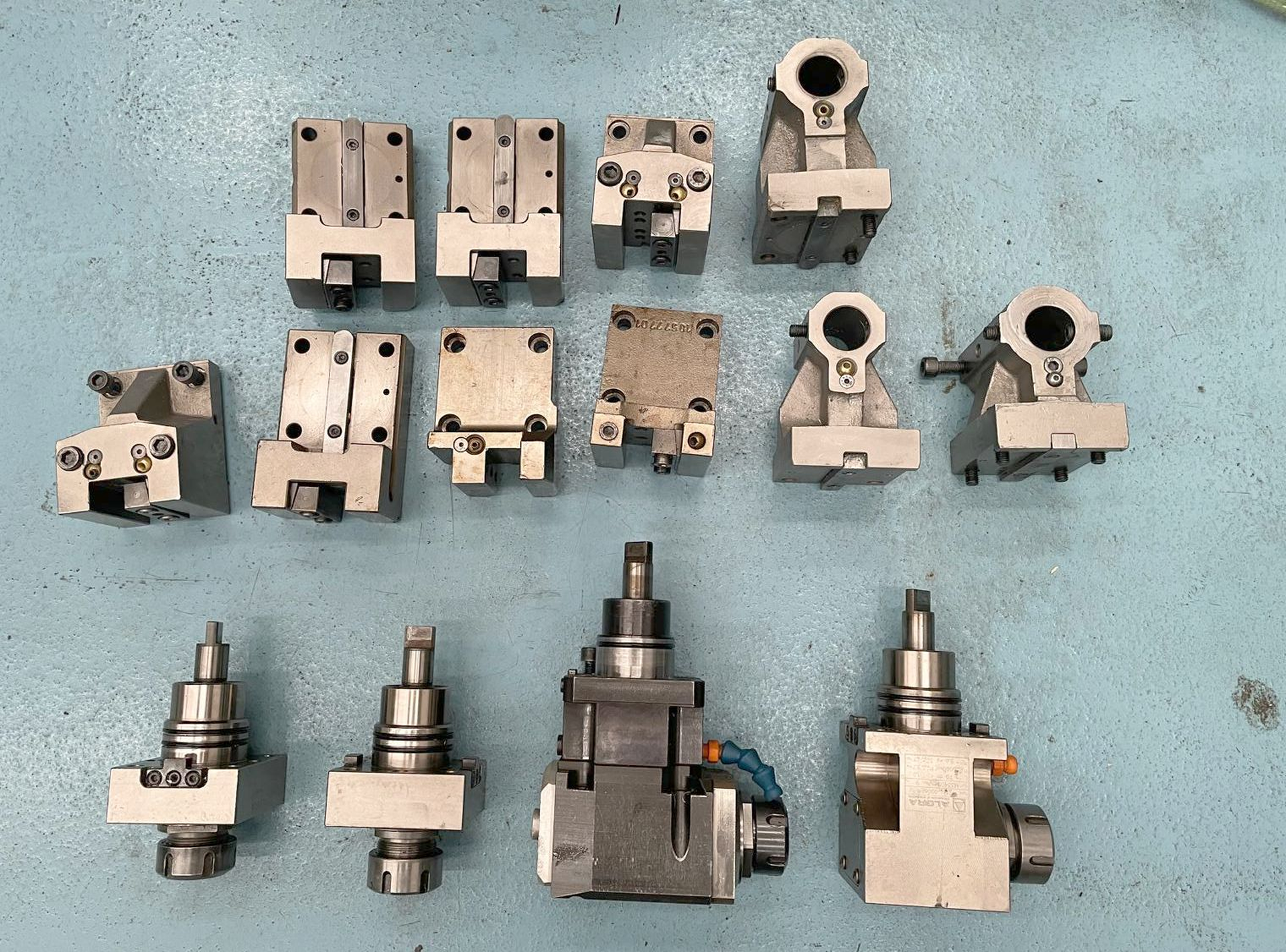

Set of toolholders | |
Measuring arm Renishaw |
