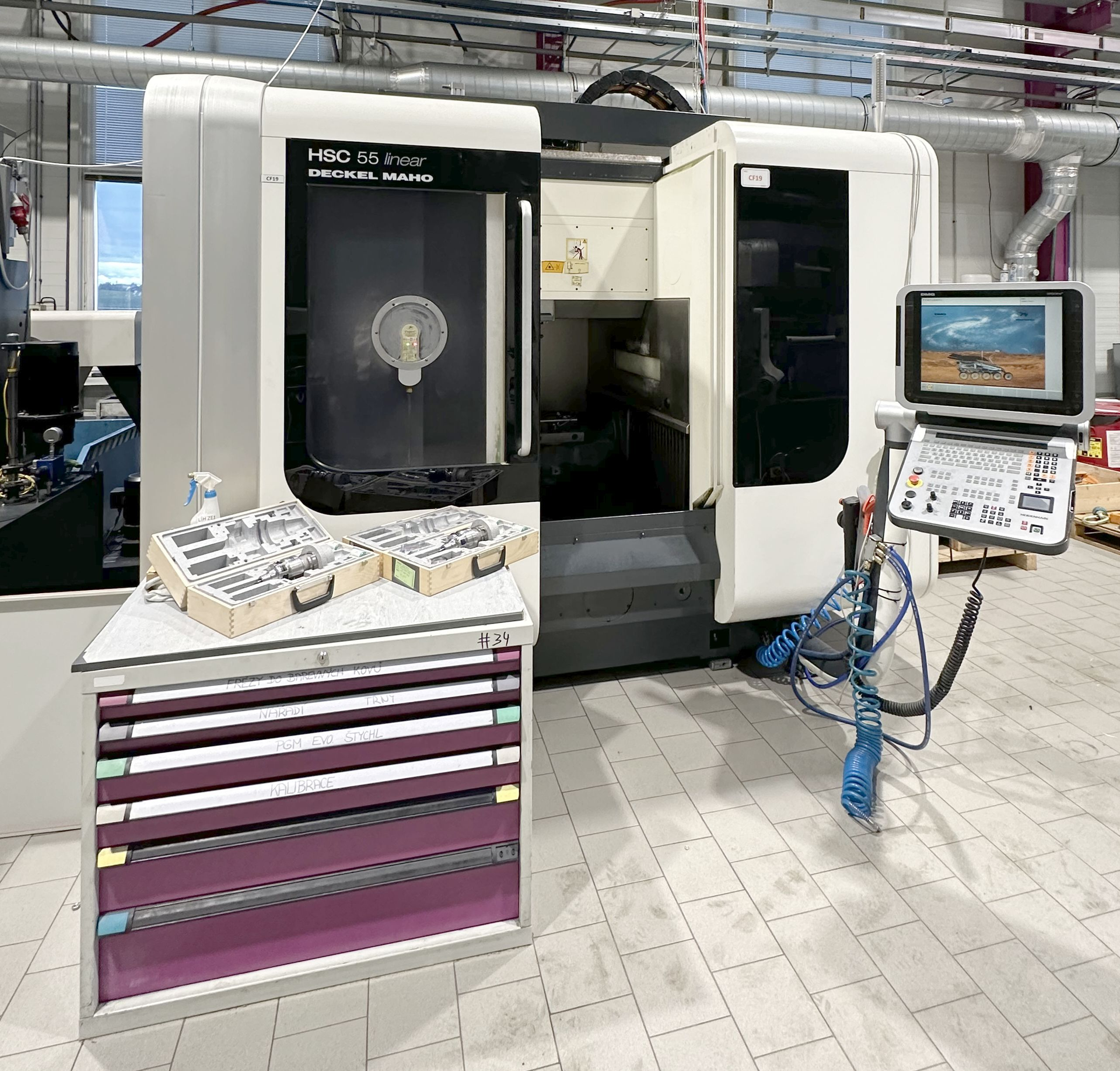

DMG HSC 55 linear
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

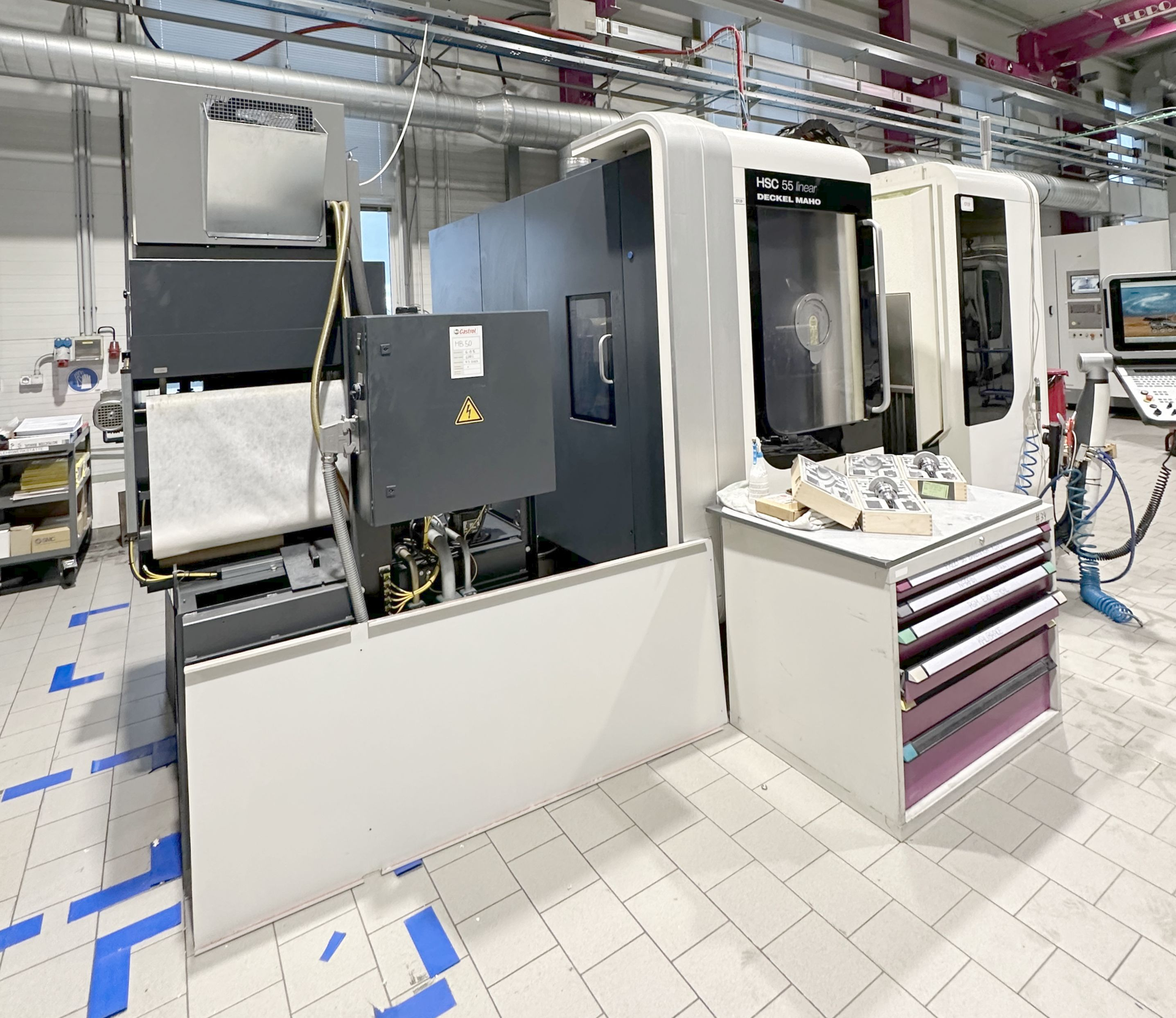

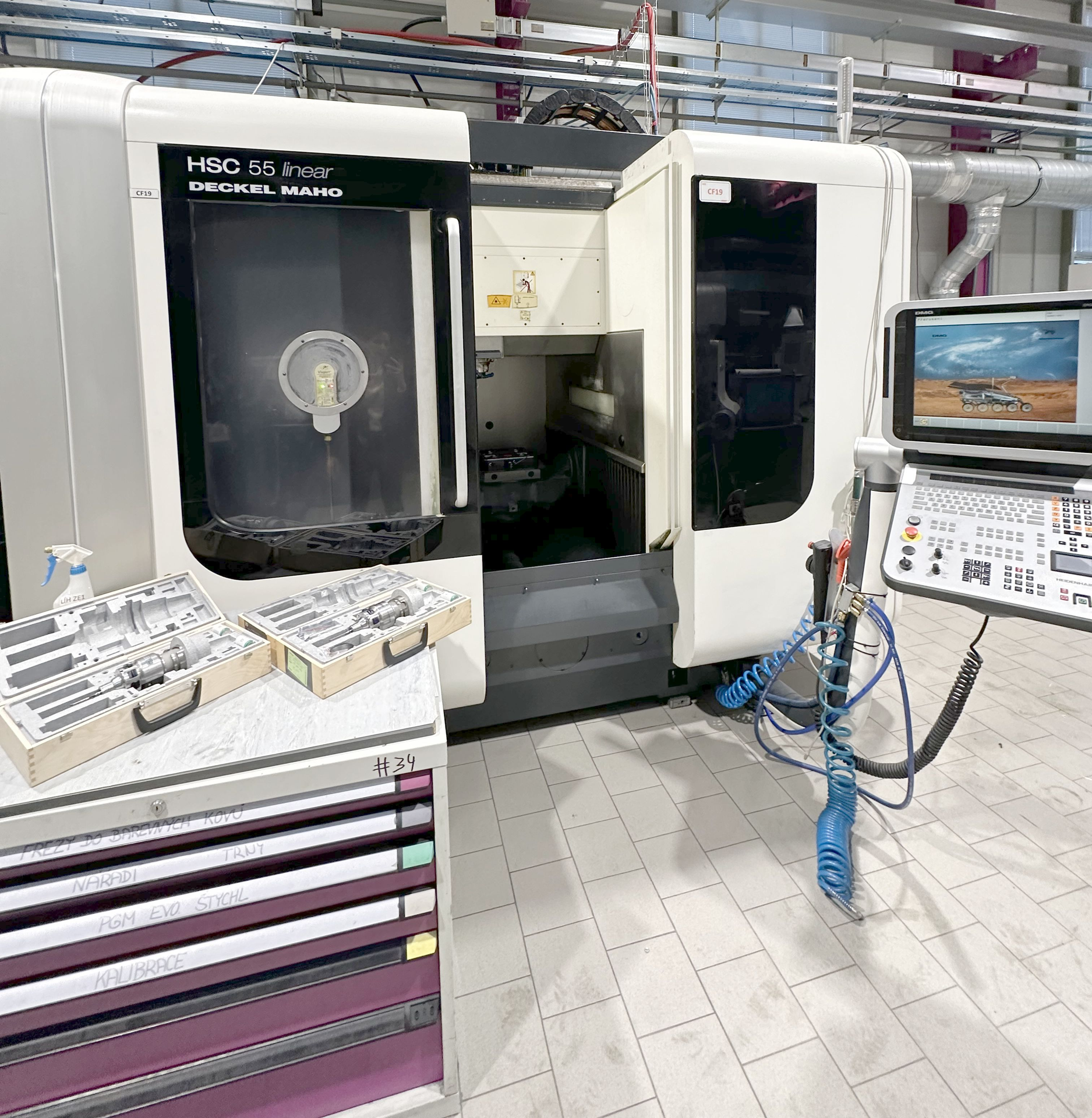

DMG HSC 55 linear is a 5-axis machining center, engineered for precision, high accuracy and reliability. Travels X 450 mm, Y 650 mm, Z 460 mm; A-axis -10/+110°; tool magazine 60 places; tool Ø max 80 mm, length 250 mm, max tool weight 6 kg; spindle taper HSK 63. Spindle speed from 2 t/min up to 28000 t/min; spindle power 38/28 kW; voltage 3x 400 V 50 Hz; total power 70 kVA; machine weight ≈9500 kg; dimensions L 3210 × W 2930 × H 2900 mm. Delivers tight tolerances; typical sectors: automotive, watchmaking, machine tools, aerospace, medical
| Number of axis total | 5 |
| Longitudinal travel (X-axis) | 450 mm |
| Transversal travel (y-axis) | 650 mm |
| Vertical travel (z axis) | 460 mm |

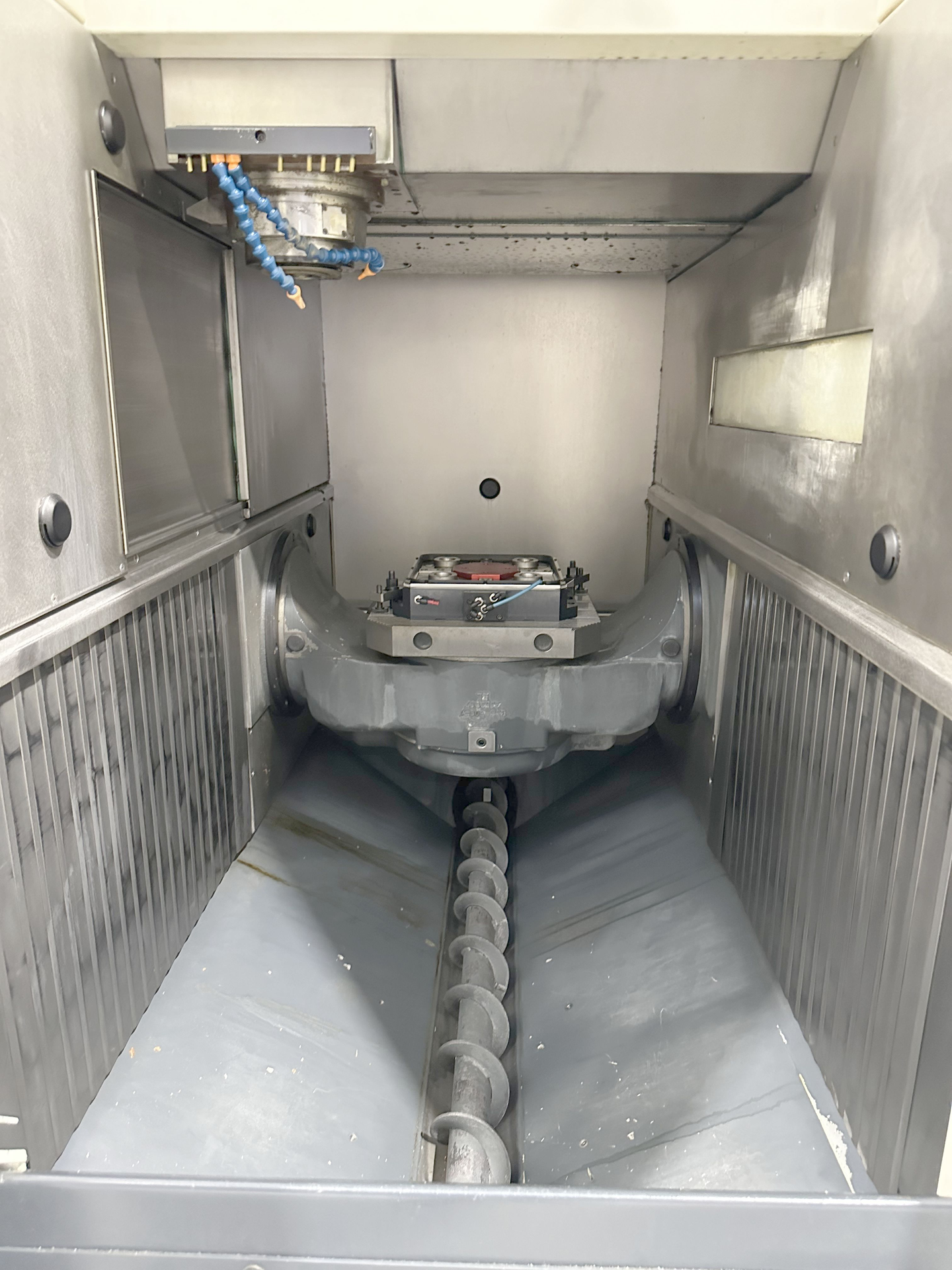

| Swivel angle (a-axis) | -10 / +110 ° |
| Tool magazine number of tool places | 60 |
| Tool diameter max. | 80 mm |
| Tool lenght | 250 mm |
| Max. tool-weight | 6 kg |
| Spindle nose: HSK | 63 |
| Spindle speeds: | |
| stepless | |
| from | 2 t/min |
| up to | 28000 t/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle power | 38 / 28 kW |
| Total power required | 70 kVA |
| Machine's weight about | 9500 kg |
| Overall dimensions machine: | |
| Length | 3210 mm |
| Width | 2930 mm |
| Height | 2900 mm |
