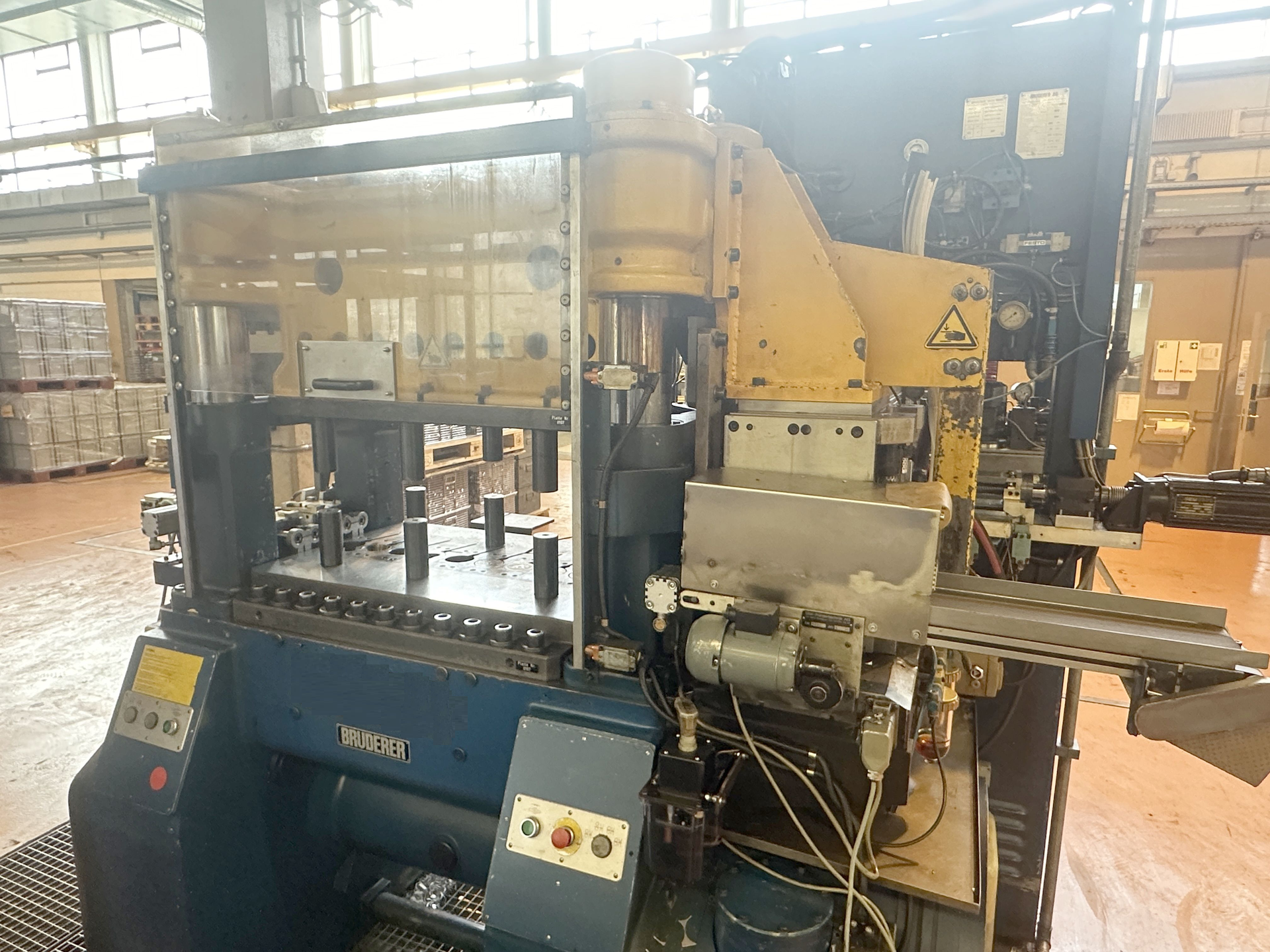

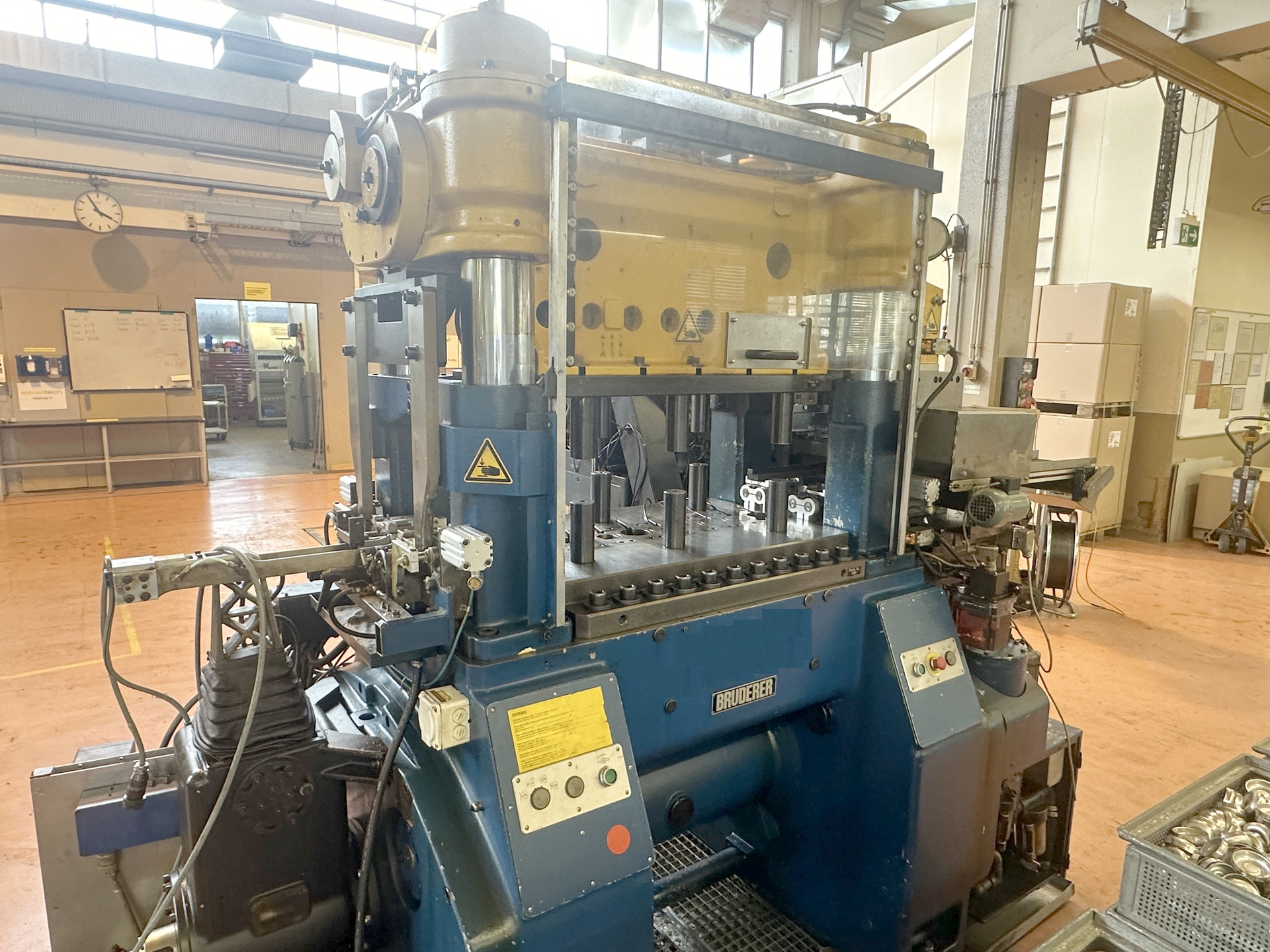

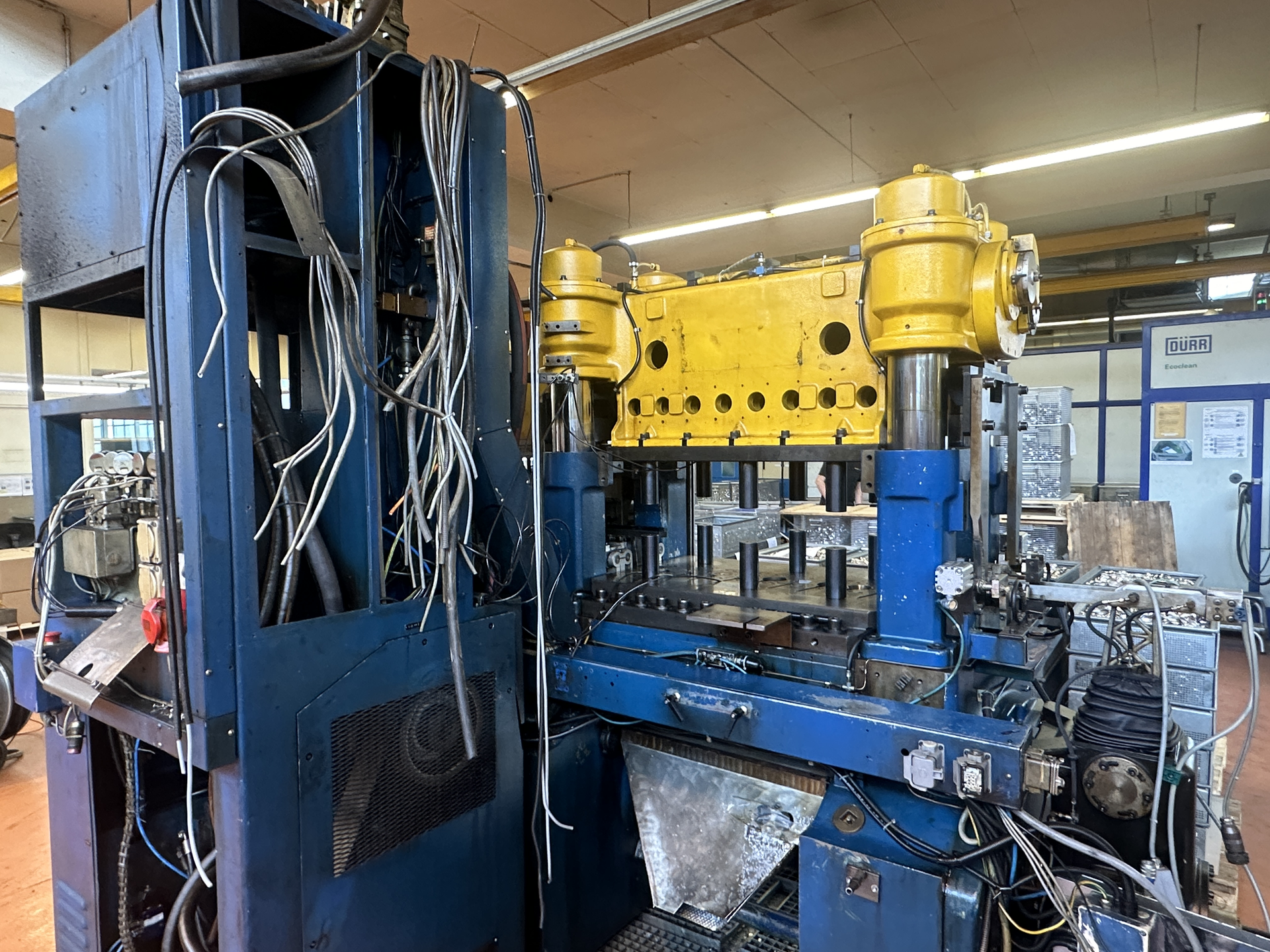

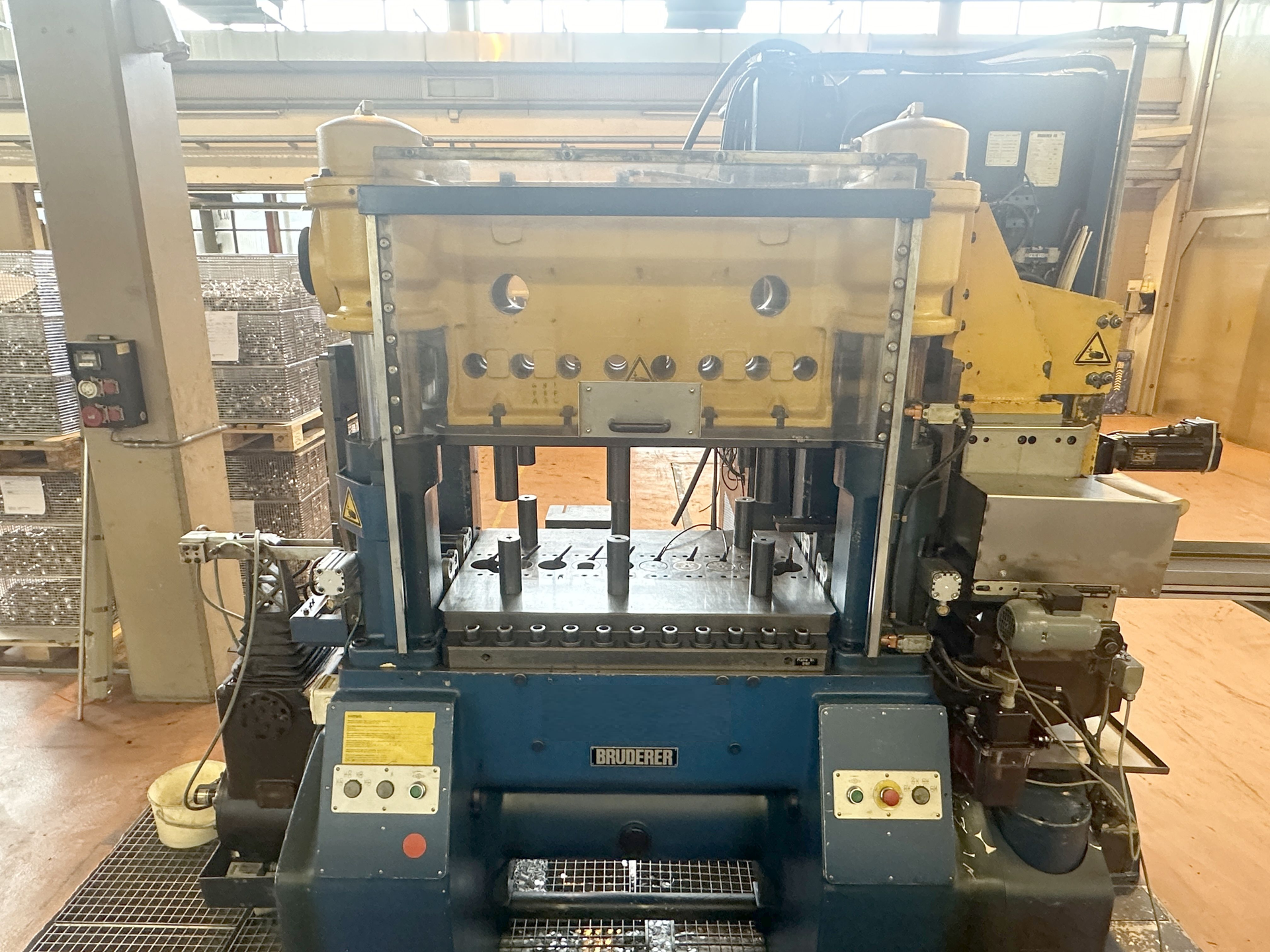

BRUDERER BSTA 60 HSL
Type: BSTA 60 HSL
Manufacturer: BRUDERER
Group: High speed press
Subgroup: High speed press
Stock: 022843
BRUDERER BSTA 60 HSL is a High speed press, for precision, high accuracy and reliable performance. Capacities: up to 300 c/min; pressure 60 to; fixed stroke 100 mm, slide adjustment 80 mm; table 920×620×120 mm, opening 740×100 mm; passage 920×340 mm; slide 850×456 mm. Specs: 3x380 V 50 Hz, 25 kW, air 6–10 bar, weight ~8100 kg, 2600×2100×2200 mm. Achieves tight tolerances; applications: automotive, watchmaking, toolmaking, aerospace, medical.
| Pressure | 60 to |
| Stroke: (stepless) | |
| up to | 300 c/min |
| Execution: | |
| 4 supports | |

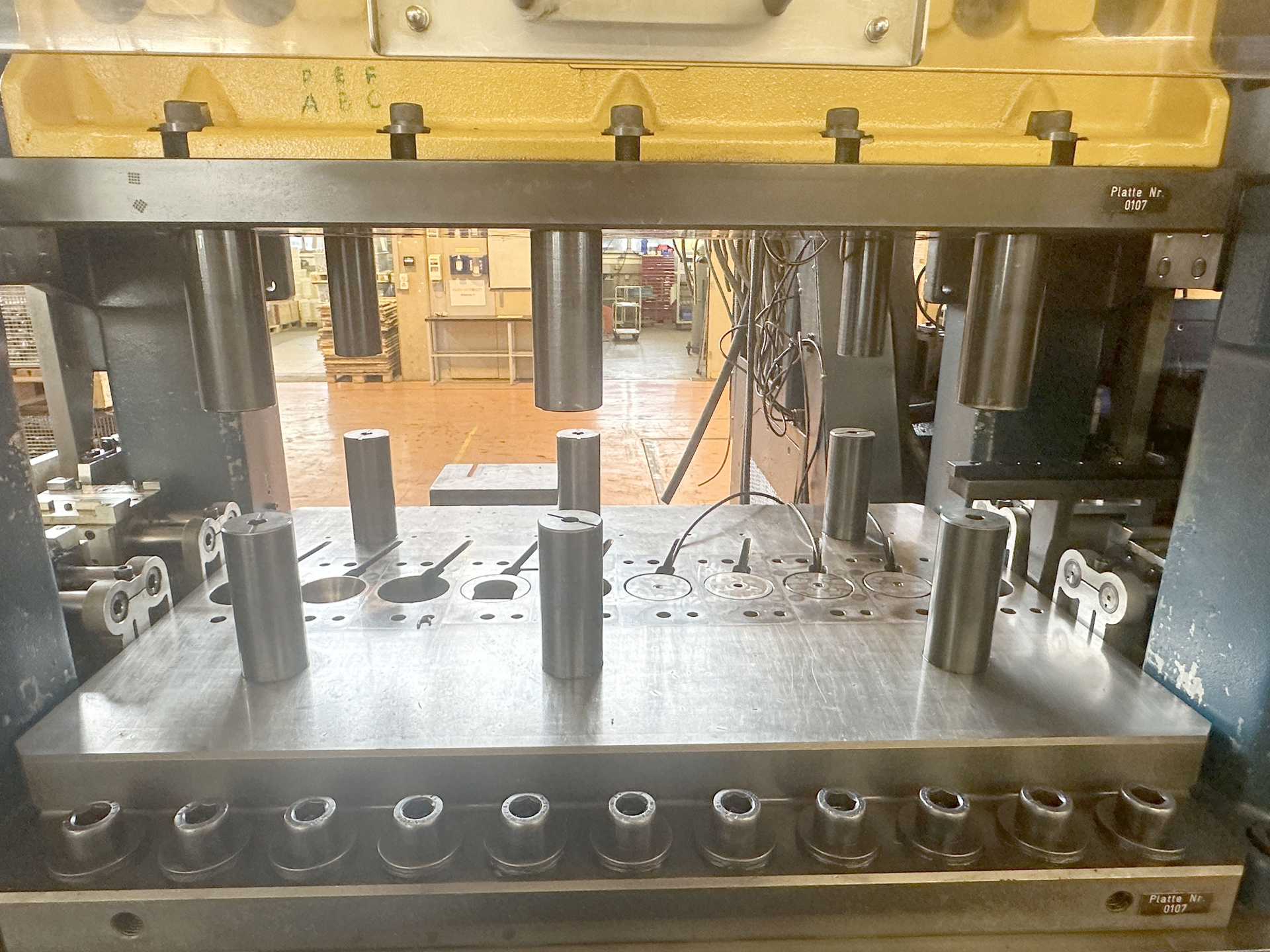

| Table surface: | |
| Length | 920 mm |
| Width | 620 mm |
| Thickness | 120 mm |
| Table relieving: | |
| Length | 740 mm |
| Width | 100 mm |
| With pressing power: | |
| downside up | |
| Slide adjustment | 80 mm |
| Fixed stroke | 100 mm |
| Slide clamping surface: | |
| Length | 850 mm |
| Width | 456 mm |
| Passage between the supports: | |
| longitudinal | 920 mm |
| Lateral | 340 mm |
| Air connect | 6 - 10 bar |
| Voltage 50 Hz 3x | 380 Volt |
| Total installed power | 25 kW |
| Machine's weight about | 8100 kg |
| Overall dimensions machine: | |
| Length | 2600 mm |
| Width | 2100 mm |
| Height | 2200 mm |

Need Assistance? Just WhatsApp Us!
Eccentric shaft of main drive has been rebuilt.
