CITIZEN CINCOM L 20 is a CNC automatic lathe (CNC Swiss-type) engineered for high-precision, very accurate and reliable machining. Capacities: 2 spindles; max. turning diameter 20 mm; max. turning length 200 mm; collet taper F25; bar passage 2–26 mm, max bar length 3200 mm. Key specs: spindle speeds 200–8,000 rpm, back spindle 200–6,000 rpm; 3 tool-holders with 12 tool positions; 5 turning, 3 drilling and 4 cross-working tools; spindle motor 3.7 kW, back-spindle power 1.5 kW; 3x380 V 50 Hz; machine weight ≈1800 kg; footprint 2050×1085×1800 mm. Equipment: LNS bar feeder (1998), chip conveyor, coolant system, set of collets, tool cabinet, parts catcher, workpiece conveyor, lamp, central lubrication. Ideal for achieving tight tolerances in automotive, watchmaking, tooling, aerospace and medical sectors.
| Number of spindles | 2 |
| Max. turning diameter | 20 mm |
| Maximum turning length | 200 mm |
| Inner taper type | F25 |
| Spindle speeds: | |
| from | 200 t/min |
| up to | 8000 t/min |
| Back spindle: | |
| speeds: | |
| from | 200 t/min |
| up to | 6000 t/min |
| Tool-holder: | |
| numbers | 3 |
| number of tools | 12 |
| Turning tools | 5 pce |
| Drilling tools | 3 pce |
| Transverse processing tools | 4 pce |
| Counter-operation: | |
| Drilling tools | 3 pce |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 3.7 kW |
| Power of back spindle | 1.5 kW |
| Machine's weight about | 1800 kg |
| Overall dimensions machine: | |
| Length | 2050 mm |
| Width | 1085 mm |
| Height | 1800 mm |
| Various accessories: | |
| Bar feeder | |
| Type | LNS |
| year of manufacture | 1998 |
| Length of bars max. | 3200 mm |
| Bar diameter | 2 - 26 mm |
| Rotative bush holder synchronous operatet | |
| Parts catcher | |
| Dispositif de déchargement de pièces | |
| Workpiece conveyor | |
| Lamp | |
| Chip conveyor | |
| Coolant system | |

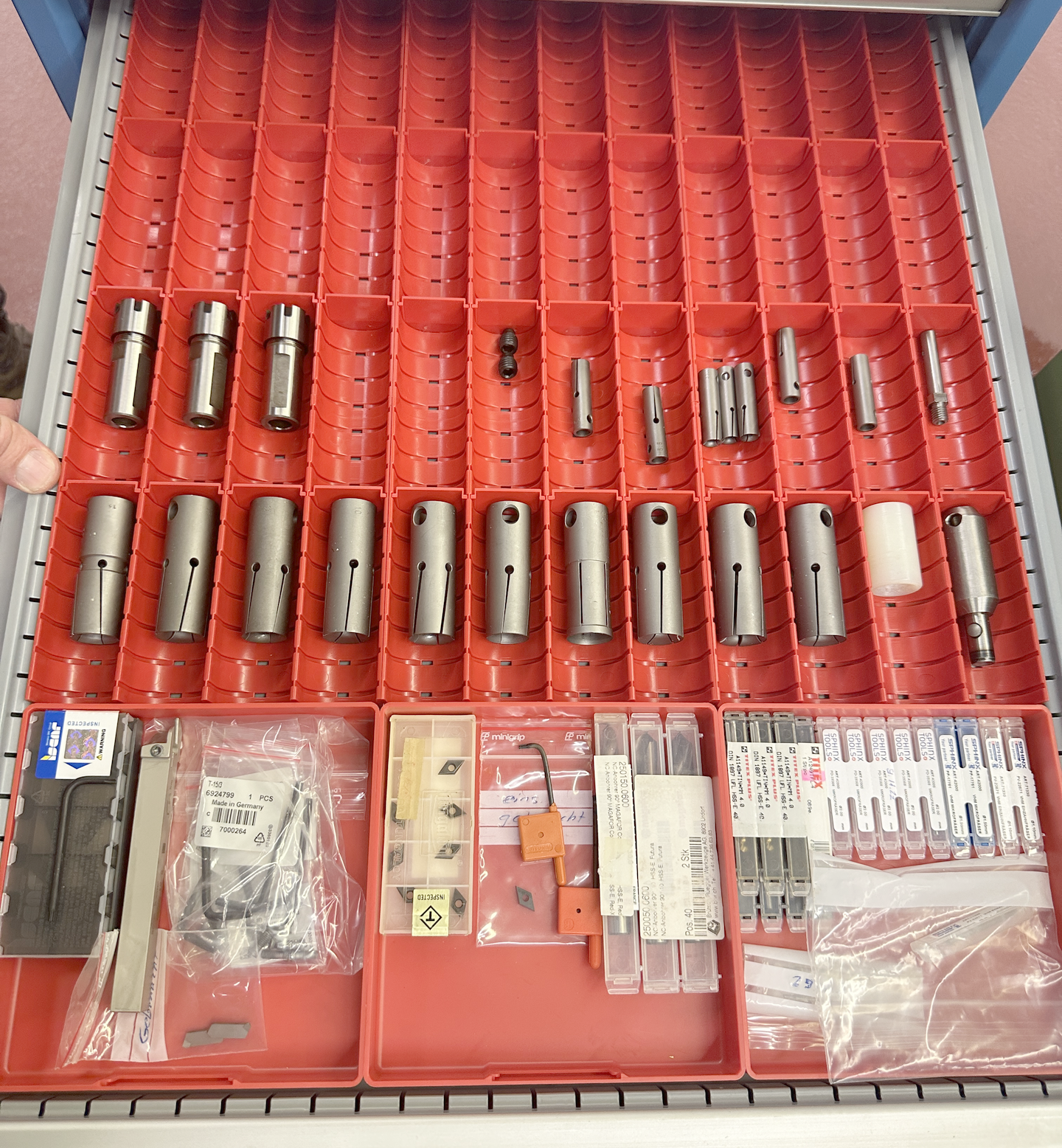

| Set of collets | |
| Tool cabinet | |
| Central lubrification |
