MIKRON HPM 800 U is a 5‑axis machining center for precision, high accuracy and reliability. Table 630×440 mm, 5 T‑slots, table load 800 kg; travels X800 Y800 Z550 mm; A +91/‑121°, C 360°. HSK‑A63, spindle‑nose to table 600 mm; 115 tools, Ø max 80 mm (160 free), tool length 350 mm. Spindle 0–20000 t/min; feed 0–20000 mm/min; rapid 45 m/min; accel. 6 m/s; max feed force 6000 N; 3×400V 50Hz; 55 kW; weight ~15000 kg; size 3505×3100×2980 mm. Accessories: high‑pressure coolant, paper filtration, 2 pallets, touch probe, laser tool preset, chip conveyor. Suited to tight tolerances in automotive, aerospace, medical, watchmaking.
| Number of axis simultaneous | 5 |
| Table length | 630 mm |
| Table width | 440 mm |
| Number of T-channels | 5 |
| Distance of the T-slots | 100 mm |
| T-channel width | 16 mm |
| Table load max. | 800 kg |
| Maximum swing circle of up to | 800 mm |
| Longitudinal travel (X-axis) | 800 mm |
| Transversal travel (y-axis) | 800 mm |
| Vertical travel (z axis) | 550 mm |
| A axis | +91 / -121° |
| C axis | 360 ° |
| Resolution | ° |
| Tool changer: | |
| Number of tools | 115 |
| Tool diameter max. | 80 mm |
| Diameter with free adjacent pockets | 160 mm |
| Tool lenght | 350 mm |
| Max. tool-weight | 8 kg |
| Spindle nose: HSK-A | 63 |
| Distance spindle nose to table | 600 mm |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 20000 t/min |
| Feed range | 0 - 20000 mm/min |
| Rapid traverse: | 45 m/min |
| Acceleration | 6 m/s |
| Max. Feed force | 6000 N |
| Air connect | 6 bar |
| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 55 kW |
| Noise level | 75 dB (A) |
| Machine's weight about | 15000 kg |
| Overall dimensions machine: | |
| Length | 3505 mm |
| Width | 3100 mm |
| Height | 2980 mm |
| Various accessories: | |
| Set of toolholders | |
| Set of shrink tool holders | |
| Set of collet-/ tool holder | |
| Set of collets | |
| High pression colant device | |
| Paper filtration system | |
| Water cooler | |

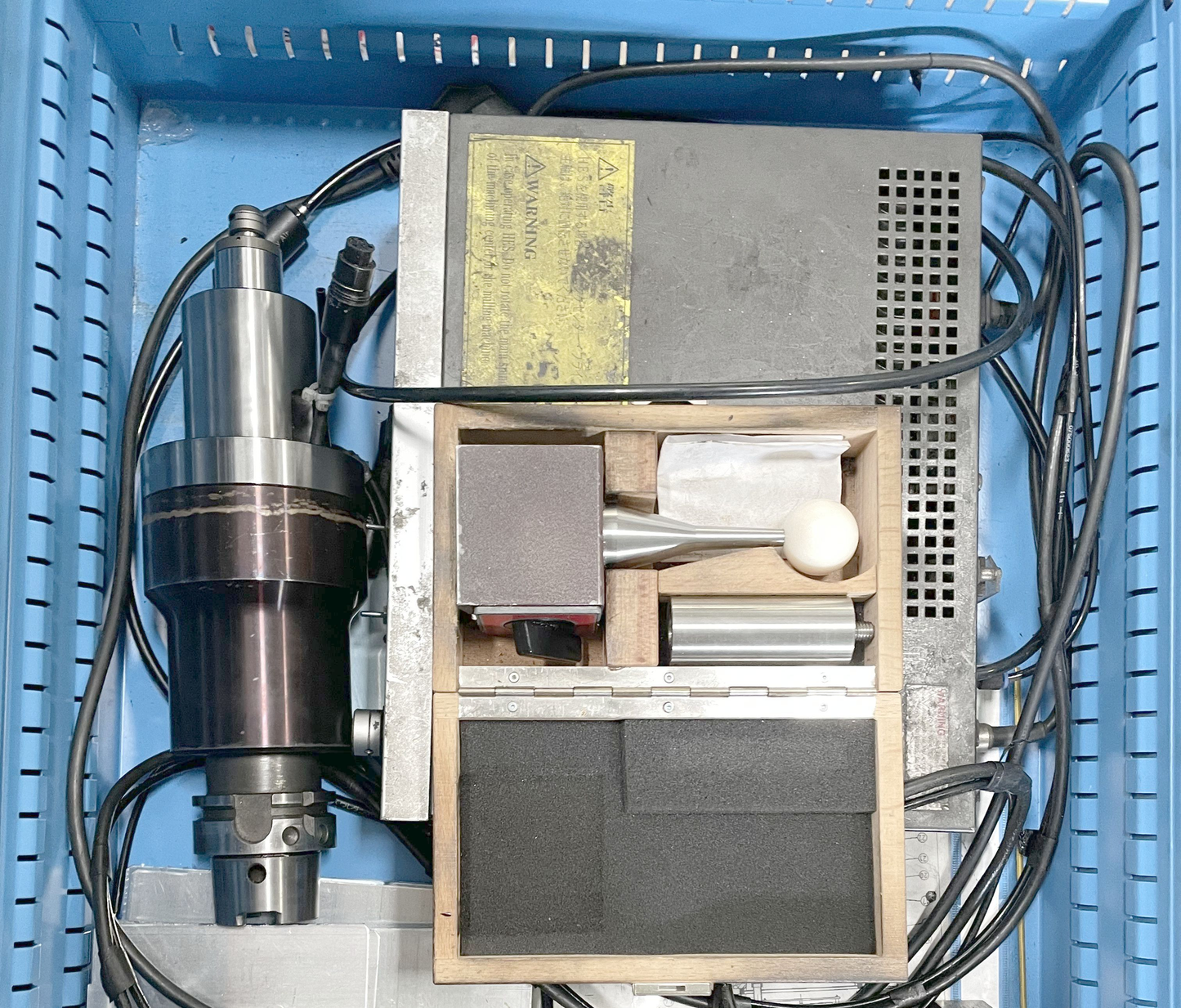

| Touch Probe | |
| Laser tool setting system | |
| Chip conveyor | |
| Pallets chanching device: | |
| Pallets: number | 2 |
| Handwheel electroinic | |
| Tool cabinet | |
| Reference ball |
