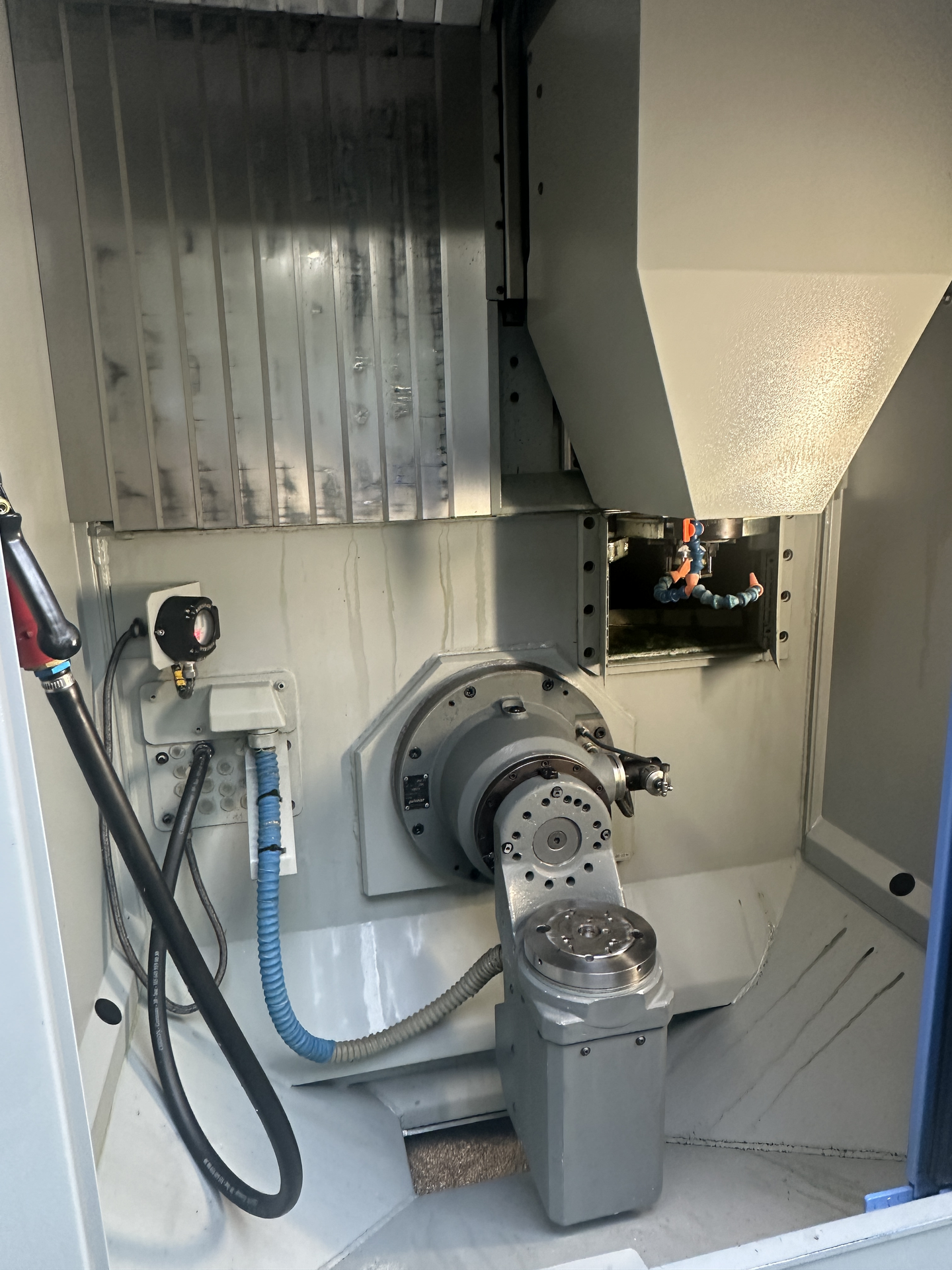

CHIRON FZ 08 KS Magnum
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
CHIRON FZ 08 KS Magnum is a 5‑axis machining center engineered for precision, high accuracy and reliable production. Travels X450×Y270×Z310 mm; drilling 12 mm; tapping M8. Tool magazine 24 pos., tool Ø max 47 mm (100 mm free), length 160 mm, tool wt 1.2 kg. Spindle HSK‑A40 0–36000 rpm; spindle motor 7 kW; rapid 75 m/min; 3×400V 50Hz; air 6 bar; installed power 14 kW (19 kVA); machine ≈3400 kg; dims 2308×1405×2447 mm. Features: tool‑break control, RS232, switch‑cabinet air‑con, status light. Delivers tight tolerances for automotive, aerospace, medical, watchmaking.
| Number of axis total | 5 |
| Number of spindles | 1 |
| Longitudinal travel (X-axis) | 450 mm |
| Transversal travel (y-axis) | 270 mm |
| Vertical travel (z axis) | 310 mm |
| Drill capacity | 12 mm |
| Max. taping diameter M | 8 |
| Tool changer: | |
| Number of tools | 24 |
| Tool diameter max. | 47 mm |
| Diameter with free adjacent pockets | 100 mm |
| Tool lenght | 160 mm |
| Max. tool-weight | 1.2 kg |
| Time of tool changing | 0.8 / 2.3 s |
| Average chip-to-chip time | 2.2 s |
| Spindle nose: HSK-A | 40 DIN 69893 |
| Spindle speeds: | |
| from | 0 t/min |
| up to | 36000 t/min |
| Rapid traverse: | 75 m/min |
| Air connect | 6 bar |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 7 kW |
| Total power required | 14 kW |
| Total power required | 19 kVA |
| Machine's weight about | 3400 kg |
| Overall dimensions machine: | |
| Length | 2308 mm |
| Width | 1405 mm |
| Height | 2447 mm |
| Various accessories: | |
| Tool break control | |
| Interface serial port RS 232 | |

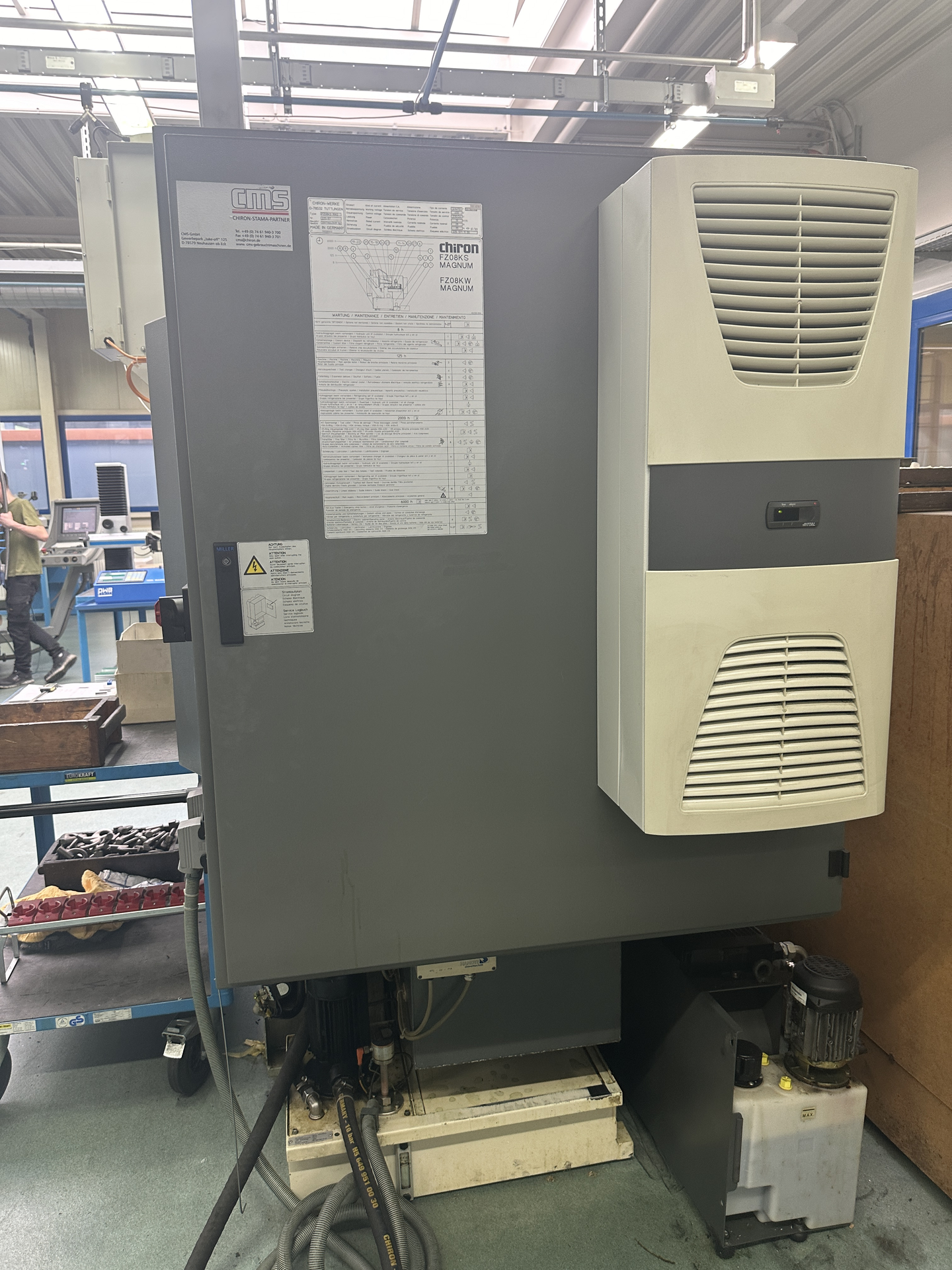

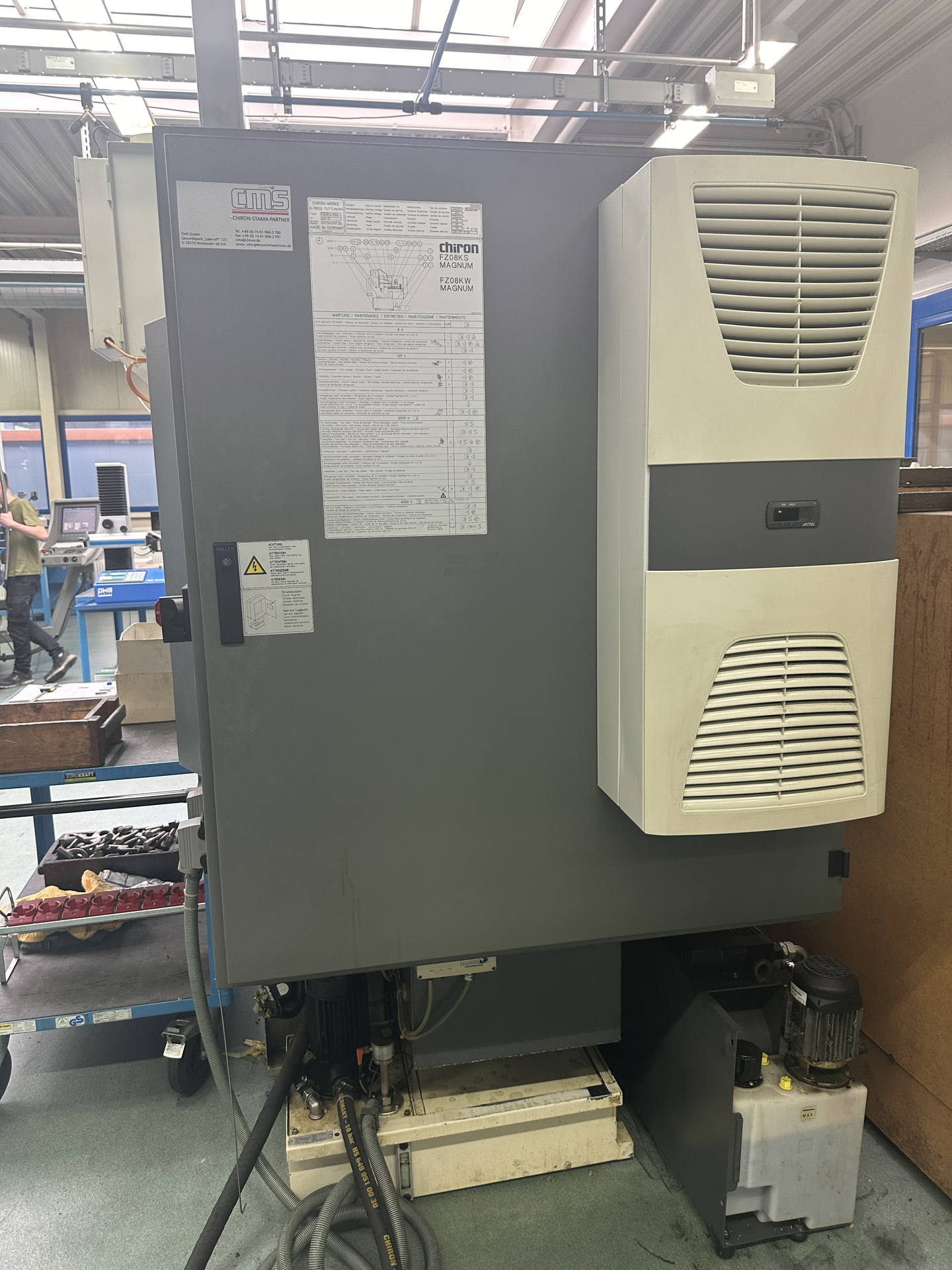

| Switch cabinet Air conditioner | |
| Status light |
