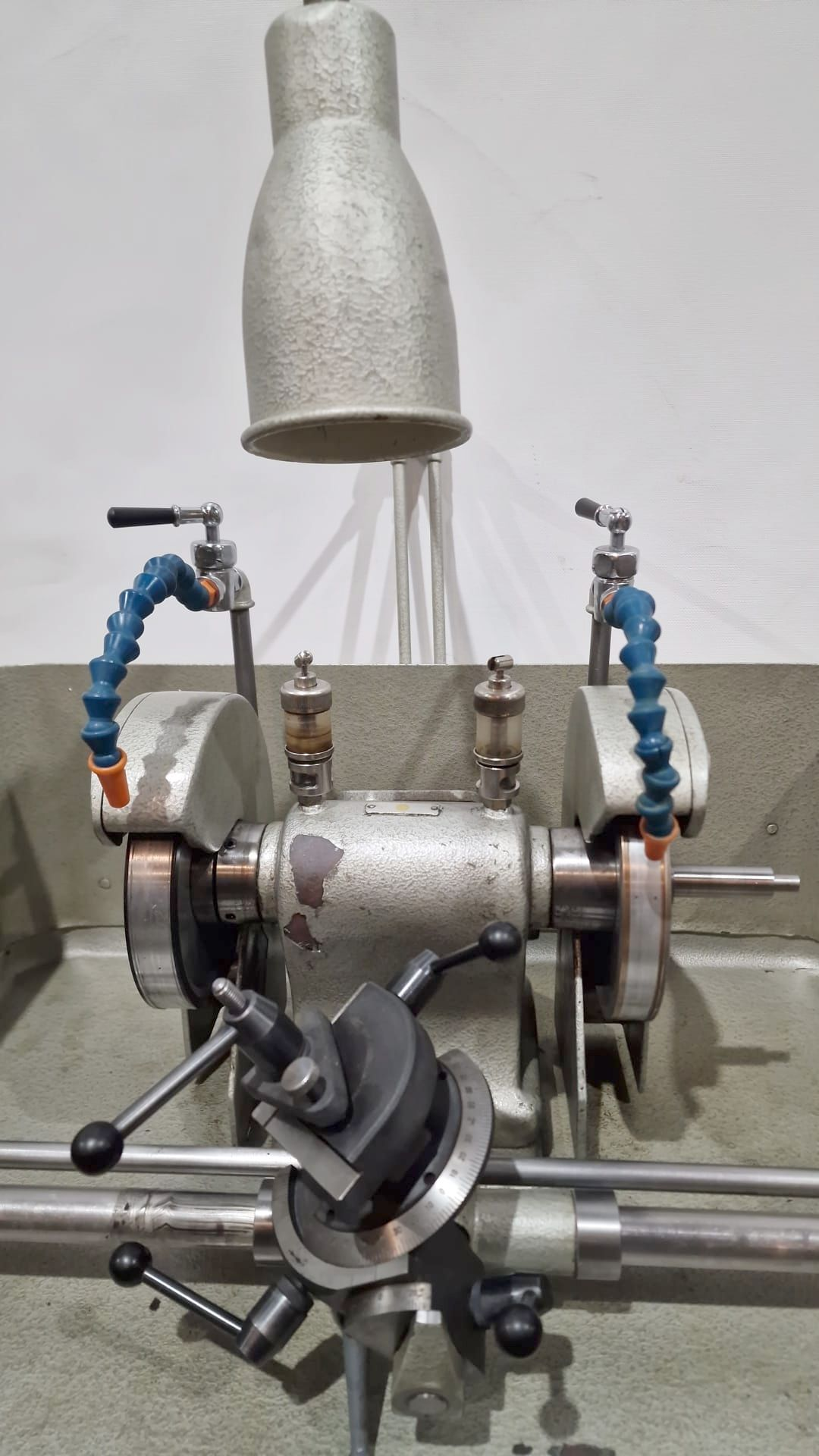

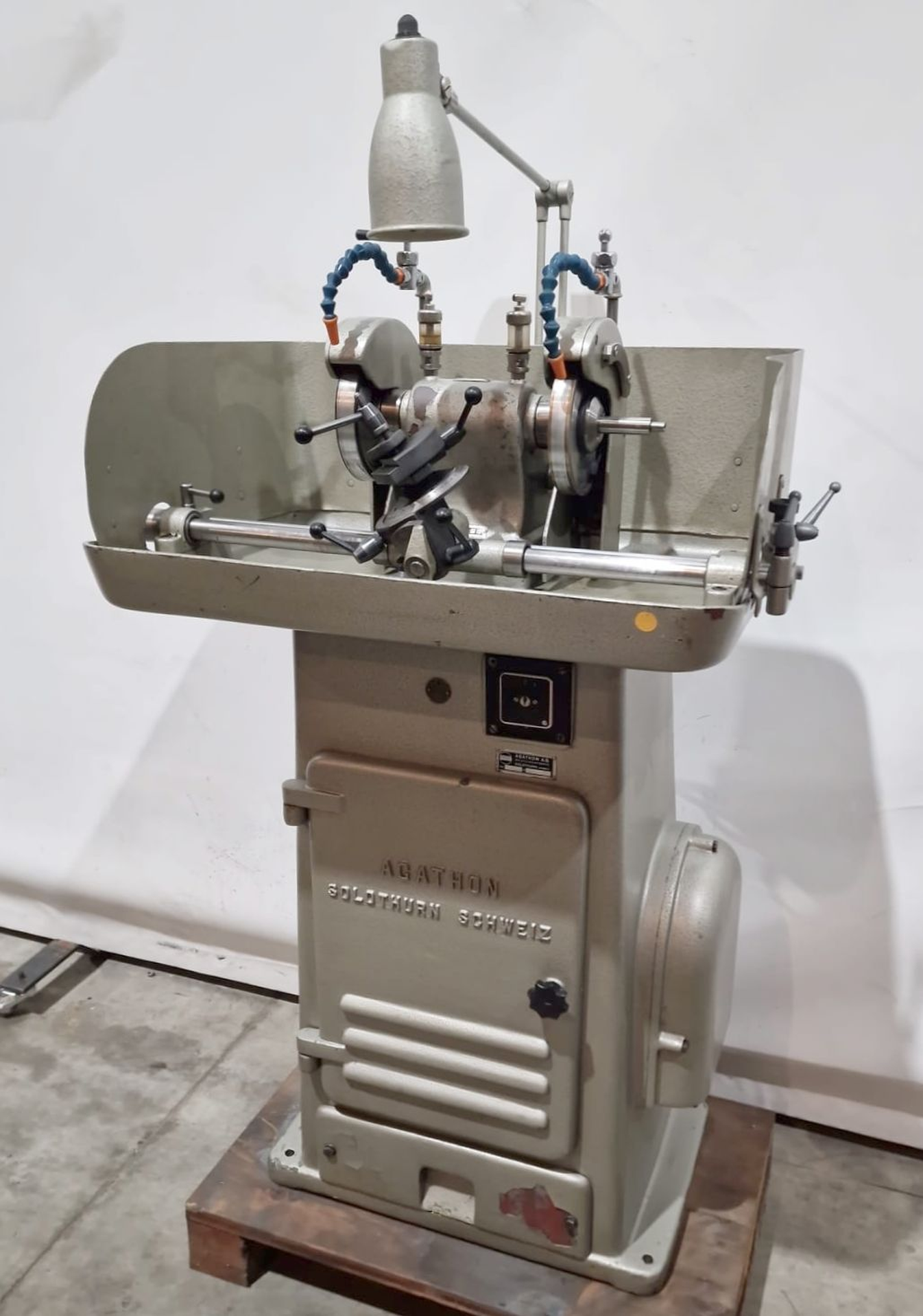

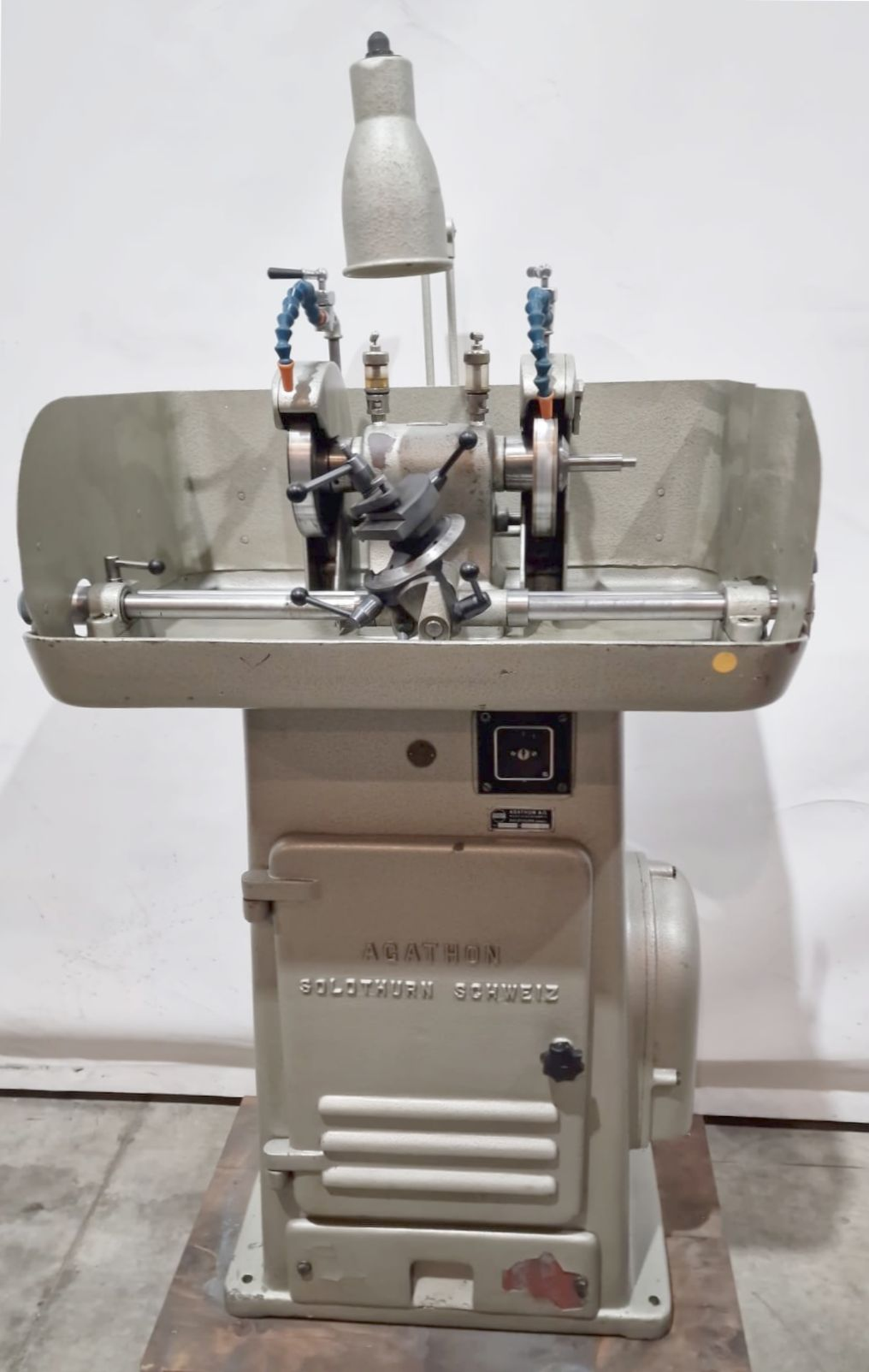

AGATHON 175 AV is a Tool grinding machine for precision, high accuracy and reliability. Capacities: wheel Ø175×35 mm, bore 20 mm; tools up to 32×32 mm; spindle 2800 t/min. Specs: 50 Hz 3x 380 V, 1.0 CV, weight ≈300 kg, L1000×W650×H1400 mm. Accessories: inclinable tool holder, coolant system, lamp. Achieves tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical.
| Grinding wheels: | |
| Diameter | 175 mm |
| Width | 35 mm |
| Bore | 20 mm |
| Spindle speeds: | |
| from | 2800 t/min |
| Clamping range of the tools: | |
| Width | 32 mm |
| Height | 32 mm |
| Voltage 50 Hz 3x | 380 Volt |
| Power | 1.0 CV |
| Machine's weight about | 300 kg |
| Overall dimensions machine: | |
| Length | 1000 mm |
| Width | 650 mm |
| Height | 1400 mm |
| Various accessories: | |
| Inclinable tool holder | |
| Coolant system | |
| Lamp |
