022689 - DMG DMC 75 V linear
Download technical sheet (PDF)
Message us on WhatsApp
| Number of axis total | 5 |
| Longitudinal travel (X-axis) | 885 mm |
| Transversal travel (y-axis) | 600 mm |
| Vertical travel (z axis) | 600 mm |
| Table load max. | 600 kg |
| B axis swivelling range | +10/-110 ° |

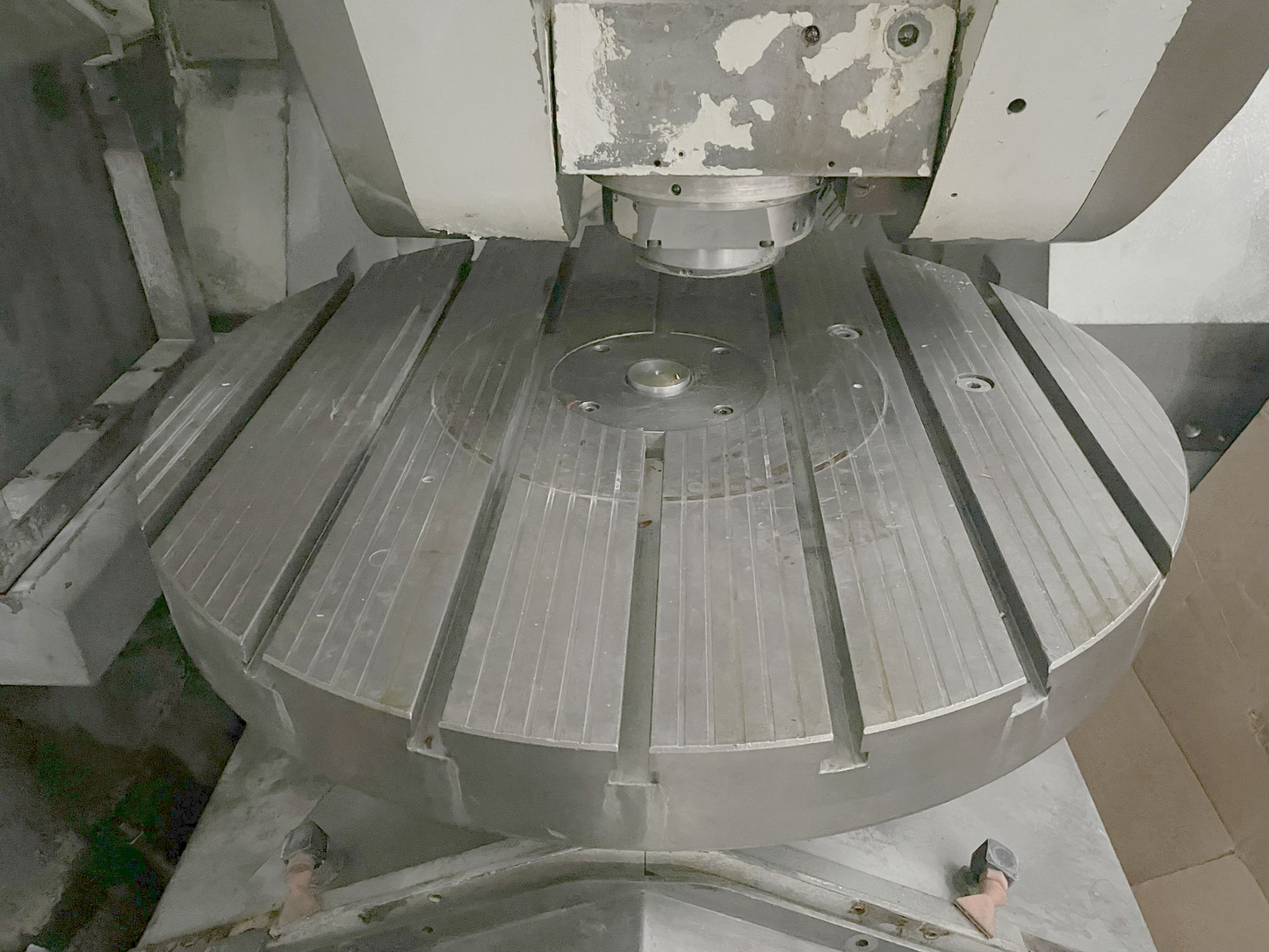

| C axis | 360 ° |
| Table speed | 100 t/min |
| Tool changer: | |
| Tool magazine number of tool places | 60 |
| Tool diameter | 40 mm |
| Tool lenght | 300 mm |
| Spindle nose: HSK-A | 63 |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 28000 t/min |
| Rapid traverse: | 90 m/min |
| Air connect | 6 bar |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle power | 55/43.5 kW |
| Machine's weight about | 11000 kg |
| Overall dimensions machine: | |
| Length | 3255 mm |
| Width | 2450 mm |
| Height | 3150 mm |
| Various accessories: | |
| High pression colant device | 60 bar |
| Chip conveyor | |
| Handwheel electroinic |
