LNS QUICKLOAD SERVO II
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

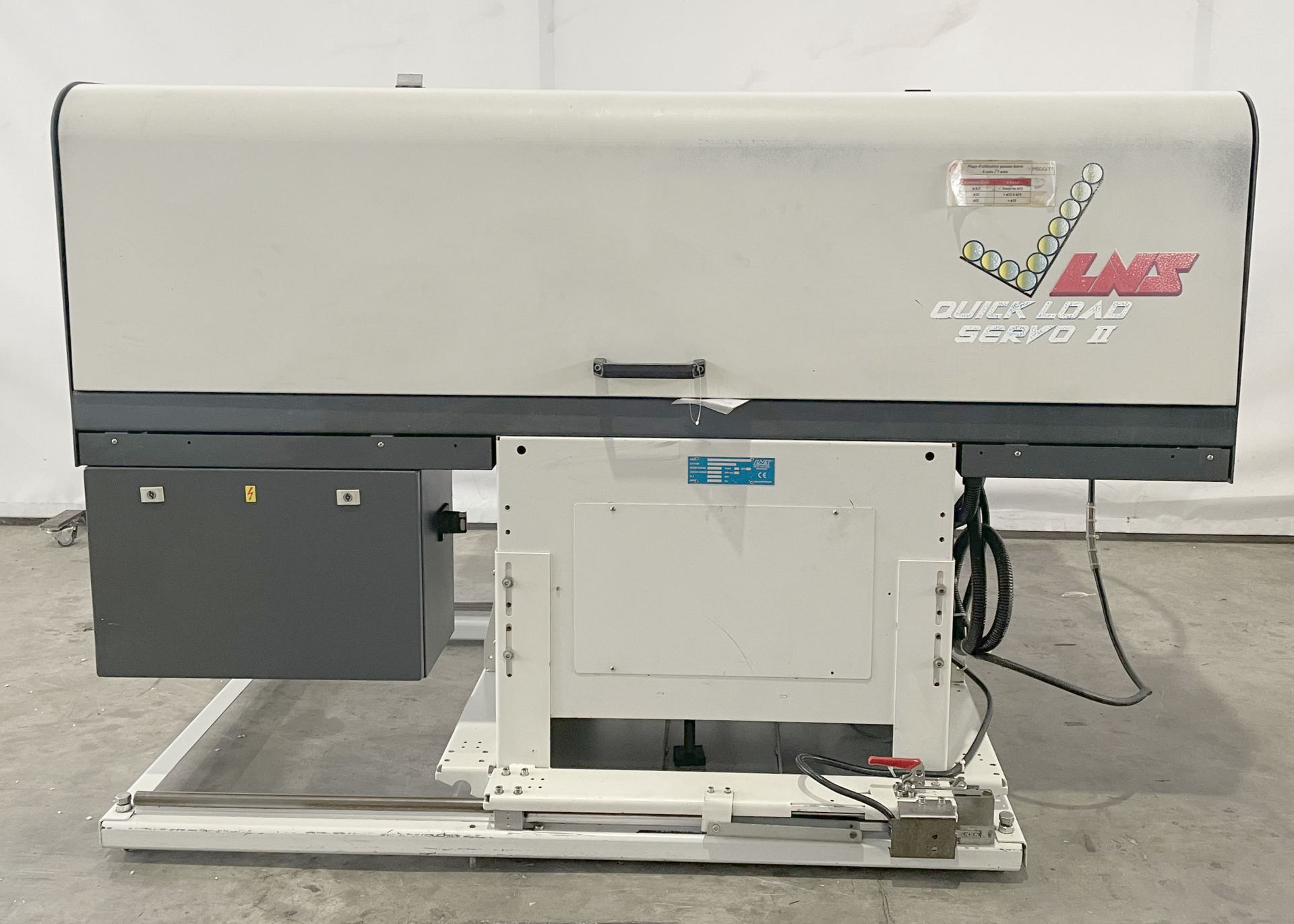

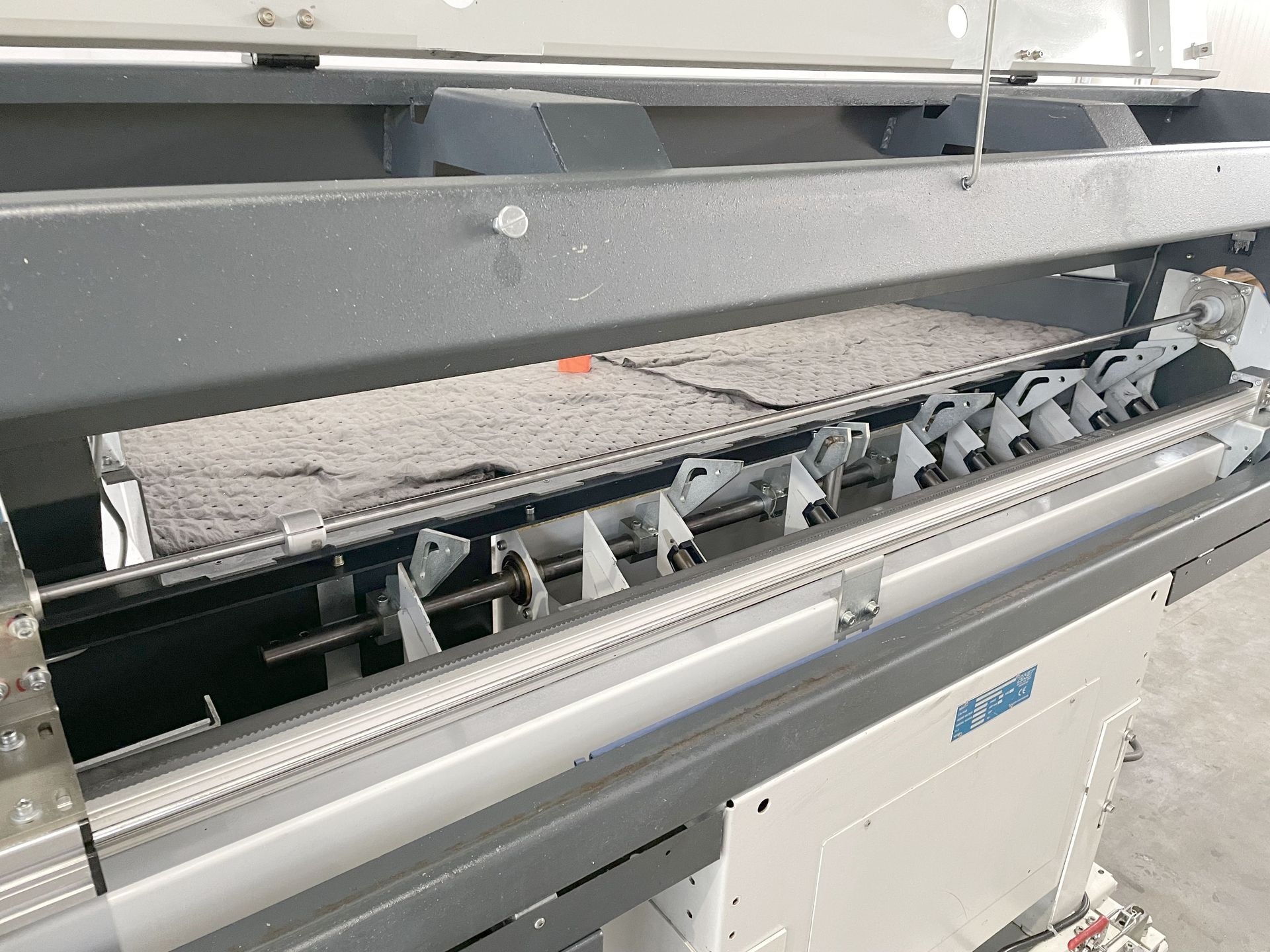

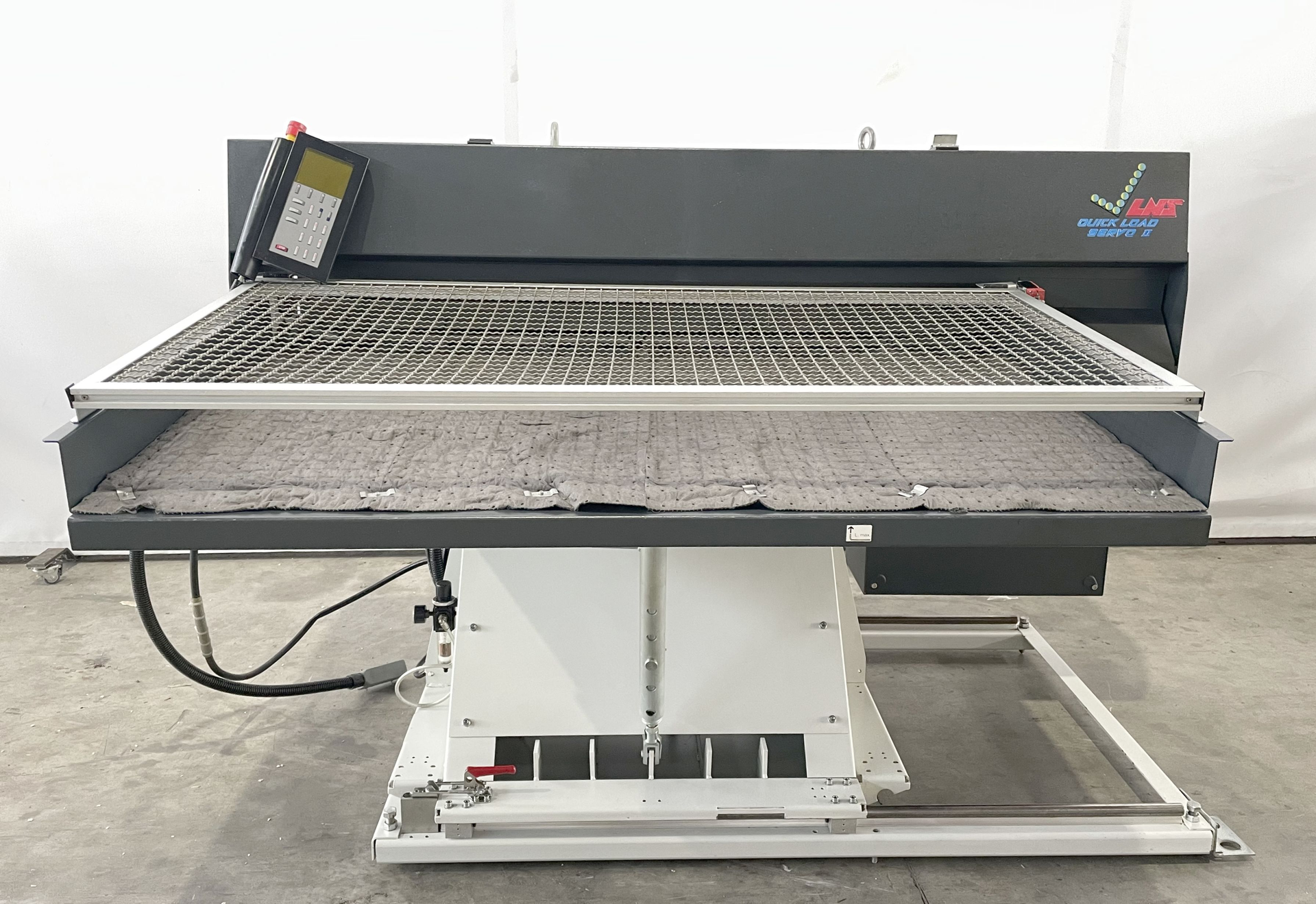

LNS QUICKLOAD SERVO II is a bar feeder/loader engineered for precision, high accuracy and reliability. Capacities: round bar diameter 6–80 mm, bar length 130–1500 mm, max bar weight 67 kg; loading time 4–12 s; feed up to 100 m/min; push force max 167 Nm. Technical specs: voltage 3×380 V 50 Hz; compressed air 5 bar; machine weight ≈600 kg; overall dimensions L2050×W1800×H1700 mm. Electrical and compressed-air connections specified. Delivers tight tolerances; ideal for automotive, aerospace, medical, watchmaking and machine-tool sectors.
| Execution: | |
| left | |
| Bar diameter round up | 6 mm |
| up to | 80 mm |
| Length of bars min. | 130 mm |
| Length of bars max. | 1500 mm |
| Bar weight max. | 67 kg |
| Loading time | 4 - 12 s |
| Feed range max. | 100 m/min |
| Push force max. | 167 Nm |
| Voltage 50 Hz 3x | 380 Volt |
| Compressed air from | 5 bar |
| Machine's weight about | 600 kg |
| Overall dimensions machine: | |
| Length | 2050 mm |
| Width | 1800 mm |
| Height | 1700 mm |
