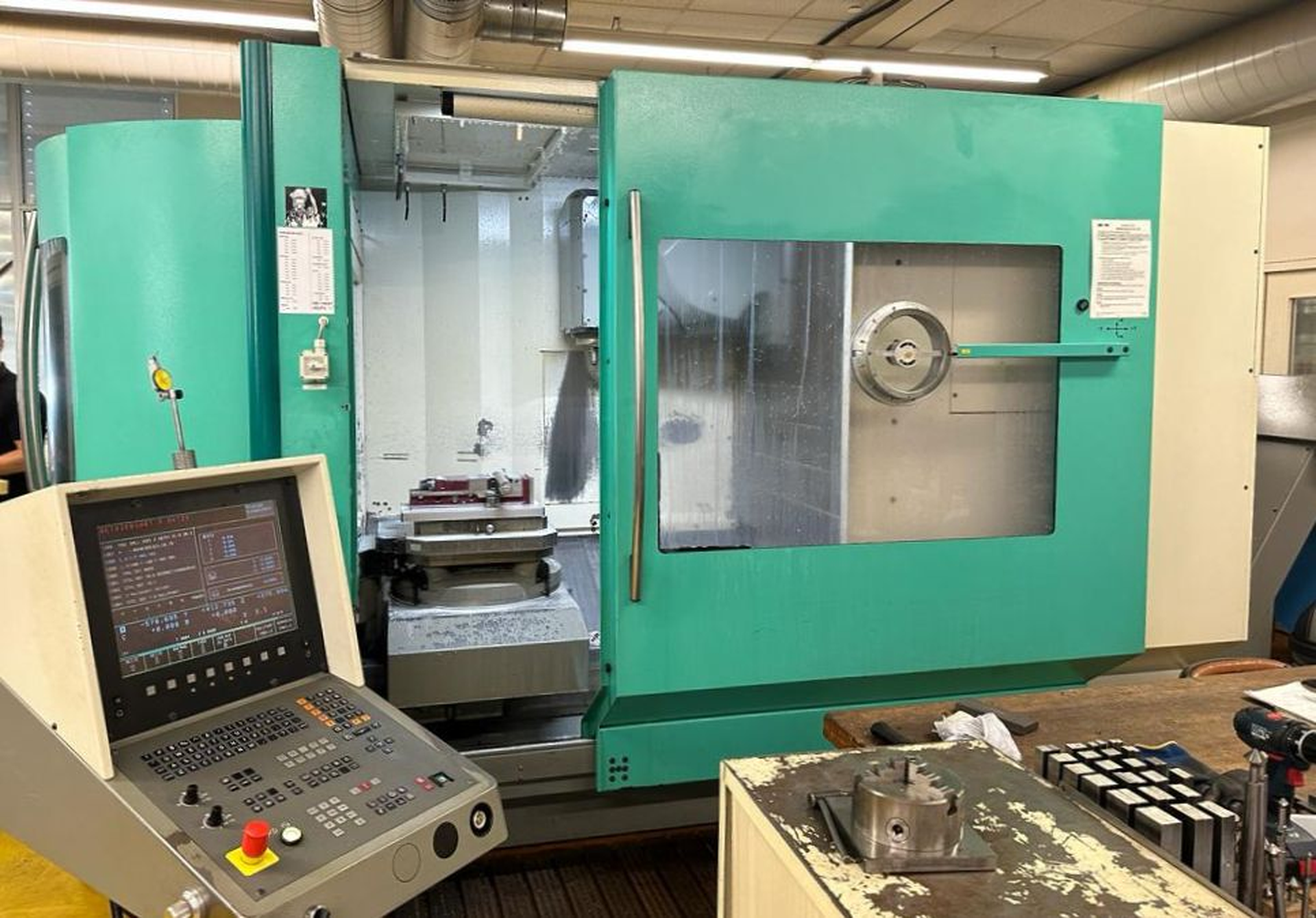

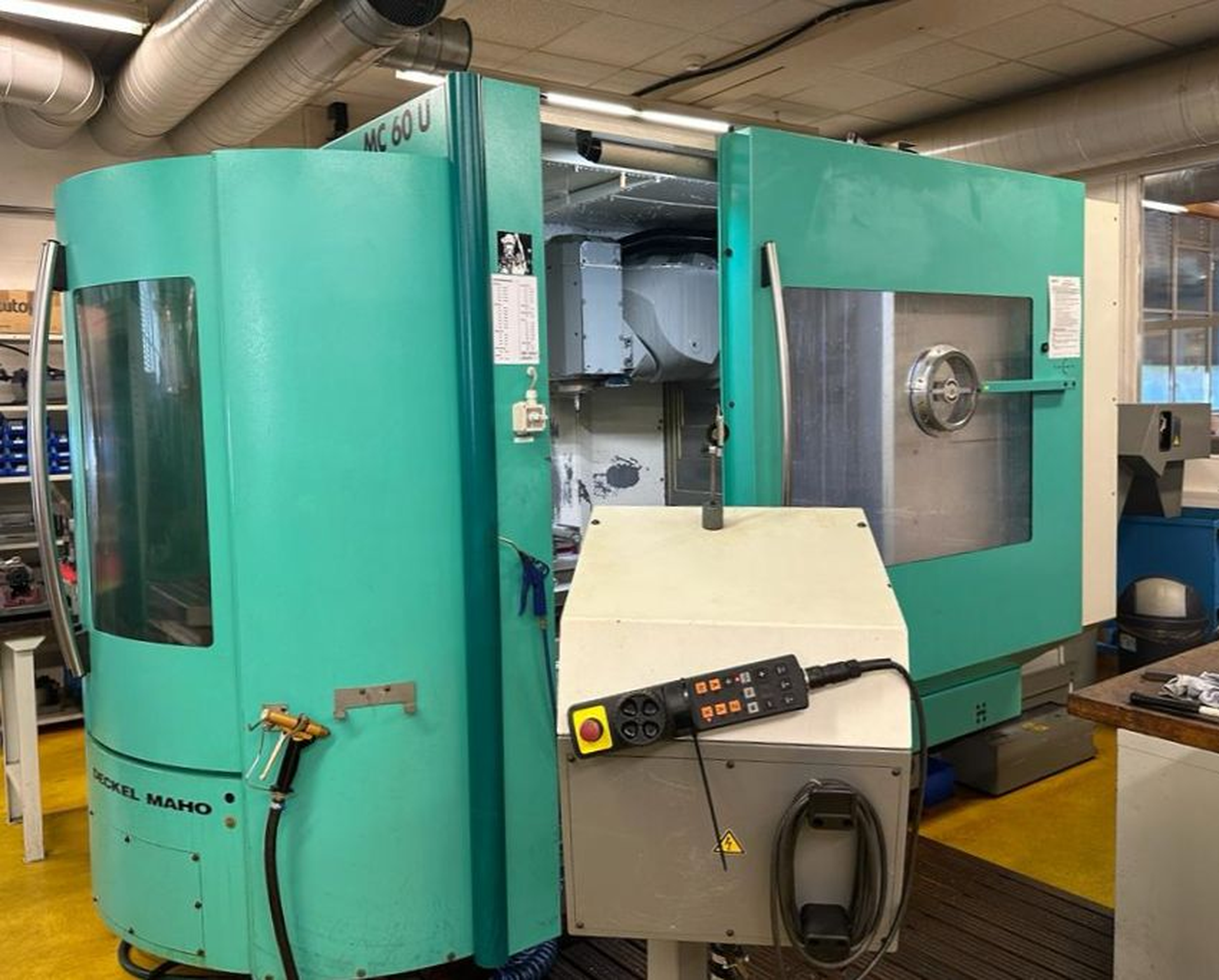

DMG DMC 60 U is a 5‑axis machining center designed for precision, high accuracy and reliability. Capacities: table 630×500 mm, centering bore Ø50 mm, table load 600 kg; travels X600 Y700 Z550; 19467 h. Specs: spindle SK40 (DIN69871) 20–12,000 rpm, feed 1–10000 mm/min, tool magazine 60 (Ø100 mm, L350 mm, 10 kg), 3×400 V, weight ~9500 kg, dims 3902×2687×2484 mm. Equipment: coolant through spindle 17 bar, pallet changer 2×500×500 mm (max 600 kg). Suited to tight tolerances in automotive, aerospace, medical, watchmaking and toolmaking.
| Operating time | 19467 Heures |
| Number of axis total | 5 |
| Table length | 630 mm |
| Table width | 500 mm |
| Centering bore diameter | 50 mm |
| Table load max. | 600 kg |
| Longitudinal travel (X-axis) | 600 mm |
| Transversal travel (y-axis) | 700 mm |
| Vertical travel (z axis) | 550 mm |
| Table load max. | 600 kg |
| Tool magazine number of tool places | 60 |
| Tool diameter max. | 100 mm |
| Diameter with free adjacent pockets | 160 mm |
| Tool lenght | 350 mm |
| Max. tool-weight | 10 kg |
| Spindle nose SK | 40 DIN 69871 |
| Spindle speeds: | |
| stepless | |
| from | 20 t/min |
| up to | 12000 t/min |
| Feed range | 1 - 10000 mm/min |
| Voltage 50 Hz 3x | 400 Volt |
| Machine's weight about | 9500 kg |
| Overall dimensions machine: | |
| Length | 3902 mm |
| Width | 2687 mm |
| Height | 2484 mm |
| Various accessories: | |

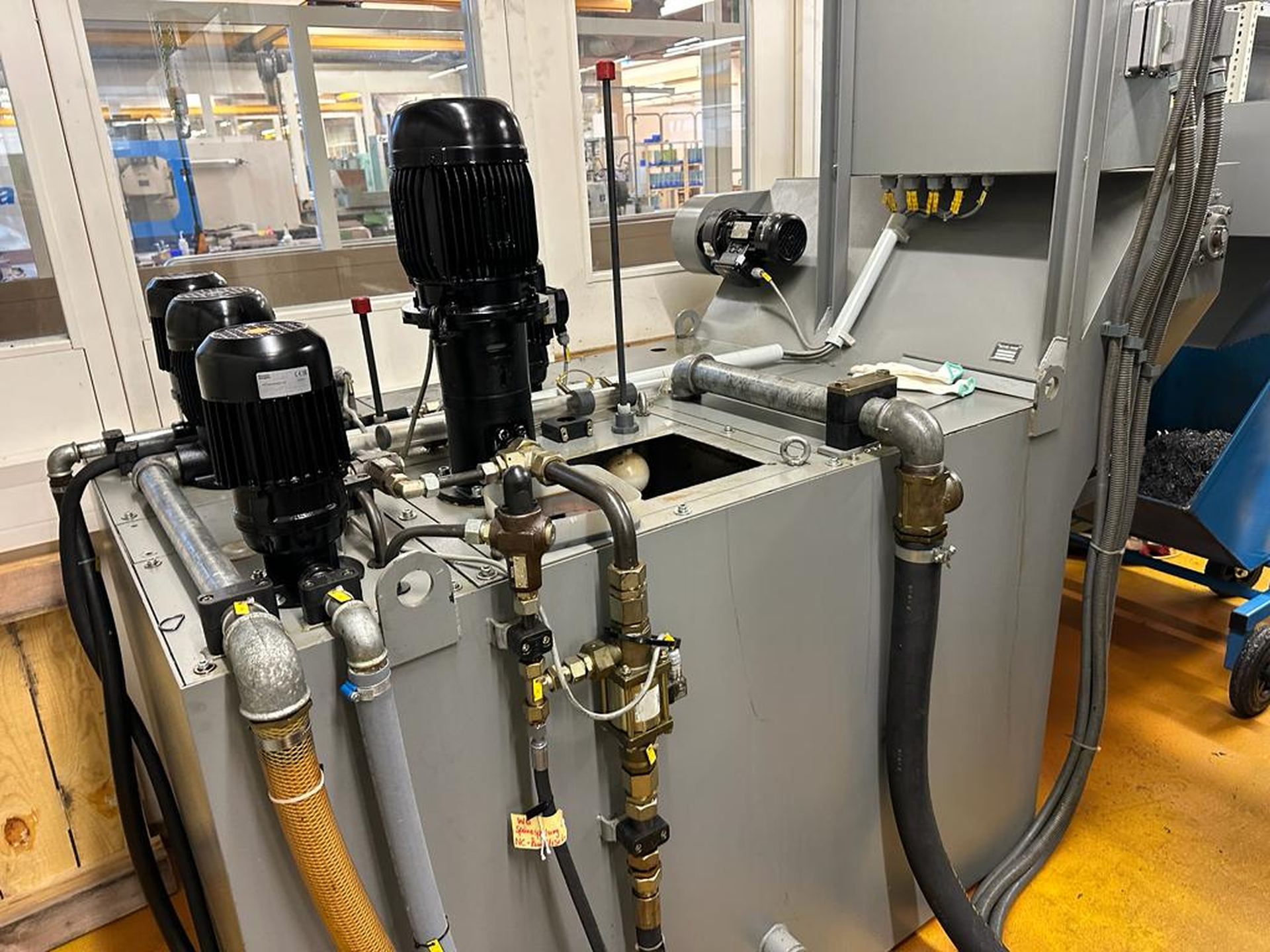

| Coolant system | |
| Coolant through spindle (cts) | 17 bar |

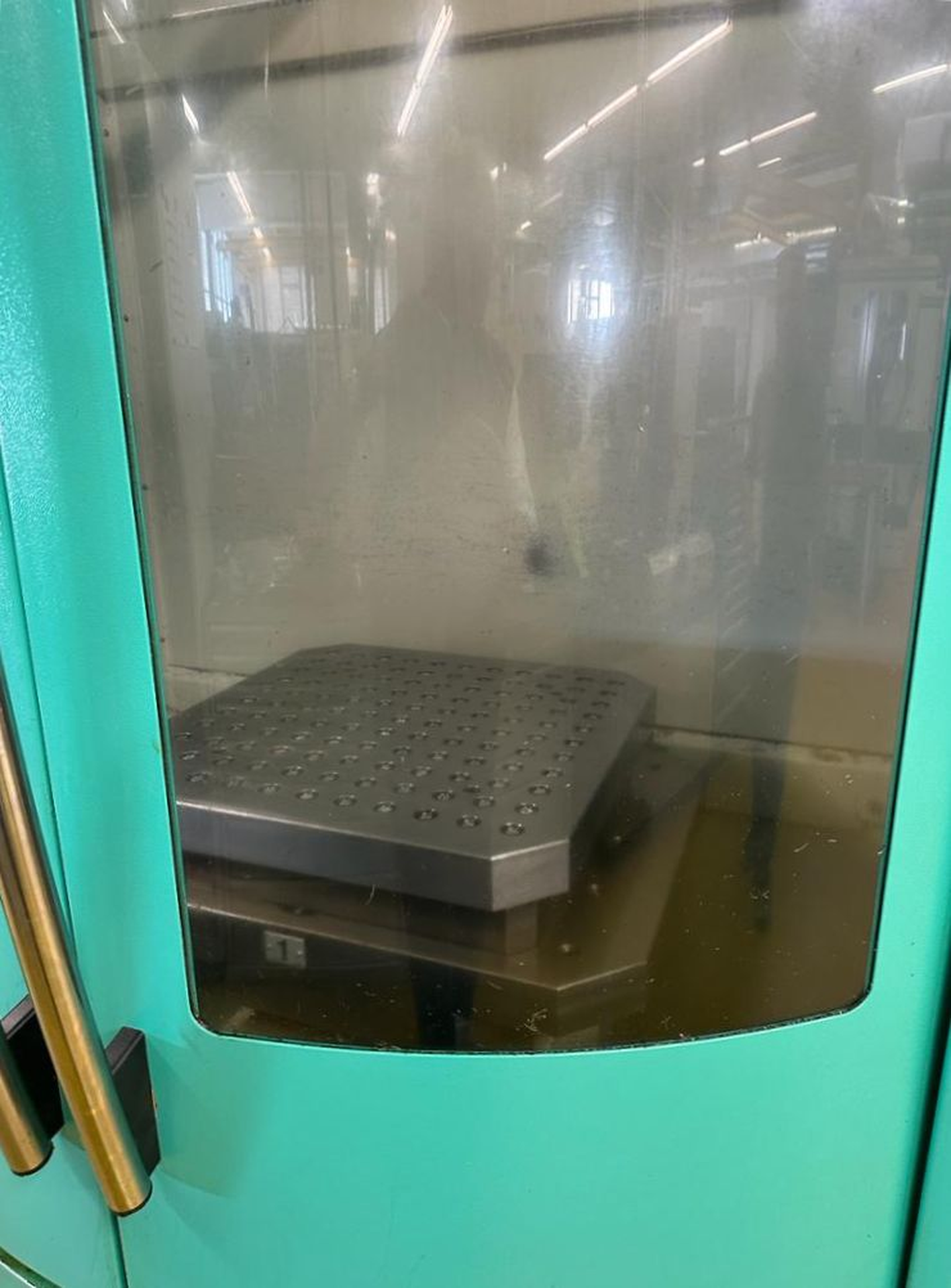

| Pallets chanching device: | |
| Pallets: number | 2 |
| Length | 500 mm |
| Width | 500 mm |
| Max. Load | 600 kg |
| Lamp | |
| Rotating viewing window | |
| Notes: | |
| Spindle changed | 2016 |
