022575 - KELLENBERGER KEL-VARIA RS 175 / 1000
Download technical sheet (PDF)
Message us on WhatsApp
| Centre height | 175 mm |
| Distance between centres | 1000 mm |
| Max. grinding diameter | 349 mm |
| Travels: | |
| Z axis | 1150 mm |
| X axis | 320 mm |
| Workpiece weight on centres max. | 150 kg |
| Grinding wheel right side: | |
| Diameter | 500 mm |
| Width | 80 mm |
| Bore | 127 mm |
| Grinding wheel speeds: | |
| from | 1500 t/min |
| up to | 1800 t/min |
| Resolution | |
| Rotatable grinding spindle head (b-axis) | 240 ° |
| Peripheral speed | 32 m/s |
| Indexing automatic | 0.1 ° |
| Rapid feed motion | 10 m/min |
| Work piece spindle head: | |
| speeds: | |
| stepless | |
| from | 5 t/min |
| up to | 500 t/min |
| Holding taper: | 5 CM |
| rotatable | -30 / +120 ° |
| Taper in tailstock: | 4 CM |
| Spindle stroke | 50 mm |
| Table speed: | |
| stepless | |
| from | m/min |
| up to | 8 m/min |
| Max. table angular displacement | 9 ° |
| Air connect | 4 bar |
| Voltage 50 Hz 3x | 380 Volt |
| Grinding spindle motor | 7.5 kW |
| Workpiece spindle motor | 3 kW |
| Machine's weight about | 6000 kg |
| Overall dimensions machine: | |
| Length | 3600 mm |
| Width | 2000 mm |
| Various accessories: | |
| Coolant system | |

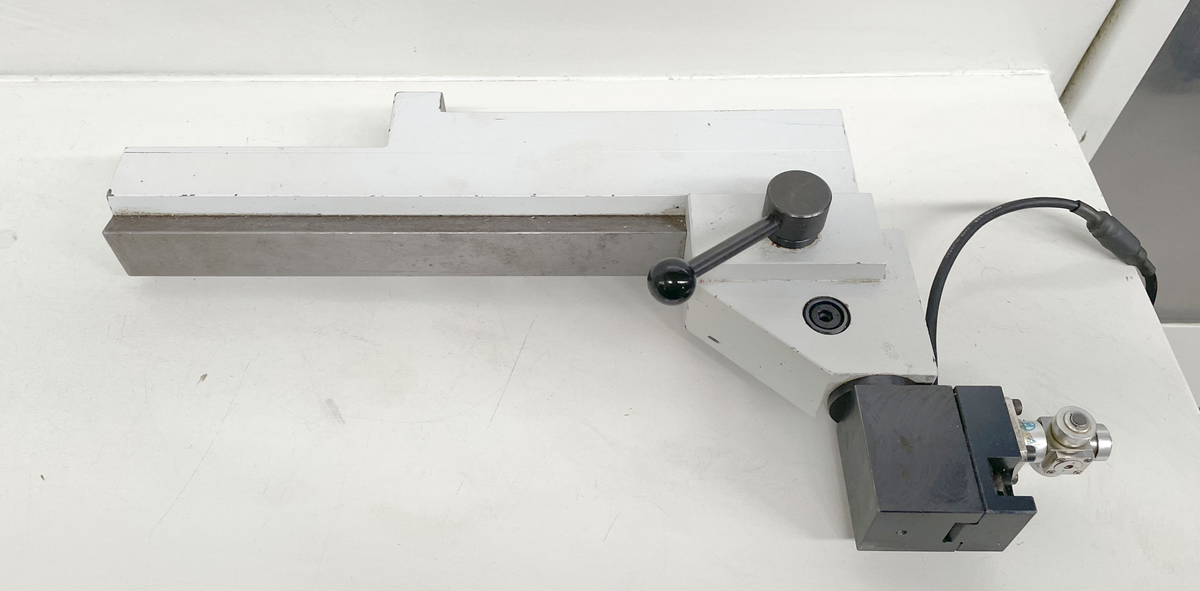

| Touch probe MARPOSS | |
| Measuring head MARPOSS | |
| Positionar Passiv | |
| Grinding wheel with flange | |
| Lamp | |
| Tailstock with fine adjustement |
