SCHAUBLIN 13 is a Universal milling machine by SCHAUBLIN, engineered for precision, high accuracy and reliable operation. Table 630×200 mm with 5 T‑slots 12H7 mm (120 mm spacing). Travels X 320 mm, Y 150 mm, Z 375 mm; distance vertical spindle‑table 310 mm, horizontal spindle‑table 410 mm. Spindle taper ISO40, stepless 58–2000 rpm; feeds 10 steps 12–400 mm/min (long./vert.), rapid 1 m/min. Supply 3×380 V 50 Hz, motor 2 CV, weight ≈700 kg, overall 1500×1100×1600 mm. 3‑axis digital readout. Built for tight tolerances; typical sectors: automotive, watchmaking, machine tools, aerospace and medical.
| Table length | 630 mm |
| Table width | 200 mm |
| Number of T-channels | 5 |
| T-channel width | 12H7 mm |
| Distance of the T-slots | 120 mm |
| Longitudinal travel (X-axis) | 320 mm |
| Transversal travel (y axis) | 150 mm |
| Vertical travel (z axis) | 375 mm |
| Distance from vertical spindle to table | 310 mm |
| Distance from horizontal spindle to table | 410 mm |
| Spindle speeds: | |
| stepless | |
| from | 58 t/min |
| up to | 2000 t/min |
| Taper in spindle | 40 ISO |
| Feeds steps: | 10 |
| longitudinal from | 12 mm/min |
| up to | 400 mm/min |
| vertical from | 12 mm/min |
| up to | 400 mm/min |
| Rapid traverse: | 1 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Motor output | 2 CV |
| Total power required | 2 CV |
| Machine's weight about | 700 kg |
| Overall dimensions machine: | |
| Length | 1500 mm |
| Width | 1100 mm |
| Height | 1600 mm |
| Various accessories: | |
| Digital readout number of axis: | 3 |
| Coolant system | |

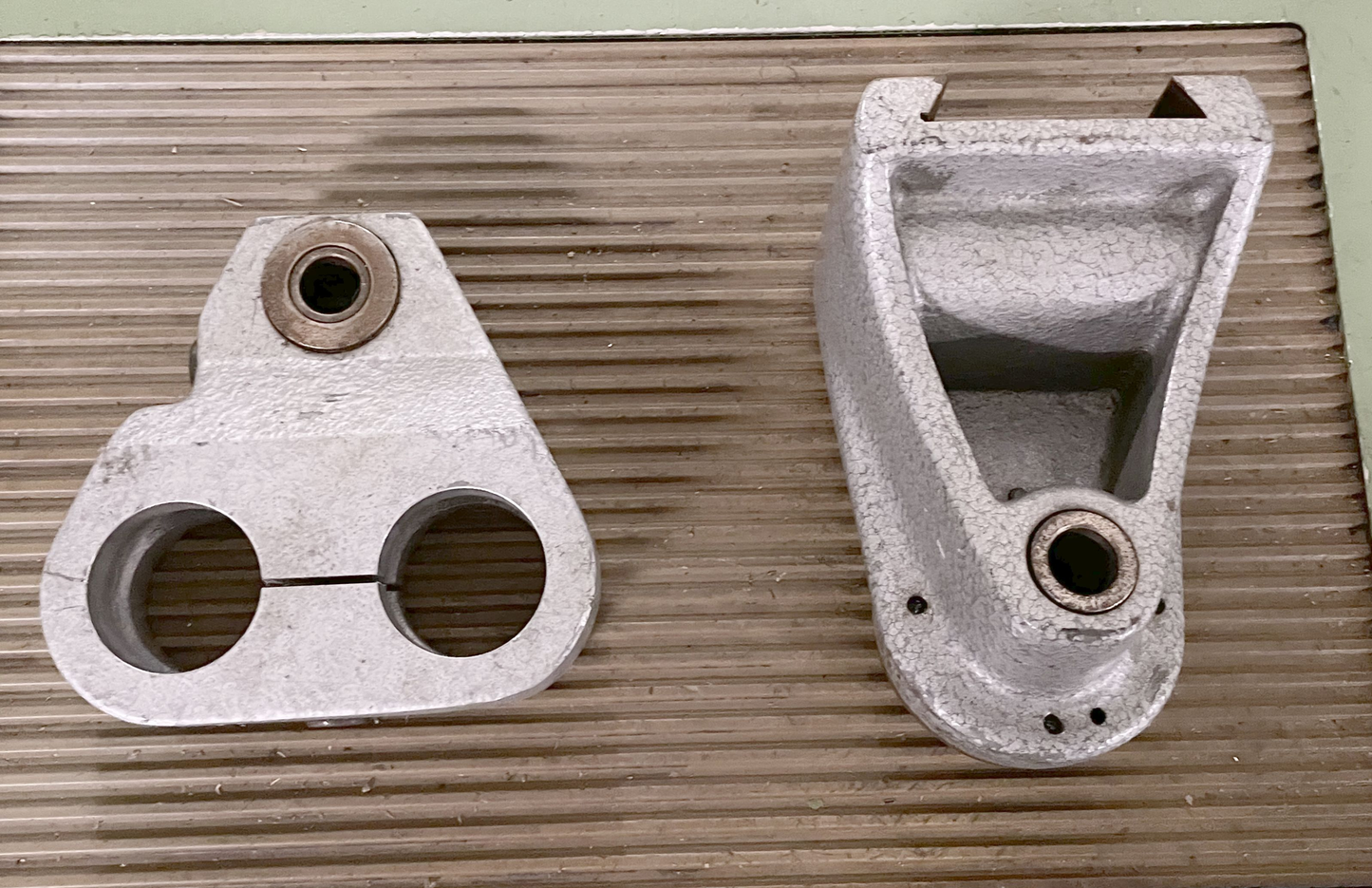

| Steady | |
| Lamp | |
| Chip tray |
