STAR SR-10 J type C
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

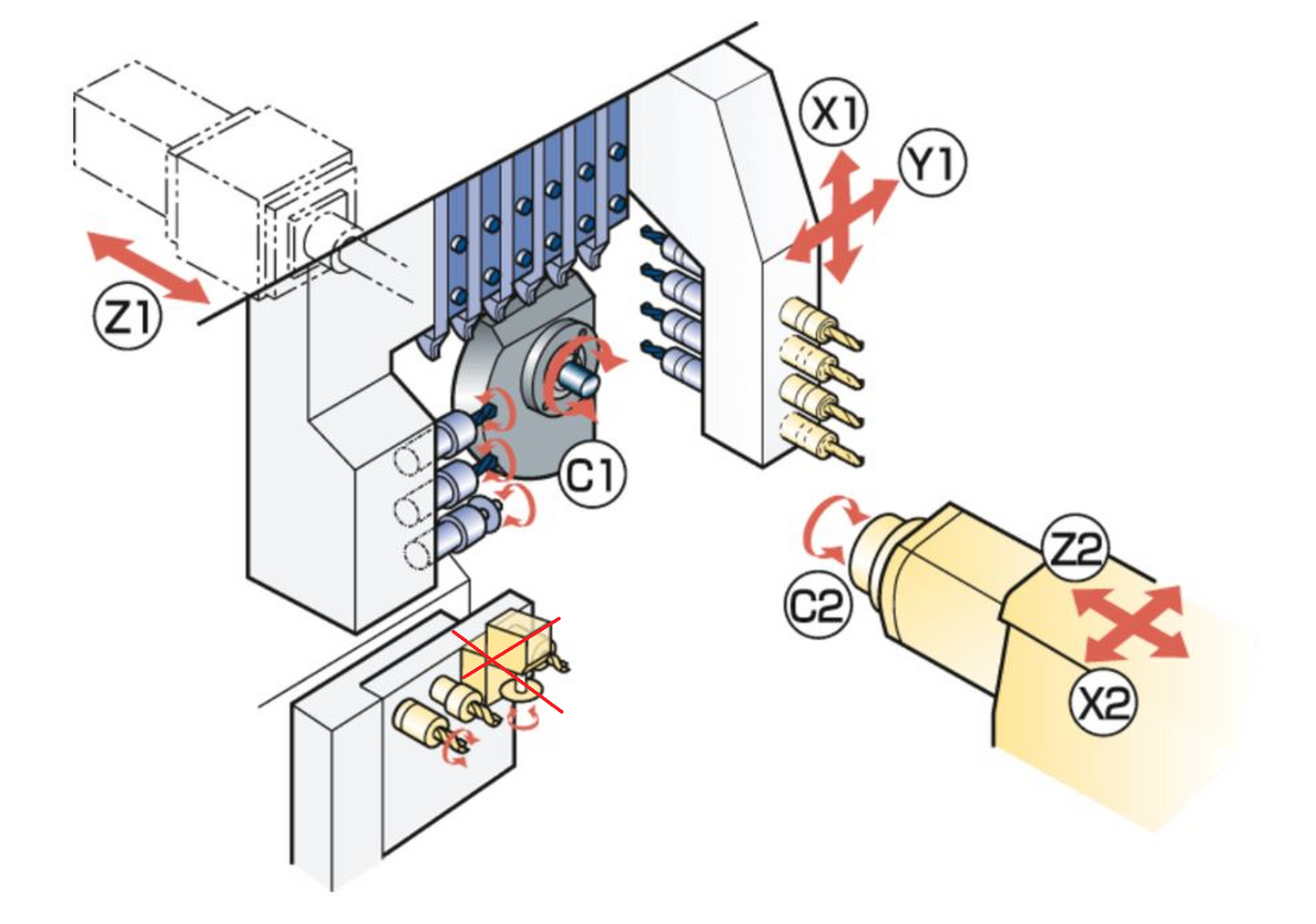

STAR SR-10 J type C is a CNC automatic lathe (CNC Swiss-type lathe) engineered for high precision, accuracy and reliability. Working capacities: max machining diameter 10 mm, maximum turning length 135 mm; total 7 axes, 2 spindles. Key technical specifications: main spindle stepless 1–15000 t/min, 3.7 kW; back spindle 1–10000 t/min, 1.1 kW; tool-holder with 13 tools (6 turning, 4 drilling, 3 transverse); driven tool speeds 250–8000 t/min; rapid traverse 35 m/min; supply 50 Hz 3x400 V; total power 3 kVA; machine weight ~1400 kg; dimensions L2000×W820×H1800 mm; coolant 89 l. Accessories: back-spindle blow-out, parts catcher, workpiece conveyor, lamp, tool-break control, interface for bar loader, central lubrication, set of service tools. Delivers tight tolerances; typical applications include automotive, watchmaking, machine tools, aerospace and medical.
| Number of axis total | 7 |
| Number of spindles | 2 |
| Machining diameter max. | 10 mm |
| Maximum turning length | 135 mm |
| Spindle speeds: | |
| stepless | |
| from | 1 t/min |
| up to | 15000 t/min |
| Spindle power | 3.7 kW |
| C axis (spindle,resolution) | ° |
| Back spindle: | |
| speeds: | |
| from | 1 t/min |
| up to | 10000 t/min |
| C axis (spindle,resolution) | ° |
| Tool-holder: | |
| number of tools | 13 |
| Turning tools | 6 pce |
| Drilling tools | 4 pce |
| Transverse processing tools | 3 pce |
| Spindle speeds (turning tools) | 250 - 8000 t/min |
| Counter-operation: | |
| Drilling tools | 8 pce |
| Rapid traverse: | 35 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Power of back spindle | 1.1 kW |
| Total power required | 3 kVA |
| Machine's weight about | 1400 kg |
| Overall dimensions machine: | |
| Length | 2000 mm |
| Width | 820 mm |
| Height | 1800 mm |
| Various accessories: | |
| Spindle blow out (backspindle) | |
| Parts catcher | |
| Workpiece conveyor | |
| Lamp | |
| Tool break control | |
| Coolant system | 89 l |
| Interface for bar loader | |
| Central lubrification | |
| Set of service tools |
