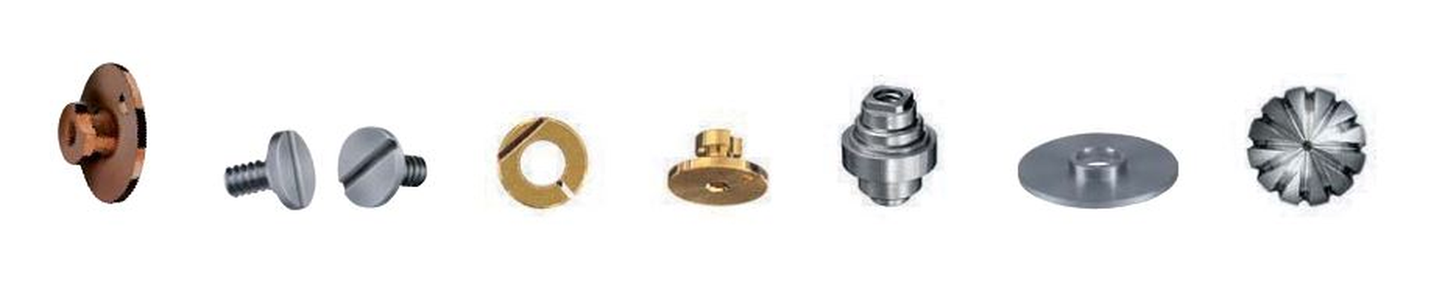

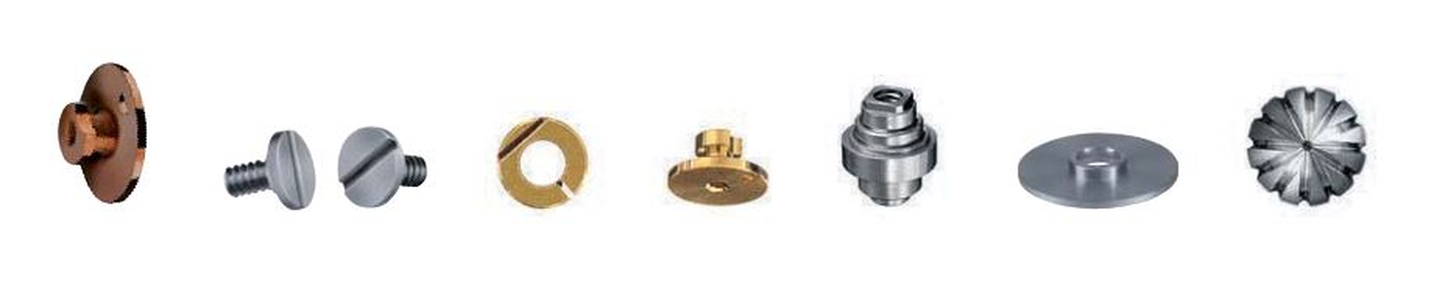

TORNOS Micro 8 is a CNC automatic lathe (CNC Swiss type lathe) delivering high precision, tight accuracy and proven reliability. Capacities: 7 axes, max workpiece length 20 mm, max bar Ø 10 mm; spindle tapers W15 (main) and F13 (back). Specs: spindle speeds 0–12,000 rpm (stepless), rapid traverse X20 / Y40 / Z20 m/min, spindle motors 2.2/3.7 kW, total power 8 kVA, 3x400 V 50 Hz, weight ≈1600 kg, size L1670×W870×H1650 mm. Accessories: LNS TRYTEX 08 bar feeder (2009), Donaldson oil‑mist extractor, centring microscope, collet set, part separator, coolant, RS232, 2× high‑frequency spindles, status light. Enables tight tolerances; typical sectors: automotive, watchmaking, machine tools, aerospace, medical.
| Number of axis total | 7 |
| Workpiece length max. | 20 mm |
| Max. bar diameter | 10 mm |
| Inner taper type | W15 |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 12000 t/min |
| Back spindle: | |
| speeds: | |
| from | 0 t/min |
| up to | 12000 t/min |
| Inner taper type | F13 |
| Rapid traverse X | 20 m/min |
| Rapid traverse Y | 40 m/min |
| Rapid traverse Z | 20 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 2.2 / 3.7 kW |
| Power of back spindle | 2.2 / 3.7 kW |
| Total power required | 8 kVA |
| Machine's weight about | 1600 kg |
| Overall dimensions machine: | |
| Length | 1670 mm |
| Width | 870 mm |
| Height | 1650 mm |
| Various accessories: | |
| C axis | |
| Bar feeder | |
| Manufacturer | LNS |
| Type | TRYTEX 08 |
| year of manufacture | 2009 |
| Part separator | |
| Coolant system | |
| Oil mist extractor | Donaldson |
| Centering microscop | |
| Set of collets | |
| Interface serial port RS 232 | |
| High frequency spindle | 2X |
| Status light |
