| Number of axis total | 5 |
| Number of spindles | 2 |
| Max. turning diameter | 16 mm |
| Max. drilling diameter | 7 mm |
| Max. threading diameter | 6 M |
| Spindle speeds: | |
| stepless | |
| from | 500 t/min |
| up to | 12000 t/min |
| Spindle power | 2.2 kW |
| C axis (spindle,resolution) | ° |
| Back spindle: | |
| speeds: | |
| from | 500 t/min |
| up to | 8000 t/min |
| C axis (spindle,resolution) | 15 ° |
| Thread drill diameter | 3 M |
| Tool-holder: | |
| Turning tools | 6 pce |
| Drilling tools | 2 pce |
| Transverse processing tools | 3 pce |
| Spindle speeds (turning tools) | 7500 t/min |
| Counter-operation: | |
| number of tools | 4 |
| Rapid traverse: | 18 m/min |
| Cutting speed | 10000 mm/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 2.2 / 3.7 kW |
| Power of back spindle | 0.5 kW |
| Air connect | 5 bar |
| Total power required | 6 kVA |
| Machine's weight about | 1700 kg |
| Overall dimensions machine: | |
| Length | 2090 mm |
| Width | 770 mm |
| Height | 1660 mm |
| Various accessories: | |
| Bar feeder | |
| Manufacturer | LNS |

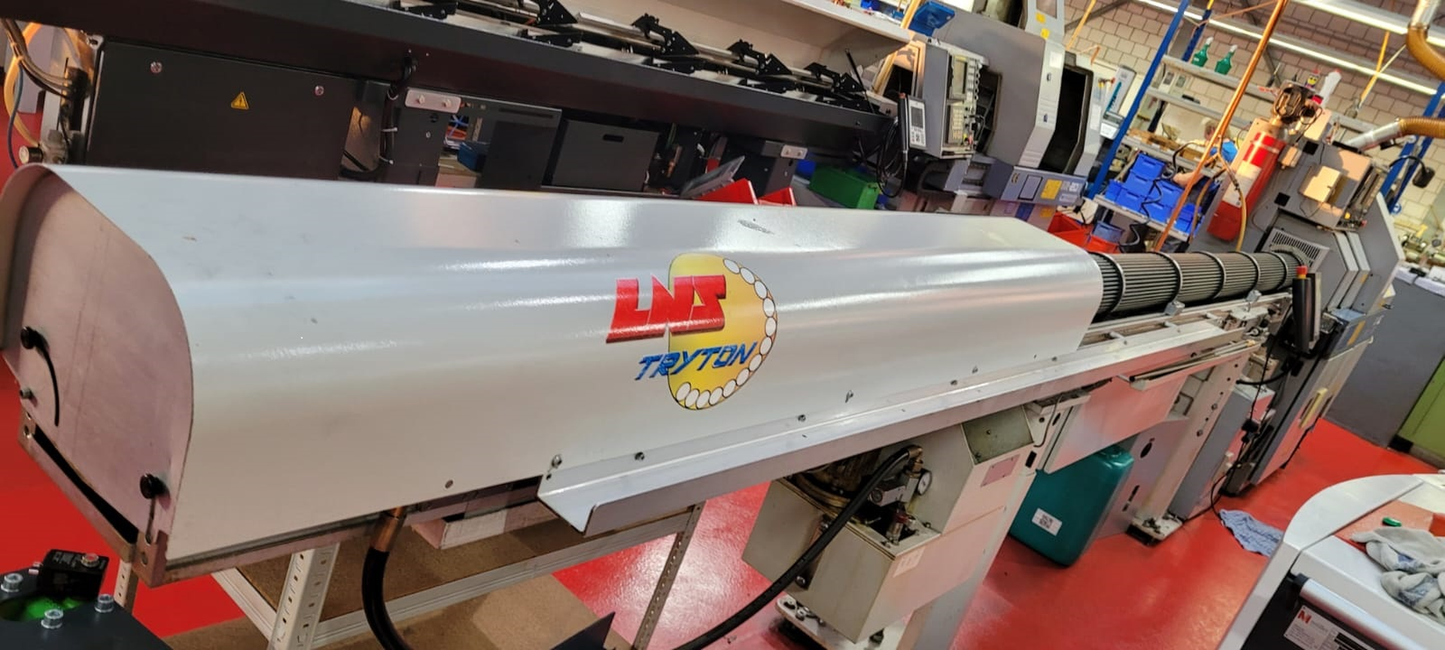

| Type | TRYTON 112 |
| Bar diameter | 1 - 12 mm |
| Parts catcher | |
| Workpiece conveyor | |
| Lamp | |
| Coolant system | 80 l |
| Fire extinguishing system | SIEMENS |
STAR SA-16 R is a CNC automatic lathe, engineered for precision, high accuracy and reliability. Capacities: max turning Ø 16 mm, drilling Ø up to 7 mm, threading up to 6 M; bar feed 1–12 mm. Main specs: 5 axes, 2 spindles; spindle 500–12000 t/min (2.2/3.7 kW), back spindle 500–8000 t/min (0.5 kW), C-axis resolution 15°; 6 turning tools, 2 drilling, 3 cross tools, driven tools up to 7500 t/min; rapid traverse 18 m/min, cutting speed 10000 mm/min; supply 3x400 V 50 Hz, air 5 bar, installed power 6 kVA; weight ≈1700 kg; dims L2090×W770×H1660 mm. Accessories: LNS TRYTON 112 bar feeder (1–12 mm), 80 l coolant, parts catcher, conveyor, lamp, SIEMENS fire extinguishing system. Suited for tight tolerances in automotive, watchmaking, machine tools, aerospace and medical sectors.
Technical specifications are subject to change without notice
