FAVRETTO MC 100 is a CNC surface grinder engineered for precision, high accuracy and reliable finishing. Capacities: table 1200x500 mm, X travel 1120 mm, Z 635 mm, Y 690 mm; grinding length 1000 mm, width 700 mm, max height 650 mm, table load 1000 kg. Specs: wheel Ø406x100 mm, wheel speed 1400 rpm, table speed stepless 1–40 m/min, spindle motor 11 kW, total power 31 kW, supply 3x400 V 50 Hz; machine size 4750x3485x2680 mm, weight ~7800 kg. Accessories: coolant system, paper filtration, electrical magnetic chuck 1000x500 mm, set of grinding wheels, lamp. Enables tight tolerances; typical sectors: automotive, watchmaking, machine tools, aerospace, medical.
| Table length | 1200 mm |
| Table width | 500 mm |
| Longitudinal travel (X-axis) | 1120 mm |
| Cross travel (z-axis) | 635 mm |
| vertical travel (Y-axis) | 690 mm |
| Table load max. | 1000 kg |
| Grinding length | 1000 mm |
| Grinding width | 700 mm |
| Grinding height over table | 650 mm |
| Grinding wheel: | |
| Diameter | 406 mm |
| Width | 100 mm |
| Bore | 152 mm |
| Grinding wheel speeds fix | 1400 t/min |
| Table speeds: | |
| stepless | |
| from | 1 m/min |
| up to | 40 m/min |
| Automatic cross feed: | |
| stepless | |
| from | m/min |
| up to | 2 m/min |
| Automatic vertical feed: | |
| from | m/min |
| up to | 2 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Grinding spindle motor | 11 kW |
| Total power required | 31 kW |
| Machine's weight about | 7800 kg |
| Overall dimensions machine: | |
| Length | 4750 mm |
| Width | 3485 mm |
| Height | 2680 mm |
| Various accessories: | |
| Coolant system | |
| Paper filtration system | |
| Electrical magnetic chuck | |
| Length | 1000 mm |
| Width | 500 mm |

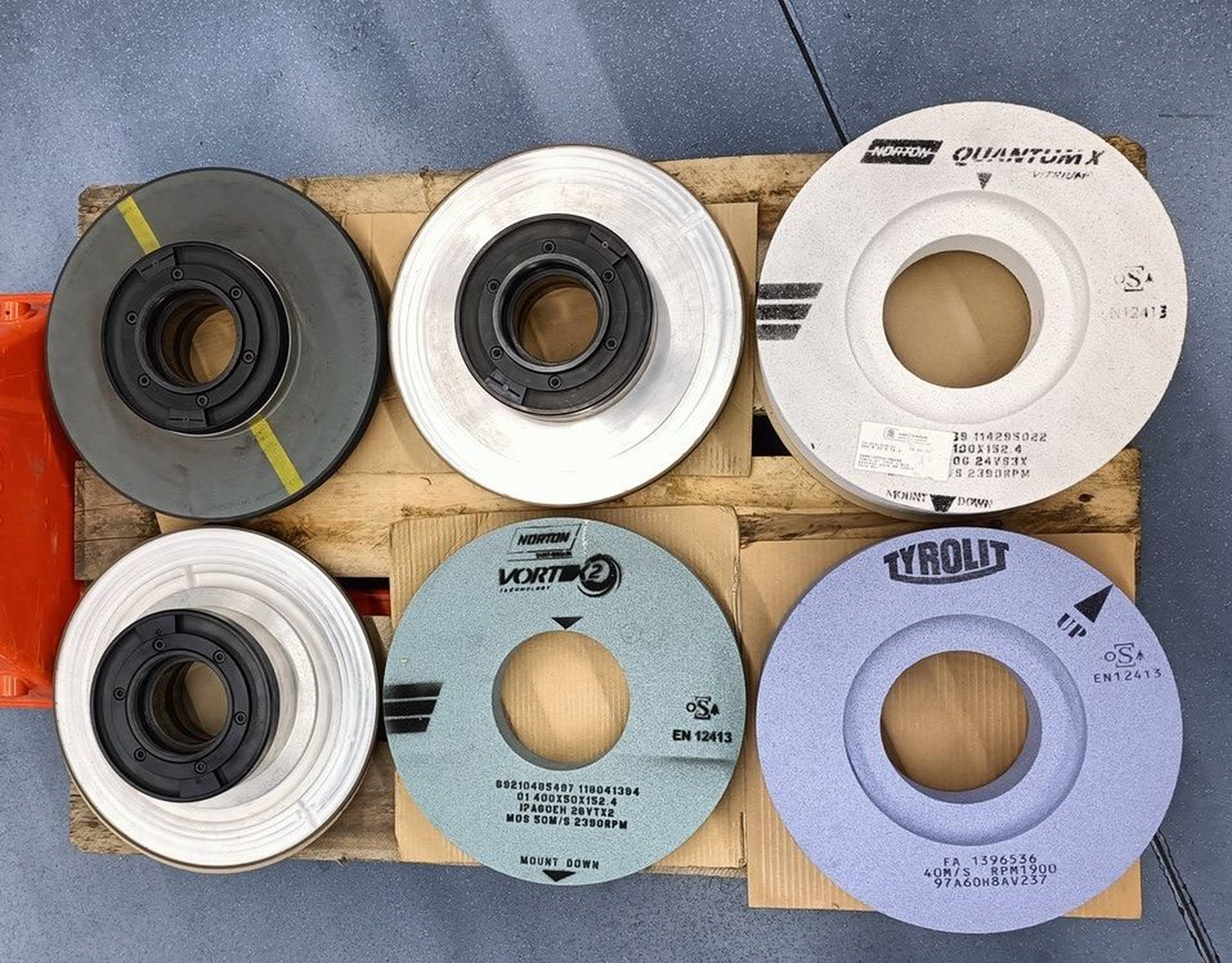

| Set of grinding wheels | |
| Lamp |
