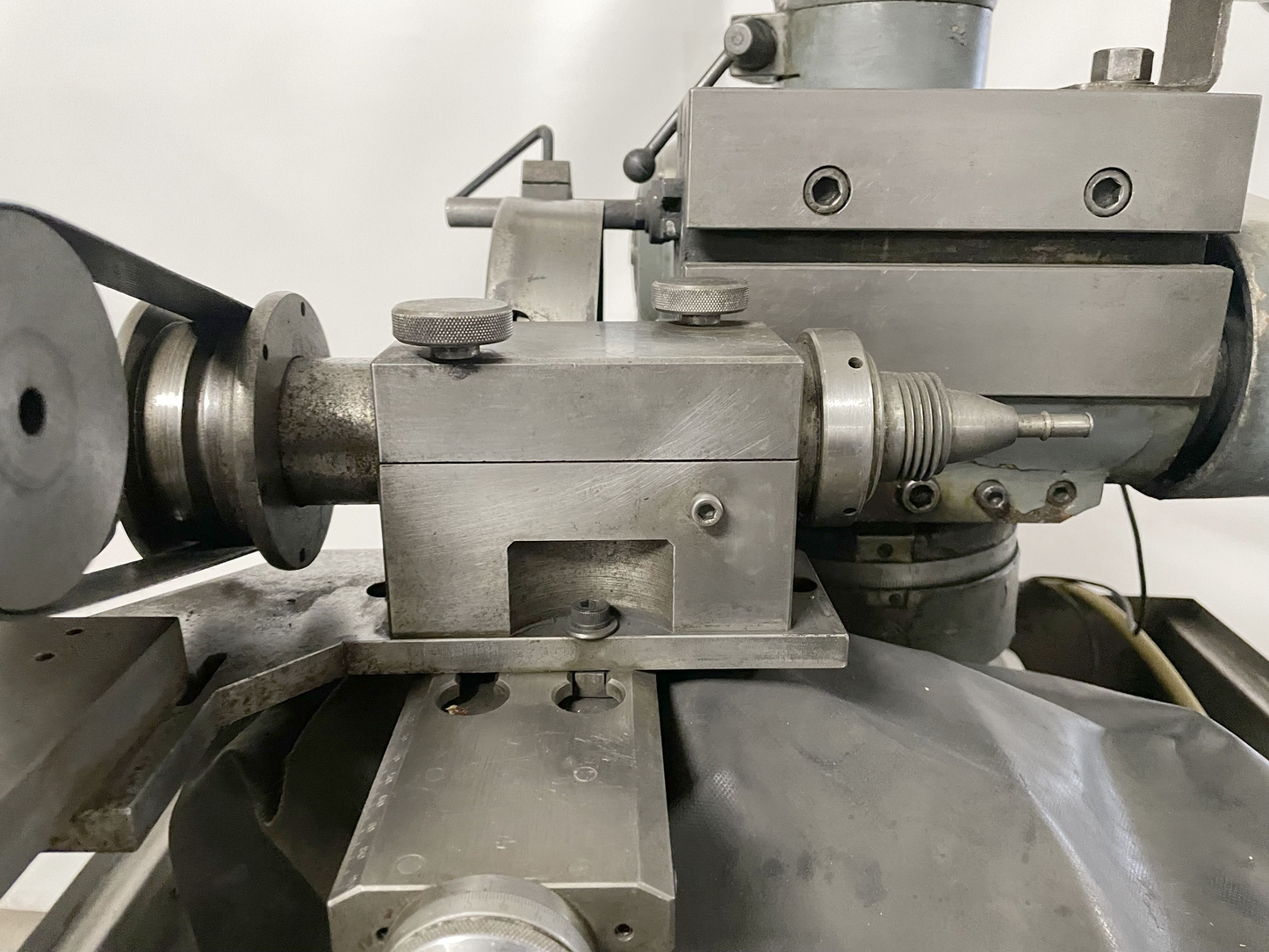

TACCHELLA 4 AM is a Tool and cutter grinder delivering precision, high accuracy and reliability. Capacities: centre height 125 mm, distance between centres 550 mm, table 900×130 mm, max grinding Ø 250 mm, wheel Ø200 mm, longitudinal travel 400 mm, transversal 200 mm. Specs: grinding spindle stepless 2,200–6,400 t/min; voltage 50 Hz 3x380 V; dimensions L1400×W1300×H1700 mm. Accessory: lamp. Guarantees tight tolerances; typical uses: automotive, aerospace, medical, watchmaking, toolmaking.
Technical specifications are subject to change without notice
| Centre height | 125 mm |
| Distance between centres | 550 mm |
| Table length | 900 mm |
| Table width | 130 mm |
| Max. grinding diameter | 250 mm |
| Grinding-wheel diameter | 200 mm |
| Longitudinal way of table | 400 mm |
| Transversal way of grinding head | 200 mm |
| Grinding spindle speeds: | |
| stepless | |
| from | 2200 t/min |
| up to | 6400 t/min |
| Voltage 50 Hz 3x | 380 Volt |
| Overall dimensions machine: | |
| Length | 1400 mm |
| Width | 1300 mm |
| Height | 1700 mm |
| Various accessories: | |
| Lamp |
