TAKISAWA TCC 2100G L3
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
TAKISAWA TCC 2100G L3 is a CNC Frontal lathe built for precision, high accuracy and reliability. Capacity: swing 420 mm, max turning Ø 320 mm, max length 291 mm; travels Z 350 mm, X 190 mm. Specs: spindle 100–3200 min-1, rapid X 24 m/min Z 30 m/min, 3×400 V 50 Hz, 14 kVA, weight ~3500 kg, dims 2220×2214×2713 mm. Accessories: oil mist extractor, electronic handwheel, chip conveyor, portal loader. Delivers tight tolerances; typical sectors: automotive, watchmaking, machine tools, aerospace, medical.
| Swing diameter | 420 mm |
| Maximum turning length | 291 mm |
| Max. turning diameter | 320 mm |
| Travels: | |
| Longitudinal travel (Z-axis) | 350 mm |
| Transversal strocke (X axis) | 190 mm |
| Turret slide: | |
| Number of positions | 12 |
| Spindle speeds: | |
| stepless | |
| from | 100 t/min |
| up to | 3200 t/min |
| Rapid traverse X | 24 m/min |
| Rapid traverse Z | 30 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 14 kVA |
| Machine's weight about | 3500 kg |
| Overall dimensions machine: | |
| Length | 2220 mm |
| Width | 2214 mm |
| Height | 2713 mm |
| Various accessories: | |

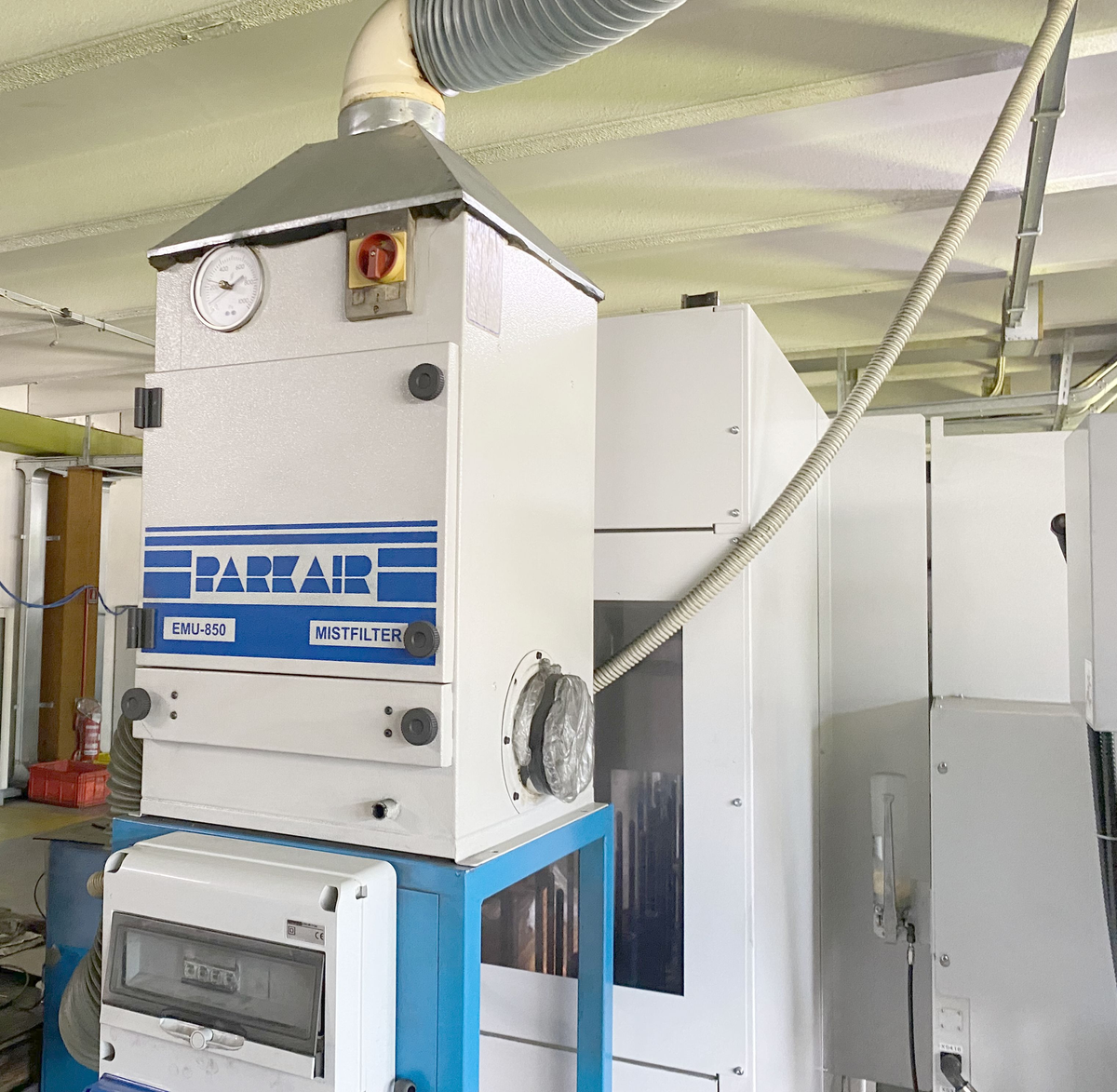

| Oil mist extractor | |
| Handwheel electroinic | |
| Chip conveyor | |
| Portal loader |
