| Number of axis total | 3 |
| Table length | 650 mm |
| Table width | 350 mm |
| Number of T-channels | 5 |
| T-channel width | 14 mm |
| Distance of the T-slots | 63 mm |
| Table load max. | 250 kg |
| Longitudinal travel (X-axis) | 400 mm |
| Transversal travel (y axis) | 320 mm |
| Vertical travel (z axis) | 400 mm |
| Distance from vertical | |
| spindle to table | 140 - 540 mm |
| Spindle speeds: | |
| stepless | |
| from | 50 t/min |
| up to | 3300 t/min |
| Swivel range Vertical milling head | +/-90 ° |
| Spindle nose: ISO | 40 DIN 69871 |
| Feeds: | |
| stepless | |
| longitudinal from | mm/min |
| up to | 1000 mm/min |
| transversal from | mm/min |
| up to | 1000 mm/min |
| Rapid traverse: long. | 4 m/min |
| Rapid traverse: transversal | 4 m/min |
| Rapid traverse: vertical | 3 m/min |
| Vertical quill travel | 60 mm |
| Voltage 50 Hz 3x | 400 Volt |
| Milling spindle motor | 5.5 kW |
| Total power required | 15 kVA |
| Time under power | 6652 Heures |
| Operating time | 1584 Heures |
| Working time | 940 Heures |
| Noise level | 78 dB (A) |
| Machine's weight about | 1300 kg |
| Overall dimensions machine: | |
| Length | 2000 mm |
| Width | 1950 mm |
| Height | 1900 mm |
| Various accessories: | |
| Rigide table | |

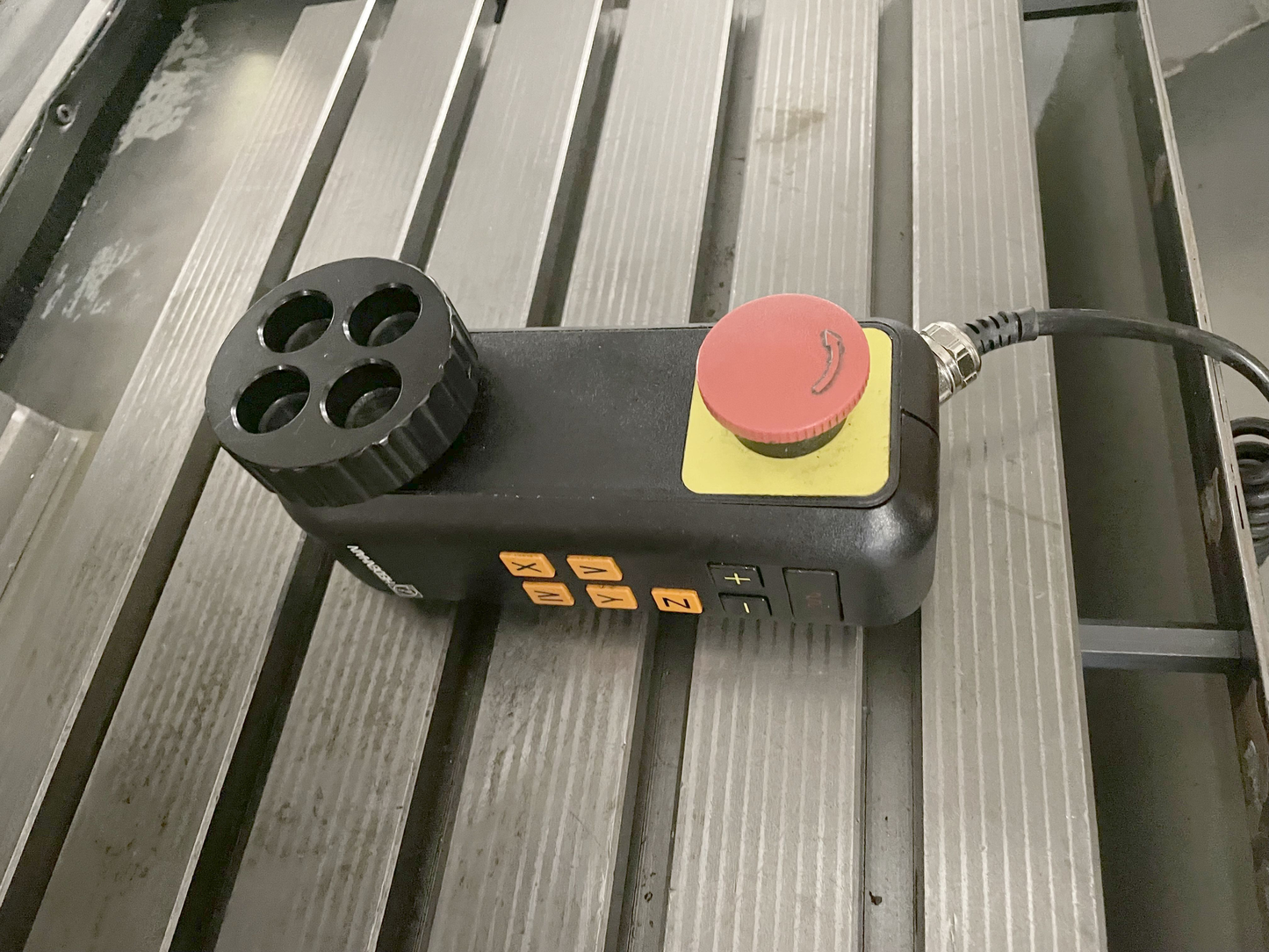

| Electronic hand held control | |
| Mechanical handwheels | |
| Full splash cabin | |
| Coolant system | |
| Automatic central lubrication | |
| Interface serial port RS 232 |
