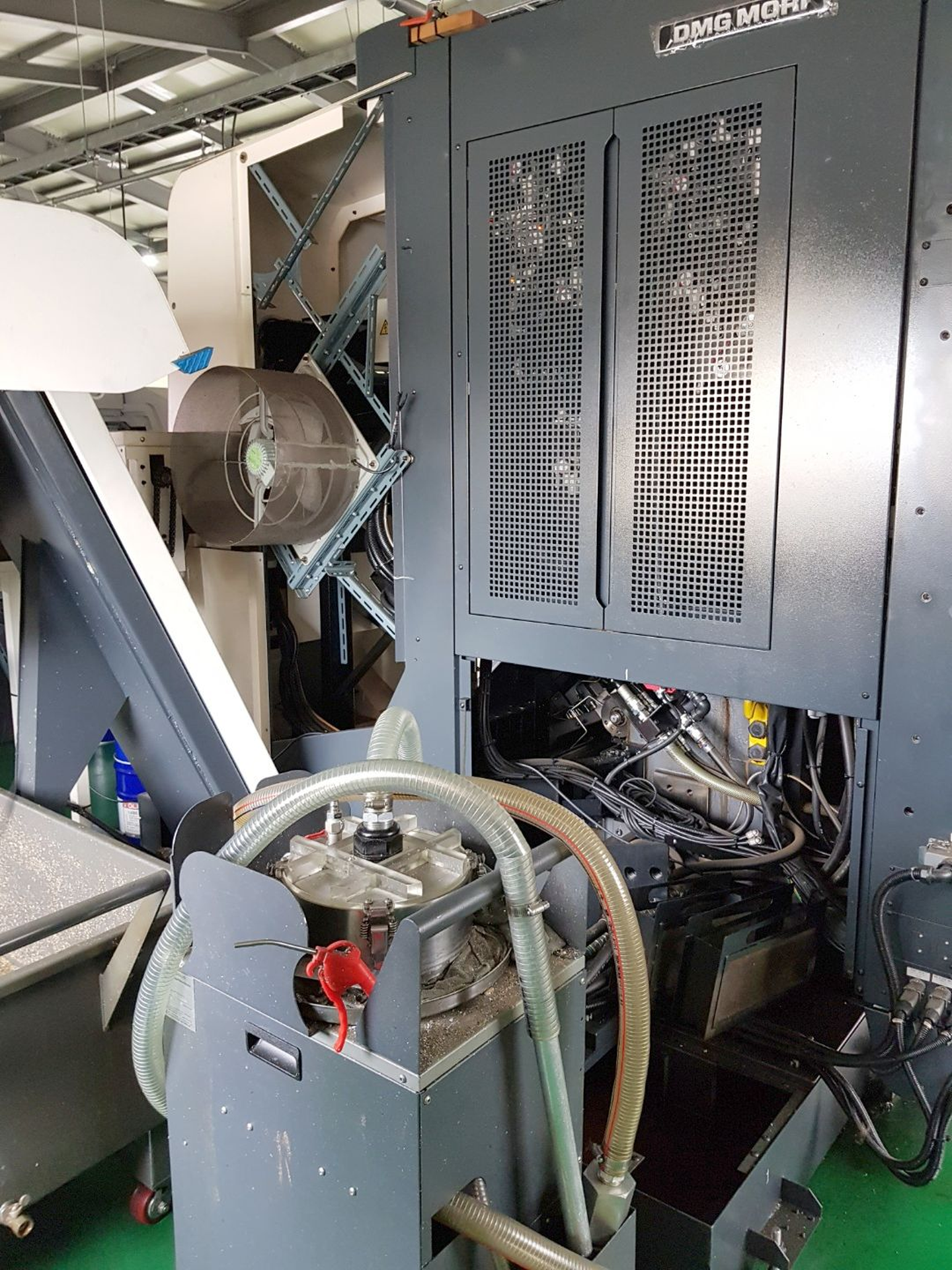

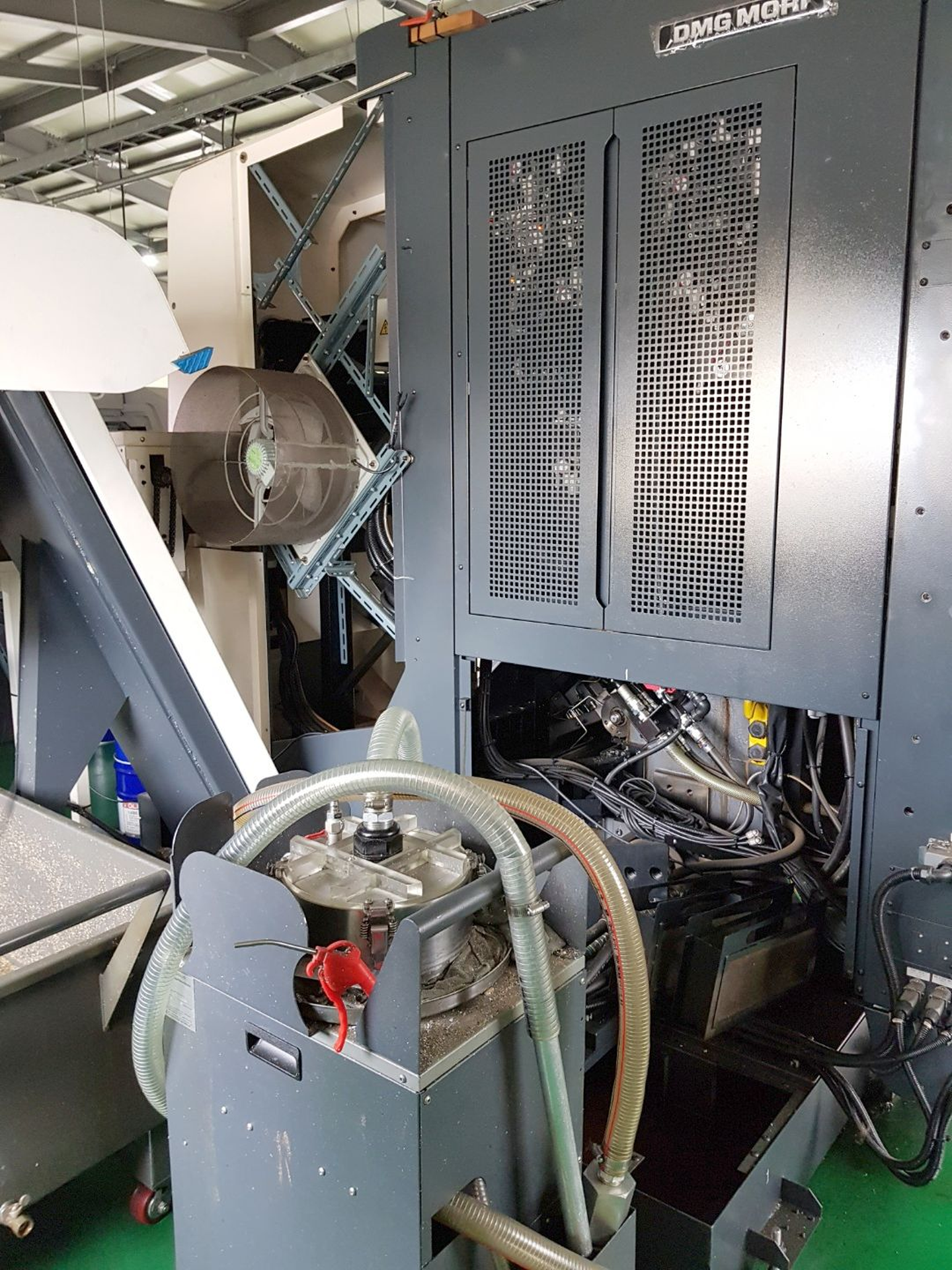

NZX 1500/800SY is a CNC Turning-Milling-Drilling Center with high precision, accuracy and reliability. Capacities: 2 turning spindles, 2 revolvers, swing diameter over bed 800 mm, max. turning Ø 320 mm, max. bar Ø 52 mm; travels Z 810 mm, X 210 mm, Y 110 mm (both carriages). Specs: spindle speeds 0–6000 t/min, spindle power 22/18.5 kW, driven tools power 7.5/5.5 kW, spindle nose JIS A2-5, spindle hole 61 mm; rapid traverse X 30 m/min, Z 50 m/min, Y 20 m/min; weight ~8100 kg; overall dims L4396×W2835×H2320 mm. Accessories: direct measuring system X axis, lamp, coolant system, coolant through counter spindle, loader interface, parts catcher, workpiece conveyor, chip conveyor. Delivers tight tolerances; typical applications: automotive, aerospace, medical, watchmaking and machine tools.
| Number of turning spindles | 2 |
| Number of revolvers | 2 |
| Swing diameter over bed | 800 mm |
| Max. turning diameter | 320 mm |
| Max. bar diameter | 52 mm |
| Turret carriage: | |
| Carriage 1: | |
| Travels: | |
| Longitudinal travel (Z-axis) | 810 mm |
| Longitudinal travel (X-axis) | 210 mm |
| Transversal travel (y-axis) | 110 mm |
| Carriage 2: | |
| Longitudinal travel (Z-axis) | 810 mm |
| Transversal strocke (X axis) | 210 mm |
| Transversal travel (y-axis) | 110 mm |
| Turret slide: | |
| Number of positions | 16 (2x) |
| Driven tools turret | 16 |
| Spindle speeds | 6000 t/min |
| Tool shank cross section | 20 mm |
| Power of driven tools | 7.5 / 5.5 kW |
| Main spindle: | |
| Spindle nose | JIS A2-5 |
| Spindle hole | 61 mm |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 6000 t/min |
| Spindle power | 22 / 18.5 kW |
| Back spindle: | |
| Spindle nose | JIS A2-5 |
| Spindle hole | 61 mm |
| max. speed | 6000 t/min |
| Rapid traverse X | 30 m/min |
| Rapid traverse Z | 50 m/min |
| Rapid traverse Y | 20 m/min |
| Spindle motor | 22 / 18.5 kW |
| Machine's weight about | 8100 kg |
| Overall dimensions machine: | |
| Length | 4396 mm |
| Width | 2835 mm |
| Height | 2320 mm |
| Various accessories: | |
| Direct measuring system X axis | |
| Lamp | |
| Coolant system | |
| Coolant through the counter spindle | |
| Loader interface | |
| Parts catcher | |
| Workpiece conveyor | |
| Chip conveyor |
