SCHMIDT TEMPO AS 4
Type: AS 4
Manufacturer: SCHMIDT TEMPO
Group: Sawblade sharpening machine
Subgroup: Sawblade sharpening machine
Stock: 022387
SCHMIDT TEMPO AS 4 is a sawblade sharpening machine, engineered for precision, high accuracy and reliability. Capacity: saw blade Ø 20–400 mm, max thickness 6 mm; grinding wheel Ø150 mm, bore 30 mm. Specs: 50 Hz 3x 380 V; machine weight ≈150 kg; overall L800×W400×H1100 mm. Accessories: set of grinding wheels, cast-iron base. Delivers tight tolerances; suitable for woodworking, metalworking, sawmills and industrial cutting applications
| Saw blade diameter: | |
| from | 20 mm |
| up to | 400 mm |
| Max. saw blade thickness | 6 mm |
| Diameter of grinding wheel | 150 mm |
| Drilling cap. of grind.wheel | 30 mm |
| Voltage 50 Hz 3x | 380 Volt |
| Machine's weight about | 150 kg |
| Overall dimensions machine: | |
| Length | 800 mm |
| Width | 400 mm |
| Height | 1100 mm |
| Various accessories: | |

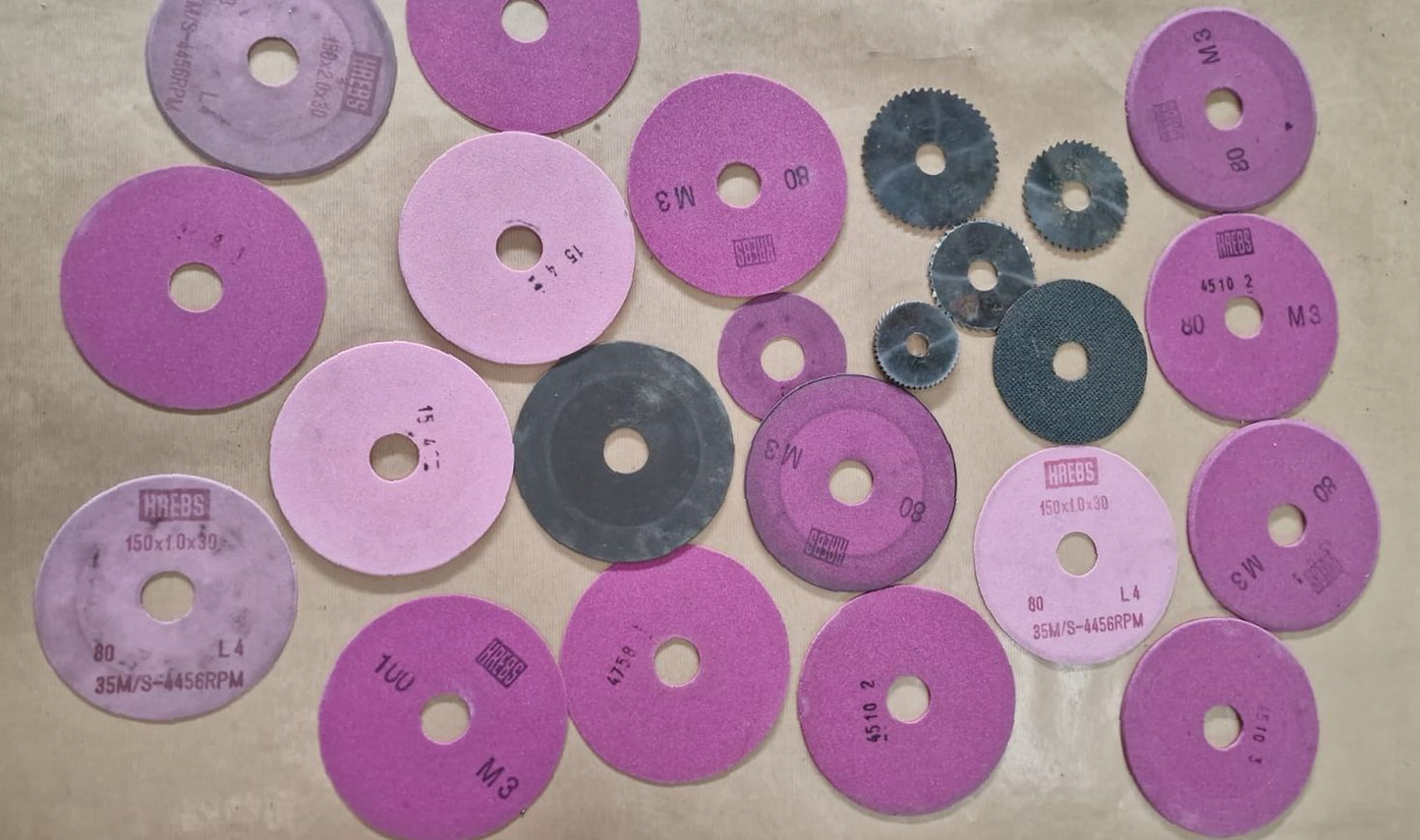

| Set of grinding wheels | |
| Cast-iron base |
