022382 - GILDEMEISTER CTX 200
Download technical sheet (PDF)
Message us on WhatsApp
| Centre height | 298 mm |
| Swing diameter | 440 mm |
| Swing over cross-slide | 210 mm |
| Spindle hole | 56 mm |
| Maximum turning length | 305 mm |
| Turret carriage: | |
| Travels: | |
| Longitudinal travel (Z-axis) | 350 mm |
| Transversal strocke (X axis) | 160 mm |
| Turret slide: | |
| Number of positions | 12 |
| Driven tools turret | 12 |
| Spindle speeds | 0 - 5000 t/min |
| Power of driven tools | 3 kW |
| Torque max. | 5.7 Nm |
| Inner cone diameter | 20 mm |
| Spindle speeds: | |
| stepless | |
| from | 25 t/min |
| up to | 5000 t/min |
| Spindle power | 7.5 / 11 kW |
| Torque max. | 58 / 84 Nm |
| Tailstock: | |
| Morse taper | 3 CM |
| Spindle stroke | 120 mm |
| Spindle diameter | 50 mm |
| Pressure | 3 kN |
| Rapid traverse X | 12 m/min |
| Rapid traverse Z | 16 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Noise level | 77 dB (A) |
| Total power required | 34 kVA |
| Machine's weight about | 3200 kg |
| Overall dimensions machine: | |
| Length | 2600 mm |
| Width | 1700 mm |
| Height | 1700 mm |
| Various accessories: | |
| 3-jaw chuck diameter | 140 mm |
| Set of soft jaws | |
| Collet device | |

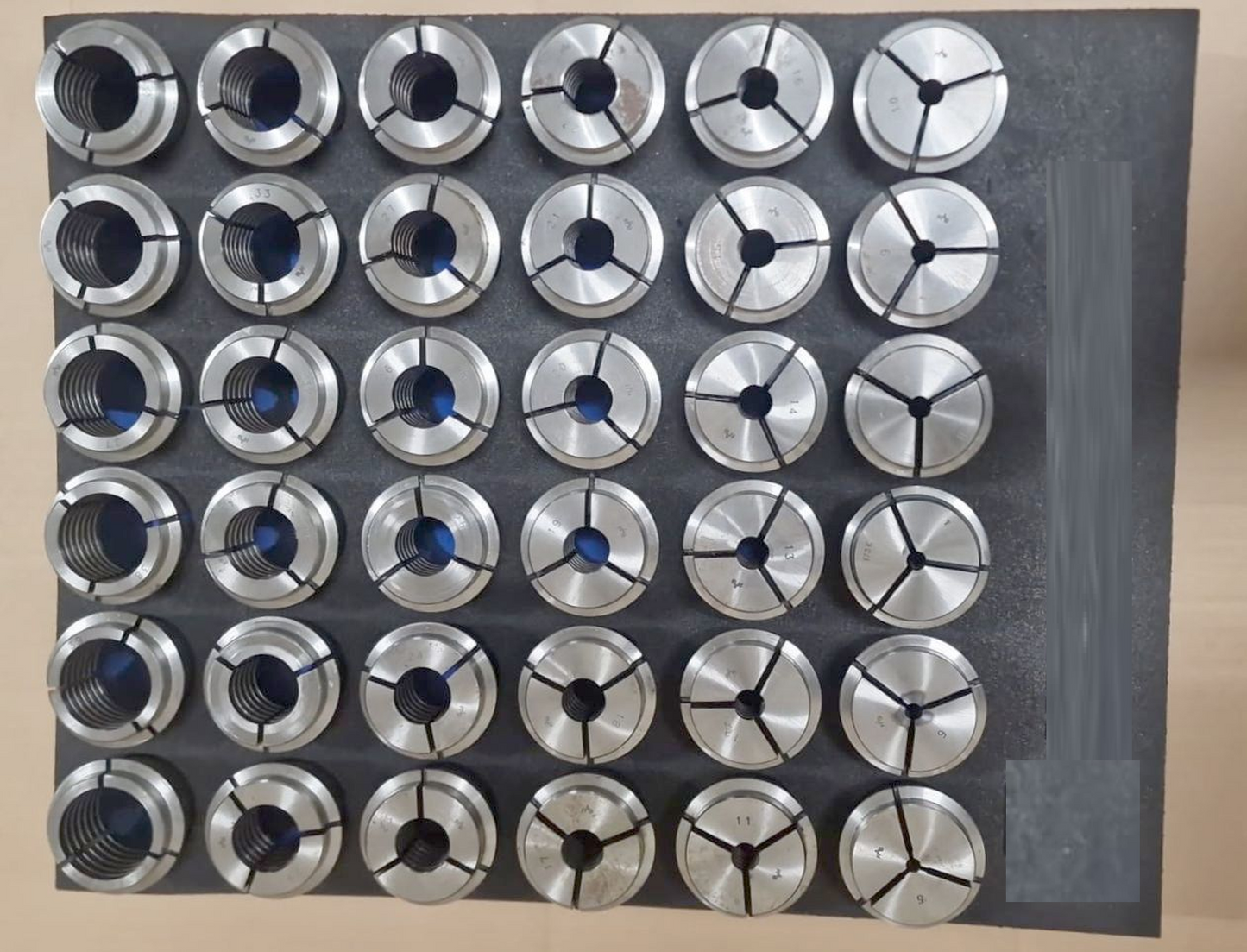

| Set of collets | |
| Hydraulic tailstock | |
| Central lubrification | |
| Rotary centre | |
| Interface serial port RS 232 | |
| Drill chuck | |
| Foot pedal | |
| Set of steel holders | |
| Set of toolholders |
