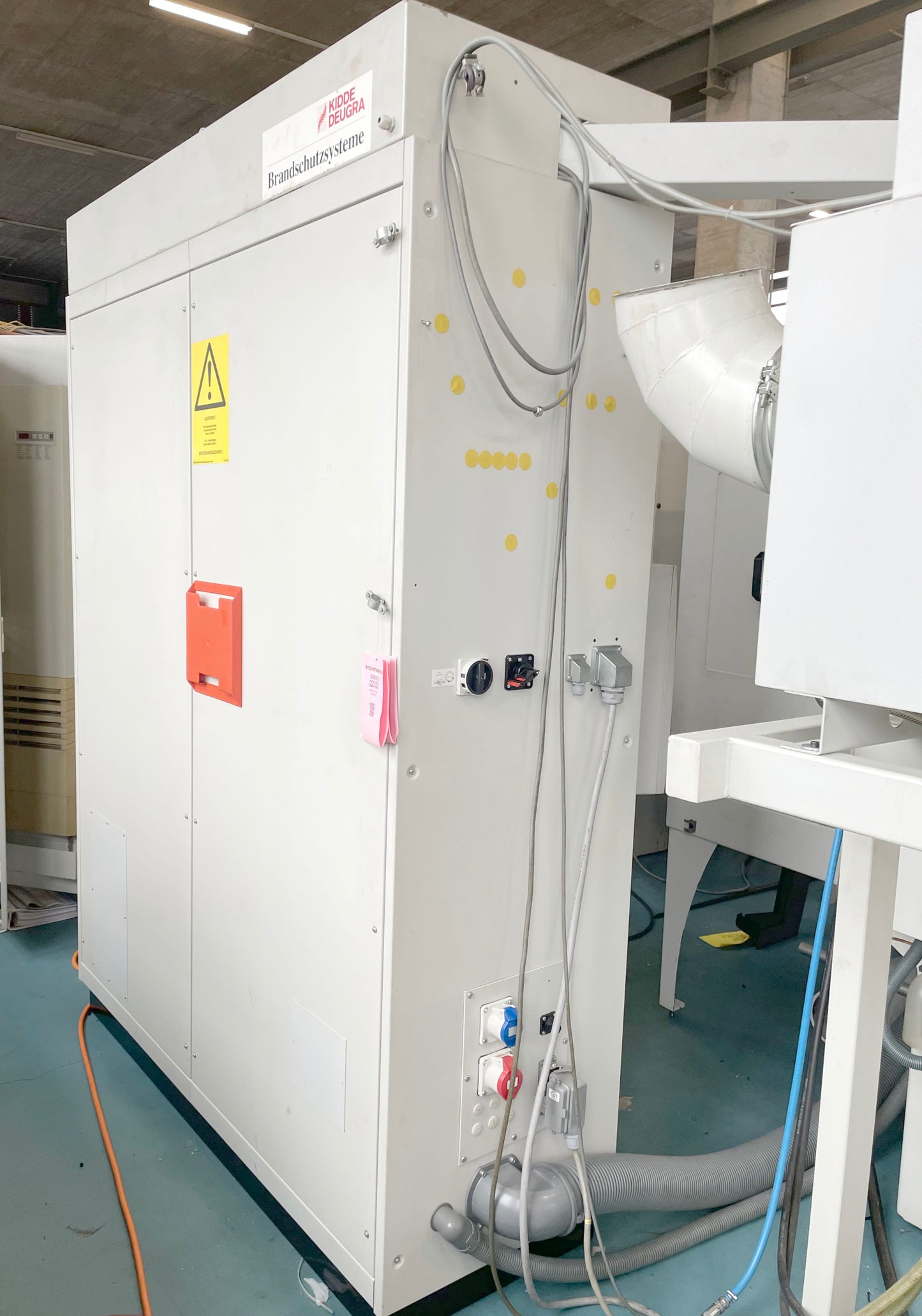

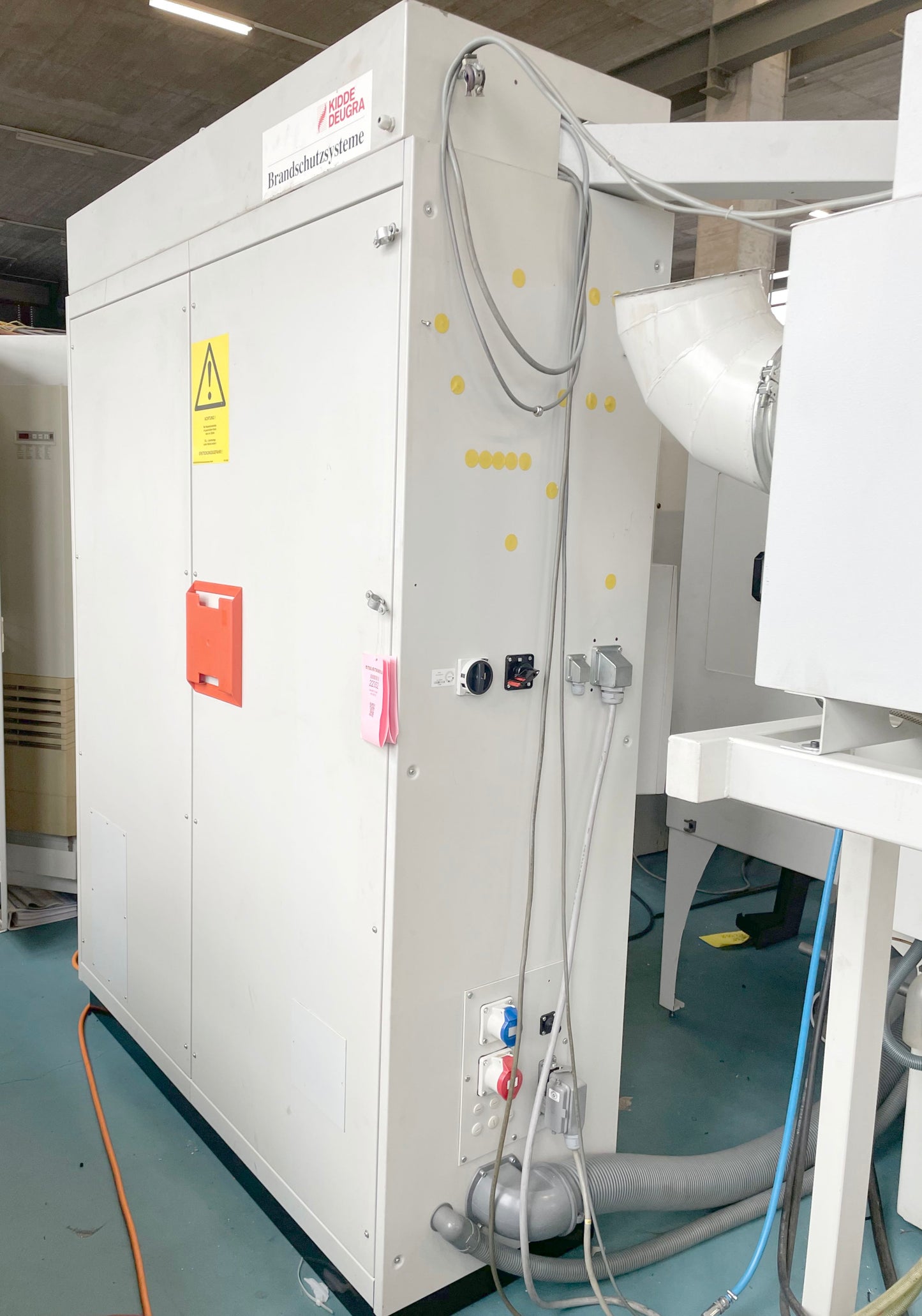

HAUSER S 35-400 is a CNC jig grinder for precision, high accuracy and reliability. Table 600×380 mm, 6 T-slots, max load 200 kg. Travels X500 Y300 Z450 mm; max Ø 230 (360 with plate); taper up to 16°. Spindle 7.5 kW; 3×380 V 50 Hz; wt ~4000 kg; size 2700×1700×2850 mm. Accessories: coolant, paper filtration, grinding motor 70S-ATC, oil-mist extractor, tool changer 8 EROWA, RS-232. Suited to tight tolerances in automotive, watchmaking, machine tools, aerospace and medical.
| 1 column execution | |
| Table: | |
| Table length | 600 mm |
| Table width | 380 mm |
| T-channel width | 10 mm |
| Number of spline | 6 |
| Distance of the T-slots | 50 mm |
| Table load max. | 200 kg |
| Carriage: | |
| Longitudinal travel (X-axis) | 500 mm |
| Transversal travel (y-axis) | 300 mm |
| Travel of the vertical slide | 450 mm |
| Passage from grinding motor to table | 485 mm |
| Max. grinding diameter | 230 mm |
| with display-plate | 360 mm |
| Stroke of spindle-nose | 340 mm |
| Max. angle with taper grinding: | |
| up to | 16 ° |
| Vertical travel of grinding spindle: | |
| stepless from | 1 mm |
| up to | 110 mm |
| Travel speeds: | |
| stepless | |
| from | 1 m/min |
| up to | 12 m/min |
| Planetary motion speeds: c axis | |
| stepless | |
| from | 5 t/min |
| up to | 250 t/min |
| Feeds: | |
| X axis | 0 - 12 m/min |
| Y axis | 0 - 12 m/min |
| W axis | 900 mm/min |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 7.5 kW |
| Machine's weight about | 4000 kg |
| Overall dimensions machine: | |
| Length | 2700 mm |
| Width | 1700 mm |
| Height | 2850 mm |
| Various accessories: | |
| Coolant system | |
| Paper filtration system | |
| Grinding motor 70S-ATC | |
| Oil mist extractor | |
| Tool changer: (number of tools) | 8 |
| Type | EROWA |
| RS-232 Interface |
