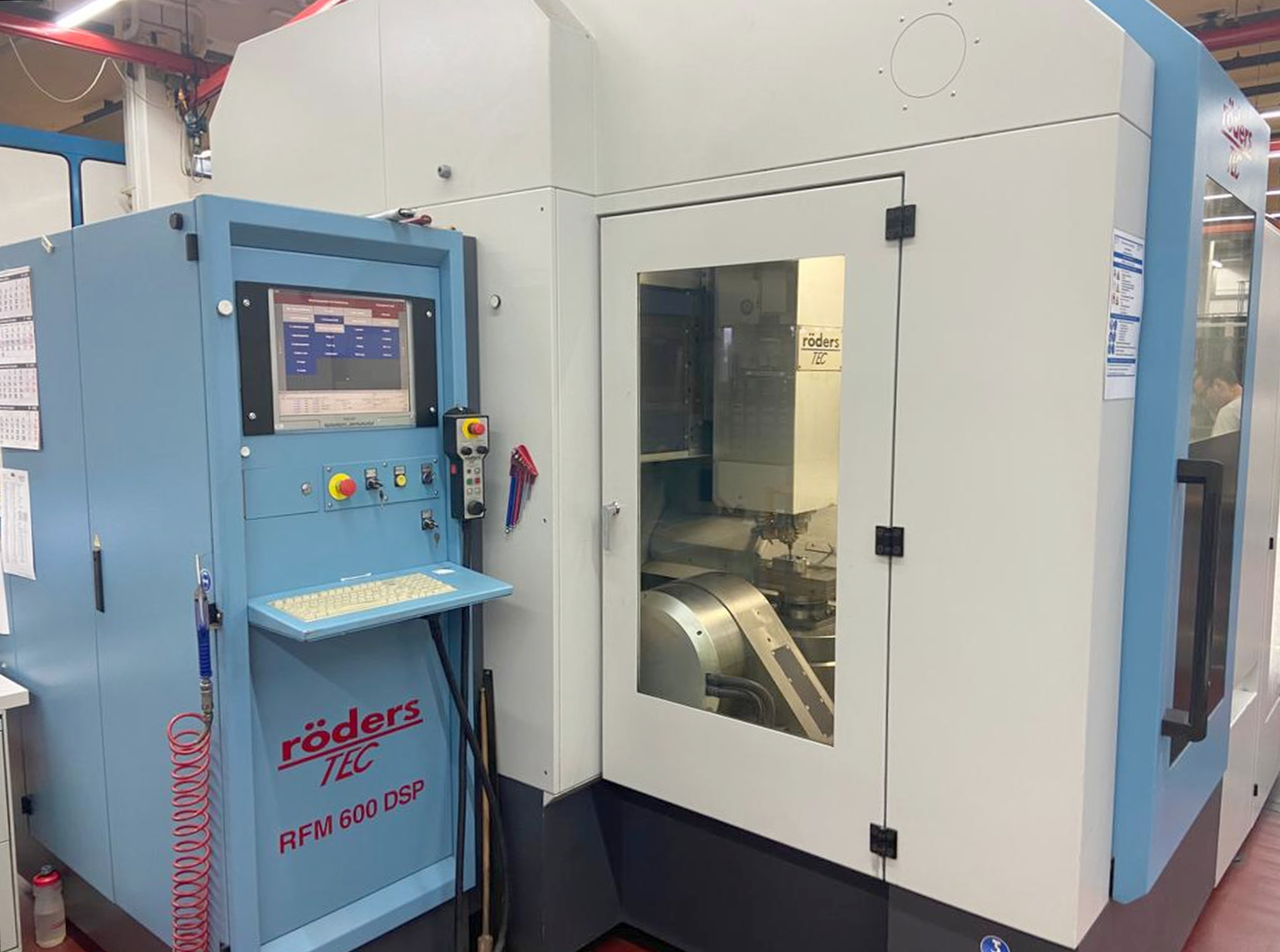

RÖDERS RFM 600 DSP is a 5‑axis machining center built for precision, high accuracy and reliability. Capacities: rotary table Ø405 mm, table load 300 kg; travels X600 Y500 Z300 mm; 5 simultaneous axes; tool magazine 82 places; HSK E40; spindle 0–42000 t/min; rapid traverse 60 m/min. Specs: spindle run time 7266 h (changed 2016); power 50 Hz 3x400 V; total 25 kW; weight ≈8500 kg; size L4200×W3000×H2700 mm. Accessories: coolant system, water cooler, touch probe, laser tool setting, chip conveyor, workpiece magazine, 31 set‑up places, electronic handwheel, lamp. Delivers tight tolerances for automotive, aerospace, medical, watchmaking and machine tool applications.
| Spindle run time | 7266 Heures |
| Number of axis simultaneous | 5 |
| Rotary table:diameter | 405 mm |
| Table load max. | 300 kg |
| Longitudinal travel (X-axis) | 600 mm |
| Transversal travel (y-axis) | 500 mm |
| Vertical travel (z axis) | 300 mm |
| Tool magazine number of tool places | 82 |
| Spindle nose: HSK | E40 |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 42000 t/min |
| Rapid traverse: | 60 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Total power required | 25 kW |
| Machine's weight about | 8500 kg |
| Overall dimensions machine: | |
| Length | 4200 mm |
| Width | 3000 mm |
| Height | 2700 mm |
| Various accessories: | |
| Coolant system | |
| Water cooler | |

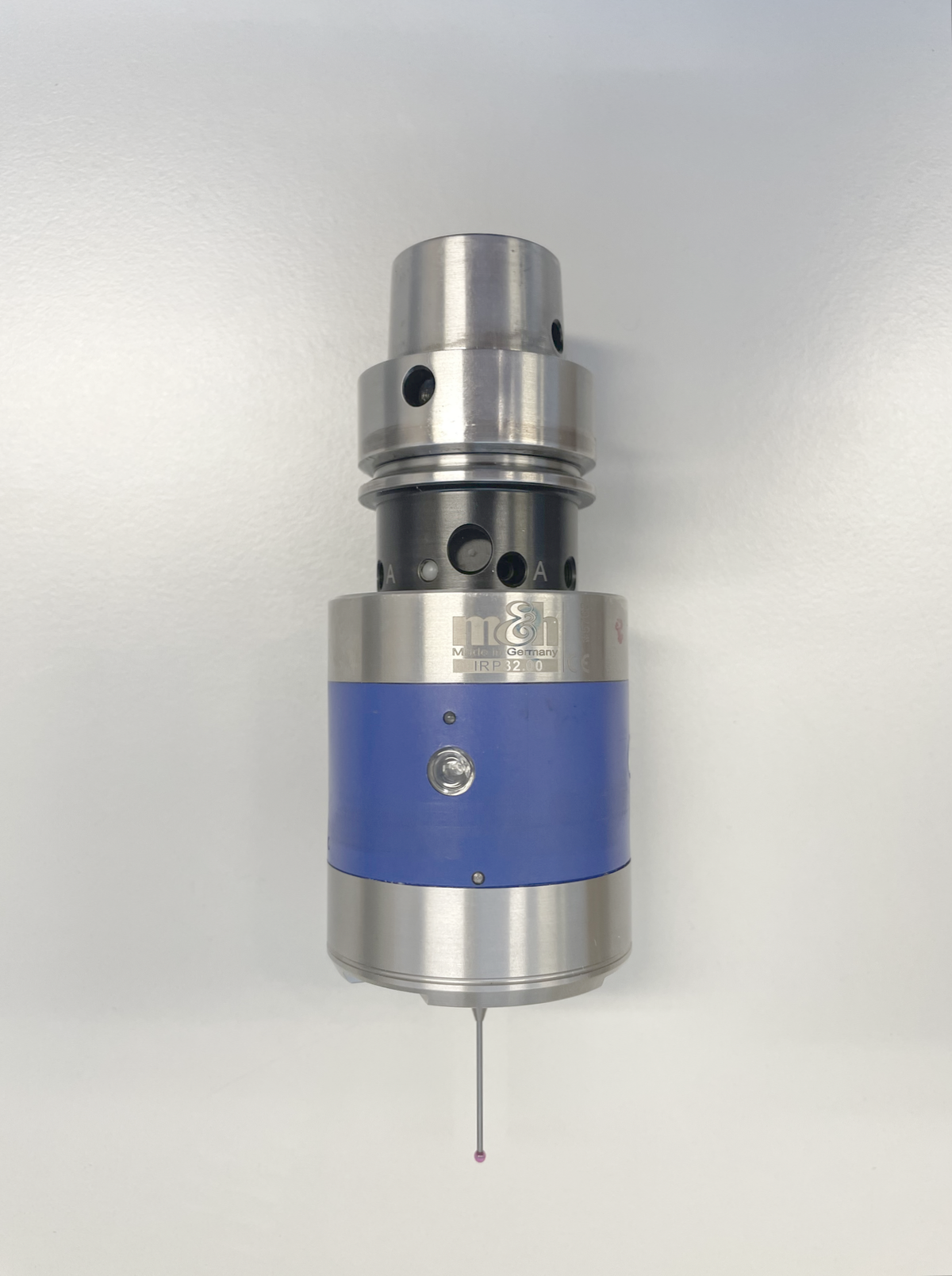

| Touch Probe | |
| Laser tool setting system | |
| Chip conveyor | |
| Work piece magazine | |
| Set-up place (number) | 31 |
| Handwheel electroinic | |
| Lamp | |
| Spindle changed | 2016 |
