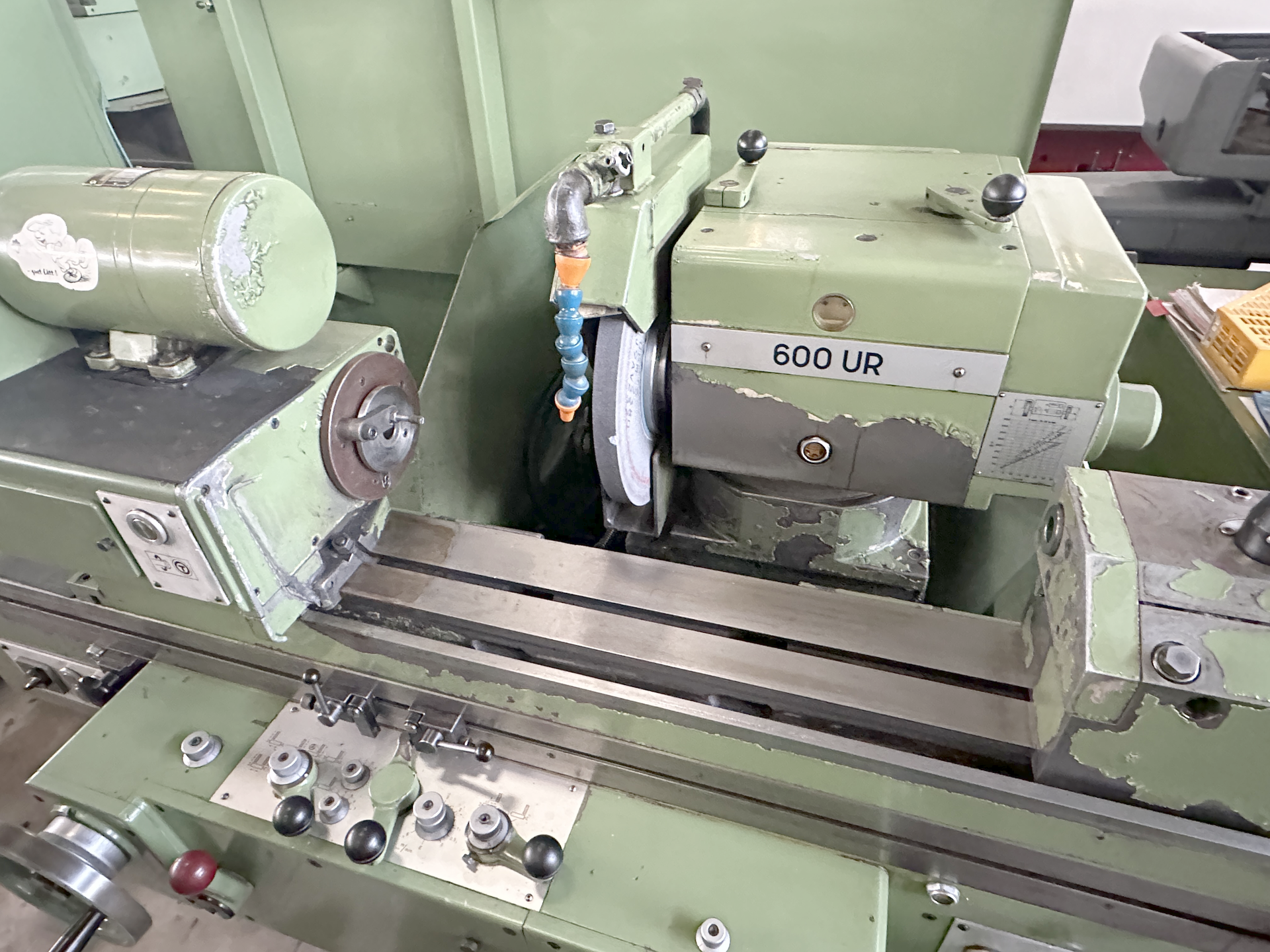

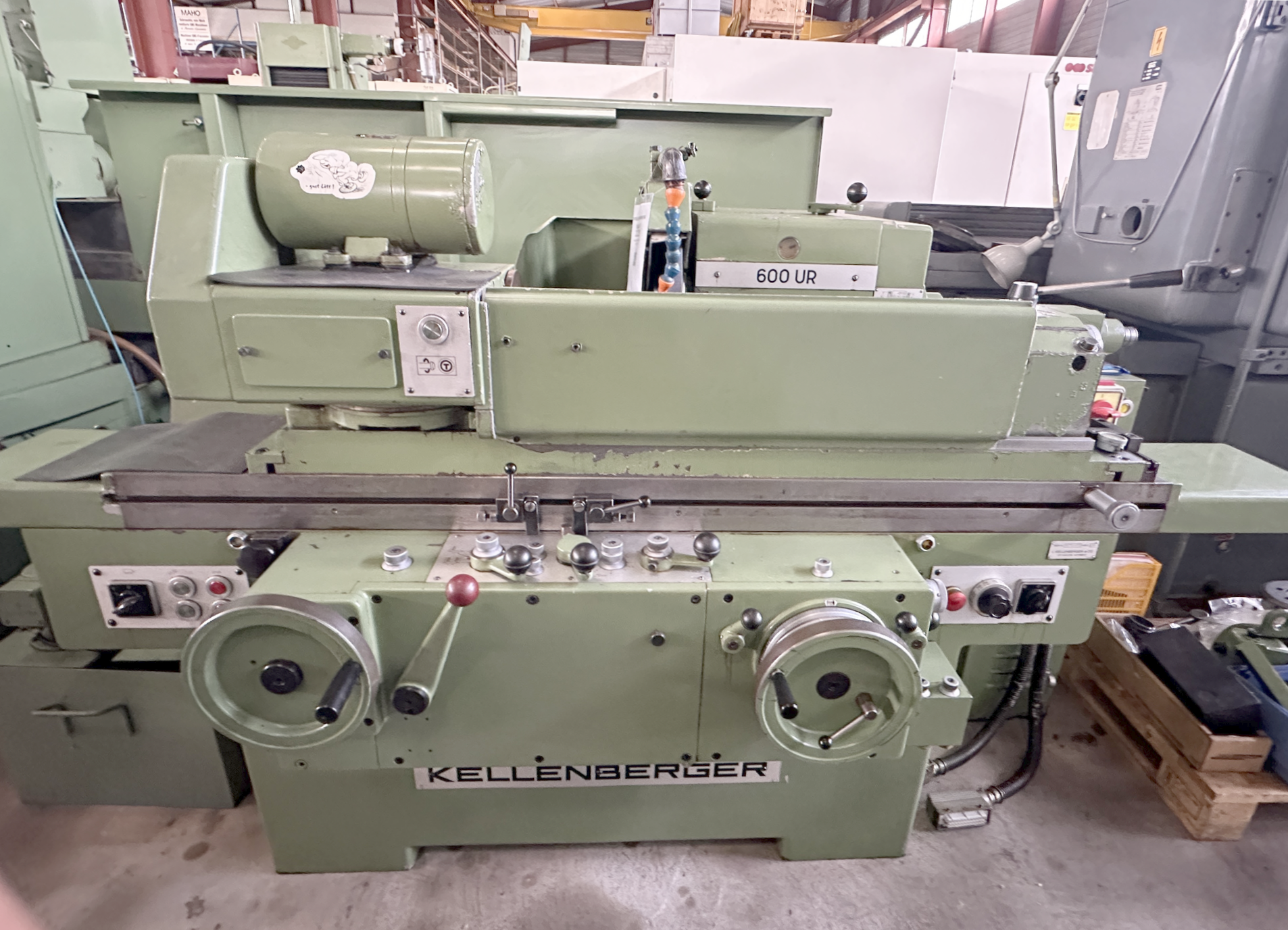

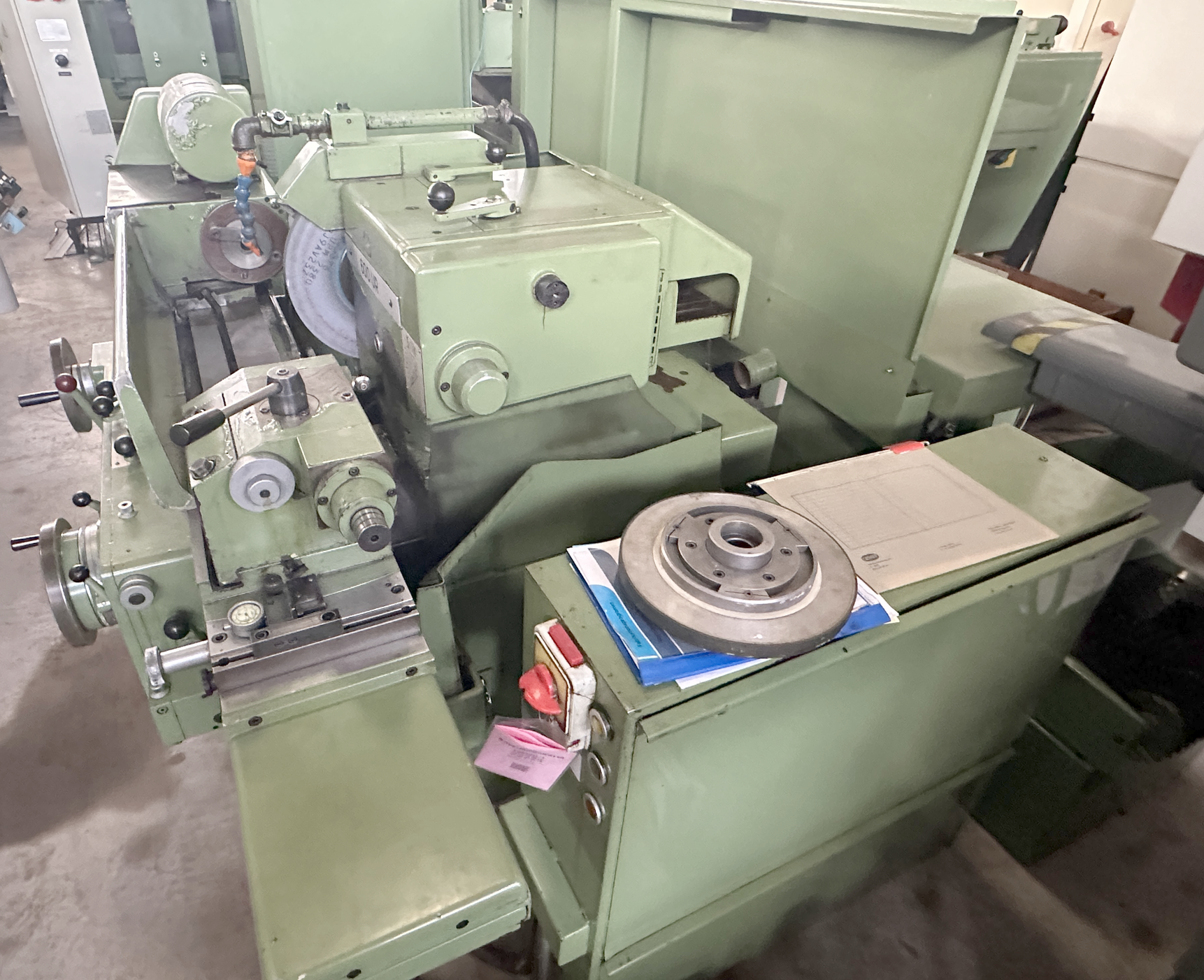

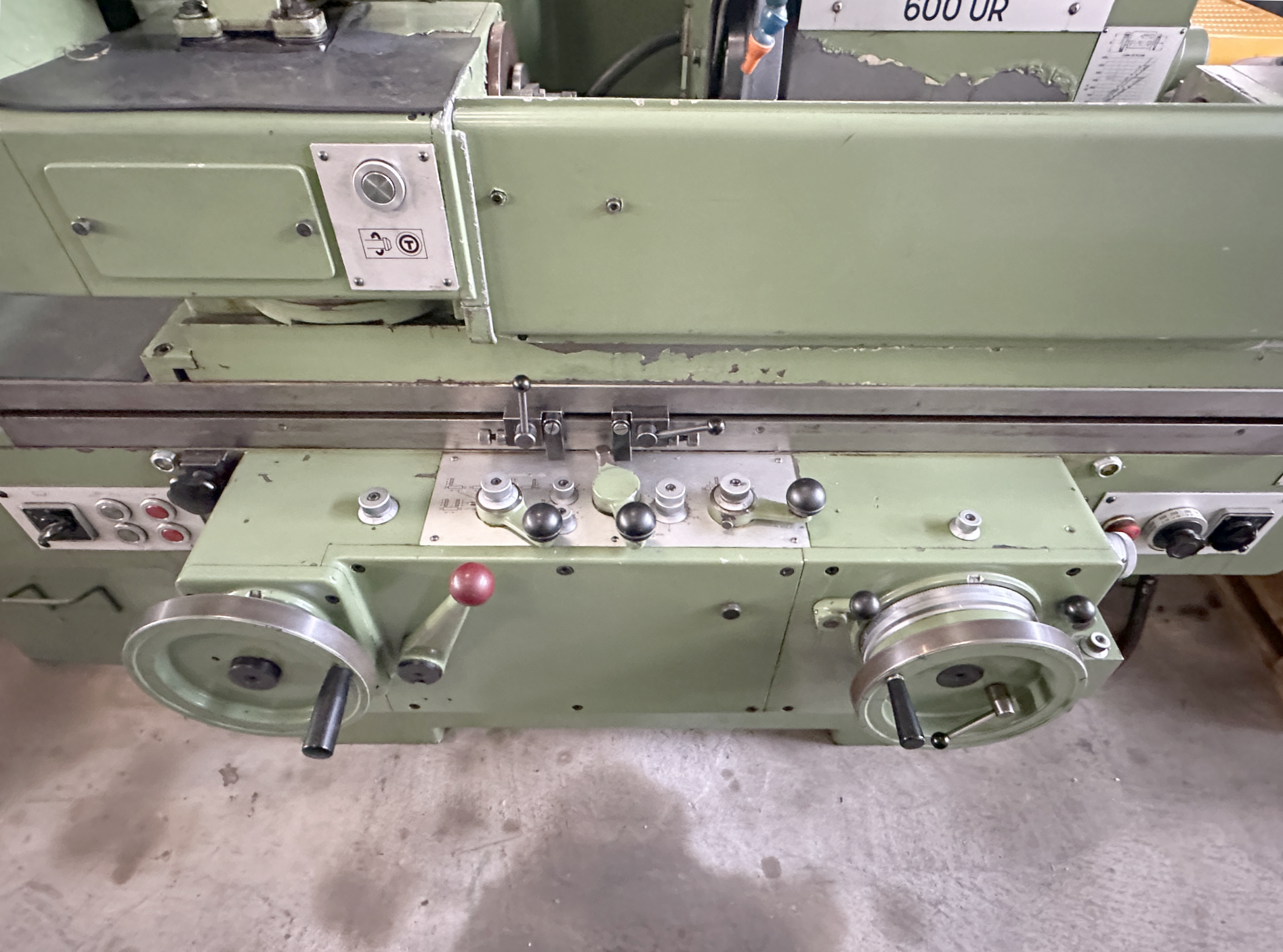

022228 - KELLENBERGER 600 UR
Type: 600 UR
Manufacturer: KELLENBERGER
Group: Cylindrical grinder
Subgroup: Cylindrical grinder
Stock: 022228
Special Price
CHF 9 500
Special offer machines are sold as-is, without any warranty or inspection from us.
La KELLENBERGER 600 UR è una rettificatrice cilindrica di precisione svizzera ideale per operazioni di rettifica esterna e interna. Progettata per officine di utensili e lavorazioni di precisione, lavora pezzi fino a 125mm di altezza centri con 600mm tra le punte. Dotata di mola da 350mm con 4 velocità (1.500-3.600 giri/min) e mandrino porta-pezzo a velocità variabile (20-400 giri/min). Questa robusta macchina da 2.200kg include contropunta con regolazione fine, sistema refrigerante e dispositivi di sicurezza. Perfetta per ottenere tolleranze strette su alberi, mandrini e componenti cilindrici.
KELLENBERGER 600 UR is a cylindrical grinder built for precision, high accuracy and reliability. Centre height 125 mm, distance between centres 600 mm. Grinding wheel Ø350×50 mm, bore 127 mm; wheel head adjustable 270°. Wheel speeds 4 steps 1500–3600 rpm. Workpiece spindle stepless 20–400 rpm, rotatable 360°. Spindle taper 5 CM, tailstock taper 3 CM. Table tilt 10°, table speed up to 6 m/min. Supply 50 Hz 3x380 V. External grinding wheel motor 4.0 CV. Machine weight approx.2200 kg. Overall dimensions L3000×W1750×H1600 mm. Accessories: tailstock with fine adjustment, coolant system, grinding wheel with flange, safety device. Achieves tight tolerances; suited for automotive, aerospace, watchmaking, machine tools and medical.
Centre height | 125 mm |
Distance between centres | 600 mm |
Grinding wheel: | |
Diameter | 350 mm |
Width | 50 mm |
Bore | 127 mm |
Grinding wheel speeds: | |
number (steps) | 4 |
from | 1500 t/min |
up to | 3600 t/min |
Angular displacement | 270 ° |
Work piece spindle head: | |
speeds: | |
stepless | |
from | 20 t/min |
up to | 400 t/min |
rotatable | 360 ° |
Spindle taper | 5 CM |
Taper in tailstock: | 3 CM |
Table angular displacement | 10 ° |
Table speed: | |
stepless | |
up to | 6 m/min |
Voltage 50 Hz 3x | 380 Volt |
External Grinding wheel motor | 4.0 CV |
Machine's weight about | 2200 kg |
Overall dimensions machine: | |
Length | 3000 mm |
Width | 1750 mm |
Height | 1600 mm |
Various accessories: | |
Tailstock with fine adjustement | |
Coolant system | |
Grinding wheel with flange | |
Safety device |
