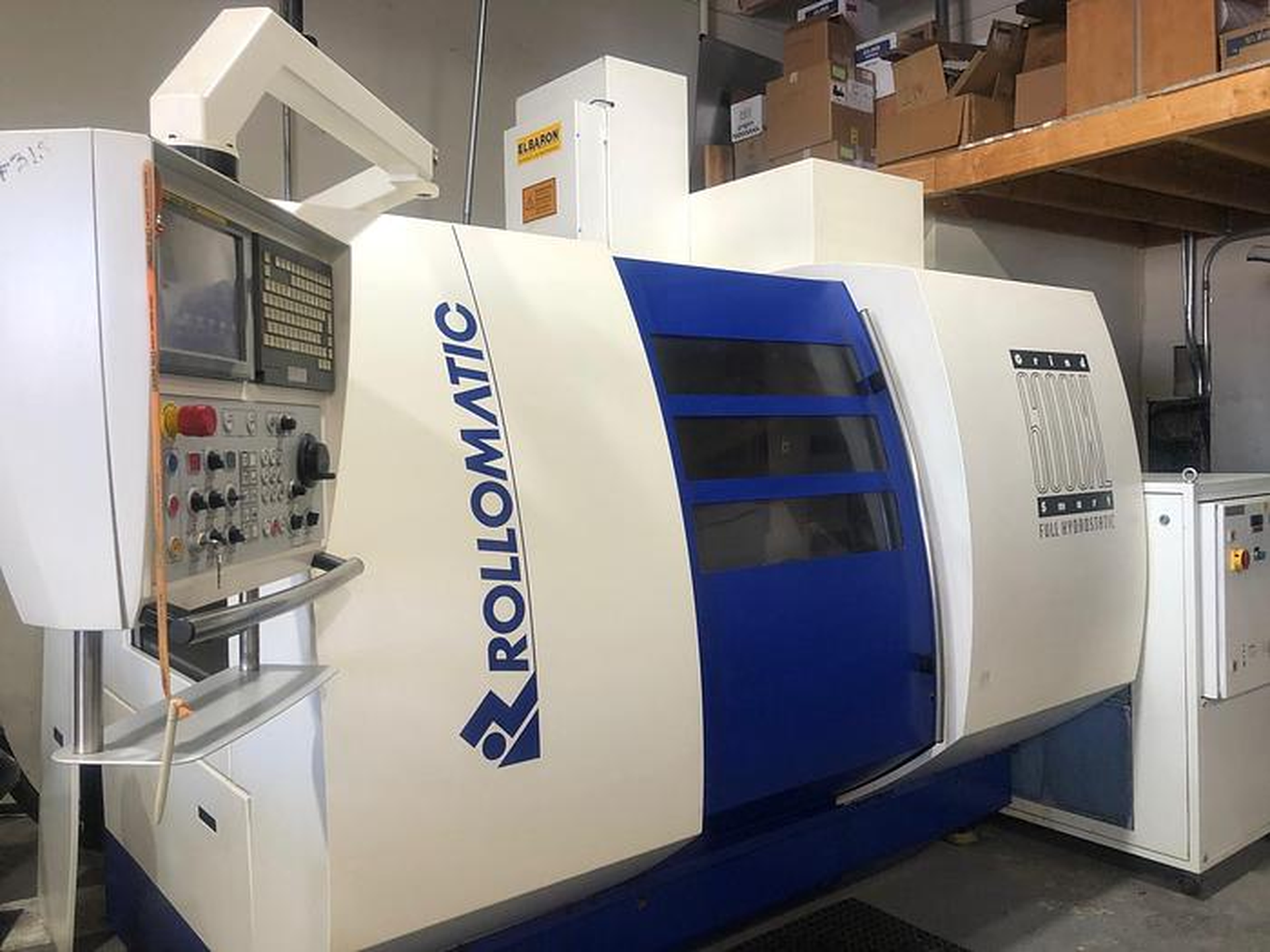

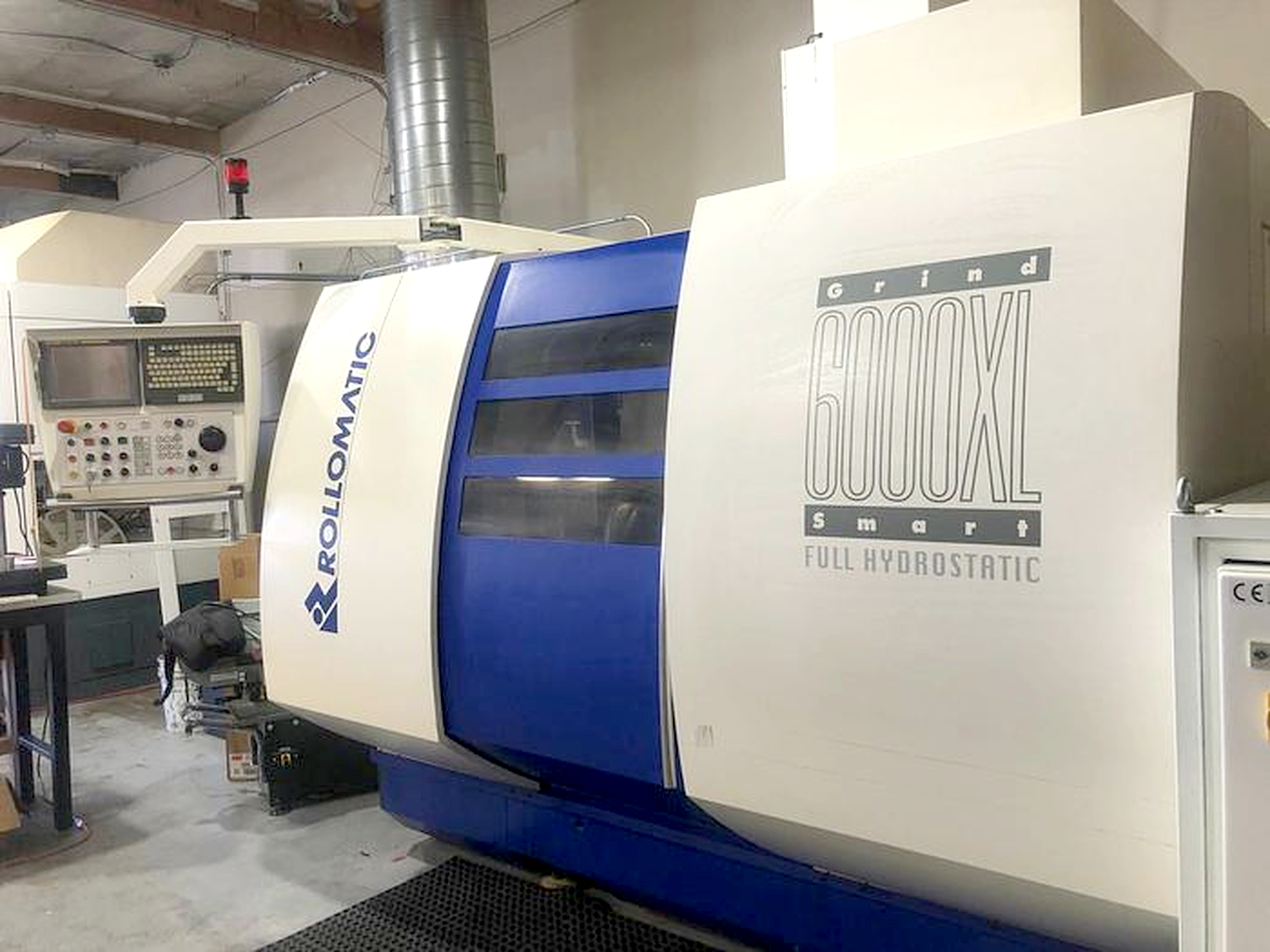

ROLLOMATIC 6000XL is a Tool and cutter grinder CNC, engineered for precision, high accuracy and reliable operation. Travels X 280 mm, Y 245 mm, Z 355 mm; grinding diameter 2–32 mm; max wheel Ø 200 mm; A axis 240°; B axis 135°; workpiece spindle 60 t/min. Grinding spindle 0–8000 t/min; rapid traverse X 20, Y 15, Z 20 m/min; voltage 480 V 60 Hz; grinding spindle motor 20 kW; overall L2640×W2380×H2720 mm; collet attachment 31/20 W. Accessories: set of collets, set of flanges, oil mist extractor ELBARON, workpiece loader. Achieves tight tolerances; ideal for automotive, watchmaking, machine tools, aerospace and medical.
| X axis | 280 mm |
| Y axis | 245 mm |
| Z axis | 355 mm |
| grinding diameter | 2 - 32 mm |
| Max. grinding wheel diamter | 200 mm |
| A axis (grinding head rotaion) | 240 ° |
| Resolution | ° |
| Work piece spindle speed | 60 t/min |
| B axis swivelling range | 135 ° |
| B axis resolution max. | ° |
| C axis (spindle,resolution) | ° |

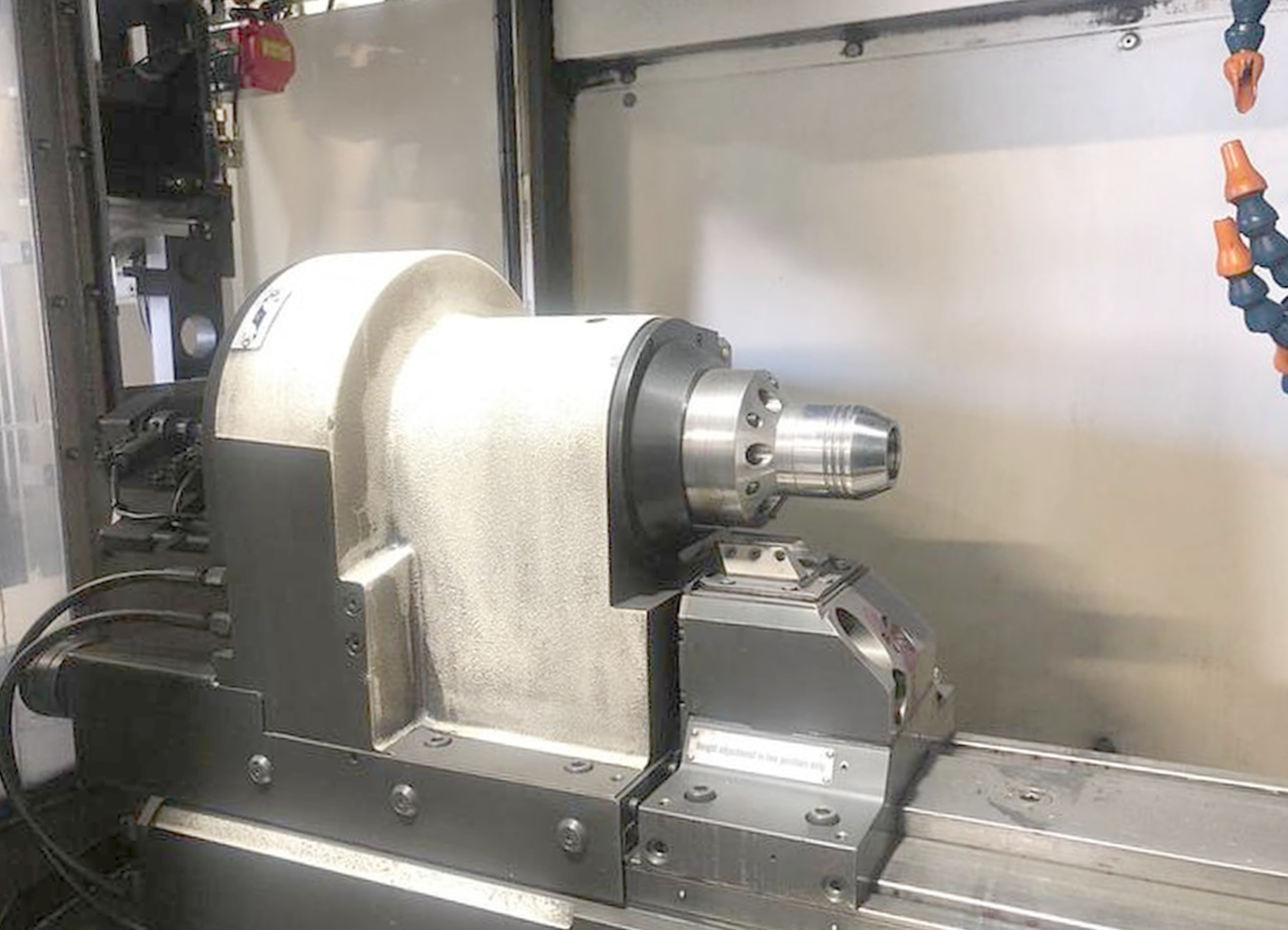

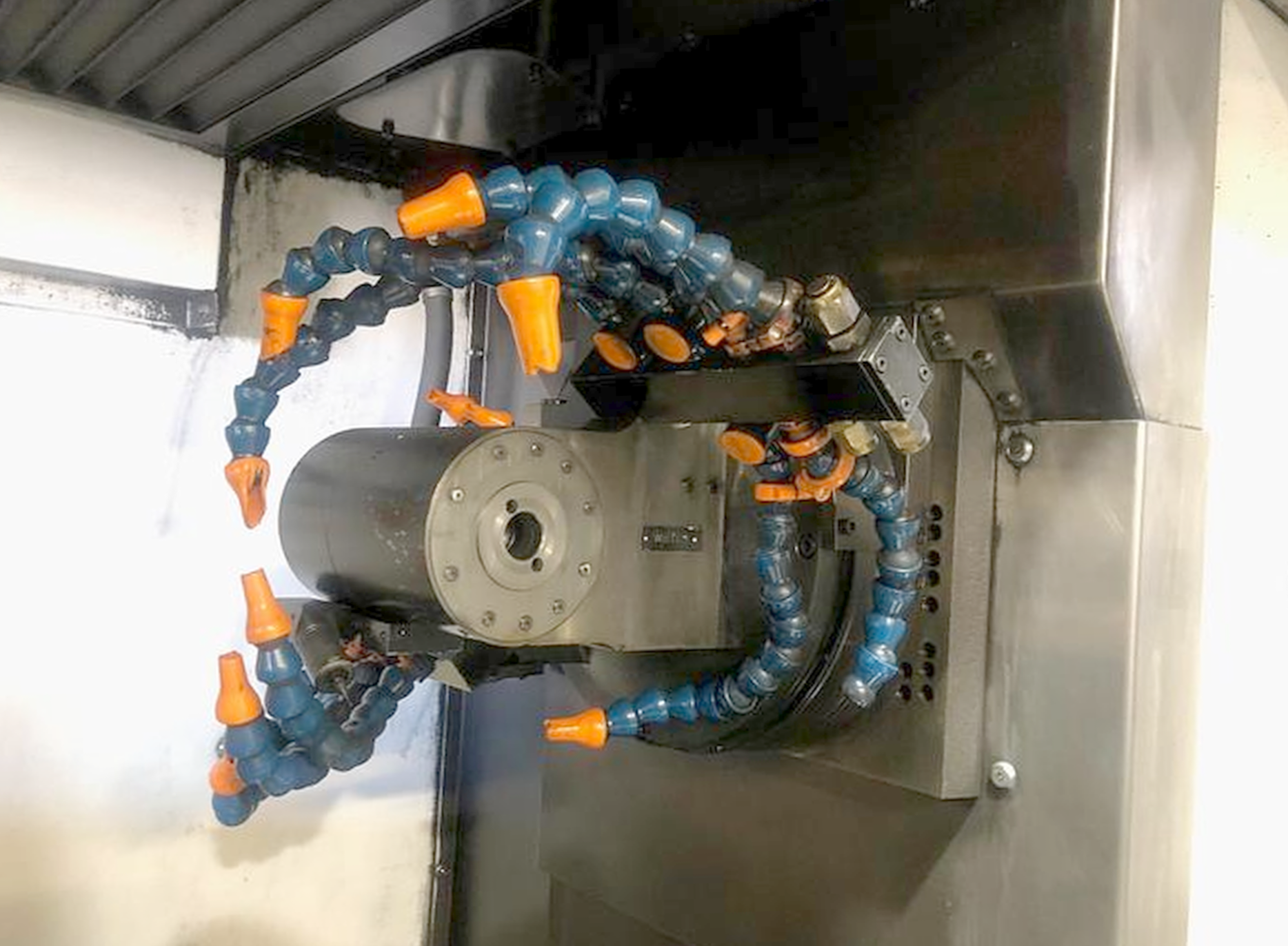

| Work piece spindle head: | |
| Collet attachment | 31 / 20 W |
| Grinding spindle speeds: | |
| from | 0 t/min |
| up to | 8000 t/min |
| Rapid traverse X | 20 m/min |
| Rapid traverse Y | 15 m/min |
| Rapid traverse Z | 20 m/min |
| Voltage 60 Hz | 480 Volt |
| Grinding spindle motor | 20 kW |
| Overall dimensions machine: | |
| Length | 2640 mm |
| Width | 2380 mm |
| Height | 2720 mm |
| Various accessories: | |

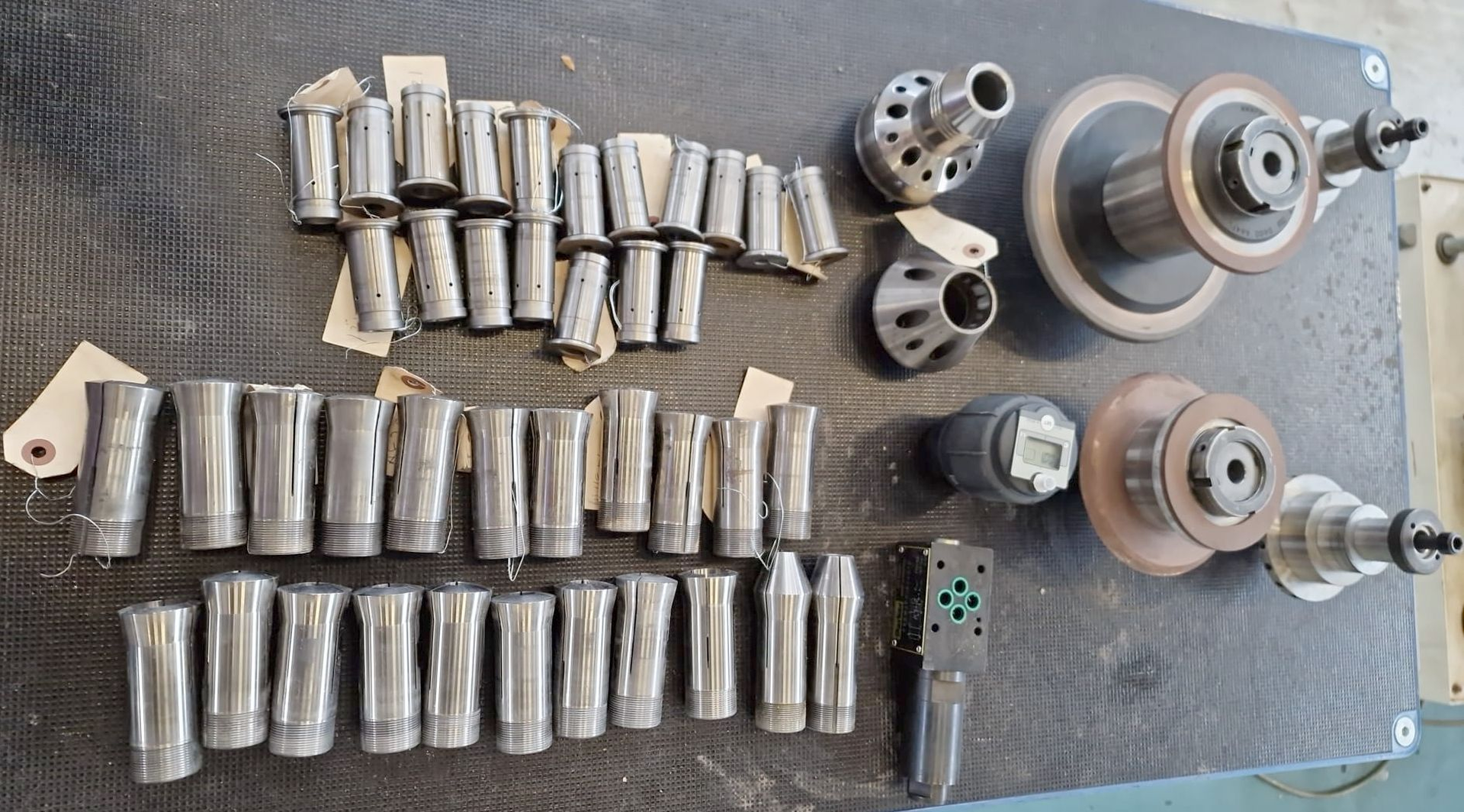

| Set of collets | |
| Set of flanges | |

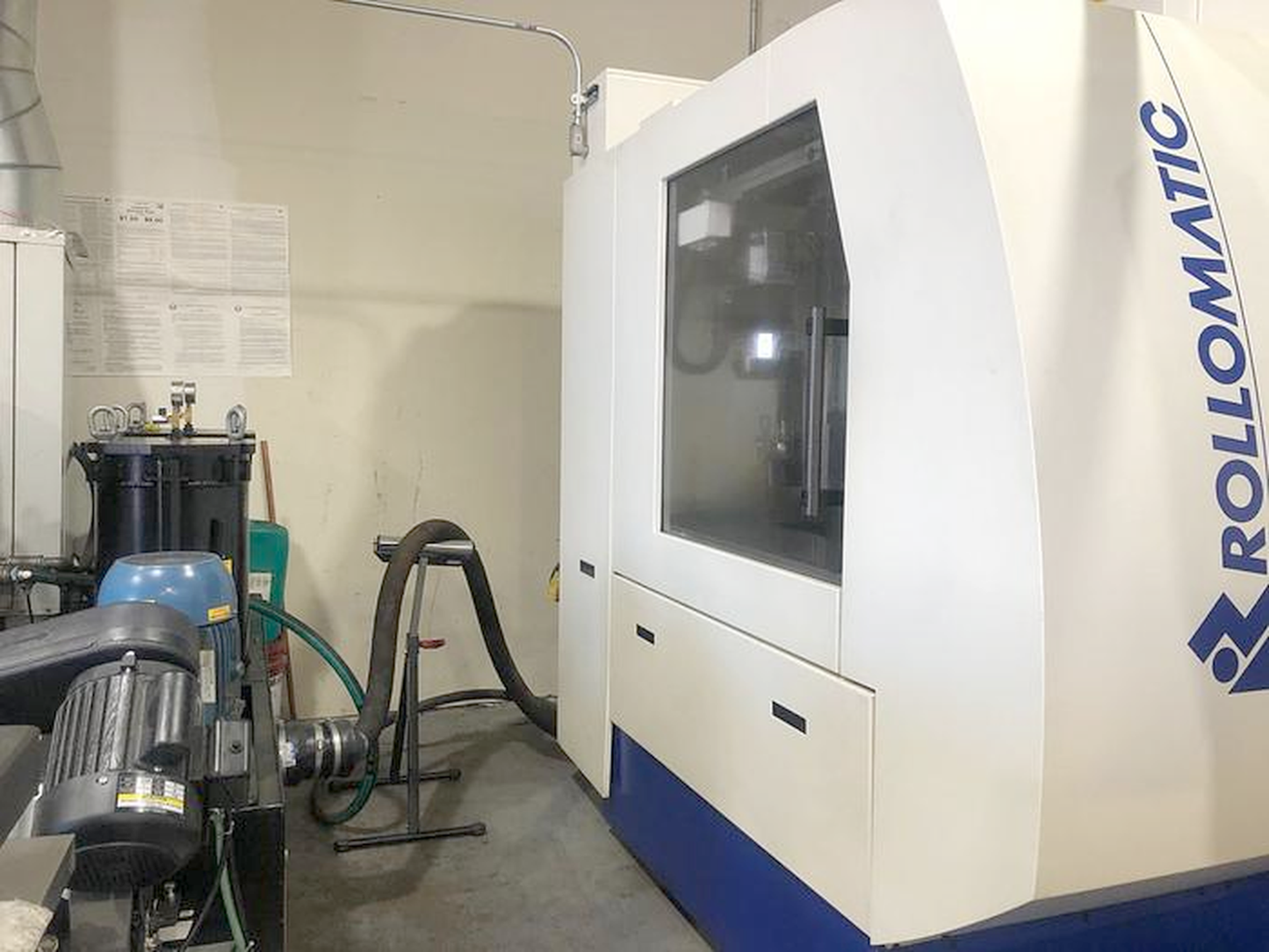

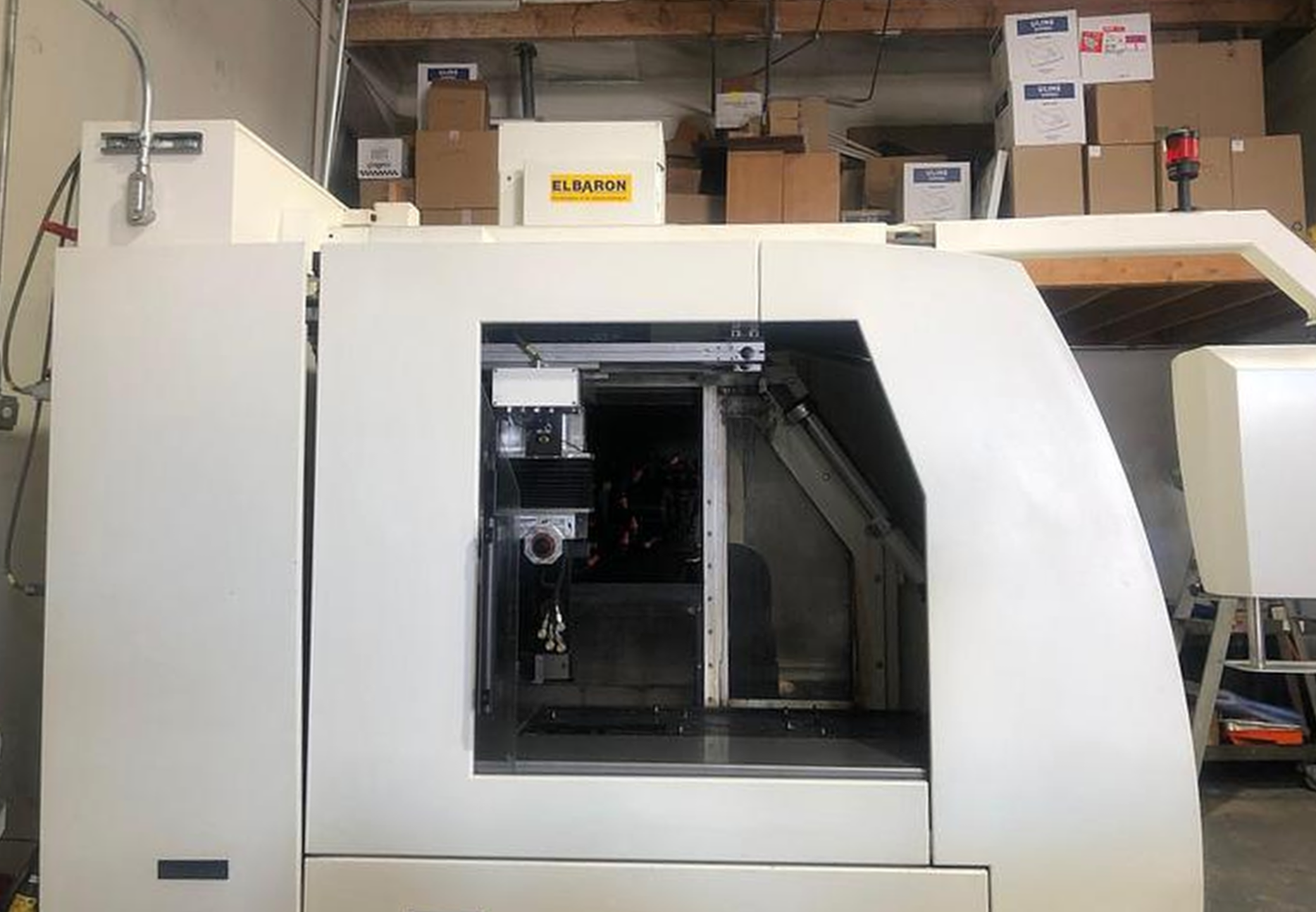

| Oil mist extractor | ELBARON |
| Workpiece loader |
