GHIRINGHELLI M150SP610
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
| Min. grinding diameter | 1 mm |
| Max. grinding diameter | 100 mm |
| Max. workpiece length | |
| for infeed grinding | 140 mm |
| Grinding wheel: | |
| diameter new wheel | 610 mm |
| diameter used wheel | 440 mm |
| Width | 200 mm |
| Bore | 305 mm |
| Speed with new grinding wheel | 1409 t/min |
| Speed with abraded grinding wheel | 1685 t/min |
| Peripheral speed | 45 m/s |
| Regulating spindle: | |
| diameter new wheel | 305 mm |
| diameter used wheel | 220 mm |
| Width | 200 mm |
| Swivelling range | -7 / +7 ° |
| Speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 140 t/min |
| Dressing speed | 400 t/min |
| Voltage 50 Hz 3x | 400 Volt |
| Air connect | 5 bar |
| Total power required | 45 kW |
| Machine's weight about | 5800 kg |
| Overall dimensions machine: | |
| Length | 6200 mm |
| Width | 3200 mm |
| Height | 2542 mm |

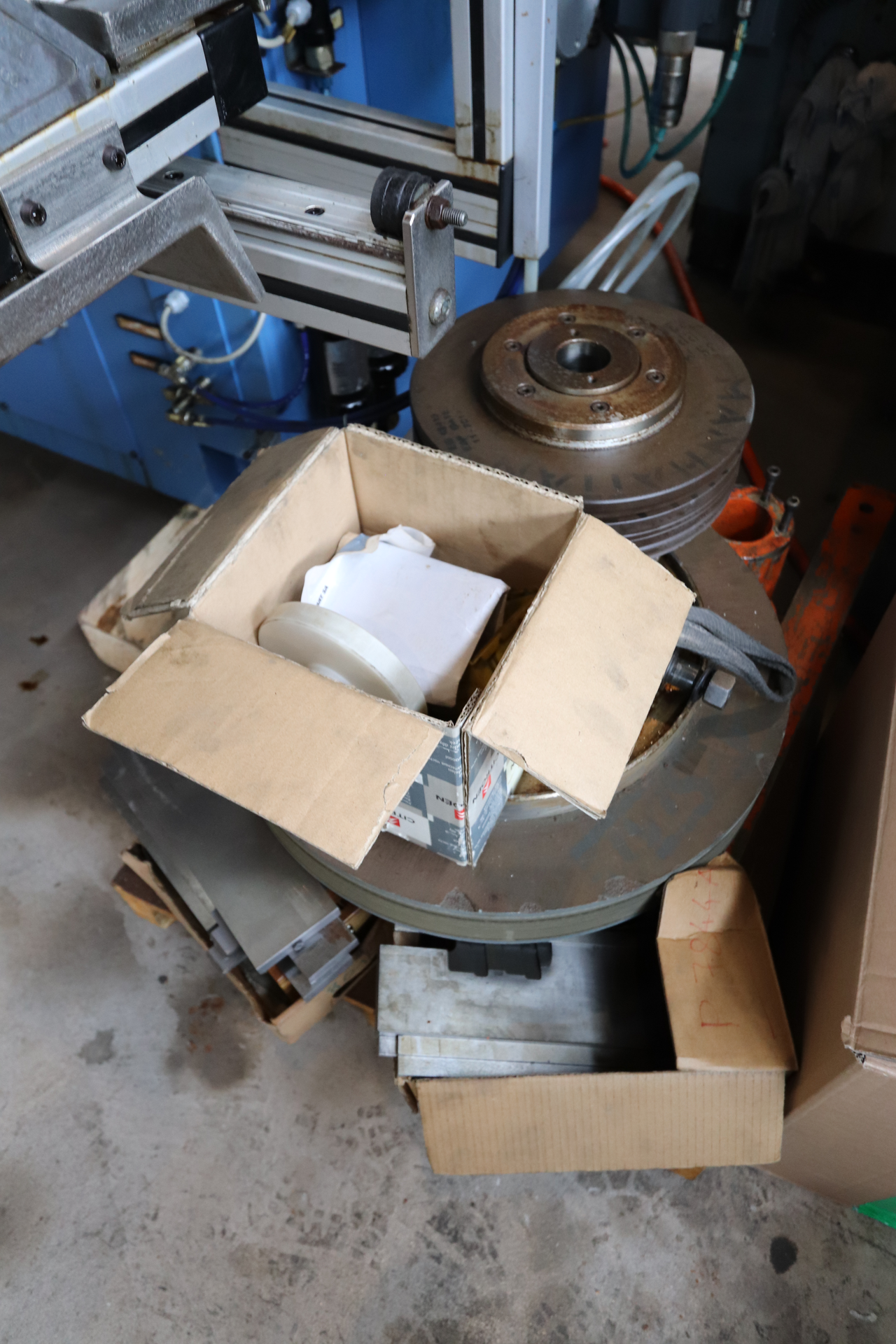

| Various accessories: | |
| New diamond wheel | |
| Automatic infeed grinding attachment | |
| Flange for grinding wheel | |
| Flange for regulating wheel | |
| Electronic balancing system | MARPOSS E78 |
| Crushing profiling device | |
| Central lubrification | |
| Splash guard |
GHIRINGHELLI M150SP610 is a CNC centerless grinding machine designed for precision, high accuracy and reliable production. Capacities: grinding diameter 1–100 mm, infeed grinding 140 mm. Grinding wheel: new Ø610 mm (worn Ø440 mm), width 200 mm, bore 305 mm; regulating wheel: new Ø305 mm (worn Ø220 mm), width 200 mm, swivel -7/+7°. Wheel speeds: 1409 rpm (new), 1685 rpm (worn), peripheral speed 45 m/s; stepless regulating spindle 0–140 rpm; dressing speed 400 rpm. Power 3×400 V 50 Hz, air 5 bar, total installed 45 kW. Size L6200×W3200×H2542 mm, weight ≈5800 kg. Accessories: diamond wheel, automatic infeed attachment, flanges, MARPOSS E78 electronic balancing, profiling device, central lubrication, splash guard. Achieves tight tolerances; typical sectors: automotive, aerospace, medical, machine tools, watchmaking
Technical specifications are subject to change without notice
