STAMA MC 326 / TWIN
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!

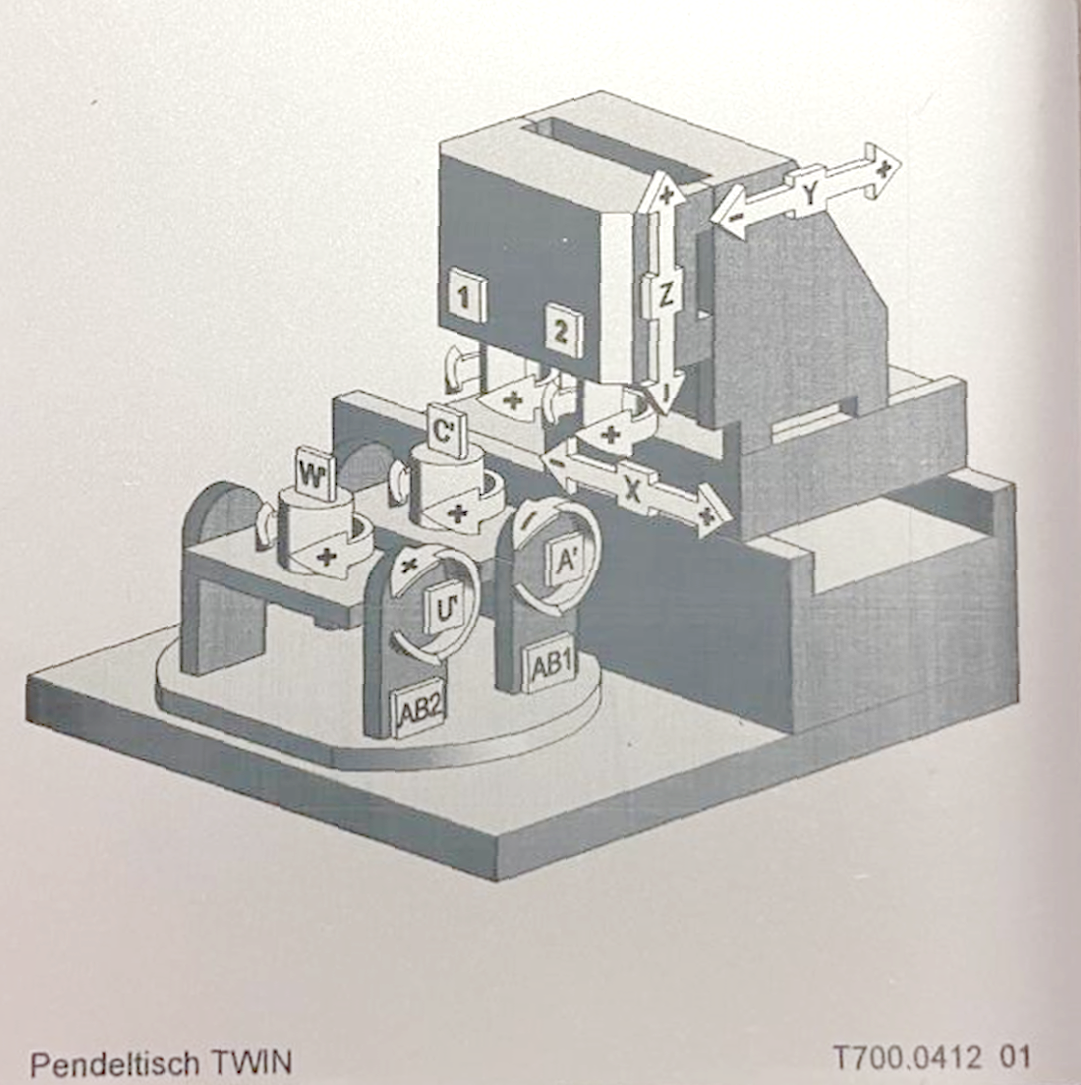

STAMA MC 326 / TWIN is a horizontal machining center with 2 spindles, engineered for precision, high accuracy and reliability. Capacities: 4 axes, 2 tables 700×350, 2 T‑slots 14H12, table load 450 kg; travels X520 Y360 Z360; spindle centre distance 266 mm; toolbank 2×21 (Ø88/125, L300). Specs: 36–12000 min⁻¹, spindle motor 18.5 kW, rapid 60 m/min, air 6 bar, 400V 3×50Hz, 40 kVA, weight ≈5600 kg, dims 3300×3300×3200 mm. Enables tight tolerances; typical applications: automotive, aerospace, medical, watchmaking, machine tools.
| Number of axis total | 4 |
| Number of spindles | 2 |
| Number of tables | 2 |
| Table length | 700 mm |
| Table width | 350 mm |
| Number of T-channels | 2 |
| T-channel width | 14H12 mm |
| Table load max. | 450 kg |
| Longitudinal travel (X-axis) | 520 mm |
| Transversal travel (y-axis) | 360 mm |
| Vertical travel (z axis) | 360 mm |
| Tool changer: | |
| Number of tools | 2 x 21 |
| Tool diameter | 88 mm |
| Diameter with free adjacent pockets | 125 mm |
| Tool lenght | 300 mm |
| Max. tool-weight | 5 kg |
| Average chip-to-chip time | 2.4 s |
| Spindle nose: HSK-A | 63 |
| Distance spindle nose to table | 200 - 560 mm |
| distance between spindles | 266 mm |
| Spindle speeds: | |
| from | 36 t/min |
| up to | 12000 t/min |
| Rapid traverse: | 60 m/min |
| Air connect | 6 bar |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 18.5 kW |
| Total power required | 40 kVA |
| Machine's weight about | 5600 kg |
| Overall dimensions machine: | |
| Length | 3300 mm |
| Width | 3300 mm |
| Height | 3200 mm |
| Various accessories: | |
| Coolant system | |
| High pression colant device | |
| Coolant through spindle (cts) | |
| Paper filtration system | |
| Chip conveyor |
