| Time under power | 68163 Heures |
| Operating time | 54350 Heures |
| Working time | 20640 Heures |
| Spindle run time | 19232 Heures |
| Number of axis simultaneous | 5 |
| Table length | 320 mm |
| Table width | 320 mm |
| Longitudinal travel (X-axis) | 600 mm |
| Transversal travel (y-axis) | 450 mm |
| Vertical travel (z axis) | 450 mm |
| Table divisions (C) | n x 360 ° |
| Milling head divisions (B) | -115/+30 ° |
| Tool changer: | |
| Number of tools | 30 |
| Tool diameter max. | 80 mm |
| Tool lenght | 200 mm |
| Max. tool-weight | 8 kg |
| Spindle nose: | HSK-A 63 |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 20000 t/min |
| Feed range | 15000 mm/min |
| Rapid traverse: | 22 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle power | 30 kW |
| Torque max. | 91 Nm |
| Noise level | 75 dB (A) |
| Machine's weight about | 7700 kg |
| Overall dimensions machine: | |
| Length | 6820 mm |
| Width | 4800 mm |
| Height | 2540 (2810) mm |
| Various accessories: | |

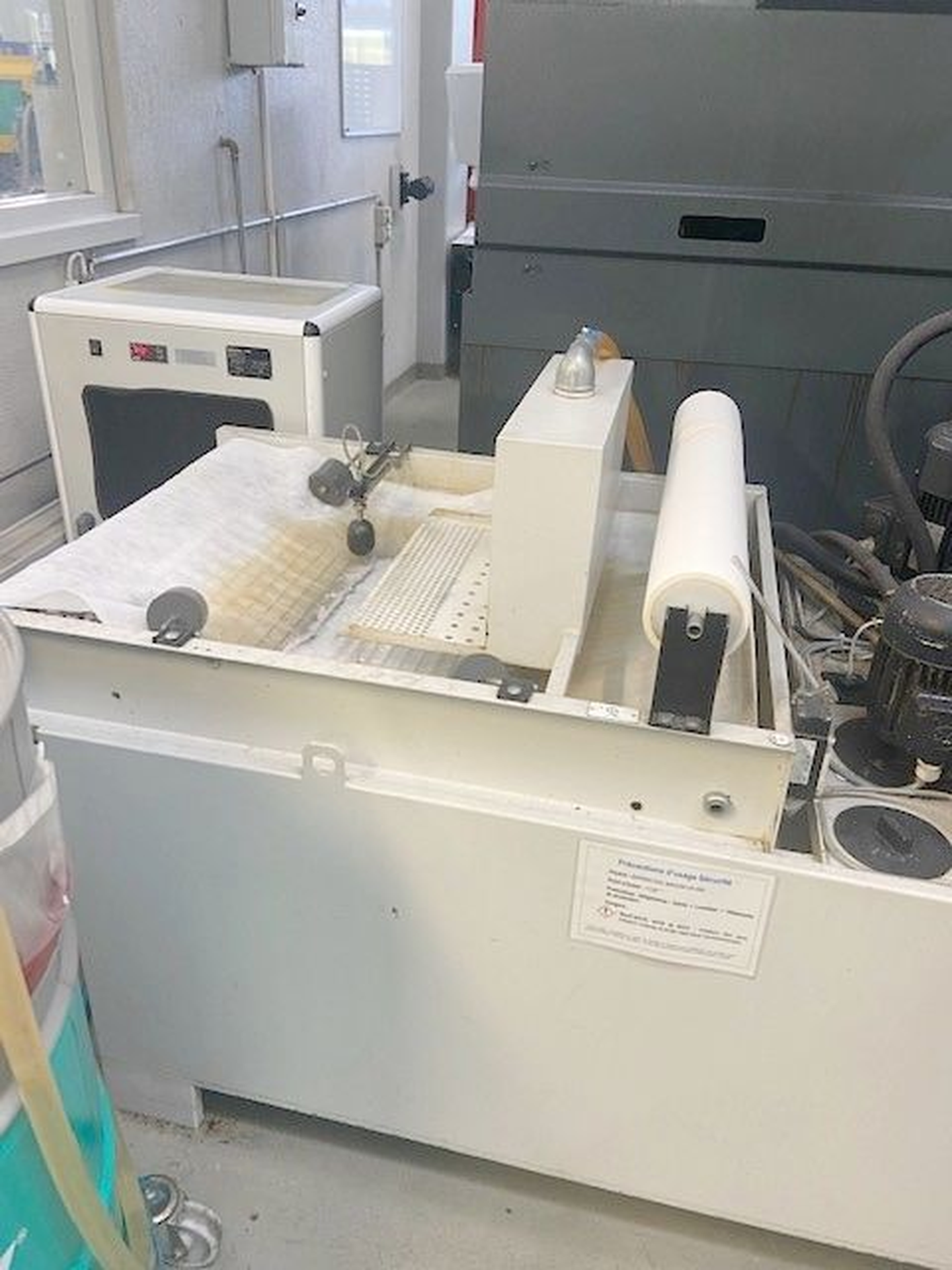

| Paper filtration system | |
| Water cooler | |
| Chip conveyor | |
| Type of table | EROWA UPC |
| Handwheel electroinic | |
| Lamp | |
| Status light | |
| Notes: | |
| 4+5 Axis revised | 2023 |
MIKRON UCP 600 VARIO is a 5‑axis machining center engineered for high precision, accuracy and reliability in complex machining. Table 320×320 mm; travels X600 Y450 Z450; indexing C n x360°; head B -115/+30°. 30‑station tool magazine; tool Ø max 80 mm, length 200 mm, weight 8 kg; spindle nose HSK‑A63. Spindle stepless 0–20,000 rpm, 30 kW, 91 Nm torque. Feed 15,000 mm/min, rapid 22 m/min; power 3x400 V 50 Hz. Machine weight ~7,700 kg; dims L6820×W4800×H2540(2810) mm. Options: paper filtration, water cooler, chip conveyor, EROWA UPC table, electronic handwheel, lamp, status light. 4+5 axis revised 2023. Achieves tight tolerances; suited to automotive, aerospace, medical, watchmaking and machine‑tool sectors.
Technical specifications are subject to change without notice
