STUDER S 30-12 F
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
STUDER S 30-12 F is a Cylindrical grinder designed for precision, high accuracy and reliability. Capacities: centre height 125 mm, distance between centres 1025 mm, max longitudinal travel 800 mm, max transversal travel 150 mm, grinding wheel Ø450 x 50 mm, workpiece weight max 80 kg, swivelling +90/30°. Specs: wheel speeds 6 steps 1350–2220 t/min; hydraulic cross travel 40 mm; work spindle stepless 30–675 t/min, rotatable 90°; tapers 5 CM/3 CM; motors 6.25 kW/1 kW; 3×380 V 50 Hz; machine weight ~2500 kg; dims 2700×1400×1600 mm; control 800×500×1600 mm. Accessories: measuring instrument, coolant system, flange, tool cabinet. Achieves tight tolerances; typical sectors: automotive, aerospace, machine tools, medical, watchmaking.
| Centre height | 125 mm |
| Distance between centres | 1025 mm |
| Max. Longitudinal travel | 800 mm |
| Max. transversal travel | 150 mm |
| Grinding wheel: | |
| Diameter | 450 mm |
| Width | 50 mm |
| Bore | 127 mm |
| Workpiece weight on centres max. | 80 kg |
| Swivelling range | +90 / 30 ° |
| Grinding wheel speeds: | |
| number (steps) | 6 |
| from | 1350 t/min |
| up to | 2220 t/min |
| Hydraulic cross travel | 40 mm |
| Work piece spindle head: | |
| speeds: | |
| stepless | |
| from | 30 t/min |
| up to | 675 t/min |
| rotatable | 90 ° |
| Spindle taper | 5 CM |
| Taper in tailstock: | 3 CM |
| Table angular displacement | 10 ° |
| Table speed: | |
| stepless | |
| from | m/min |
| up to | 6 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| External Grinding wheel motor | 6.25 kW |
| Internal Grinding wheel motor | 1 kW |
| Machine's weight about | 2500 kg |
| Overall dimensions machine: | |
| Length | 2700 mm |
| Width | 1400 mm |
| Height | 1600 mm |
| Dimensions of the control: | |
| Length | 800 mm |
| Width | 500 mm |
| Height | 1600 mm |
| Various accessories: | |
| Measuring instrument | |

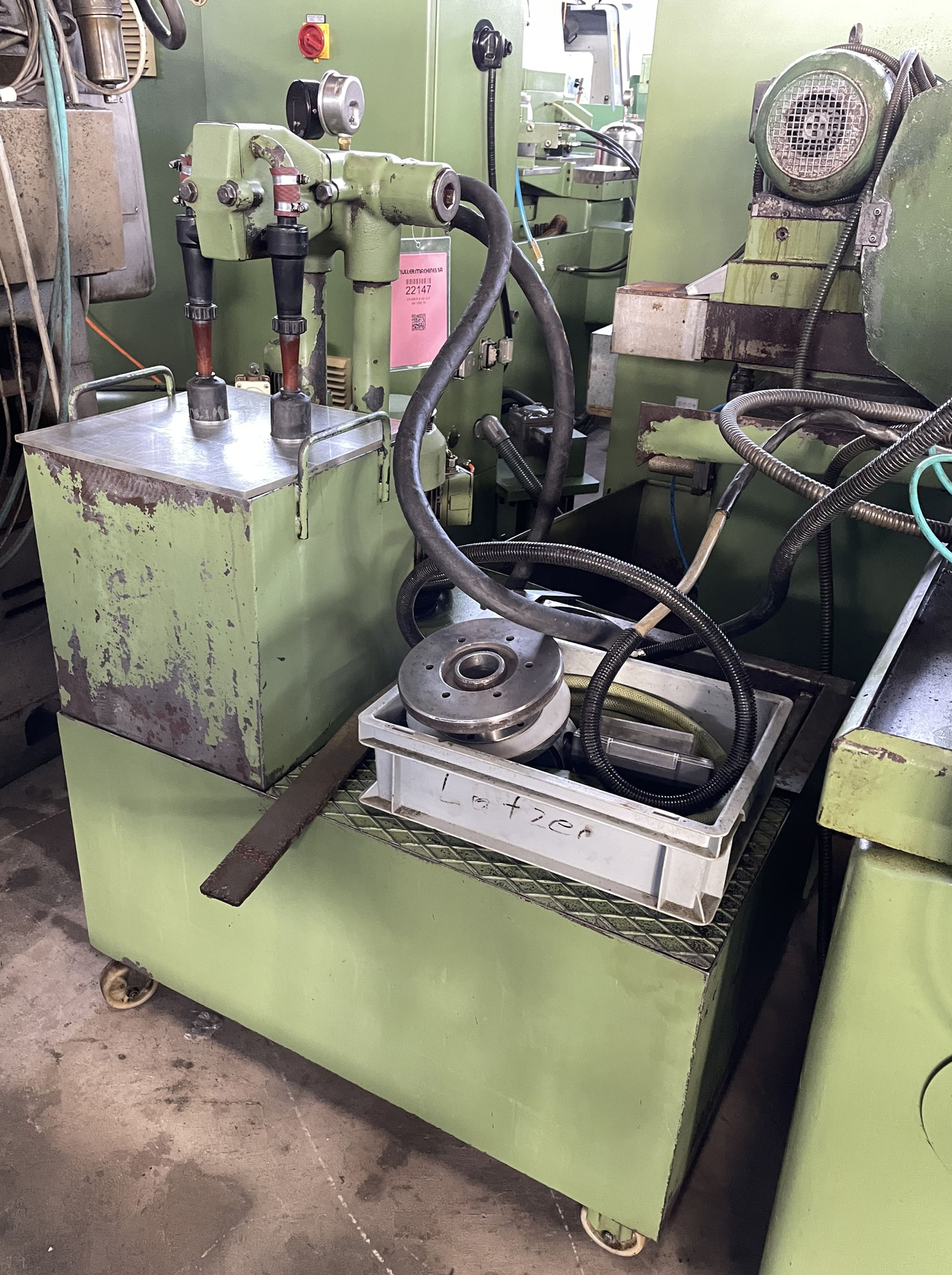

| Coolant system | |
| Flange for outer pane | pce |
| Tool cabinet |
