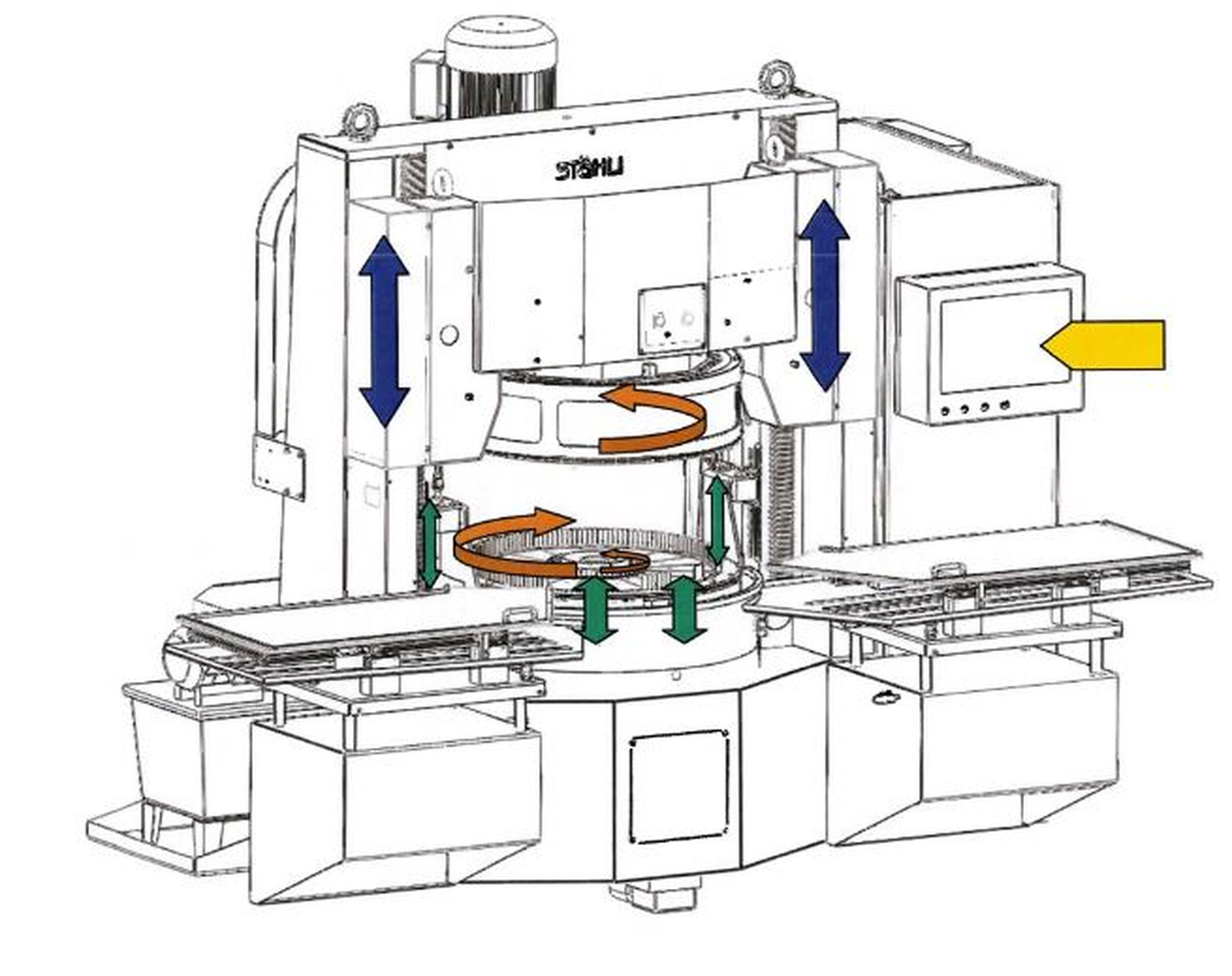

STÄHLI DLM 705 is a 2-wheels flat honing machine designed for high-precision, accurate and reliable finishing. Capacities: max. wheel diameter 720 mm, max. workpiece height 100 mm, 4–8 carriers; wheel speeds 0–400 t/min, workpiece drive up to 200 t/min; load on workpiece 0–2000 daN. Technical specs: 50 Hz 3×400 V supply, air 6 bar; main motor 15 kW, workpiece mechanism 7.5 kW, total installed power 68 kW; weight ≈7800 kg; dimensions L3300×W2200×H2600 mm. Accessories: set of grinding wheels, coolant system, coolant filter system, oil mist extractor. Achieves tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace and medical.
| Execution: | |
| two wheels | |
| Max. wheel diameter | 720 mm |
| Max. work-piece height | 100 mm |
| Number of carriers | 4-8 |
| Speeds upper wheel: | |
| from | 0 t/min |
| up to | 400 t/min |
| Speeds lower wheel: | |
| from | 0 t/min |
| up to | 400 t/min |
| Speeds work-piece mechanism: | |
| from | t/min |
| up to | 200 t/min |
| Load on workpiece stepless | 0 - 2000 daN |
| Voltage 50 Hz 3x | 400 Volt |
| Air connect | 6 bar |
| Motor capacity: | |
| Main motor | 15 kW |
| work-piece mechanism | 7.5 kW |
| Total power required | 68 kW |
| Machine's weight about | 7800 kg |
| Overall dimensions machine: | |
| Length | 3300 mm |
| Width | 2200 mm |
| Height | 2600 mm |
| Various accessories: | |
| Set of grinding wheels | |
| Coolant system | |
| Coolant filter system | |
| Oil mist extractor |
