022074 - DMG DMC 64 V linear
Download technical sheet (PDF)
Message us on WhatsApp
| Table length | 850 mm |
| Table width | 630 mm |
| Table load max. | 600 kg |
| Longitudinal travel (X-axis) | 640 mm |
| Transversal travel (y-axis) | 600 mm |
| Vertical travel (z axis) | 500 mm |
| Tool changer: | |
| Number of tools | 30 |
| Tool diameter | 80 mm |
| Tool diameter max. | 140 mm |
| Diameter with free adjacent pockets | 140 mm |
| Tool lenght | 300 mm |
| Max. tool-weight | 7 kg |
| Time of tool changing | 5 s |
| Spindle nose: BT | 40 |
| Milling spindle speeds: | |
| stepless | |
| from | 1 t/min |
| up to | 12000 t/min |
| Feed range | 0 - 40000 mm/min |
| Rapid traverse: long. | 60 m/min |
| Rapid traverse: transversal | 40 m/min |
| Rapid traverse: vertical | 40 m/min |
| Air connect | 6 bar |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle power | 19 / 13 kW |
| Torque max. | 100 / 70 Nm |
| Total power required | 42 kVA |
| Machine's weight about | 6500 kg |
| Overall dimensions machine: | |
| Length | 3400 mm |
| Width | 2500 mm |
| Height | 3300 mm |
| Various accessories: | |
| Coolant system | |

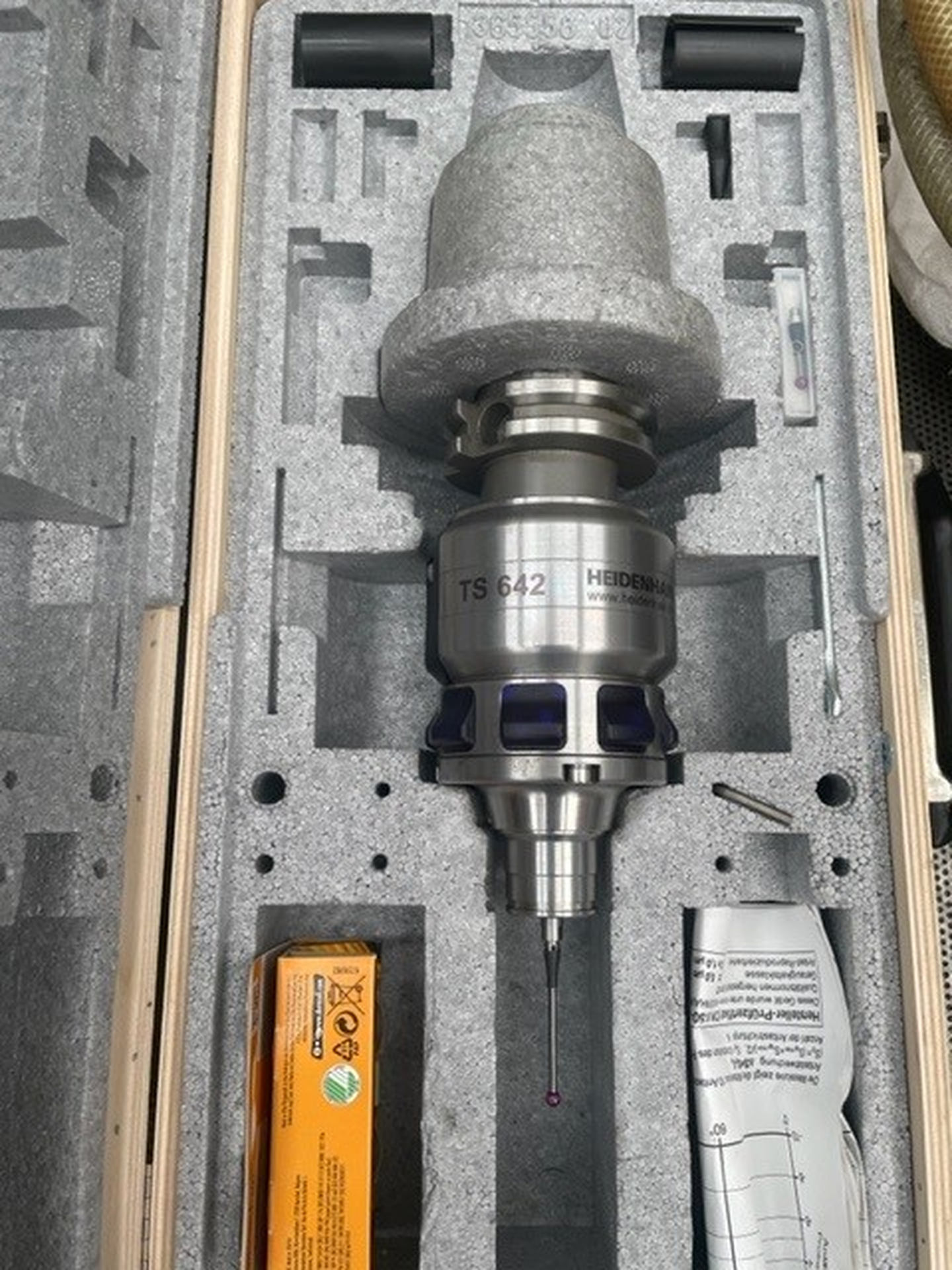

| Touch Probe | Heidenhain TS 642 |
| Handwheel electroinic |
