MAZAK IVS 200 M is a CNC vertical turning machine designed for high precision, accuracy and reliability. Working capacities: swing diameter 280 mm, spindle hole 52 mm, max turning length 100 mm, max turning diameter 180 mm; travels X 880 mm, Z 280 mm. Main technical specs: operational speeds 25–4500 t/min, main spindle stepless 0–7000 t/min, max torque 200 Nm, spindle motor 26/22 kW, driven-tools power 5.5 kW, total power required 35.8 kVA; indexing time 0.6 s; tool length 65 mm; machine weight ≈7000 kg; dimensions L3288×W1235×H2807 mm. Key equipment: 1×12-position turret (6 fixed + 6 driven), 3-jaw chuck Ø200 mm, chip conveyor, parts catcher, loading robot ABB IRB 1600, set of toolholders. Achieves tight tolerances and is suitable for automotive, aerospace, medical, watchmaking and machine tool applications.
| Swing diameter | 280 mm |
| Spindle hole | 52 mm |
| Maximum turning length | 100 mm |
| Max. turning diameter | 180 mm |
| Travels: | |
| Longitudinal travel (X-axis) | 880 mm |
| Transversal strocke (Z axis) | 280 mm |
| Turret carriage: | |
| Turret slide: number | 1 |
| Number of positions turret 1 | 12 |
| Fixed tools turret 1 | 6 |
| Driven tools turret 1 | 6 |
| Spindle speeds | 25 - 4500 t/min |
| Tool shank cross section | 25 mm |
| Power of driven tools | 5.5 kW |
| Max. drill capacity | 20 mm |
| Max. taping diameter M | 12 |
| Indexing time | 0.6 s |
| Tool lenght | 65 mm |
| Max. tool-weight | 11 kg |
| Main spindle: | |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 7000 t/min |
| Torque max. | 200 Nm |
| Spindle motor | 26 / 22 kW |
| Total power required | 35.8 kVA |
| Machine's weight about | 7000 kg |
| Overall dimensions machine: | |
| Length | 3288 mm |
| Width | 1235 mm |
| Height | 2807 mm |
| Various accessories: | |
| 3-jaw chuck diameter | 200 mm |
| Parts catcher | |
| Chip conveyor | |

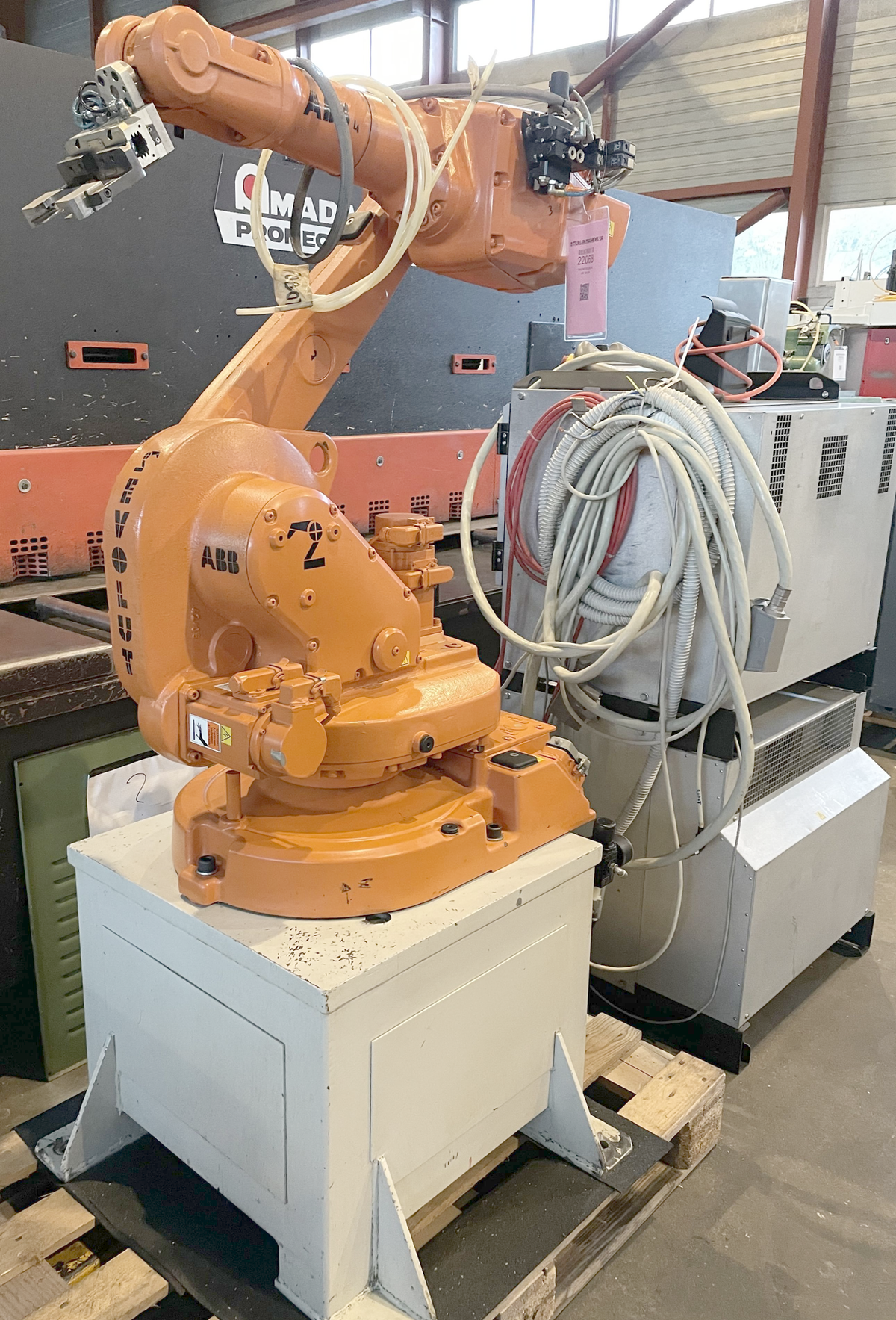

| Loading roboter | ABB IRB 1600 |
| Set of toolholders |
