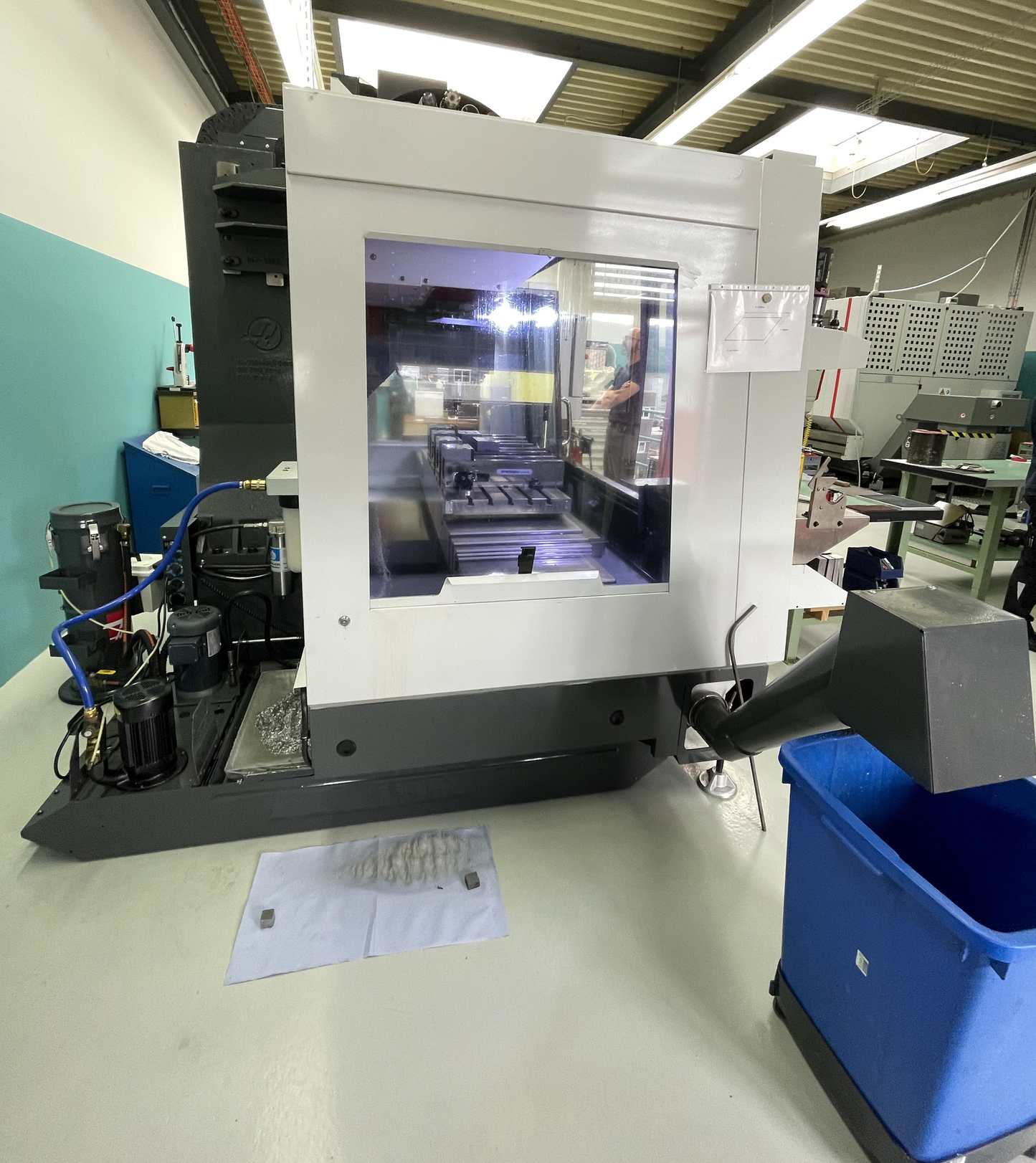

HAAS VF-4 SS is a 3-axis machining center designed for precision, high accuracy and reliability. Table 1321×457 mm (5 T-slots, 80 mm pitch), table load 800 kg; travels X1270 Y508 Z635 mm; 30-tool changer, tool Ø max 64 mm (127 mm with free pockets), tool length 330 mm; tool change 1.8 s; chip‑to‑chip 2.4 s; spindle 0–12000 rpm; rapid traverse 35.6 m/min; 3x400 V; machine weight ~6200 kg. Key accessories: vice (4x), programmable rotatable coolant nozzle, coolant-through-spindle 21 bar, Renishaw touch probe, chip conveyor. Enables tight tolerances; typical sectors: automotive, aerospace, medical, watchmaking, machine tools.
| Number of axis simultaneous | 3 |
| Table length | 1321 mm |
| Table width | 457 mm |
| Number of T-channels | 5 |
| Distance of the T-slots | 80 mm |
| T-channel width | 16 mm |
| Table load max. | 800 kg |
| Longitudinal travel (X-axis) | 1270 mm |
| Transversal travel (y-axis) | 508 mm |
| Vertical travel (z axis) | 635 mm |
| Tool changer: | |
| Number of tools | 30 |
| Tool diameter max. | 64 mm |
| Diameter with free adjacent pockets | 127 mm |
| Tool lenght | 330 mm |
| Max. tool-weight | 5.4 kg |
| Time of tool changing | 1.8 s |
| Average chip-to-chip time | 2.4 s |
| Spindle nose: BT | 40 |
| Distance spindle nose to table | 742 mm |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 12000 t/min |
| Rapid traverse: | 35.6 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Machine's weight about | 6200 kg |
| Overall dimensions machine: | |
| Length | 3300 mm |
| Width | 2330 mm |
| Height | 2570 mm |
| Various accessories: | |
| Vice | (4x) |
| Programmable and rotatable coolant nozzle | |
| Coolant system | |
| Additional coolant filter | |
| Coolant through spindle (cts) | 21 bar |
| Oil mist lubrication unit | |
| Touch Probe Renishaw | |
| Chip conveyor | |
| Lamp | |
| Synchronized tapping |
