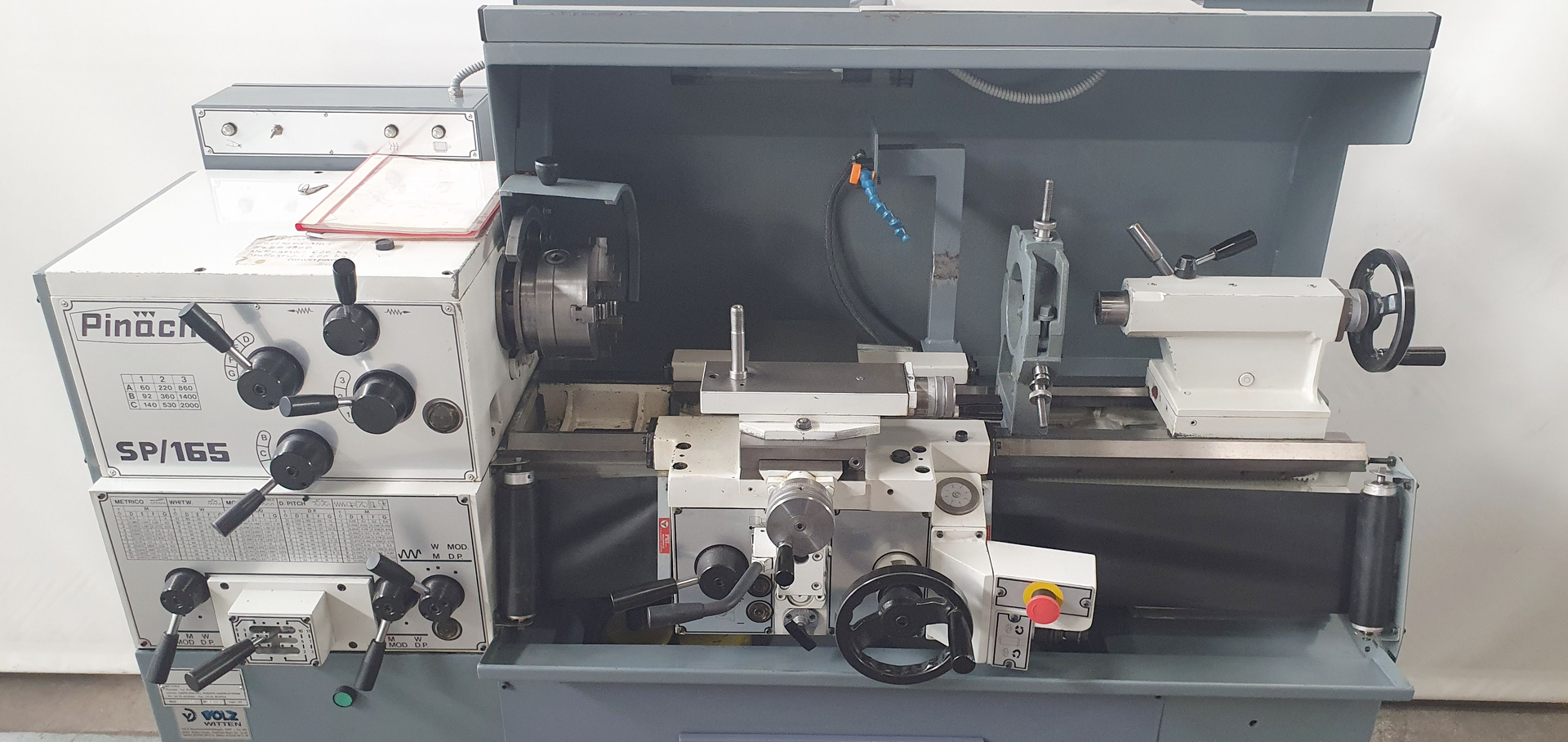

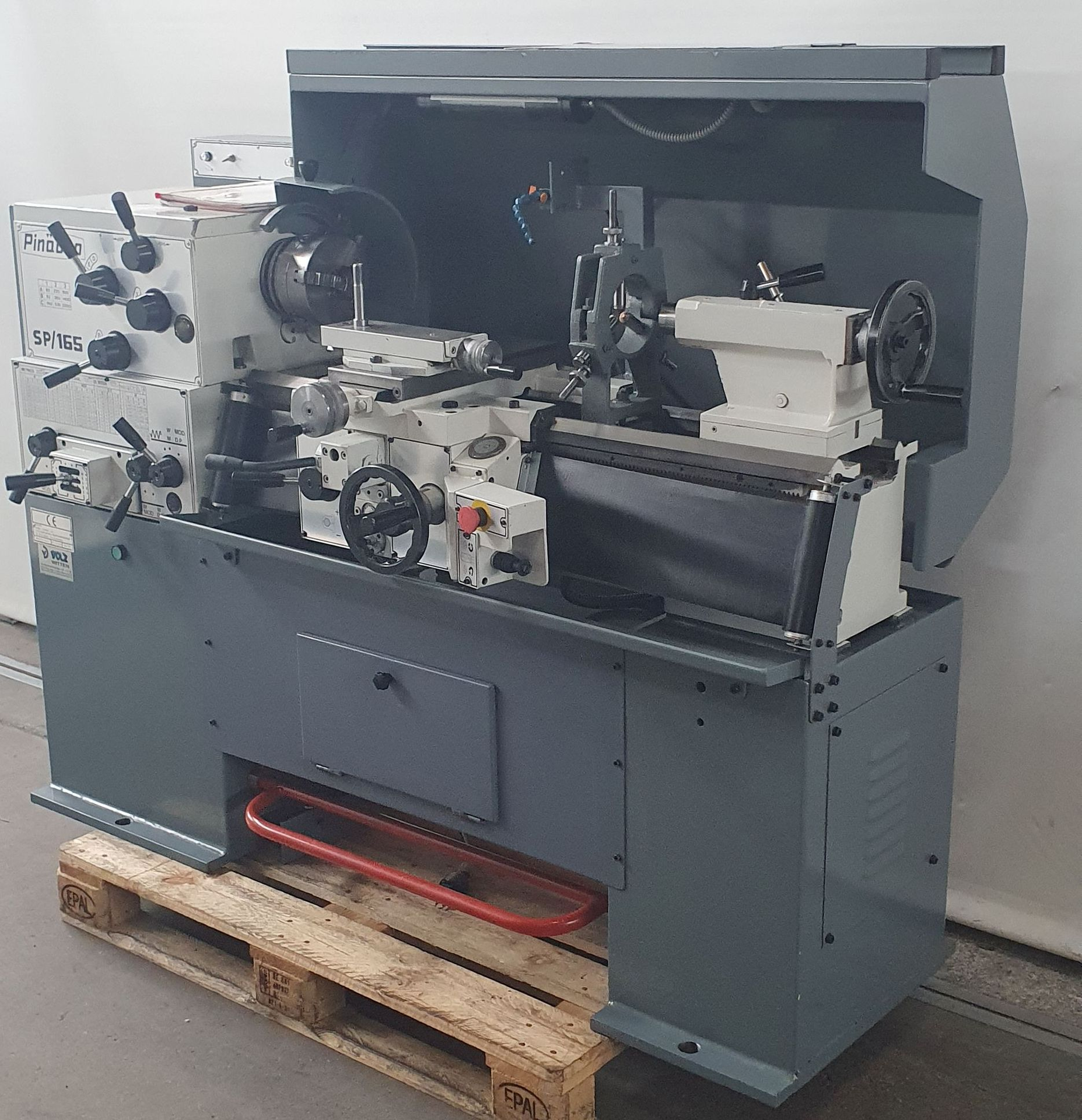

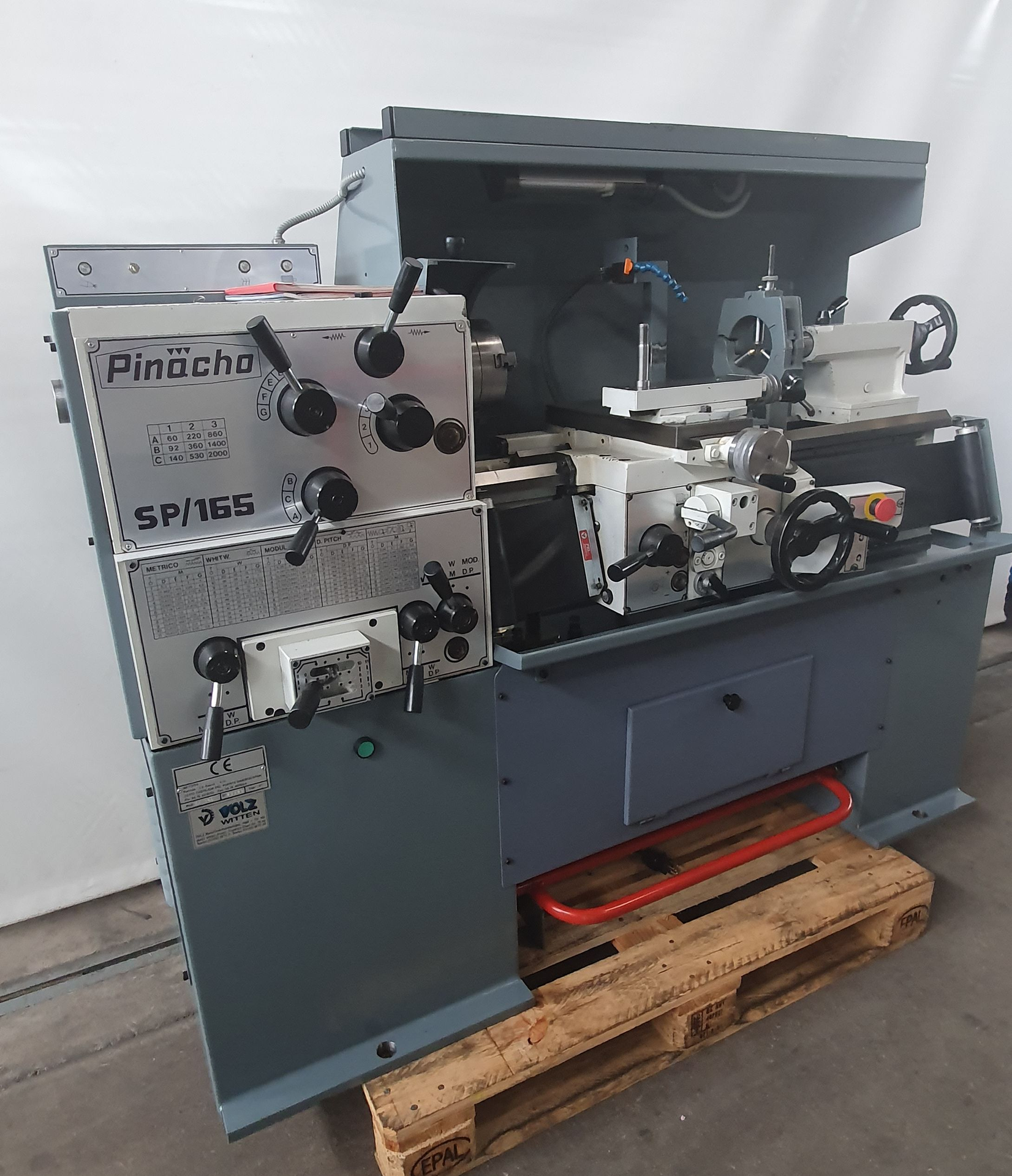

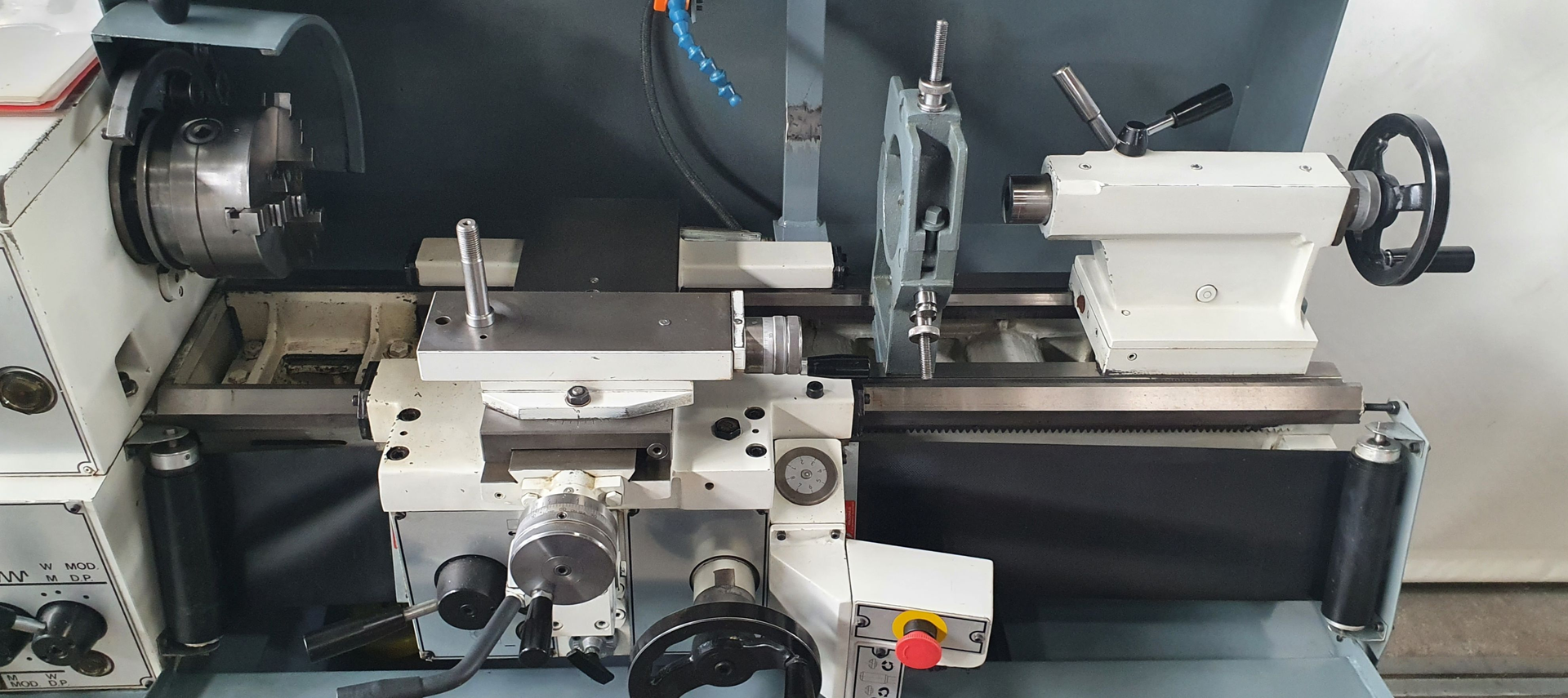

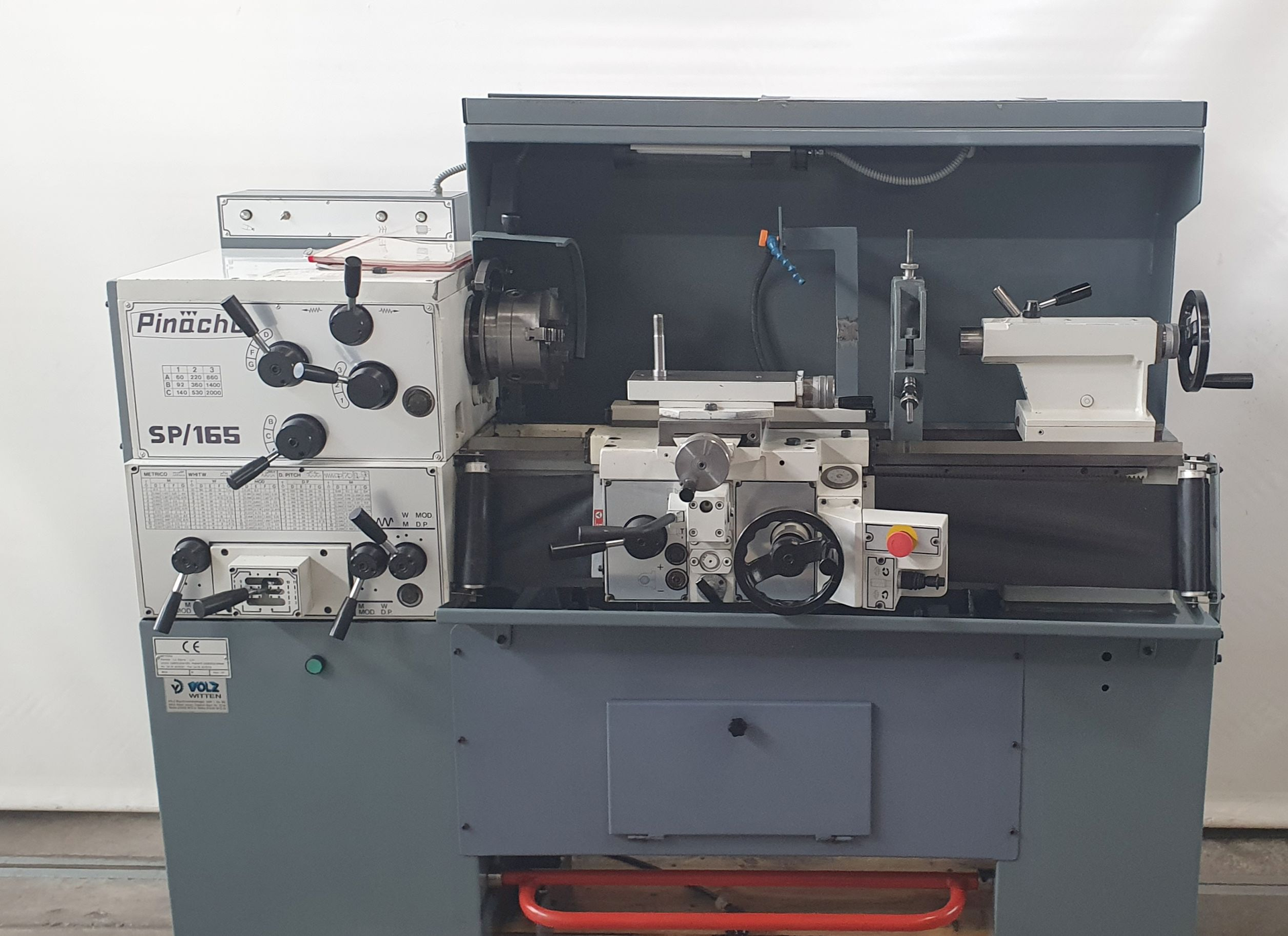

PINACHO SP-165 is a Centre lathe designed for precision machining with high accuracy and reliability. Capacities: centre height 165 mm, distance between centres 750 mm, swing over bed 330 mm, swing in gap 480 mm, gap length 120 mm; spindle hole 42 mm; travels X1 245 mm, Z1 750 mm. Specifications: spindle taper MK4; 12-step spindle speeds 60–2000 t/min; 20-step feeds longitudinal 0.047–1 mm/t; transverse feed from 0.021 mm/t; spindle motor 3 CV; machine weight ~705 kg; overall dims 1710×820×1225 mm. Accessories: 3-jaw chuck Ø160 mm, fixed steady, drilling tailstock. Enables tight tolerances; suitable for automotive, aerospace, watchmaking, medical and machine-tool sectors.
| Centre height | 165 mm |
| Distance between centres | 750 mm |
| Swing over bed | 330 mm |
| Swing in gap | 480 mm |
| Length of the gap | 120 mm |
| Spindle hole | 42 mm |
| Travels: | |
| X1 | 245 mm |
| Z1 | 750 mm |
| Taper in spindelstock MK | 4 |
| Spindle speeds: | |
| number (steps) | 12 |
| from | 60 t/min |
| up to | 2000 t/min |
| Taper in tailstock: | 3 CM |
| Spindle diameter | 48 mm |
| Spindle stroke | 145 mm |
| Feeds: | |
| number (steps) | 20 |
| length: | |
| from | 0.047 mm/t |
| up to | 1 mm/t |
| Frontal: | |
| from | 0.021 mm/t |
| up to | mm/t |
| Spindle motor | 3 CV |
| Machine's weight about | 705 kg |
| Overall dimensions machine: | |
| Length | 1710 mm |
| Width | 820 mm |
| Height | 1225 mm |
| Various accessories: | |
| 3-jaw chuck diameter | 160 mm |
| Fixed steady | |
| Drilling tailstock |
