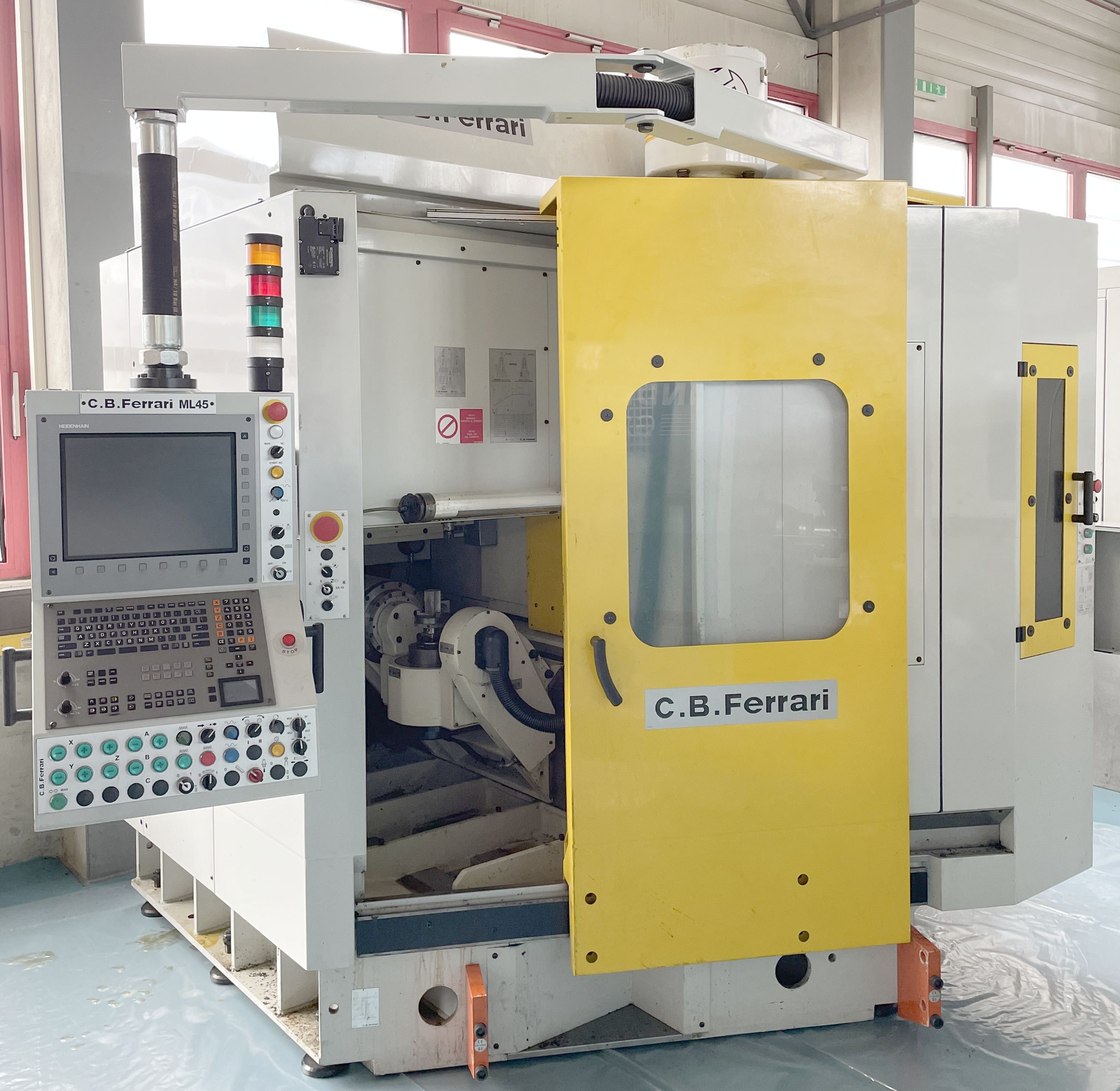

FERRARI C.B. ML 45
Type: ML 45
Manufacturer: FERRARI C.B.
Group: Machining center
Subgroup: 5-axis machining center

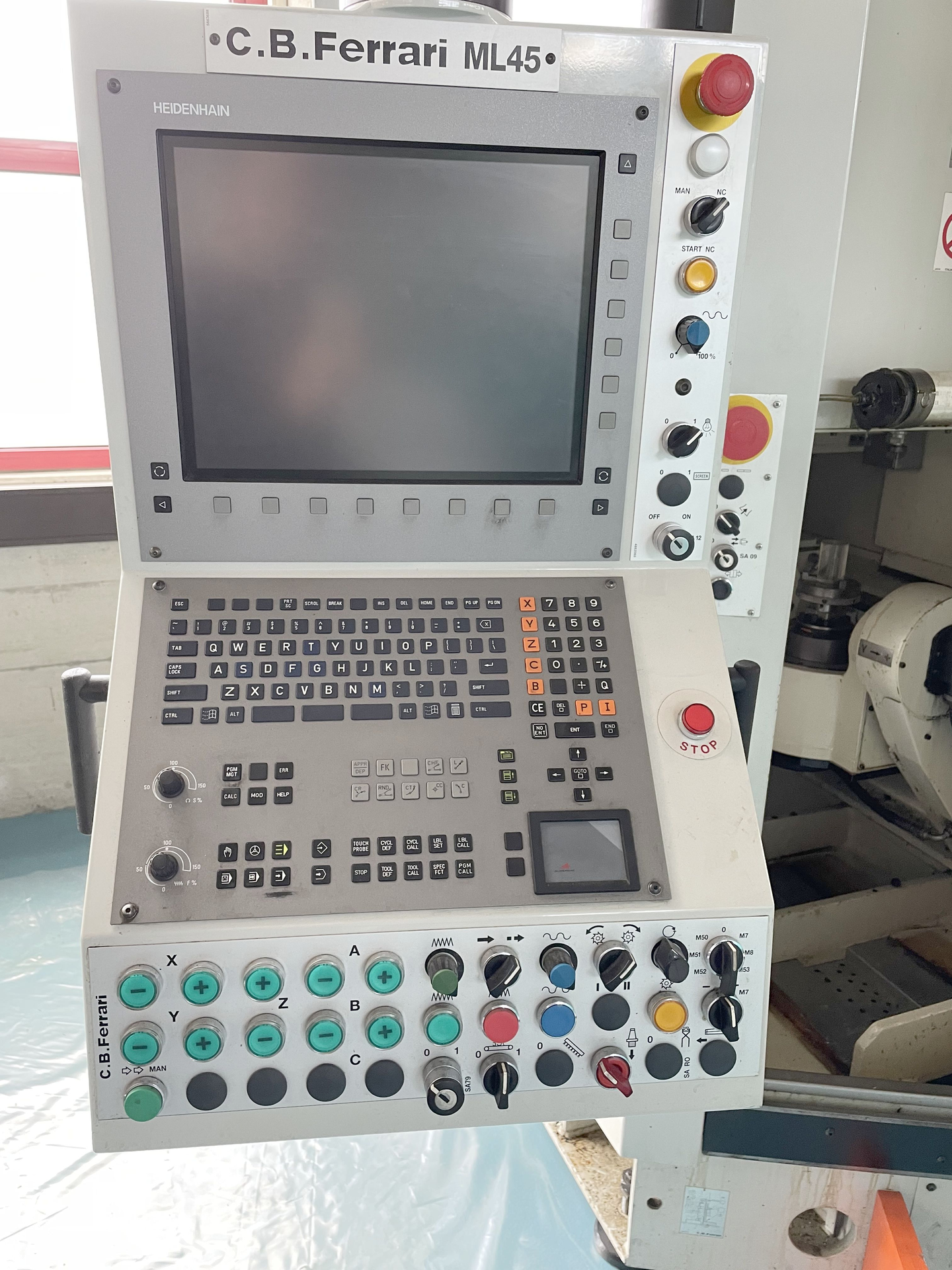

Control: HEIDENHAIN iTNC 530
Year: 2010
Stock: 021996
Special Price
CHF 50 000
Special offer machines are sold as-is, without any warranty or inspection from us.
FERRARI C.B. ML 45 is a 5-axis machining center engineered for precision, high accuracy and reliability. X/Y/Z travel 320 mm; workpiece max 150×150×150 mm; table load 20 kg; A 360°; B ±115°. Spindle ISO V30 0–40000 rpm (stepless); spindle motor 11 kW; feed 60000 mm/min; rapid 60 m/min; 3x400V 50Hz; installed power 35 kW; weight ≈6000 kg; size 2700×2400×2900 mm. 60-position changer, set of toolholders, coolant system, chip conveyor, lamp, oil mist extractor, switch-cabinet AC, status light. Achieves tight tolerances; suited to automotive, aerospace, medical, watchmaking and toolmaking.
| Number of axis simultaneous | 5 |
| Longitudinal travel (X-axis) | 320 mm |
| Transversal travel (y-axis) | 320 mm |
| Vertical travel (z axis) | 320 mm |
| Dimension of the workpice: | |
| Length | 150 mm |
| Width | 150 mm |
| Height | 150 mm |
| Table load max. | 20 kg |

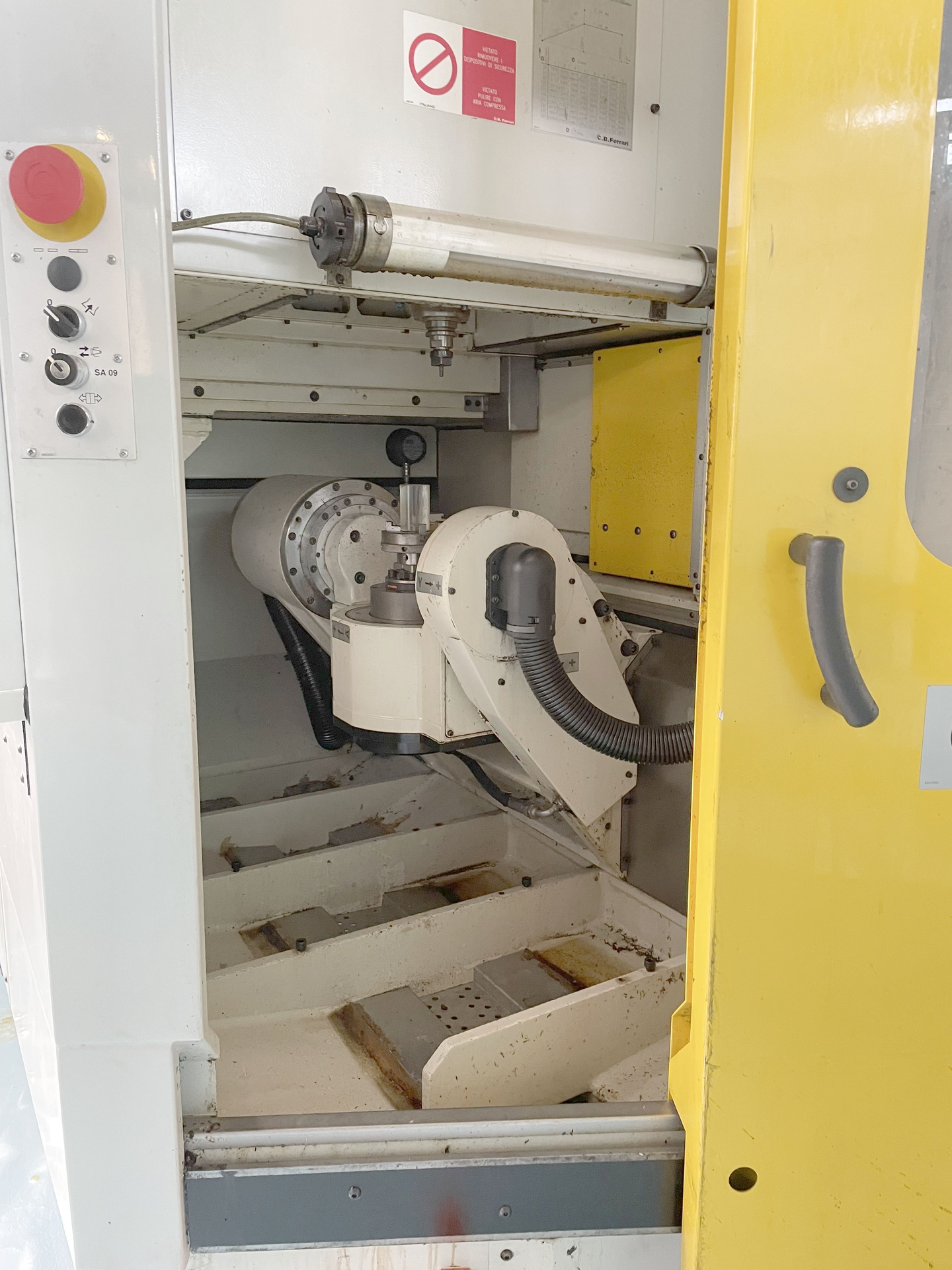

| A axis | 360 ° |
| B axis swivelling range | +/-115 ° |

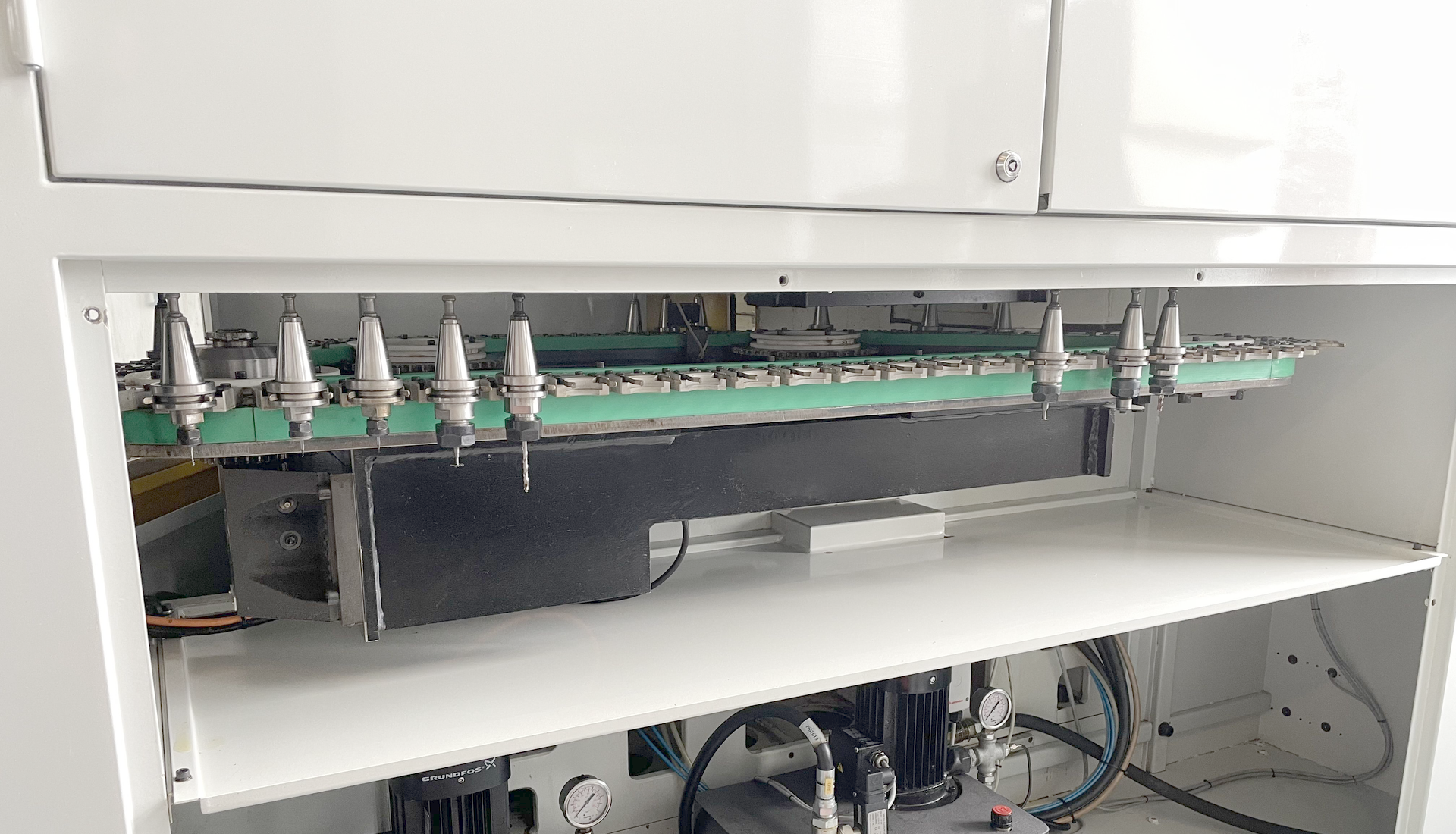

| Tool changer: | |
| Number of tools | 60 |
| Spindle nose: ISO | V 30 |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 40000 t/min |
| Feed range | 60000 mm/min |
| Rapid traverse: | 60 m/min |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 11 kW |
| Total power required | 35 kW |
| Machine's weight about | 6000 kg |
| Overall dimensions machine: | |
| Length | 2700 mm |
| Width | 2400 mm |
| Height | 2900 mm |
| Various accessories: | |
| Set of toolholders | |
| Coolant system | |
| Chip conveyor | |
| Lamp | |
| Oil mist extractor | |
| Switch cabinet Air conditioner | |
| Status light |
