| Time under power | 82274 Heures |
| Operating time | 81288 Heures |
| Number of axis total | 5 |
| Table length | 500 mm |
| Table width | 380 mm |
| Number of T-channels | 5 |
| Distance of the T-slots | 63 mm |
| T-channel width | 14H7 mm |
| Centering bore diameter | 30H7 mm |
| Table load max. | 200 kg |
| Longitudinal travel (X-axis) | 500 mm |
| Transversal travel (y-axis) | 380 mm |
| Vertical travel (z axis) | 380 mm |
| Table load max. | 200 kg |
| Swivel angle (a-axis) | 180 ° |
| B axis | ° |
| Table speeds: | |
| up to | 18 t/min |
| Tool changer: | |
| Number of tools | 24 (2x12) |
| Tool diameter | 80 mm |
| Diameter with free adjacent pockets | 130 mm |
| Tool lenght | 280 mm |
| Max. tool-weight | 6 kg |
| Spindle nose SK | 40 DIN 69871 A |
| Spindle speeds: | |
| from | 20 t/min |
| up to | 8000 t/min |
| Vertical spindle speeds: | |
| stepless | |
| from | 20 t/min |
| up to | 8000 t/min |
| Feed range | 10000 mm/min |
| Rapid traverse: | 30 m/min |
| Vertical quill travel | 90 mm |
| Air connect | 6 bar |
| Voltage 50 Hz 3x | 400 Volt |
| Spindle motor | 15 / 10 kW |
| Torque max. | 130 / 87 Nm |
| Total power required | 26 kVA |
| Machine's weight about | 3500 kg |
| Overall dimensions machine: | |
| Length | 2450 mm |
| Width | 1800 mm |
| Height | 2380 mm |
| Various accessories: | |

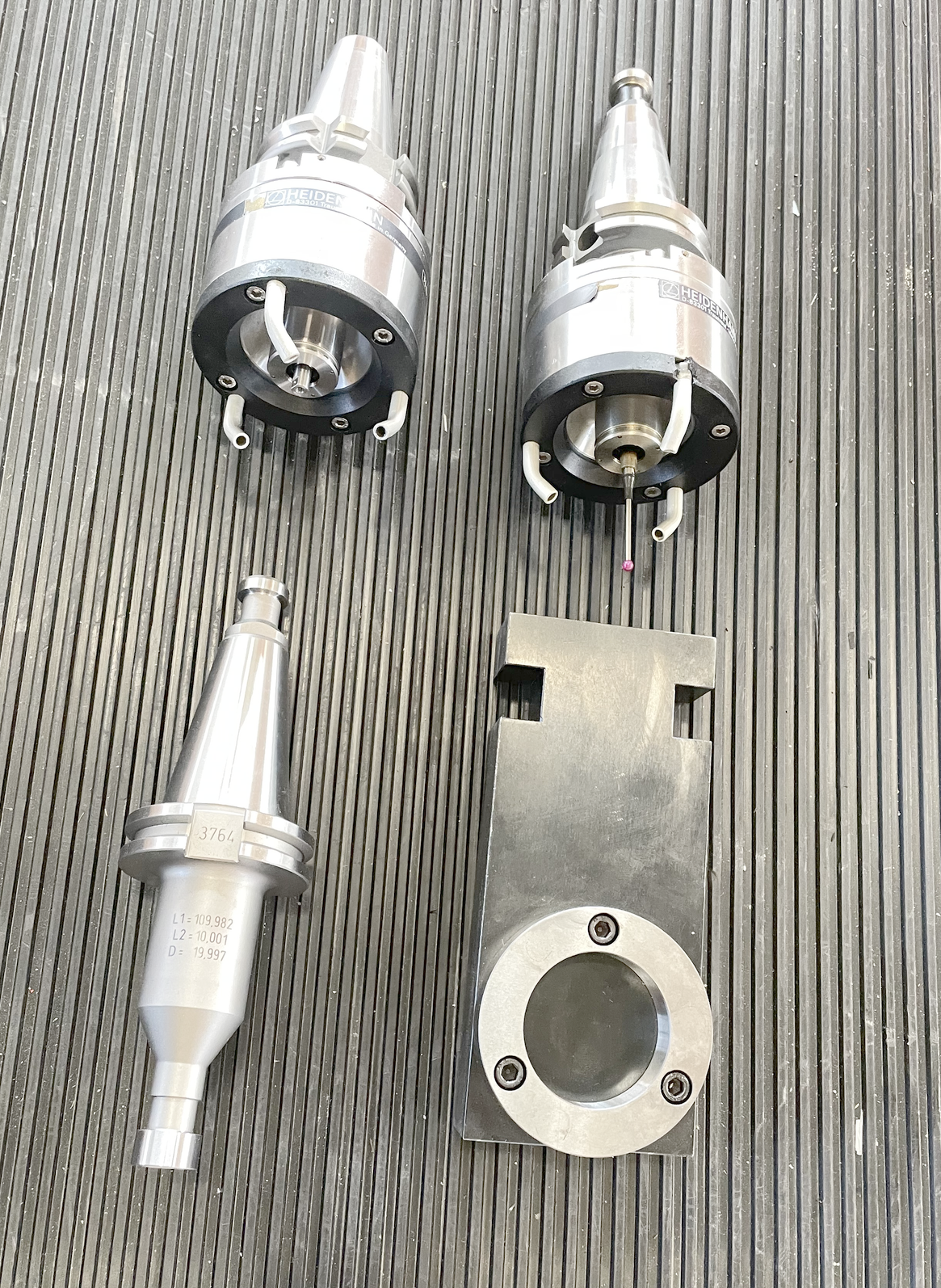

| Touch Probe | HEIDENHAIN |
| Handwheel electroinic | |
| Lamp | |
| Rotating viewing window | |
| Interface serial port RS 232 | |
| Switch cabinet Air conditioner |
