021975 - SCHAUBLIN 180 CCN R-T
Download technical sheet (PDF)
Message us on WhatsApp
| Centre height | 275 mm |
| Distance between centres | 600 mm |
| Swing over cross-slide | 150 mm |
| Swing over bed | 600 mm |
| Maximum turning length | 630 mm |
| Bar passage | 60 mm |
| Carriage: | |
| Longitudinal travel (Z-axis) | 672 mm |
| Transversal strocke (X axis) | 230 mm |
| Resolution | mm |
| Turret slide: number | |
| Number of positions turret 1 | 12 |
| Fixed tools turret 1 | 12 |
| Inner cone diameter | 20 x 20 mm |
| Inner cone DIN | VDI 30 |
| Taper in spindle: | |
| Camlock | A2-6 |
| C axis (spindle,resolution) | 0.001 ° |
| Spindle speeds: | |
| stepless | |
| from | 30 t/min |
| up to | 4000 t/min |
| Internal spindle diameter | 60 mm |
| Feeds | 0 - 5000 mm/min |
| Rapid traverse X | 8 m/min |
| Rapid traverse Y | 10 m/min |
| Spindle motor | 15 / 18.5 kW |
| Air connect | 5 - 7 bar |
| Flow rate cooling water pump | 10 l/min |
| Voltage 50 Hz 3x | 400 Volt |
| Noise level | 75 dB (A) |
| Total power required | 24 kVA |
| Machine's weight about | 2460 kg |
| Overall dimensions machine: | |
| Length | 2301 mm |
| Width | 1460 mm |
| Height | 1676 mm |
| Various accessories: | |
| 3-jaw chuck diameter | 170 mm |
| 3-jaw chuck diameter | 200 mm |
| 4-jaw chuck diameter | 200 mm |
| Set of soft jaws | |
| Set of hard jaws | |
| Travelling steady | |
| Fixed steady | |
| Collet device | |
| Set of collets | B45 |
| Lamp | |
| Starwheel-operatet tailstock | |
| Tool cabinet | |
| Centering microscop | |
| Set of centers | |
| Rotary centre | |
| Interface serial port RS 232 | |
| Foot pedal | |

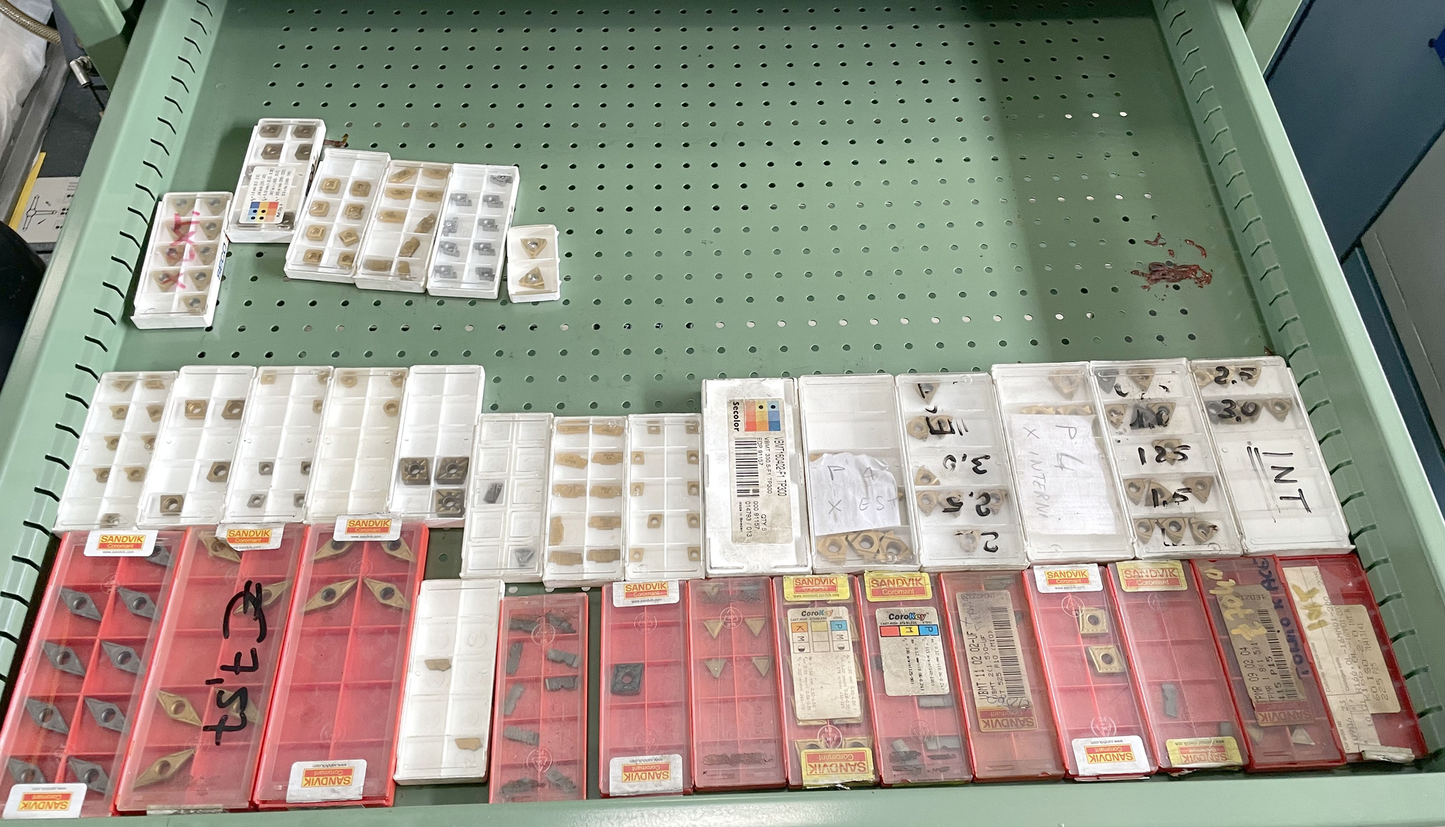

| Set of tools | |
| Set of steel holders | |
| Toolholders | |
| Set of toolholders |
