FINETECH SMV 1370 H3L
Download technical sheet (PDF)
Need Assistance? Just WhatsApp Us!
FINETECH SMV 1370 H3L is a 3-axis machining center designed for precision machining with high accuracy and reliability. Table 1450×700 mm (5 T‑slots, 100 mm spacing, 18 mm width), table load max 1500 kg; travels X1300 Y700 Z700 mm; spindle nose to table 130–830 mm; tool magazine 30 places. Stepless spindle 0–12,000 rpm, rapid traverse 25 m/min, spindle motor 18.5 kW, total power 45 kVA; weight ≈9000 kg; dims L4188×W2414×H2560 mm. Key equipment: coolant system 510 l, coolant through spindle 20 bar, chip conveyor, spindle oil cooler, spindle cooling, central lubrication, switch‑cabinet AC. Enables tight tolerances; suitable for automotive, watchmaking, machine tools, aerospace and medical sectors.
| Number of axis total | 3 |
| Table length | 1450 mm |
| Table width | 700 mm |
| Number of T-channels | 5 |
| Distance of the T-slots | 100 mm |
| T-channel width | 18 mm |
| Table load max. | 1500 kg |
| Longitudinal travel (X-axis) | 1300 mm |
| Transversal travel (y-axis) | 700 mm |
| Vertical travel (z axis) | 700 mm |
| Tool magazine number of tool places | 30 |
| Spindle nose: BT | 40 |
| Distance spindle nose to table | 130 - 830 mm |
| Spindle speeds: | |
| stepless | |
| from | 0 t/min |
| up to | 12000 t/min |
| Rapid traverse: | 25 m/min |
| Spindle motor | 18.5 kW |
| Total power required | 45 kVA |
| Machine's weight about | 9000 kg |
| Overall dimensions machine: | |
| Length | 4188 mm |
| Width | 2414 mm |
| Height | 2560 mm |

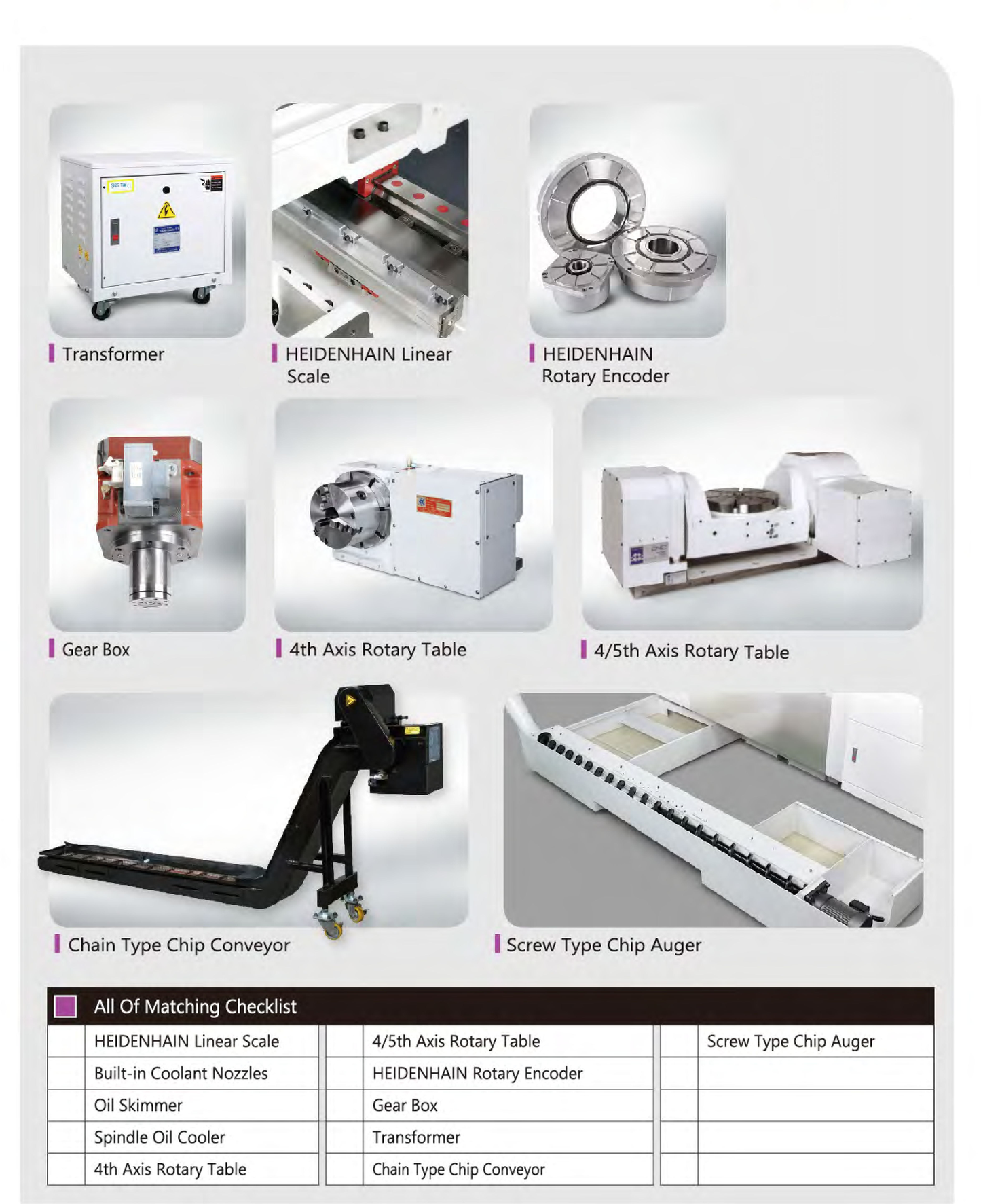

| Various accessories: | |
| Linear Axes direct driven | |
| Coolant system | |
| Coolant system | 510 l |
| Coolant through spindle (cts) | 20 bar |
| Spindle blow out device | |
| Chip conveyor | |
| Handwheel electroinic | |
| Lamp | |
| Spindlecooling | |
| Spindle oil cooler | |
| Rinsing Guns | |
| Blow-off Guns | |
| Automatic switch off | |
| Central lubrification | |
| Switch cabinet Air conditioner | |
| Status light |
