021934 - AMADA GPX 840
Type: GPX 840
Manufacturer: AMADA

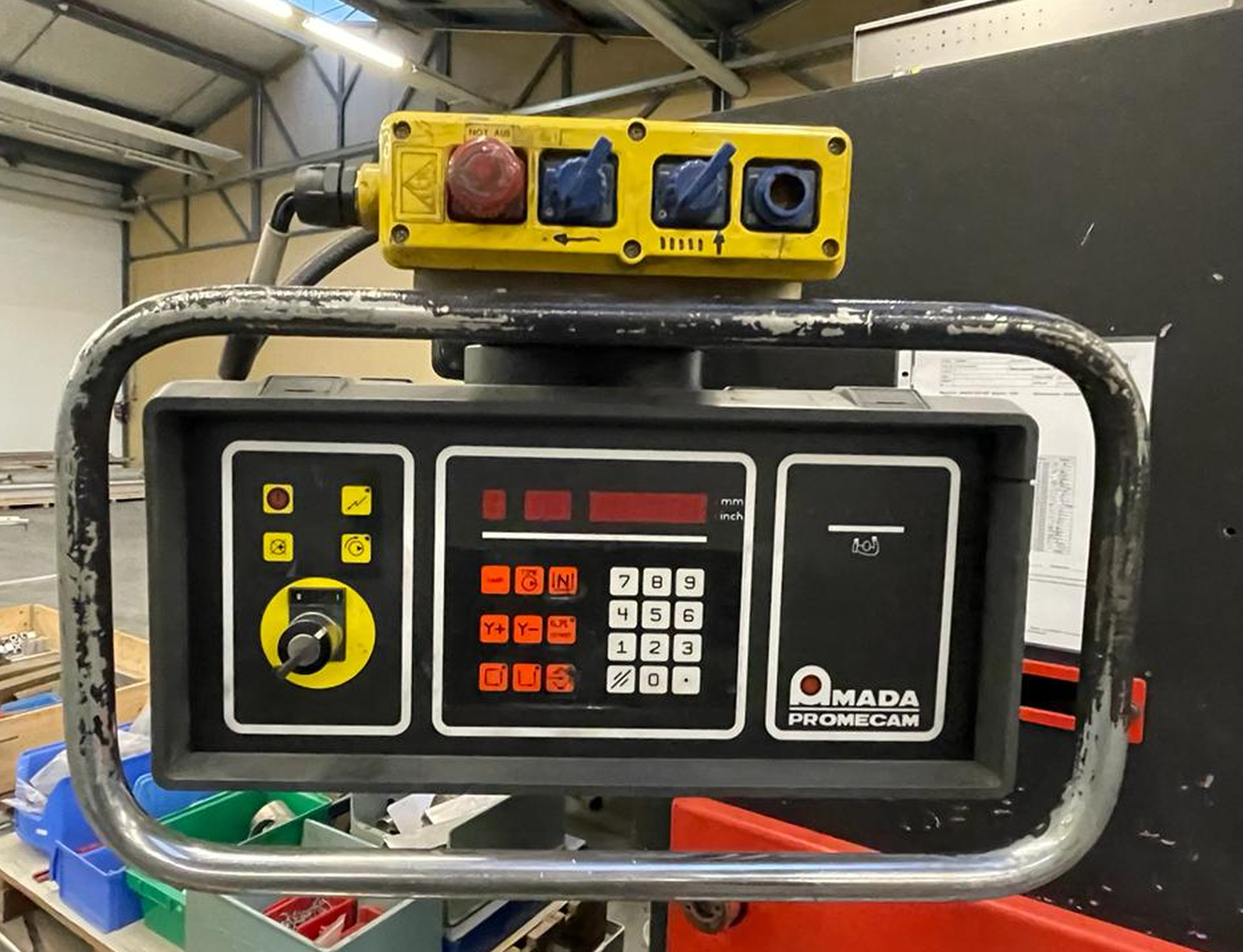

Control: PROMECAM
Stock: 021934

Special Price

CHF 24 000

Special offer machines are sold as-is, without any warranty or inspection from us.

Download technical sheet (PDF)
AMADA GPX 840 is a CNC plate / guillotine shear, engineered for precision, high accuracy and reliability. Cutting length 4050 mm; material thickness max 8 mm (chrome‑nickel steel 6 mm); cutting angle 2–10°; table length 710 mm. Main specs: shearing force 271 kN; stop regulation speed 100 mm/sec; voltage 50 Hz 3x 380 V; machine weight approx. 10000 kg; overall dimensions L4752 × W2112 × H2065 mm. Hydraulic execution. Achieves tight tolerances; typical sectors: automotive, machine tools, aerospace, medical.

Cutting length 4050 mm
Execution:
hydraulic
Cutting angle 2 - 10 °
Cutting capacity:
Material thickness 8 mm
Chrome-nickel steel 6 mm
Table length 710 mm
Cutting speed m/s
Stop regulation speed 100 mm/sec
Shearing force 271 kN
Voltage 50 Hz 3x 380 Volt
Machine's weight about 10000 kg
Overall dimensions machine:
   Length 4752 mm
   Width 2112 mm
   Height 2065 mm
