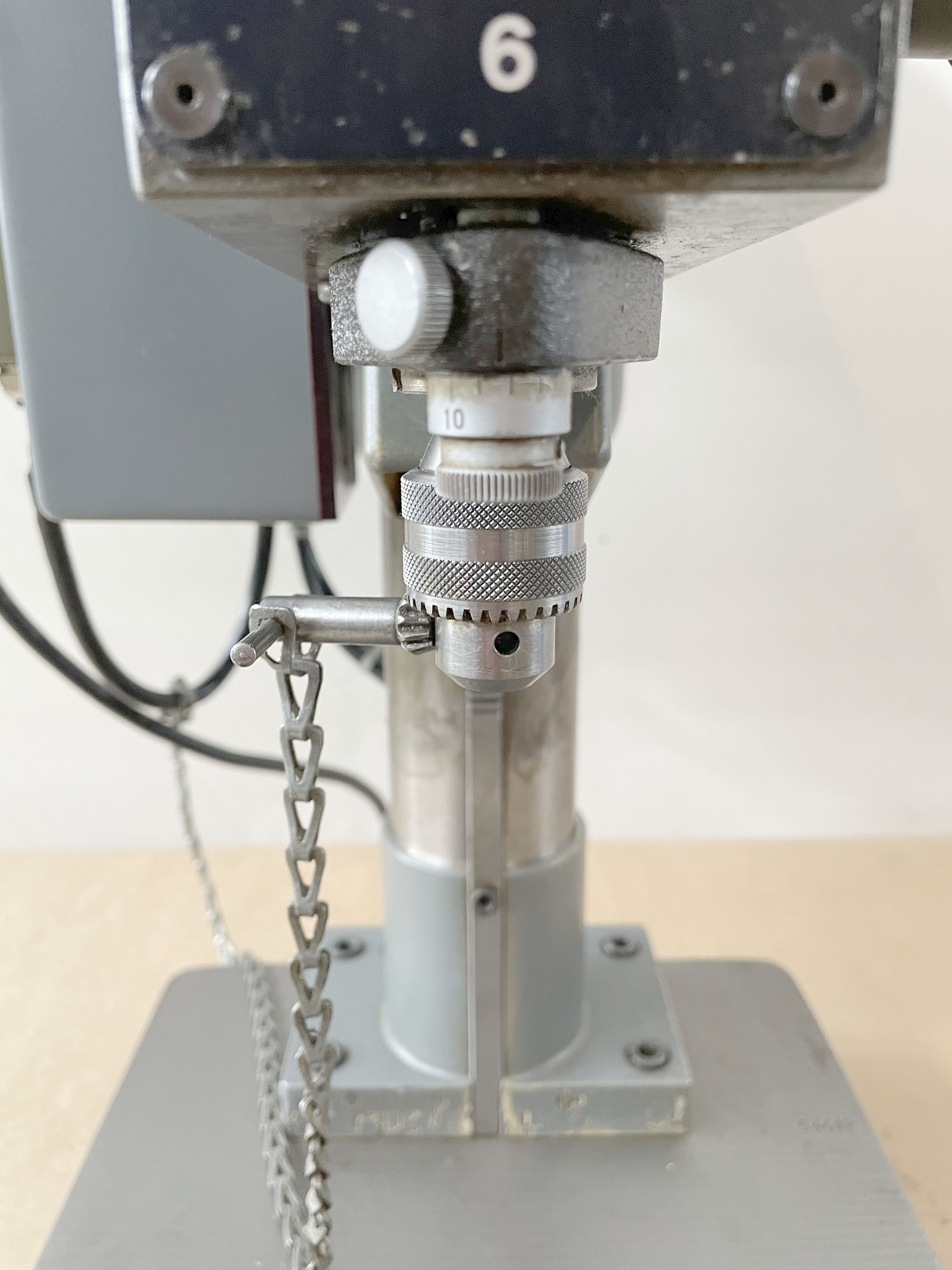

            ACIERA 6 is a bench drill engineered for high precision, accuracy and reliability. Drill capacity in steel 6 mm; table 310×280 mm; T-channel width 8 mm; depth of throat 150 mm; spindle stroke 50 mm; drill chuck 0–6.5 mm; spindle speeds 8 steps from 160 to 6000 rpm. Voltage 50 Hz 3x 120 V; power 0.3 CV; machine weight approx. 50 kg; dimensions L600×W350×H650 mm. Accessories: drill chuck and thread cutting device. Enables tight tolerances; suitable for automotive, watchmaking, machine tools, aerospace and medical sectors.


| Drill capacity in steel | 6 mm |
| Table length | 310 mm |
| Table width | 280 mm |
| T-channel width | 8 mm |
| Depth of throat | 150 mm |
| Spindle stroke | 50 mm |
| Spindle speeds: | |
| number (steps) | 8 |
| from | 160 t/min |
| up to | 6000 t/min |
| Voltage 50 Hz 3x | 120 Volt |
| Power | 0.3 CV |
| Machine's weight about | 50 kg |
| Overall dimensions machine: | |
| Length | 600 mm |
| Width | 350 mm |
| Height | 650 mm |
| Various accessories: | |
| Drill chuck | 0 - 6.5 mm |
| Thread cutting device |
