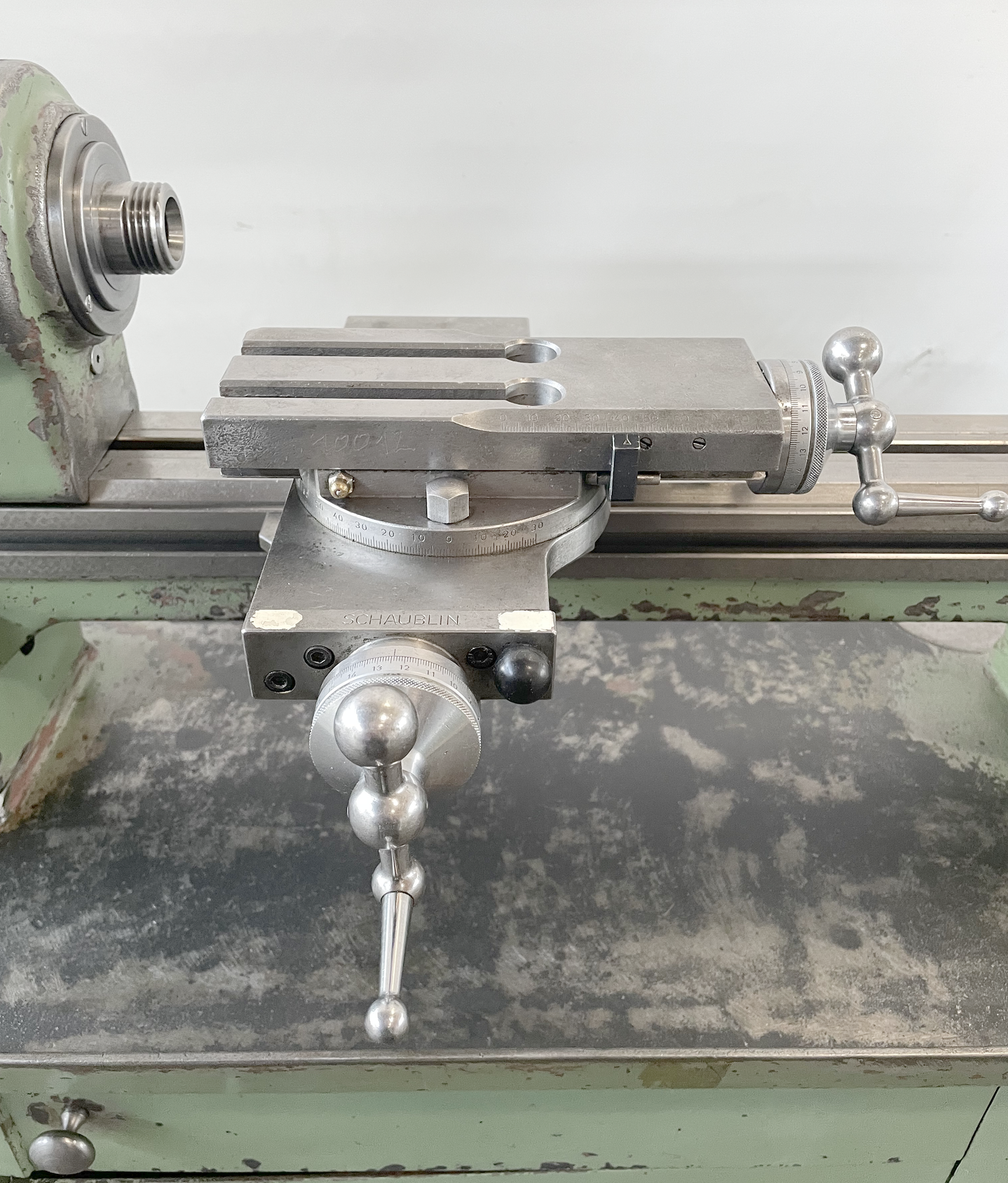

021889 - SCHAUBLIN 102-604
Download technical sheet (PDF)
Message us on WhatsApp
| Centre height | 102 mm |
| Distance between centres | 375 mm |
| Swing over cross-slide | 120 mm |
| Swing over bed | 200 mm |
| Inner taper type | 20 W |
| Taper spindle threaded | |
| Spindle speeds: | |
| number (steps) | 12 |
| from | 40 t/min |
| up to | 3000 t/min |
| Taper in tailstock: | 2 CM |
| Voltage 50 Hz 3x | 380 Volt |
| Spindle motor | 1.5 CV |
| Total power required | 2 CV |
| Machine's weight about | 500 kg |
| Overall dimensions machine: | |
| Length | 1200 mm |
| Width | 600 mm |
| Height | 1300 mm |
