| 1 column execution | |
| Table: | |
| Table length | 610 mm |
| Table width | 280 mm |
| Travels: | |
| Longitudinal travel (X-axis) | 450 mm |
| Transversal travel (y-axis) | 280 mm |
| Vertical travel (z axis) | 320 mm |
| Spindle stroke | 92 mm |
| Regolazione angolare del cannotto | 2 ° |
| Distance from spindle-center to vertical slide | 250 mm |
| Max. grinding diameter | 127 mm |
| with display-plate | 304 mm |
| Stroke of spindle-nose | 340 mm |
| Main spindle: | |
| Spindle speeds | 25 - 225 t/min |
| grinding spindle: | |
| speeds: | |
| from | 6000 t/min |
| up to | 175000 t/min |
| Grinding range | 0.4 - 90 mm |
| Air connect | 7 bar |
| Voltage 50 Hz 3x | 380 Volt |
| Machine's weight about | 1900 kg |
| Overall dimensions machine: | |
| Length | 2200 mm |
| Width | 1800 mm |
| Height | 2600 mm |
| Various accessories: | |

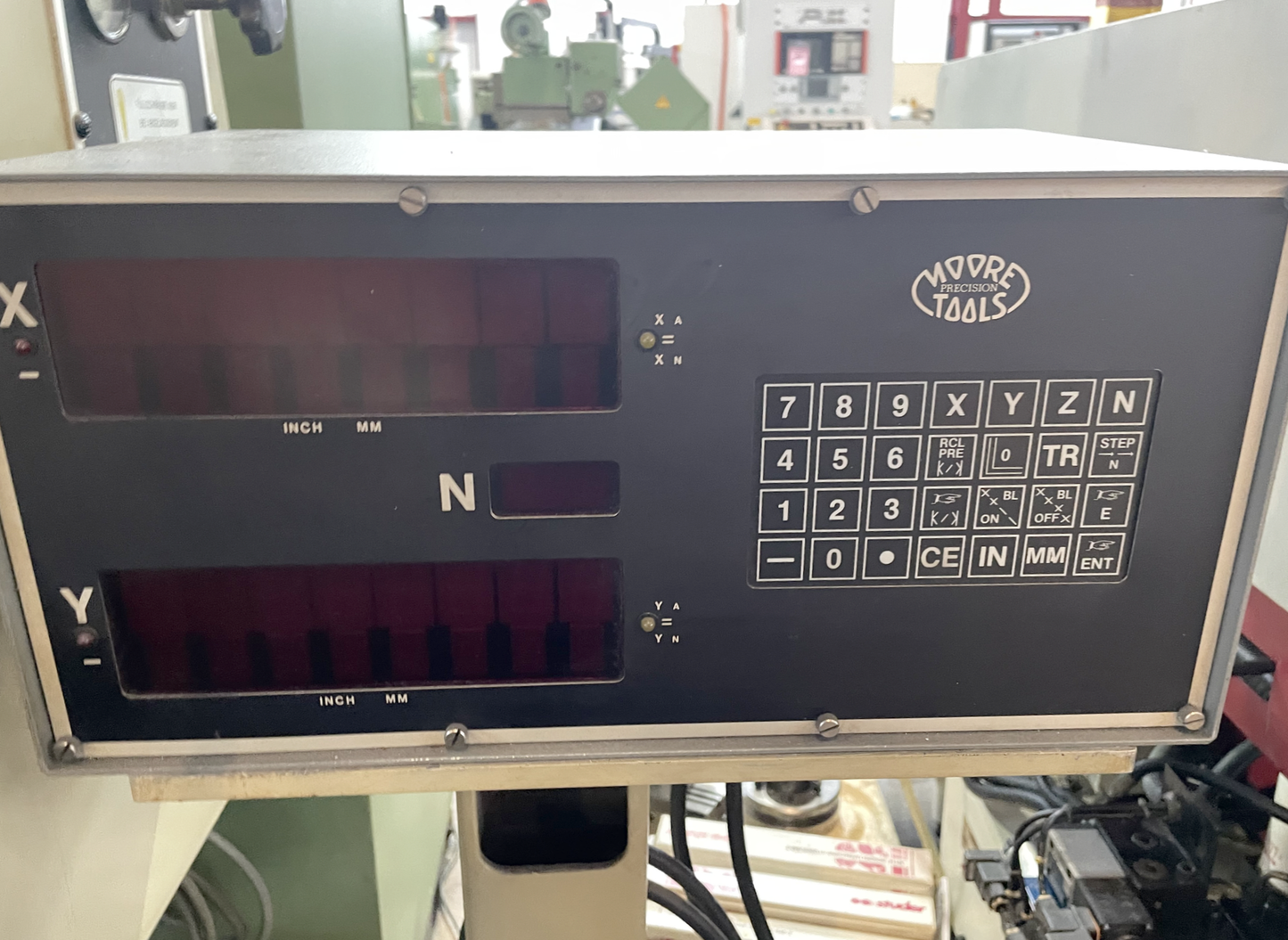

| Digital readout number of axis: | 2 |
| Lamp |
