| Centre height | 80 mm |
| Distance between centres | 400 mm |
| Max. Longitudinal travel | 420 mm |
| Max. transversal travel | 30 mm |
| Grinding wheel: | |
| Diameter | 350 mm |
| Width | 30 mm |
| Bore | 127 mm |
| Grinding wheel speeds: | |
| number (steps) | 3 |
| stepless | |
| from | 1600 t/min |
| up to | 2200 t/min |
| Peripheral speed | 30 m/s |
| Angular displacement | +15 / + 30 ° |
| Work piece spindle head: | |
| speeds: | |
| number (steps) | 4 |
| from | 80 t/min |
| up to | 800 t/min |
| Swivelling range | 0 - 90 ° |
| Inner taper type | W20 |
| Spindle taper | 4 CM |
| Table angular displacement | 30 ° |
| Table speed: | |
| stepless | |
| from | m/min |
| up to | 4 m/min |
| Voltage 50 Hz 3x | 380 Volt |
| Air connect | 5 bar |
| External Grinding wheel motor | 3 kW |
| Workpiece spindle motor | 1 kW |
| Machine's weight about | 1000 kg |
| Overall dimensions machine: | |
| Length | 1500 mm |
| Width | 1100 mm |
| Height | 1500 mm |

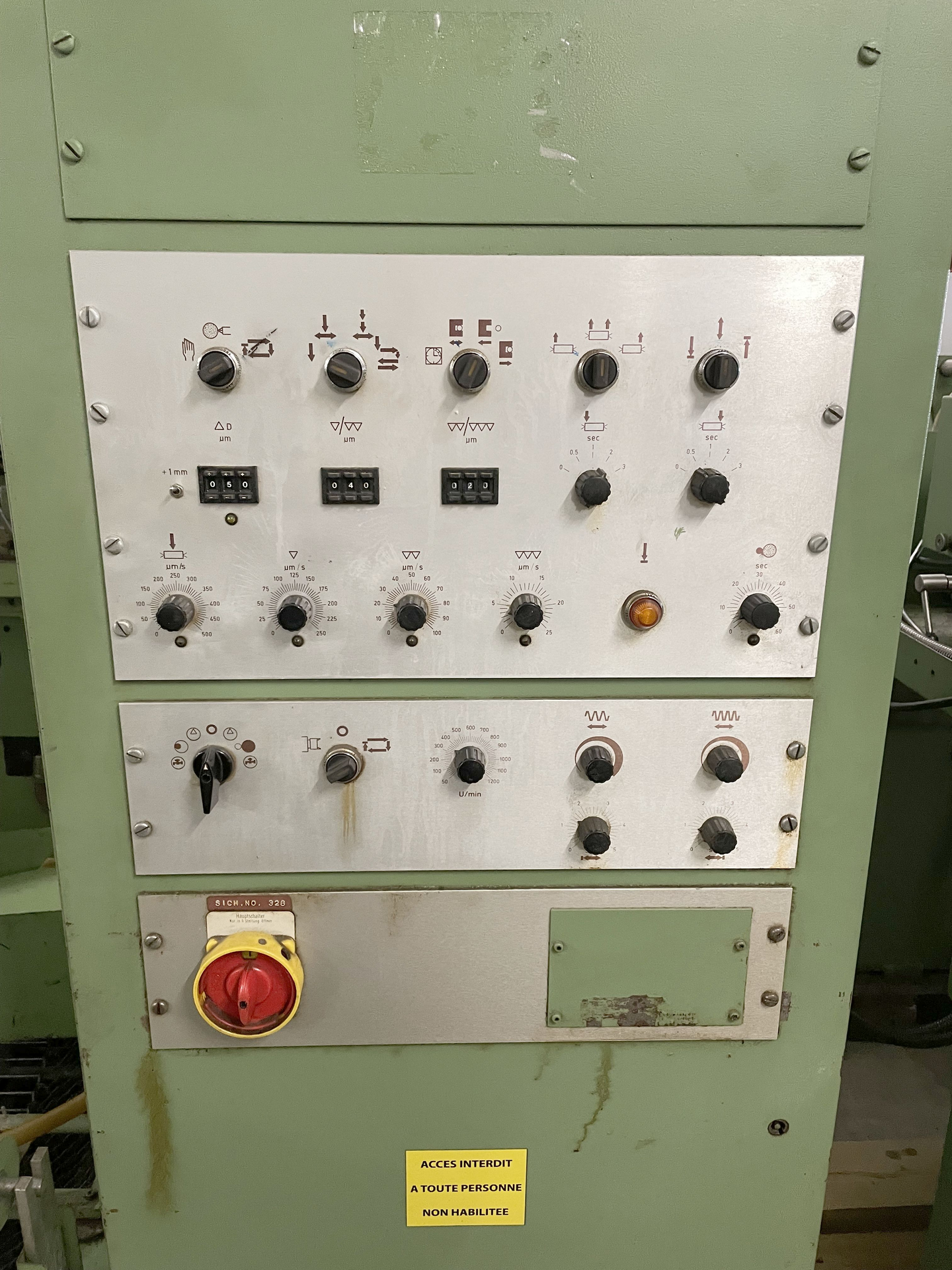

| Dimensions of the control: | |
| Length | 600 mm |
| Width | 600 mm |
| Height | 1700 mm |
| Various accessories: | |
| Coolant system | |

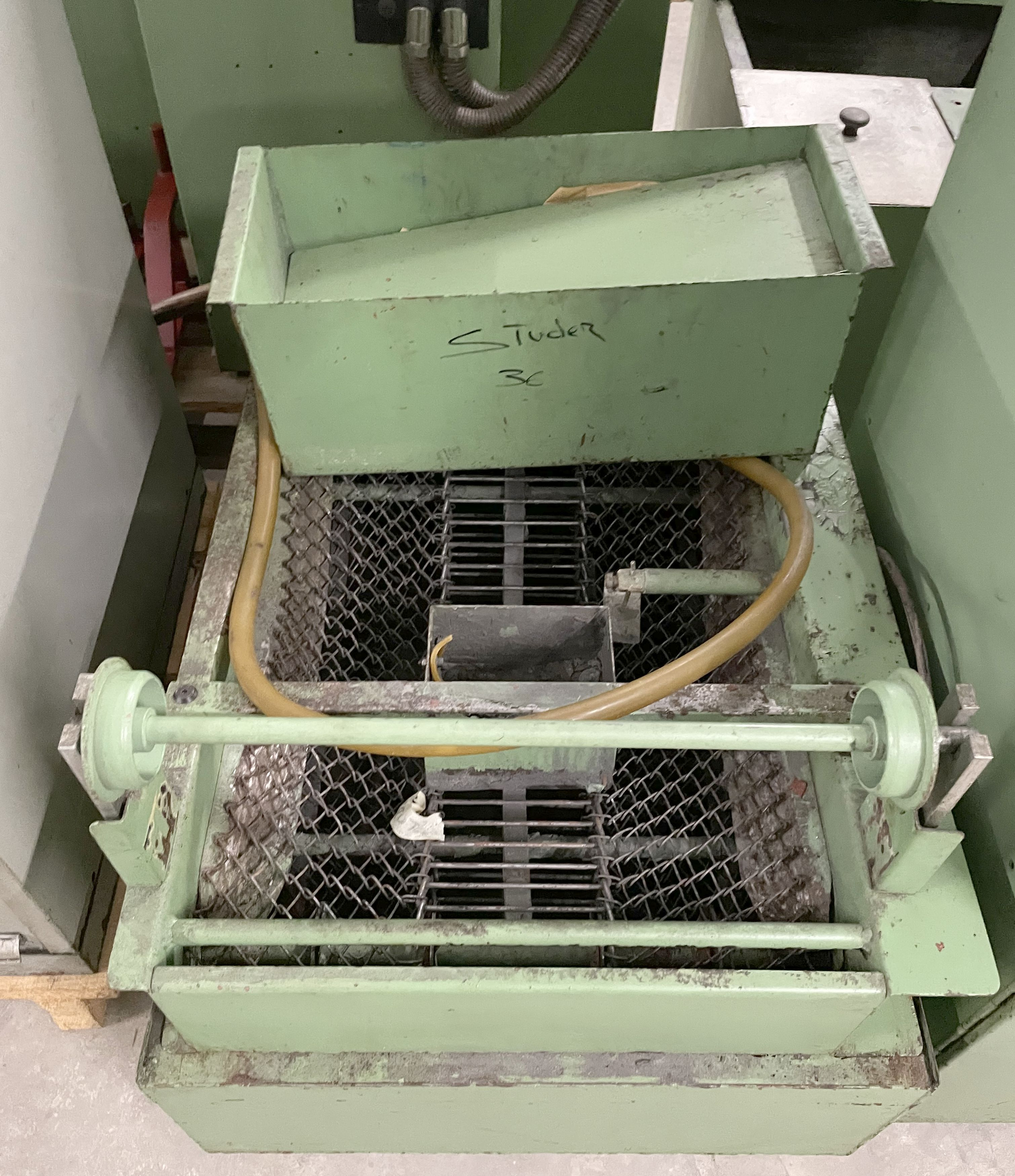

| Paper filtration system | |

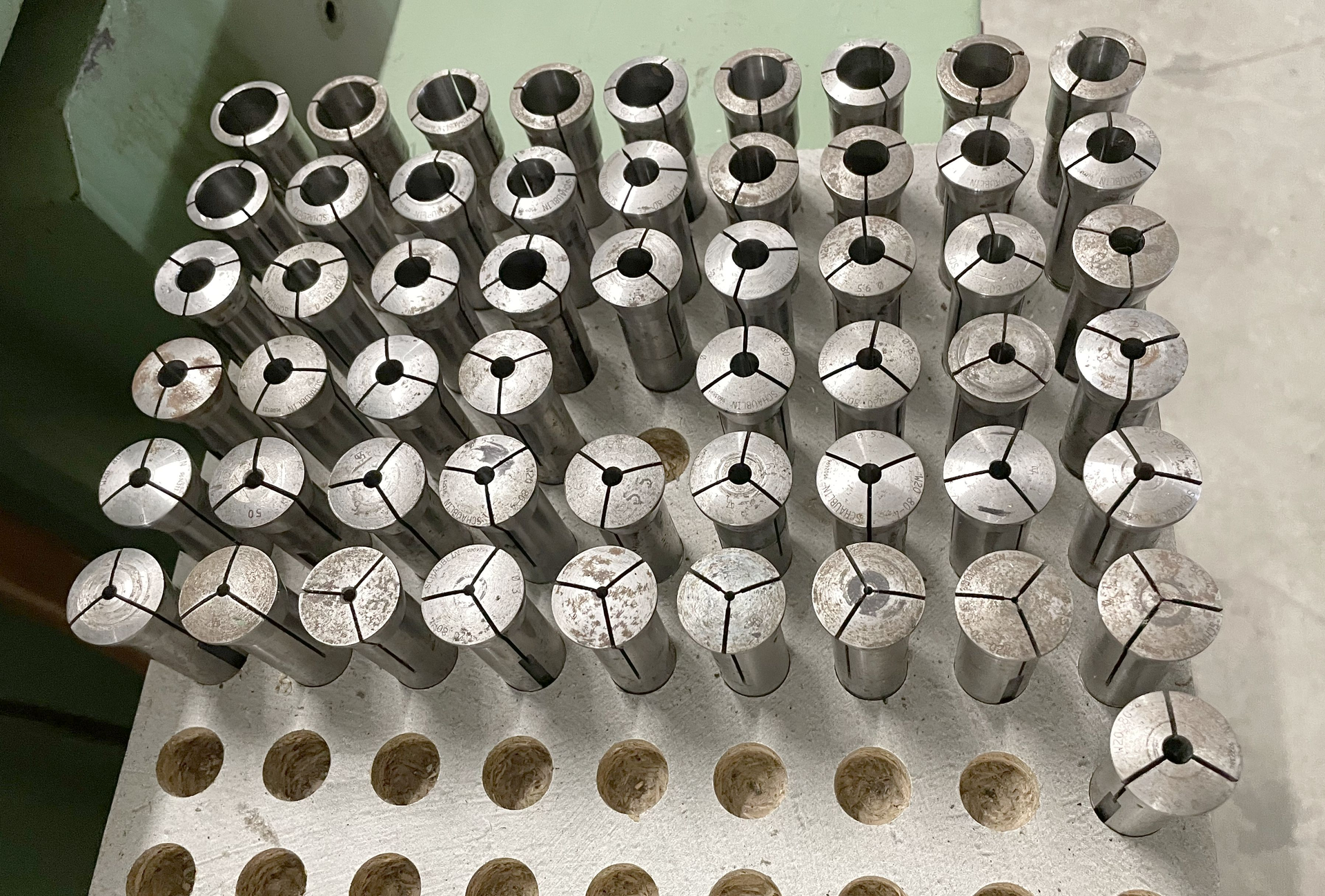

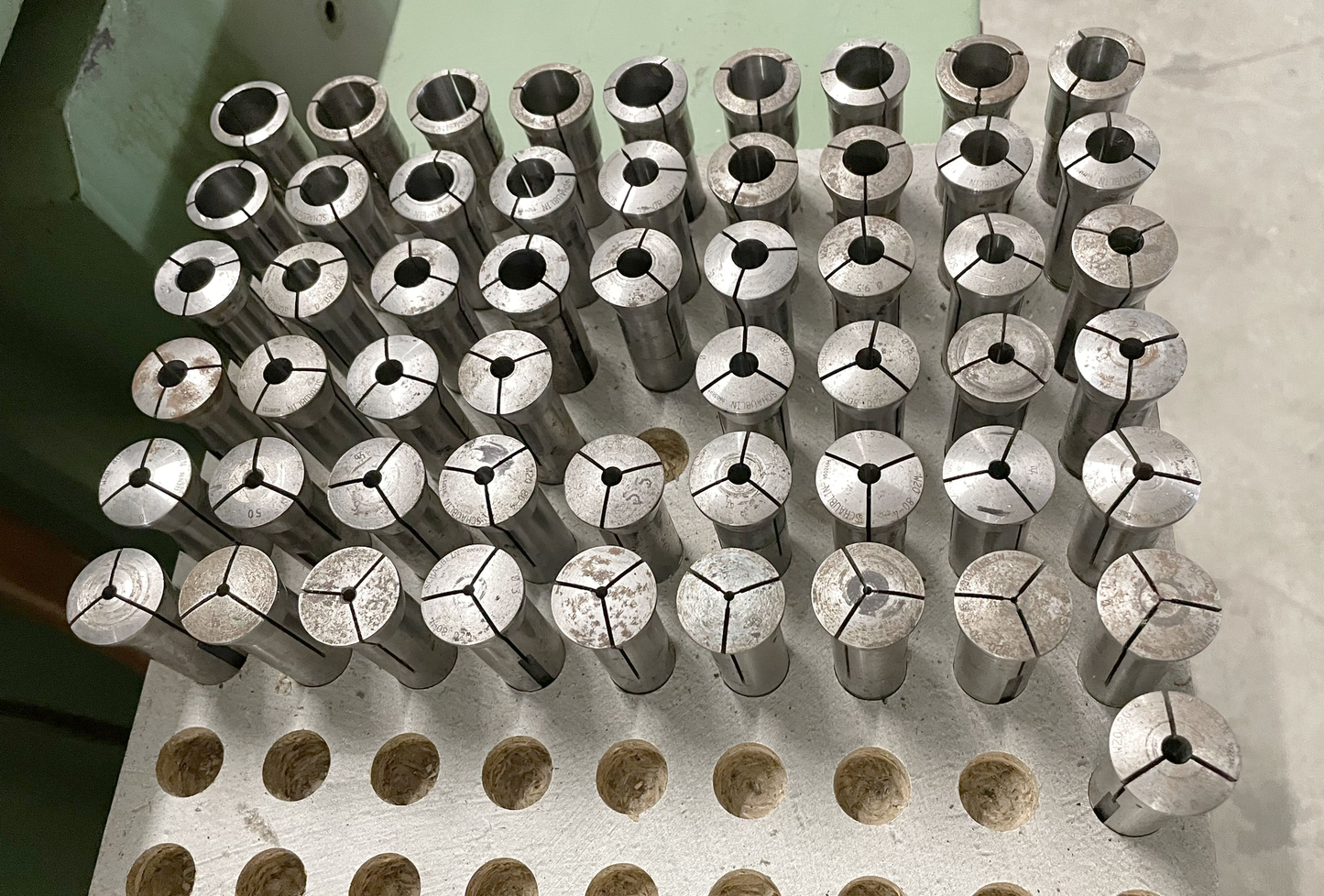

| Set of collets | |
| Notes: | |
| without tailstock |
